AERO Manufacturing 3F1-2424-18LR One-Compartment Stainless Steel Sink, 24 x 24 x 14 in Bowl, Left & Right Drainboards, 8-3/4 in Backsplash

SKU: 3F1-2424-18LR
$2,747.03
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

1-compartment Sinks AERO Manufacturing Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations

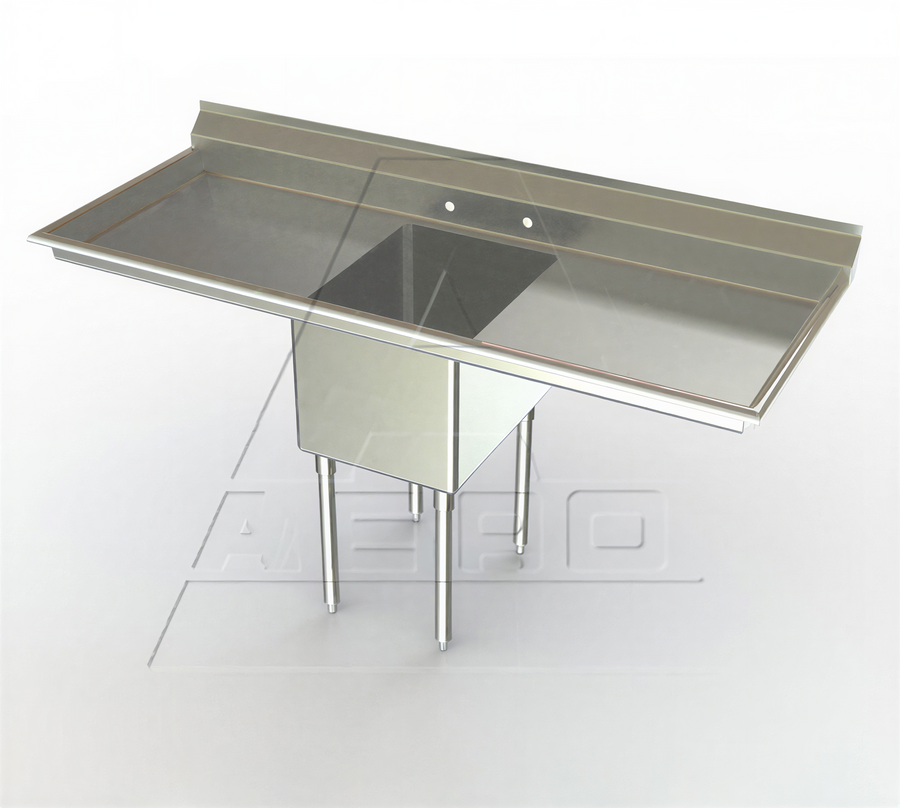

The AERO Manufacturing 3F1-2424-18LR is a Delux™ one-compartment sink with a 24 x 24 x 14 in fabricated compartment and 18 in drainboards on the left and right.

  • 16/304 stainless steel construction with raised rolled edges on the front and sides.
  • 8-3/4 in backsplash with 8 in on-center splash-mount faucet holes.
  • 16/304 stainless steel legs with adjustable white metal feet.
  • Fully welded stainless steel gussets and Aero Hemmed Safety Edge™.
  • KD construction and NSF certification.

Overall Dimensions:

63.0"W x 30.0"D x 41.25"H

Product Weight:

105.0 lb

One-compartment design

Includes one fabricated compartment measuring 24 in wide x 24 in front-to-back x 14 in deep.

Left and right drainboards

Includes an 18 in drainboard on each side of the compartment.

Stainless steel construction

The sink is specified with 16/304 stainless steel construction and a 16-gauge top.

Backsplash and faucet holes

Features an 8-3/4 in backsplash with 8 in on-center splash-mount faucet holes.

Raised rolled edges

Raised rolled edges are provided on the front and sides.

Welded gussets

Fully welded stainless steel gussets support the sink structure.

Adjustable feet

The 16/304 stainless steel legs have adjustable white metal feet.

Aero Hemmed Safety Edge™

The sink uses the specified Aero Hemmed Safety Edge™.

KD construction

The product is specified for KD assembly.

Product type Delux one-compartment sink
Construction 16/304 stainless steel
Overall width 63 in
Overall depth 30 in
Overall height 41-1/4 in
Compartment width 24 in
Compartment front-to-back 24 in
Compartment depth 14 in
Drainboards 18 in on the left and 18 in on the right
Backsplash height 8-3/4 in
Faucet hole spacing 8 in on center
Top gauge 16 gauge
Top stainless series 300 series
Base type Legs
Leg material 16/304 stainless steel
Feet Adjustable white metal
Assembly KD
Weight 105 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The sink measures 63 in wide x 30 in deep x 41-1/4 in high.
The fabricated compartment measures 24 in wide x 24 in front-to-back x 14 in deep.
Yes. It has an 18 in drainboard on both the left and right sides.
The sink has 8 in on-center splash-mount faucet holes.
The legs are 16/304 stainless steel and have adjustable white metal feet.
Yes. NSF is specified for this product.
