Key specifications

Dimensions
46.3"W × 30.0"D × 41.25"H
Type
Compartment Sink
Style
Delux
Installation Type
Floor Model
Material
304 Stainless Steel
Finish
#4 Blended
Spec sheet
AERO SKU: 3F1-2418-24L

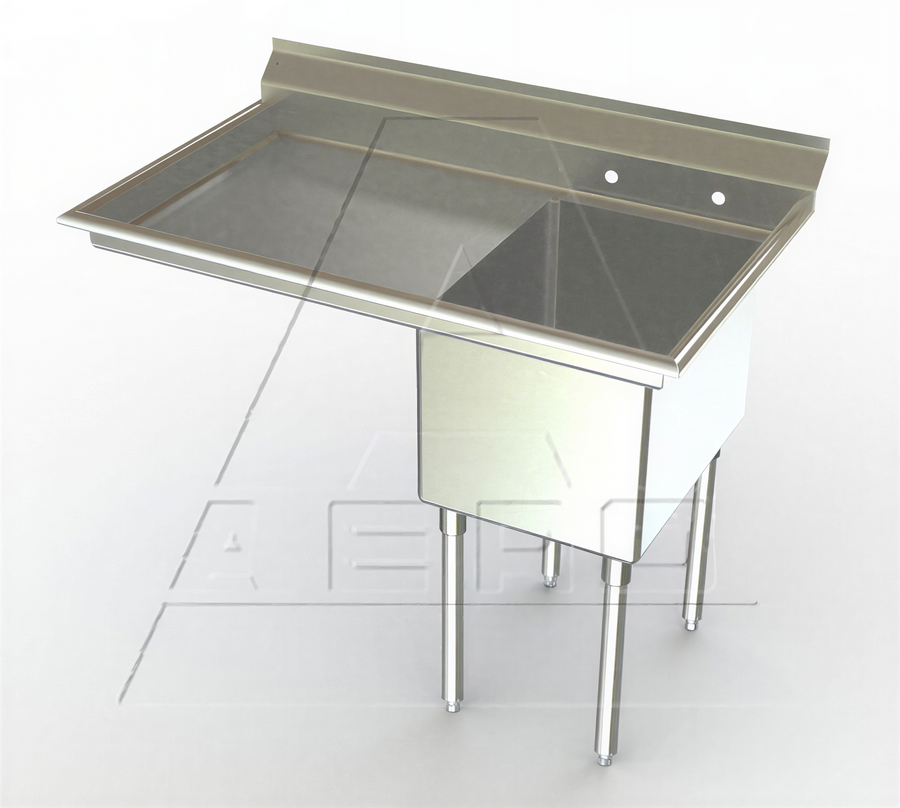

AERO 3F1-2418-24L 1-Compartment 16-Gauge 304 Stainless Steel Sink with Left Drainboard, 46-1/3"W x 30"D x 41-1/4"H

$2,333.65
/each
Estimated to ship in 4–7 business days
Drainboard length
Drainboard configuration
Factory Add-Ons

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $216/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Compartment Sink
Style Delux
Installation Type Floor Model
Material 304 Stainless Steel
Finish #4 Blended
Overall Width 46.3 in
Overall Depth 30 in
Overall Height 41.25 in
Weight 100 lb
Compartments 1
Compartment Width 18 in
Compartment Front-to-Back 24 in
Compartment Depth 14 in
Drainboard Position Left
Drainboard Length 24 in
Drainboard Pitch 3/4 in
Splash Height 8-3/4 in
Faucet Hole Spacing 8 in On Center
Faucet Hole Type Splash Mount
Top Gauge 16 Gauge
Base Type Legs
Foot Type Adjustable White Metal
Edge Type Hemmed Safety Edge
Assembly KD
Faucet Included No
Drain Basket Stainless Steel, Included
Strainer Included

Description

The Delux sink has one compartment, a 24-inch left drainboard, and 16-gauge 304 stainless steel construction. The fabricated compartment measures 18 inches wide by 24 inches front-to-back by 14 inches deep.

It includes an 8-3/4-inch backsplash, 8-inch on-center splash-mount faucet holes, raised rolled edges on the front and sides, fully welded stainless steel gussets, and adjustable white metal feet.

  • NSF
  • KD construction
  • Stainless steel drain basket and strainer supplied

Overall Dimensions:

46.3"W x 30.0"D x 41.25"H

Product Weight:

100.0 lb

One Compartment

The fabricated compartment measures 18 inches wide by 24 inches front-to-back by 14 inches deep.

Left Drainboard

The 24-inch drainboard is positioned on the left.

304 Stainless Steel Construction

The sink is constructed from 16-gauge 304 stainless steel.

Splash-Mount Faucet Holes

The backsplash has faucet holes spaced 8 inches on center.

Hemmed Safety Edge

The sink roll and backsplash use the Aero Hemmed Safety Edge.

Welded Gussets

Fully welded stainless steel gussets provide the specified support construction.

Adjustable Feet

The 16-gauge 304 stainless steel legs have adjustable white metal feet.

Drain Basket and Strainer

A stainless steel drain basket and strainer are supplied.

Frequently Asked Questions

It has one compartment.
The compartment measures 18 inches wide by 24 inches front-to-back by 14 inches deep.
The 24-inch drainboard is on the left side.
No. The cutsheet states that faucets are not included.
The sink has splash-mount faucet holes spaced 8 inches on center.
Yes. A stainless steel drain basket and strainer are supplied.
