AERO Manufacturing 3C3-2020-24LR 3-Compartment Corner Sink, 68-3/4"W, 20" x 20" x 14" Compartments, Left & Right Drainboards

SKU: 3C3-2020-24LR
$4,623.19
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks AERO Manufacturing Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations

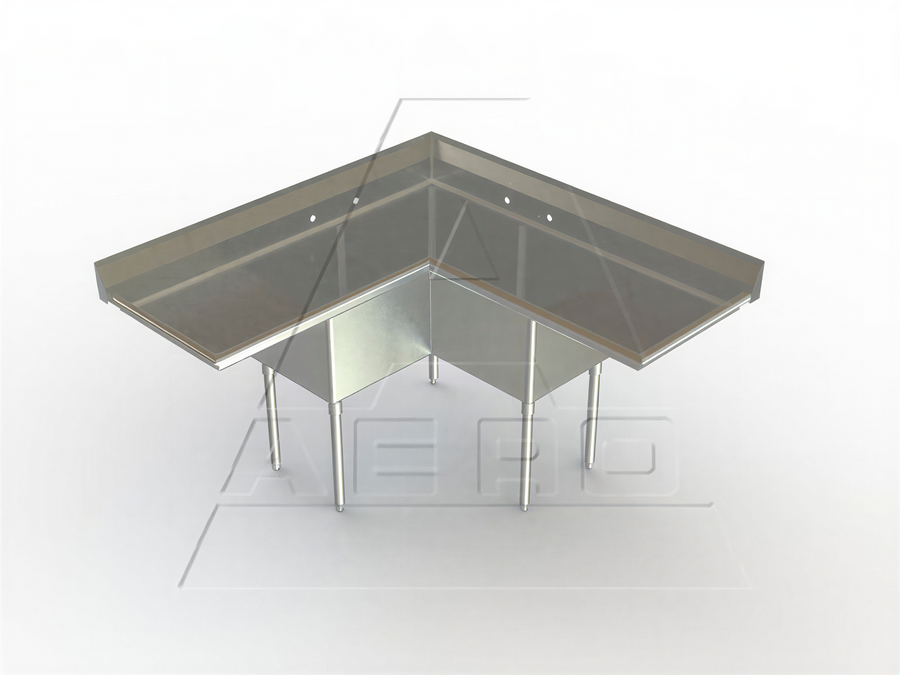

The 3C3-2020-24LR is a three-compartment corner sink measuring 68.75 inches wide by 26 inches deep by 39.5 inches high.

  • Three fabricated compartments measuring 20 inches wide by 20 inches front-to-back by 14 inches deep
  • 24-inch drainboards on the left and right
  • 16-gauge 304 stainless steel construction with a 7-inch backsplash
  • Two sets of 8-inch-on-center faucet holes
  • Adjustable white metal feet and fully welded stainless steel gussets
  • Aero Hemmed Safety Edge™

Overall Dimensions:

68.75"W x 26.0"D x 39.5"H

Product Weight:

200.0 lb

Three fabricated compartments

Includes three compartments measuring 20 inches wide by 20 inches front-to-back by 14 inches deep.

Left and right drainboards

Includes 24-inch drainboards on both the left and right sides.

304 stainless steel construction

Built with 16-gauge 304 stainless steel.

7-inch backsplash

Includes a 7-inch backsplash.

Two faucet-hole sets

Provides two sets of faucet holes spaced 8 inches on center.

Welded support gussets

Includes fully welded stainless steel gussets.

Adjustable feet

16-gauge 304 stainless steel legs include adjustable white metal feet.

Aero Hemmed Safety Edge™

Features the Aero Hemmed Safety Edge™ on the sink and backsplash.

Overall width 68.75 in
Overall depth 26 in
Overall height 39.5 in
Compartments 3
Compartment dimensions 20 in W x 20 in front-to-back x 14 in deep, each
Drainboards 24 in, left and right
Backsplash height 7 in
Construction 16-gauge 304 stainless steel
Faucet holes Two sets, 8 in on center
Legs 16-gauge 304 stainless steel
Feet Adjustable white metal
Assembly KD
Weight 200 lb

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The sink has three fabricated compartments, each measuring 20 inches wide by 20 inches front-to-back by 14 inches deep.
The overall dimensions are 68.75 inches wide by 26 inches deep by 39.5 inches high.
Yes. It has 24-inch drainboards on the left and right.
The sink has two sets of faucet holes spaced 8 inches on center.
The sink has 16-gauge 304 stainless steel construction, with 16-gauge 304 stainless steel legs.
Yes. The 3C3-2020-24LR is NSF certified.
