AERO Manufacturing Aerospec 2F3-3020-36LR 3-Compartment Stainless Steel Sink, 135"W x 36"D x 42-1/2"H, 14 Gauge/304, Left/Right Drainboards

SKU: 2F3-3020-36LR
$6,062.70
/each
Free Shipping
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks AERO Manufacturing Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Compartment Sinks Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations

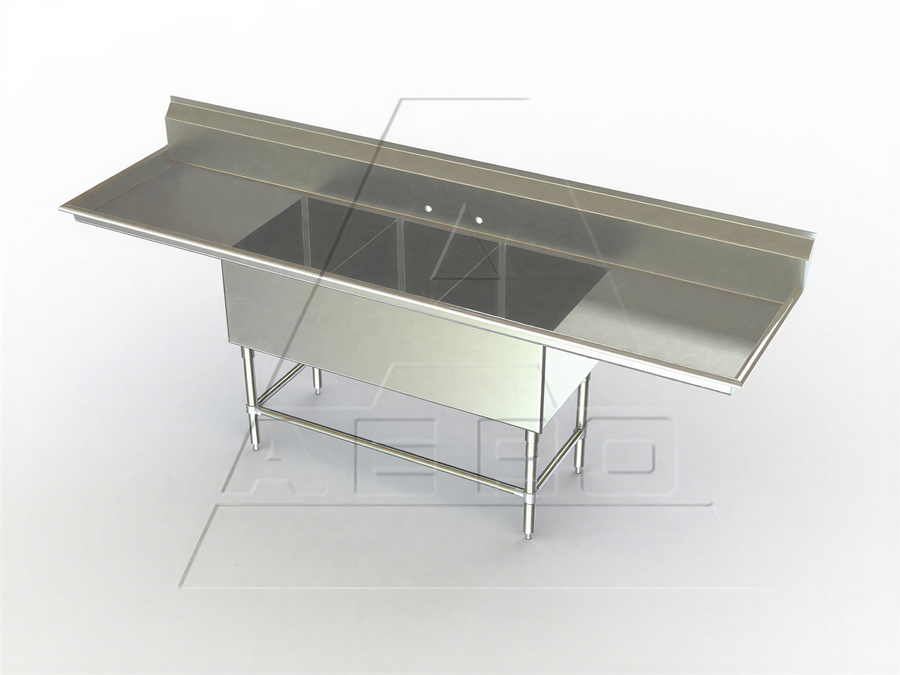

The Aerospec 2F3-3020-36LR is a three-compartment sink measuring 135 inches wide by 36 inches deep by 42-1/2 inches high. It has 14-gauge 304 stainless steel construction, three 20-inch-wide by 30-inch front-to-back by 14-inch-deep compartments, and 36-inch drainboards on both the left and right sides.

  • Includes a 10-inch backsplash and two sets of 8-inch on-center splash-mount faucet holes.
  • Features raised rolled edges, the Aero Hemmed Safety Edge, fully welded stainless steel gussets, stainless steel crossbracing, and adjustable stainless steel feet.
  • Supplied with a stainless steel drain basket and strainer. Faucets are not included.
  • NSF certified and designed for knock-down assembly.

Overall Dimensions:

135.0"W x 36.0"D x 42.5"H

Product Weight:

270.0 lb

Three-compartment layout

Includes three fabricated compartments measuring 20 inches wide by 30 inches front-to-back by 14 inches deep.

Left and right drainboards

Provides a 36-inch drainboard on each side of the sink.

304 stainless steel construction

The sink uses 14-gauge 304 stainless steel construction, with 16-gauge 304 stainless steel legs.

Backsplash and faucet holes

Features a 10-inch backsplash and two sets of 8-inch on-center splash-mount faucet holes.

Reinforced base

Includes fully welded stainless steel gussets, front and side crossbracing, and adjustable stainless steel feet.

Hemmed safety edge

The Aero Hemmed Safety Edge provides a hemmed edge on the roll and backsplash.

Drain basket and strainer

A stainless steel drain basket and strainer are supplied.

Knock-down design

The sink is specified for KD, or knock-down, assembly.

Compartment count 3
Compartment dimensions 20 in W x 30 in front-to-back x 14 in deep
Drainboards 36 in on left and right
Backsplash height 10 in
Top gauge 14 gauge
Top stainless steel series 304
Legs 16 gauge 304 stainless steel
Faucet holes 2 sets, 8 in on center
Feet Adjustable stainless steel
Assembly KD
Included drainage components Stainless steel drain basket and strainer

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has three compartments, each measuring 20 inches wide by 30 inches front-to-back by 14 inches deep.
The sink has 36-inch drainboards on both the left and right sides.
The overall dimensions are 135 inches wide by 36 inches deep by 42-1/2 inches high.
Yes. It has two sets of splash-mount faucet holes spaced 8 inches on center.
No. The cutsheet states that faucets are not included.
A stainless steel drain basket and strainer are supplied.
