Description

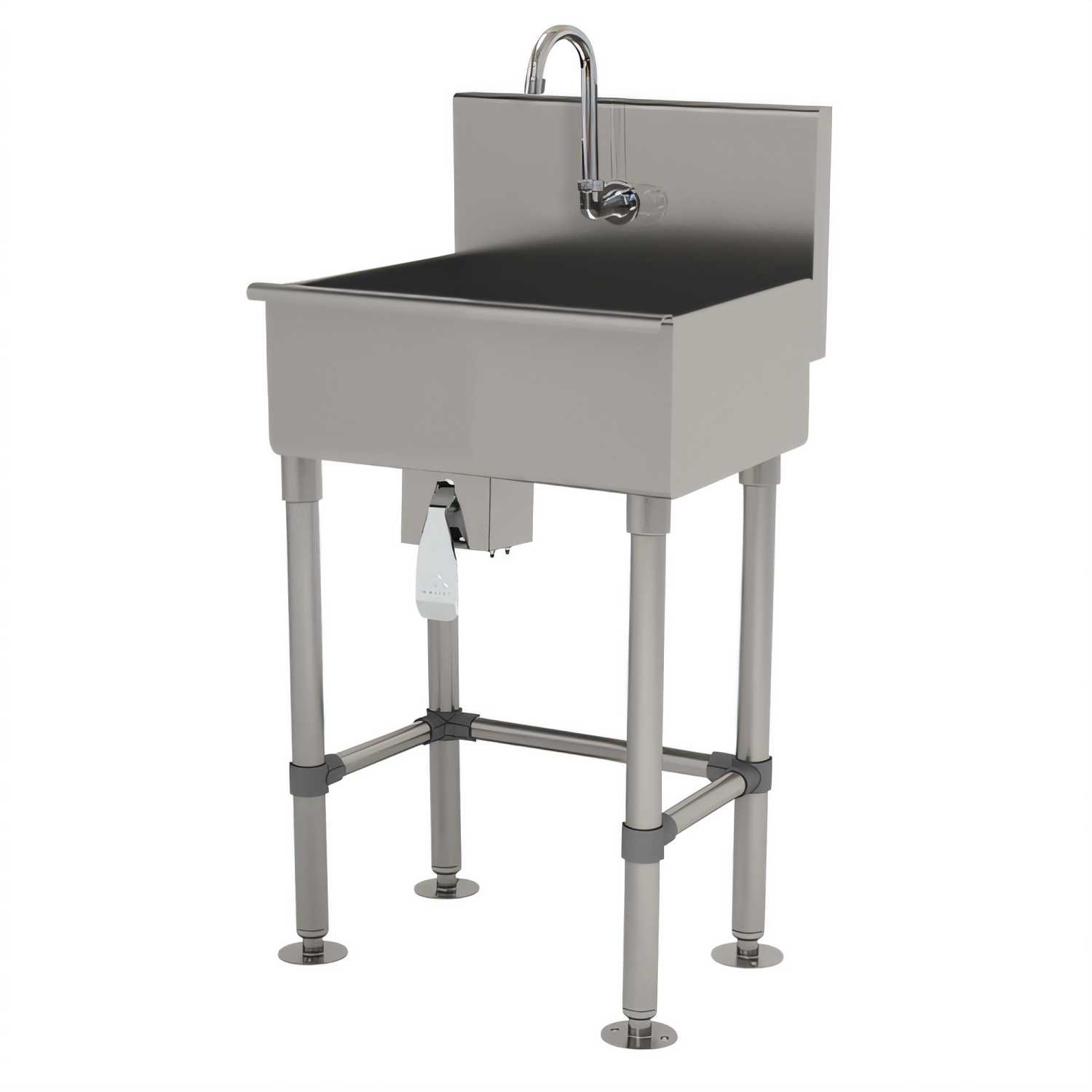

Advance Tabco Floor-Mounted Service Sink – Knee Operated

Model WSS-16-31KV-FM | 31" x 16" x 28-1/2"

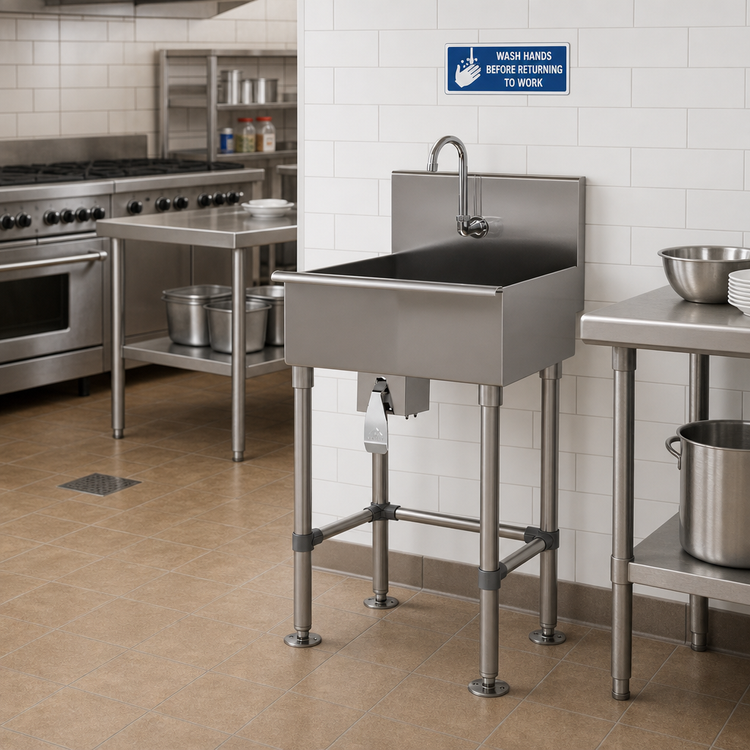

Built for the rigorous demands of maintenance rooms, food-service facilities and commercial kitchens, this hands-free service sink pairs rugged 16-gauge, type 304 stainless steel with a sanitary knee-valve faucet control. The result is a long-lasting workstation that keeps your operation cleaner, safer and more compliant—day in, day out.

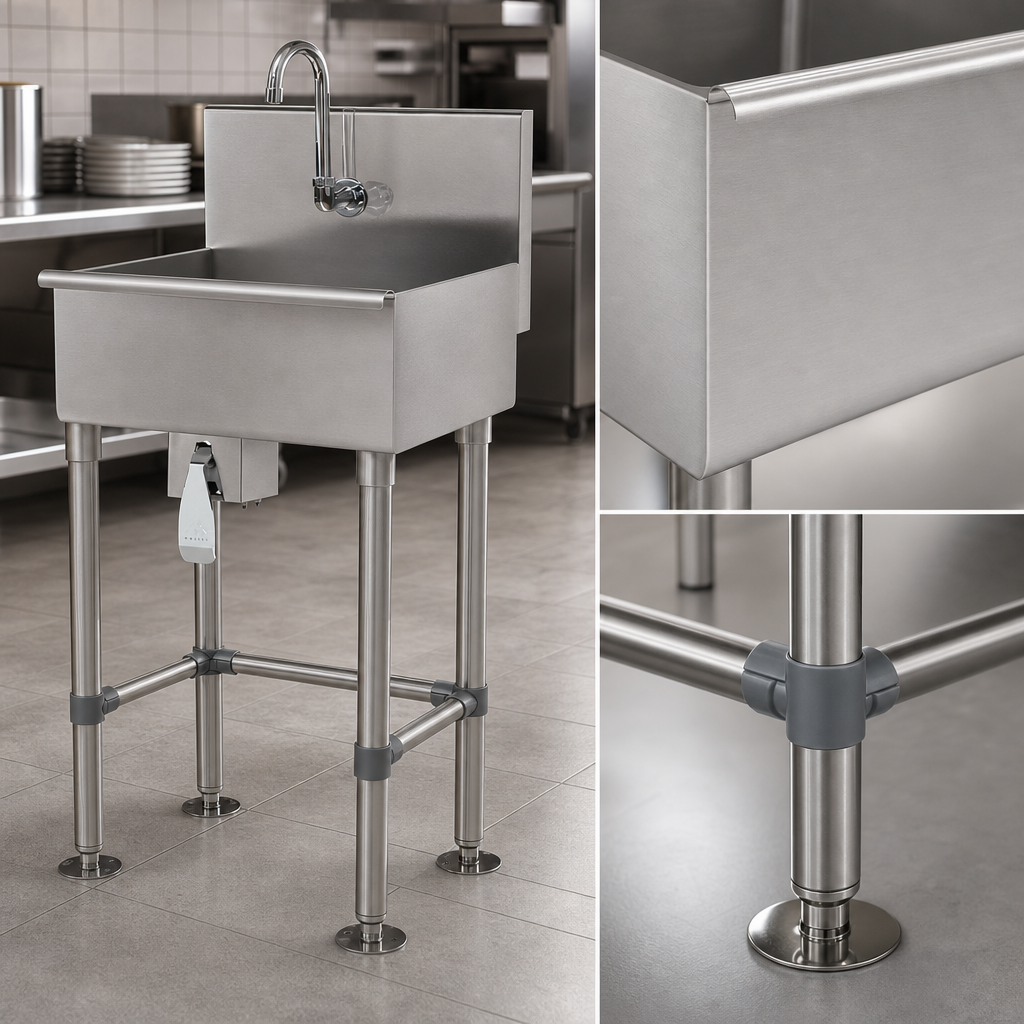

  • 16-gauge type 304 stainless steel throughout – corrosion-resistant & easy to sanitize
  • Full 31" W x 16" D x 8" deep bowl for mop buckets, stock pots & heavy-duty clean-ups
  • Integrated 8-1/2" backsplash helps contain splashes and protects adjacent walls
  • Hands-free 7-PS-32 knee valve with single faucet hole and K-121 3-1/2" gooseneck spout
  • Floor-mounted 1-5/8" tubular legs with adjustable cross-bracing & flanged bullet feet
  • Factory-installed K-6 3-1/2" rear basket drain with strainer plate
  • All TIG-welded seams ground & polished to a uniform satin finish
  • Ships fully assembled – only rough-in and final connections required

Specifications

Model WSS-16-31KV-FM
Overall Dimensions 31" W × 16" D × 28-1/2" H (to rim)
Bowl Size 31" W × 16" D × 8" H
Backsplash Height 8-1/2"
Material & Finish 16-ga 304 SS, satin finish
Faucet Configuration 1 × 1-3/8" single hole, K-121 gooseneck spout (3-1/2")
Valve Type 7-PS-32 knee-operated mixing valve — hands-free
Drain K-6 3-1/2" basket drain, 1-1/2" IPS outlet
Mounting Floor mount legs, adjustable cross-brace, wall “Z” bracket
Unit Weight 85 lb
Compliance NSF Std 61/9 lead-free, AB 1953, Prop 65

What’s in the Box

  • Service sink with legs, cross-brace & backsplash (pre-assembled)
  • 7-PS-32 knee valve assembly — hot & cold inlets
  • K-121 splash-mount gooseneck spout
  • K-6 3-1/2" basket drain w/ strainer
  • Stainless steel “Z” wall bracket & mounting hardware

Popular Accessories (Sold Separately)

  • K-425 thermostatic mixing valve for pre-set water temperature
  • K-13 wall-mount stainless steel soap dispenser
  • K-08 low-flow .5 GPM aerator
  • TA-19 adjustable flanged bullet feet (extra-heavy-duty)
California Prop 65 Notice: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Need a different size or configuration? Contact our team for custom Advance Tabco Smart Fabrication quotes.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

31.0in

Depth

19.5in

Shipping Weight

85.0lbs

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Style

freestanding

Specifications

Service sink, splash mount faucet provision, with stainless steel legs and flanged feet, with knee valve, 31"W x 16"D x 28-1/2"H OA, 31" wide x 16" front-to-back x 8" deep bowl, 8-1/2"H backsplash, 16 gauge 304 stainless steel, single faucet hole, gooseneck spout, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
