Advance Tabco  |  SKU: WSS-16-31EF

Advance Tabco WSS-16-31EF Hand Sinks

$2,343.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Installation manual 2 Troubleshooting manual Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

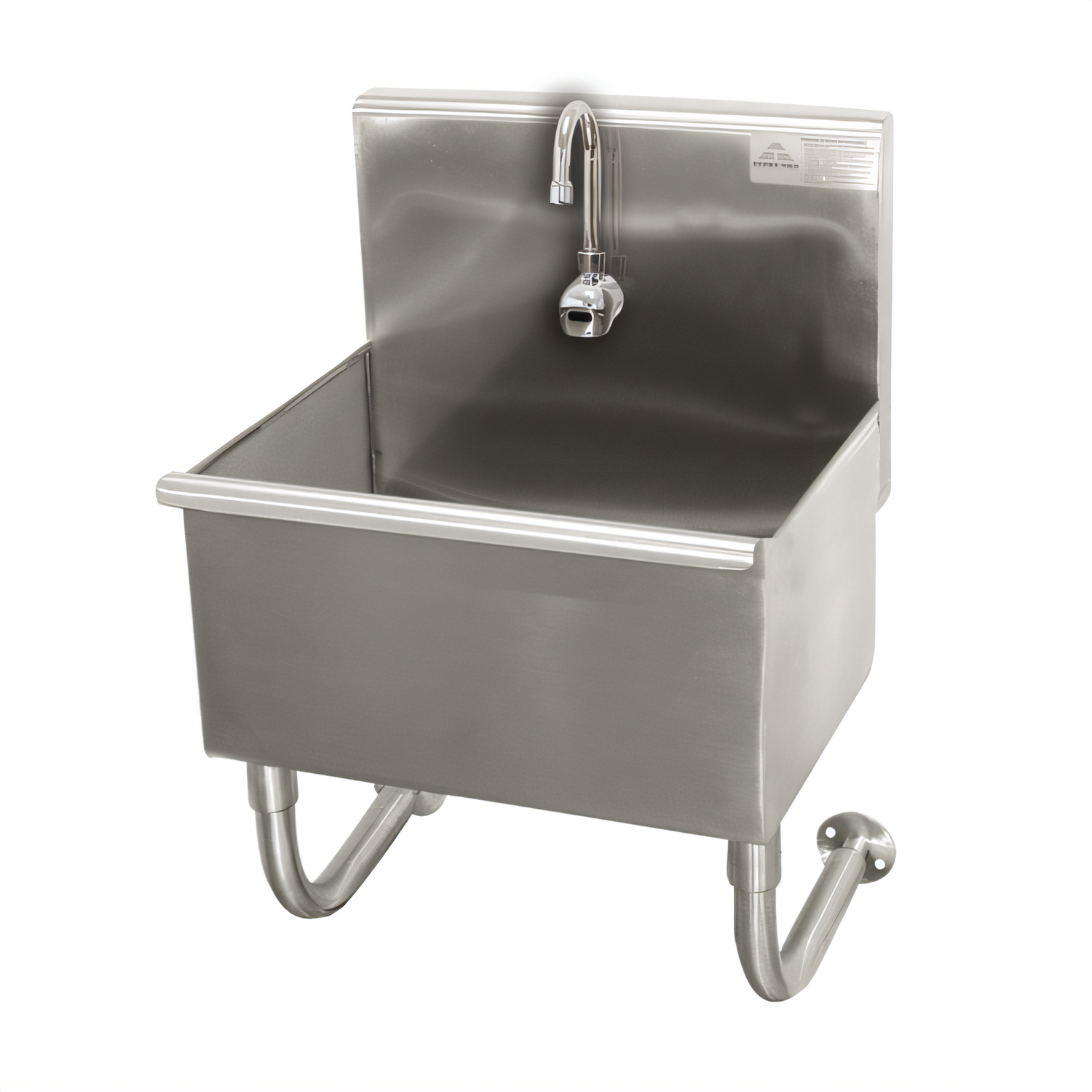

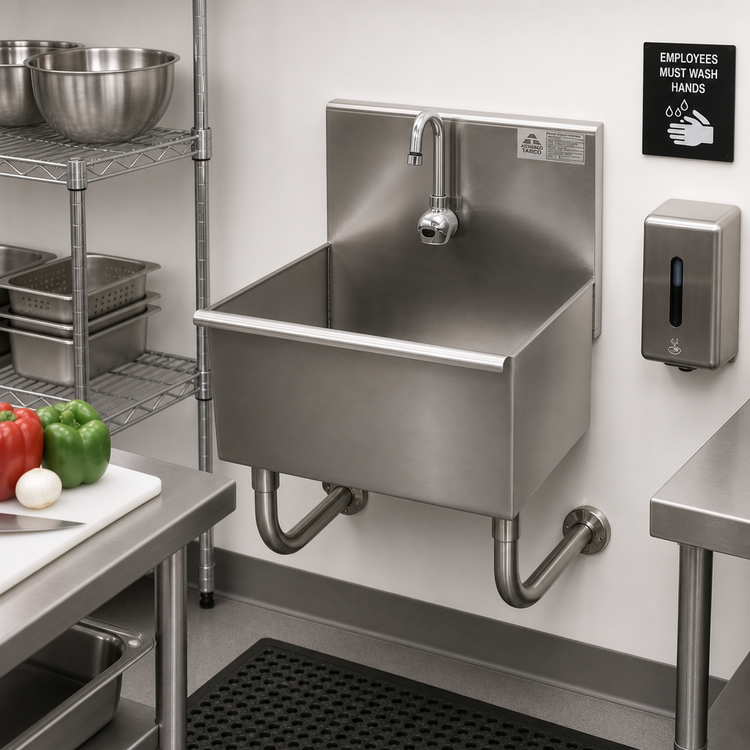

Advance Tabco WSS-16-31EF Wall-Mounted Service Sink

16 ga. 304 Stainless Steel • 31 in. Wide • Electronic Hands-Free Faucet

Built to survive the busiest janitorial closets, utility rooms, and back-of-house operations, the Advance Tabco WSS-16-31EF combines a deep 12 inch bowl with a rugged wall-mount design and a built-in K-175 electronic faucet for completely touch-free operation.

Key Features

  • Heavy-duty 16 gauge type 304 stainless steel—resists rust, corrosion, and harsh cleaners.

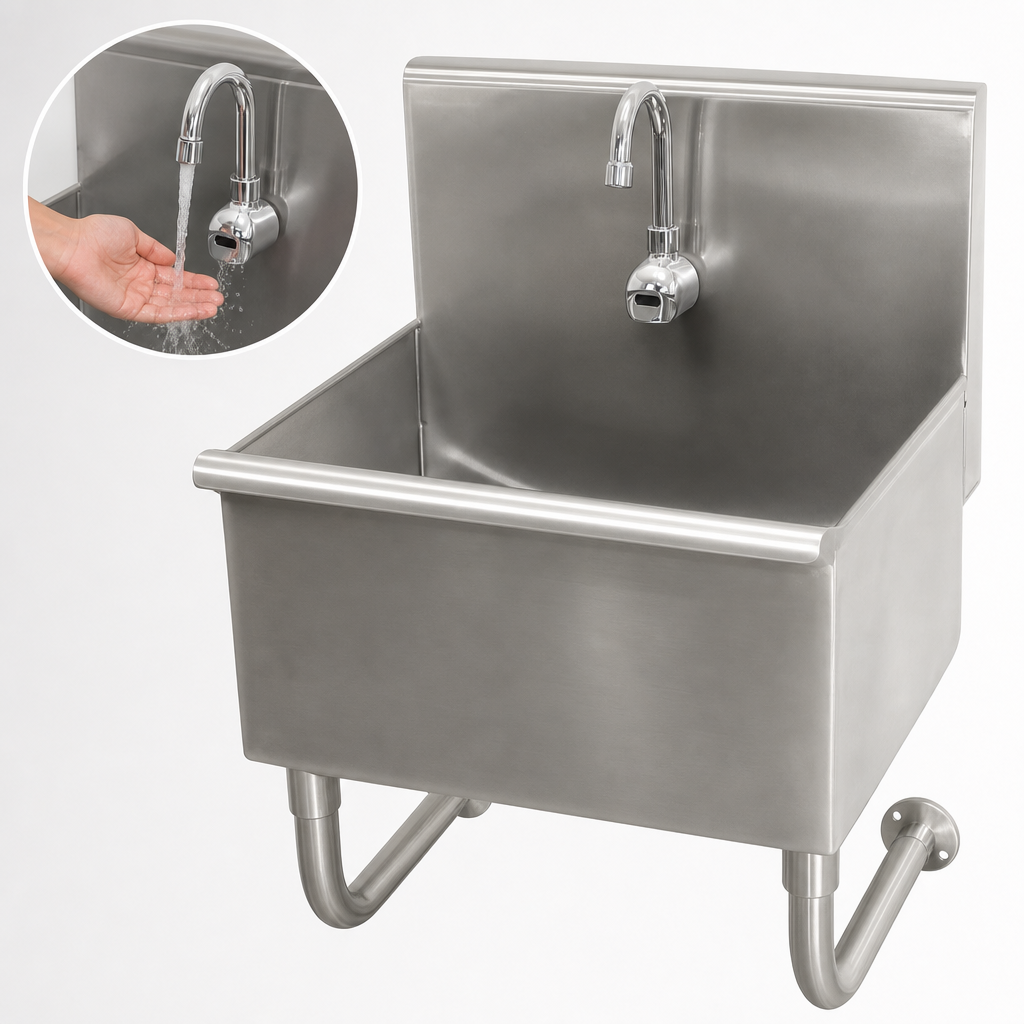

  • Sensor-activated K-175 splash-mount faucet (NSF 61/9 lead-free compliant) for hygienic, hands-free use.
  • Extra-deep 12 inch bowl comfortably handles mop buckets and bulky cleaning equipment.
  • 8 ½ inch integral backsplash protects walls and provides faucet mounting surface.
  • One-piece TIG-welded construction with satin finish; welds are blended for a smooth, easy-to-clean surface.
  • Includes 3 ½ inch K-6 basket drain with strainer and 1 ½ inch IPS outlet.
  • Two 1 5⁄8 inch tubular 304 stainless wall brackets + stainless “Z” bracket provide full underside clearance and rock-solid support (hardware supplied).
  • Single faucet hole—no extra drilling or deck hardware required.
  • Ships fully assembled; only wall mounting and plumbing connections required.

At-a-Glance Specs

Overall Width (side to side) 31 in. (787 mm)
Overall Depth (front to back) 16 in. (406 mm)
19 ½ in. to front of tubular brackets
Overall Height 32 ½ in. (826 mm) to top of backsplash
Bowl Interior 31 in. W × 16 in. D × 12 in. H
Backsplash Height 8 ½ in.
Material & Gauge 16 ga. type 304 stainless steel
Faucet K-175 electronic, splash-mount, single-hole, 2.2 GPM, 100–240 VAC adapter included
Drain K-6 3 ½ in. basket drain with strainer
Wall Supports (2) tubular stainless brackets + (1) stainless “Z” bracket
Shipping Weight 52 lb. (23.6 kg)
Certifications NSF, Lead-Free (NSF 61/9), UL (power adapter)

Ideal Applications

  • Janitorial & mop closets
  • Commercial kitchens & food-service prep areas
  • Laboratories & maintenance rooms
  • Manufacturing & industrial wash-down stations
California Prop 65 Warning: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Height

32.5in

Width

31.0in

Depth

19.5in

Shipping Weight

65.0lbs

Bowl Height (rim to drain)

12" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Style

wall mounted

Specifications

Service sink, splash mount faucet provision, wall mounted, with electronic faucet, 31"W x 16"D x 32-1/2"H OA, 31" wide x 16" front-to-back x 12" deep bowl, 8-1/2"H backsplash, single faucet hole, tubular wall brackets, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
