Advance Tabco  |  SKU: WSS-16-31EF-FM

Advance Tabco WSS-16-31EF-FM Hand Sinks

$2,639.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual 2 Parts list Troubleshooting manual Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

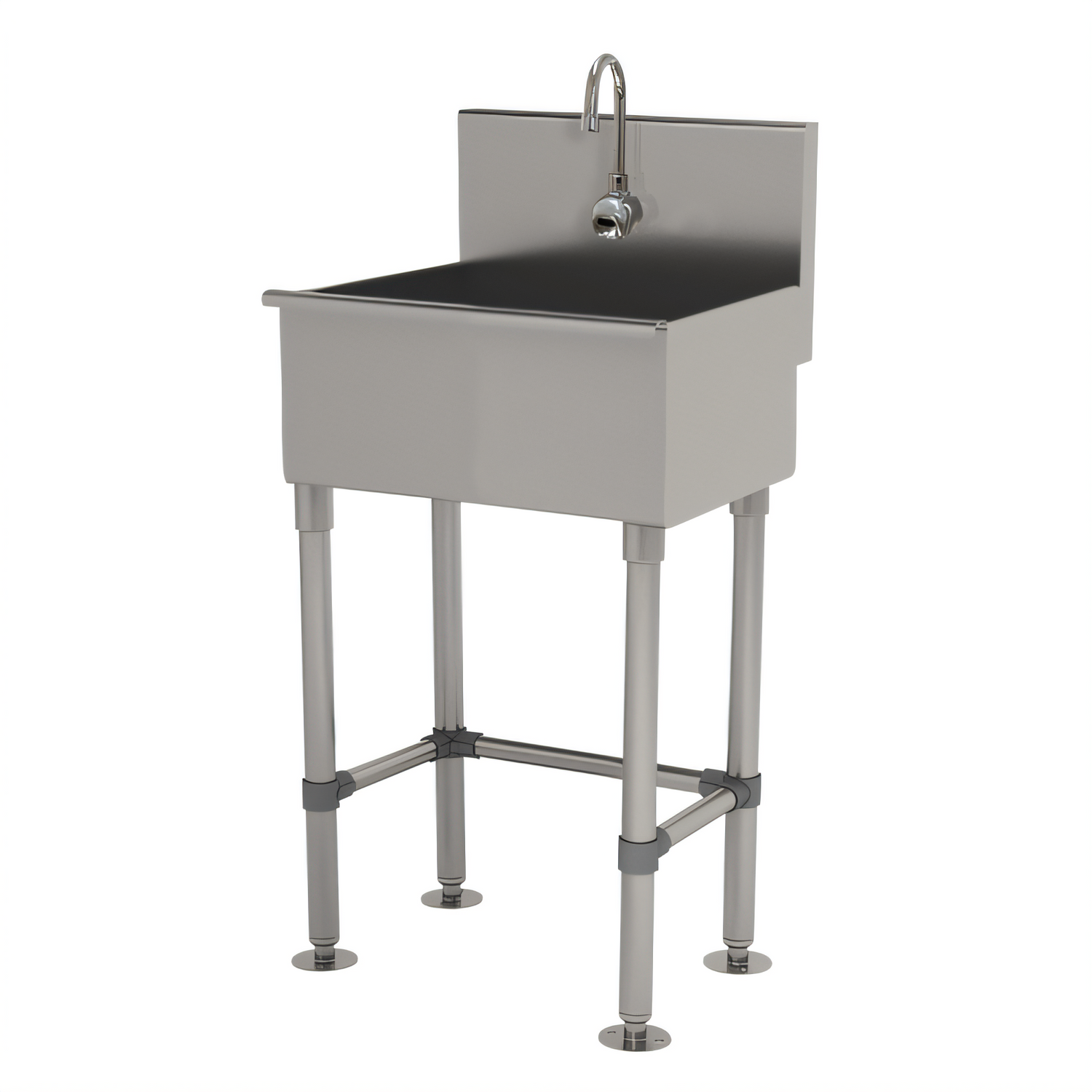

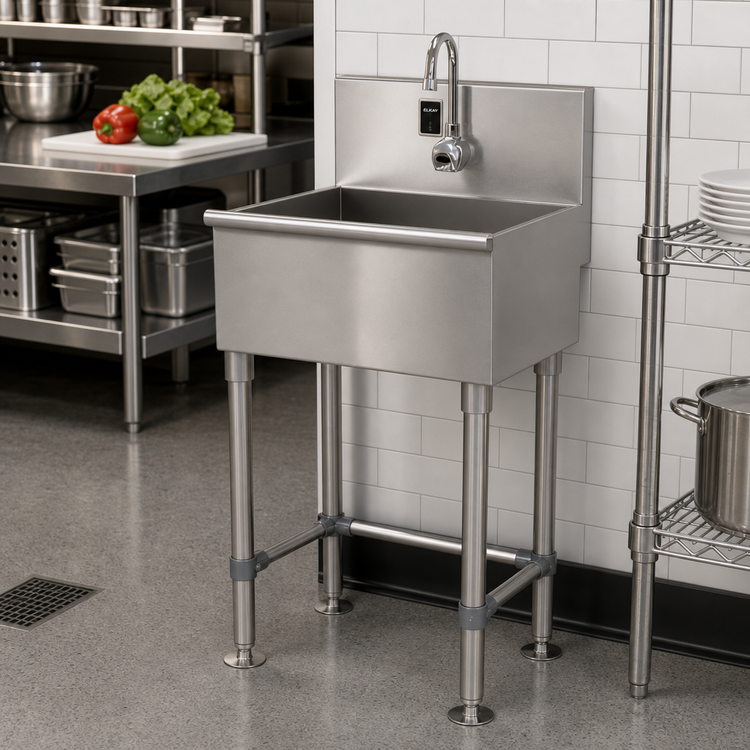

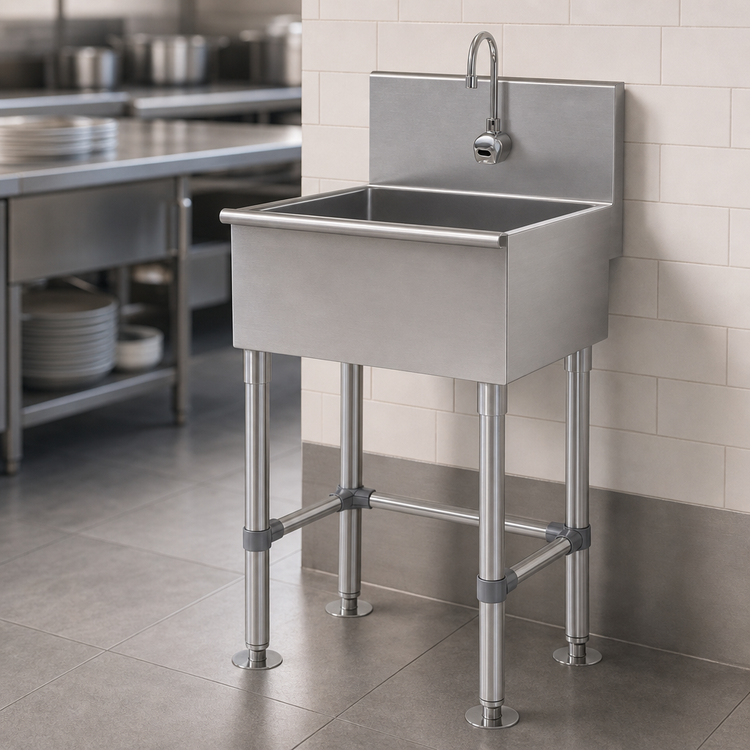

Advance Tabco WSS-16-31EF-FM | 31" x 16" Stainless Steel Service Sink with Electronic Faucet

Heavy-duty, hands-free utility sink for janitorial, maintenance & back-of-house tasks

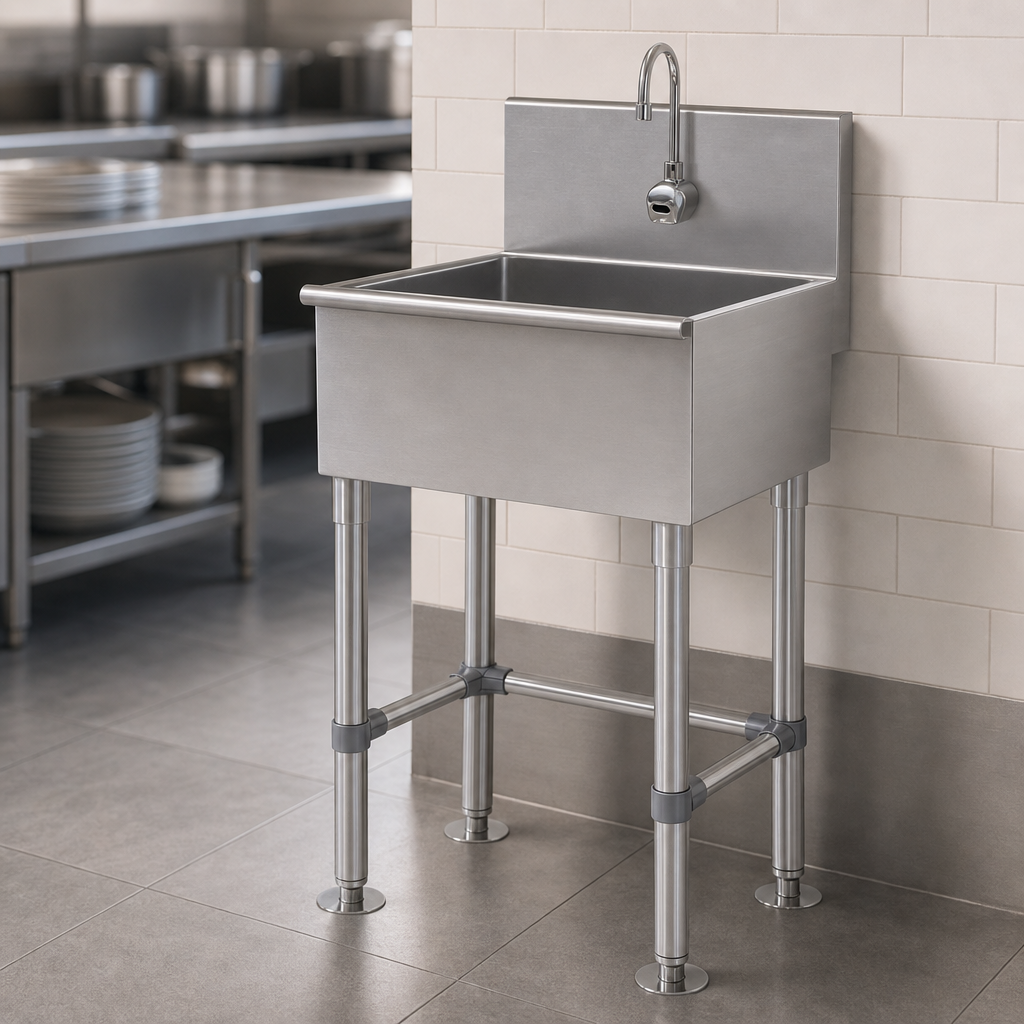

Built from rugged 16-gauge type 304 stainless steel and equipped with a touch-free electronic faucet, this floor-mounted service sink stands up to the toughest cleaning jobs while helping you maintain a more hygienic workspace.

Key Features
  • Includes NSF 61/9 compliant K-175 splash-mounted infrared faucet for completely hands-free operation.
  • Deep 12" bowl (31" W × 16" D) accommodates mop buckets, floor squeegees and bulky equipment.
  • Integral 8-1/2" backsplash contains splashes; supplied stainless steel “Z” wall bracket adds extra rigidity.
  • All-TIG-welded construction; welds are blended to a sanitary satin finish.
  • 1-5/8" Ø tubular 304 SS legs with flanged feet and adjustable side & rear cross-bracing provide rock-solid floor mounting.
  • Factory-installed K-6 3-1/2" basket drain (1-1/2" IPS outlet) for fast, trouble-free plumbing hook-up.
  • Weighs just 75 lb and ships fully assembled—install, plumb and get back to work fast.
Water-Saving, Germ-Reducing Faucet
  • Infrared sensor activates water only when hands or equipment are detected, reducing water waste.
  • No handles means fewer touchpoints and lower risk of cross-contamination.
  • 2.2 GPM aerator included; optional low-flow 0.5 GPM aerator available.
  • UL-listed control box with universal 100–240 VAC plug-in adapter—no batteries to replace.
Specifications
Model WSS-16-31EF-FM
Bowl dimensions (W × D × H) 31" × 16" × 12"
Overall footprint 31" W × 16" D
Overall height 32-1/2" to rim  |  42-1/2" to top of backsplash
Backsplash height 8-1/2"
Material / gauge 16-ga type 304 stainless steel
Faucet hole Single splash-mount, 1-3/8" dia.
Included faucet K-175 electronic, 2.2 GPM, lead-free, NSF 61/9 compliant
Drain K-6 3-1/2" basket drain, 1-1/2" IPS outlet
Legs / feet (4) 1-5/8" Ø tubular 304 SS legs with flanged bullet feet; side & rear cross-bracing
Unit weight 75 lb

Looking for matching soap dispensers, low-flow aerators or other accessories? Chat with our team for a custom solution.

California Proposition 65 Notice: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

31.0in

Depth

19.5in

Shipping Weight

75.0lbs

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

12" deep

Style

freestanding

Specifications

Service sink, splash mount faucet provision, with stainless steel legs and flanged feet, with electronic faucet, 31"W x 16"D x 32-1/2"H OA, 31" wide x 16" front-to-back x 12" deep bowl, 8-1/2"H backsplash, single faucet hole, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
