Description

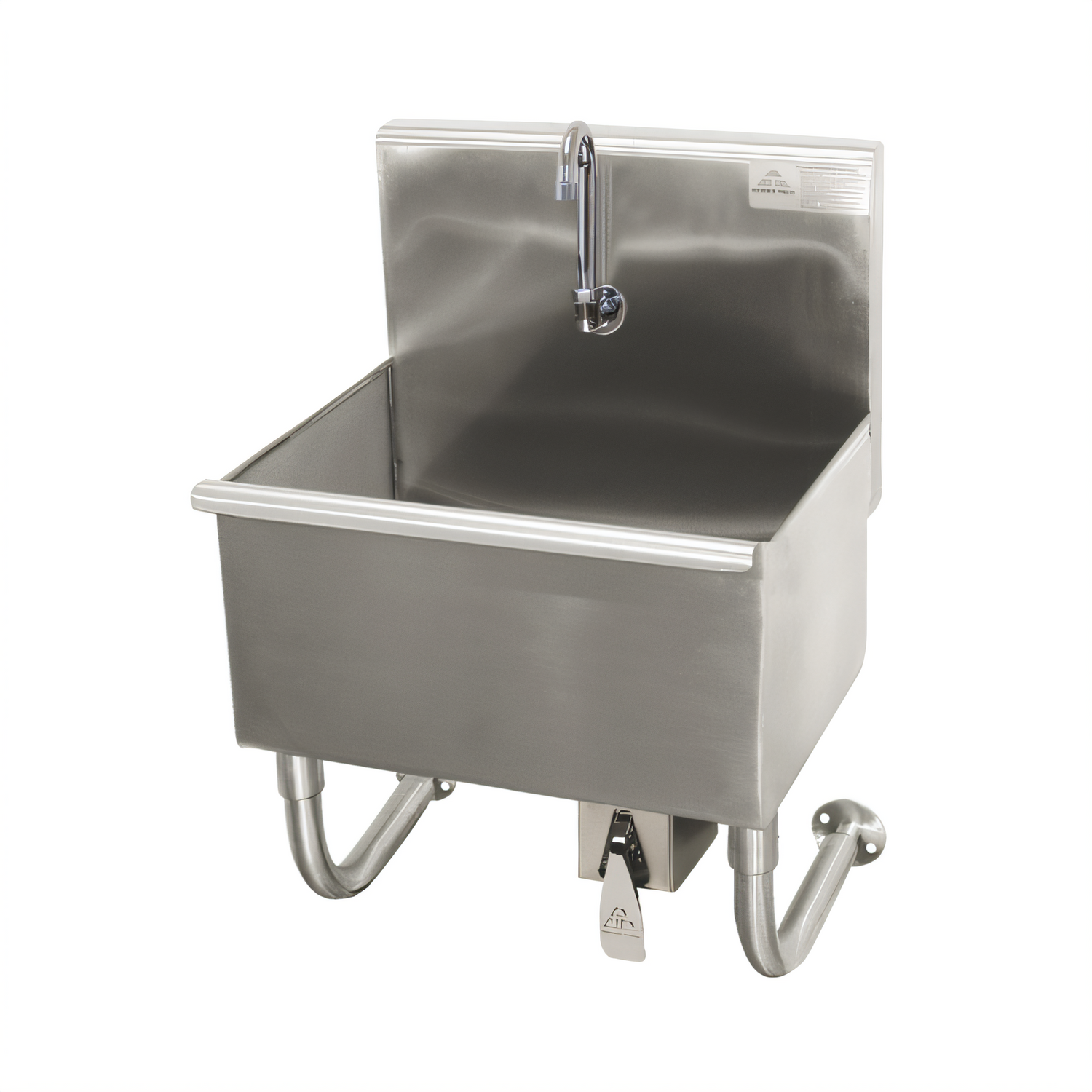

Advance Tabco WSS-16-25KV Knee-Operated Service Sink

22" Wall-Mounted • 16 ga 304 Stainless Steel • Includes Gooseneck Spout & Basket Drain

Built for the rigors of maintenance rooms, janitorial closets and food-service back-of-house areas, the WSS-16-25KV delivers rugged durability, hands-free operation and fast, code-compliant installation—all in a compact 22" footprint.

Key Advantages

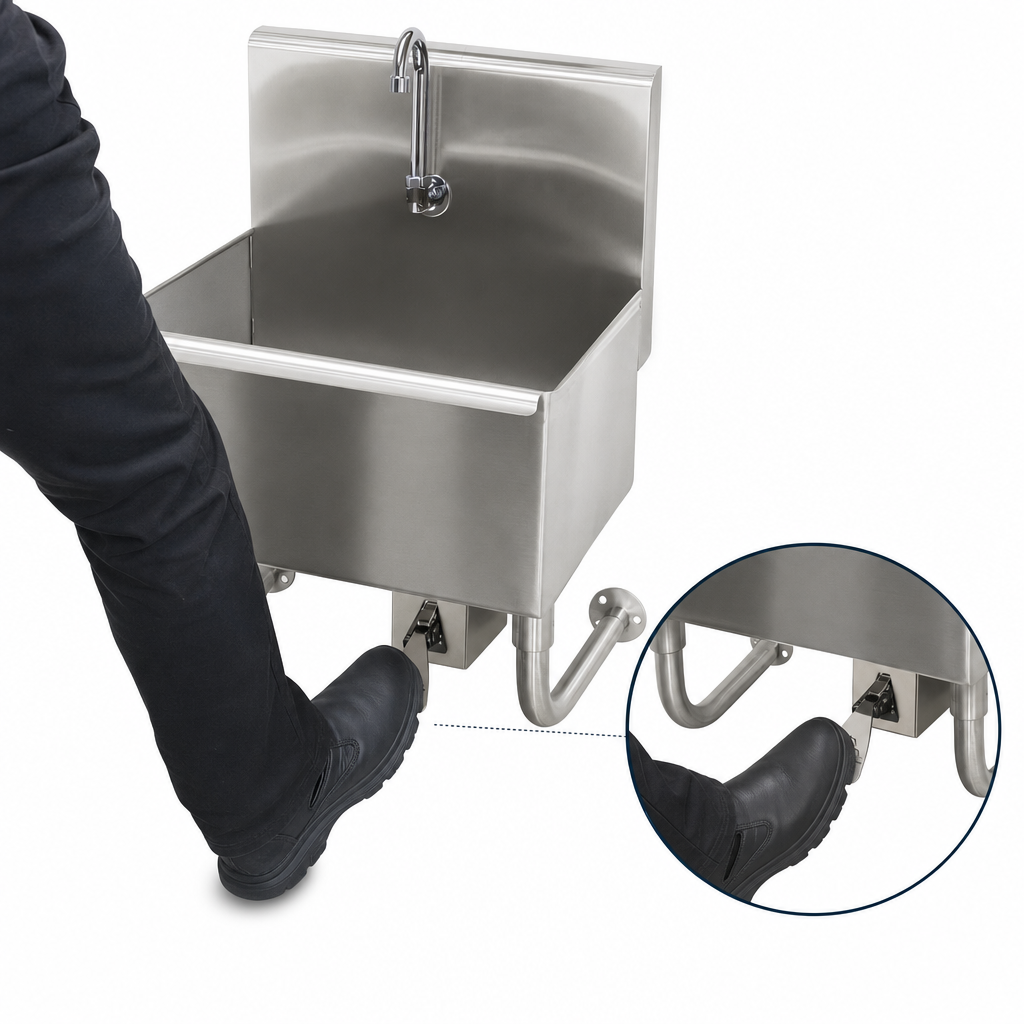

  • Knee-operated 7-PS-32 valve for true hands-free on/off control—boosts hygiene & OSHA compliance.
  • Splash-mounted K-121 gooseneck spout positioned in a single pre-punched faucet hole.
  • One-piece 16 ga type 304 stainless steel sink, TIG-welded and satin-finished for easy clean-up.
  • 8 ½" integral backsplash contains overspray and simplifies wall sanitation.
  • 8" deep bowl (22" W x 16" F-B) accommodates mop buckets and large cleaning utensils.
  • Includes K-6 3 ½" rear basket drain with strainer plate.
  • Two 1 5⁄8" Ø tubular 304-SS wall supports plus stainless “Z” mounting bracket—leaves floor area completely clear.
  • Ships fully accessorized; only wall anchors, supply & waste connections required on site.

Technical Specifications

Model WSS-16-25KV
Overall dimensions 22" W × 19 ½" D × 28 ½" H
Bowl size 22" W × 16" F-B × 8" deep
Backsplash height 8 ½"
Material & gauge 16 ga type 304 stainless steel (sink, wall brackets & gussets)
Faucet provisioning Single 1 ⅜" hole, supplied with K-121 3 ½" gooseneck spout
Valve 7-PS-32 knee valve, lead-free, NSF 61/9 & AB 1953 compliant
Drain opening 3 ½" rear outlet, basket strainer included
Mounting hardware Stainless “Z” bracket + (2) tubular wall supports with adjustable flanges
Shipping weight / cu. ft. 60 lb • 11 cu ft

Typical Applications

  • Hospital & healthcare EVS closets
  • Commercial kitchens & commissaries
  • Schools & institutional maintenance rooms
  • Laboratories and manufacturing wash-down areas

What’s in the Box

  • Wall-mounted service sink (pre-punched & TIG-welded)
  • 7-PS-32 knee valve assembly
  • K-121 splash-mount gooseneck spout
  • (2) Tubular wall support brackets with flanges
  • Stainless “Z” wall mounting bracket
  • K-6 3 ½" basket drain with strainer plate

Need tempered water? Pair this sink with the optional Advance Tabco K-425 thermostatic mixing valve (sold separately).

California Proposition 65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

28.5in

Width

22.0in

Depth

19.5in

Shipping Weight

60.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, with knee valve, 22"W x 19-1/2"D x 28-1/2"H OA, 22" wide x 16" front-to-back x 8" deep bowl, 8-1/2"H backsplash, 16 gauge 304 stainless steel, single faucet hole, gooseneck spout, tubular wall brackets, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
