Advance Tabco  |  SKU: WSS-16-25KV-FM

Advance Tabco WSS-16-25KV-FM Hand Sinks

$2,048.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

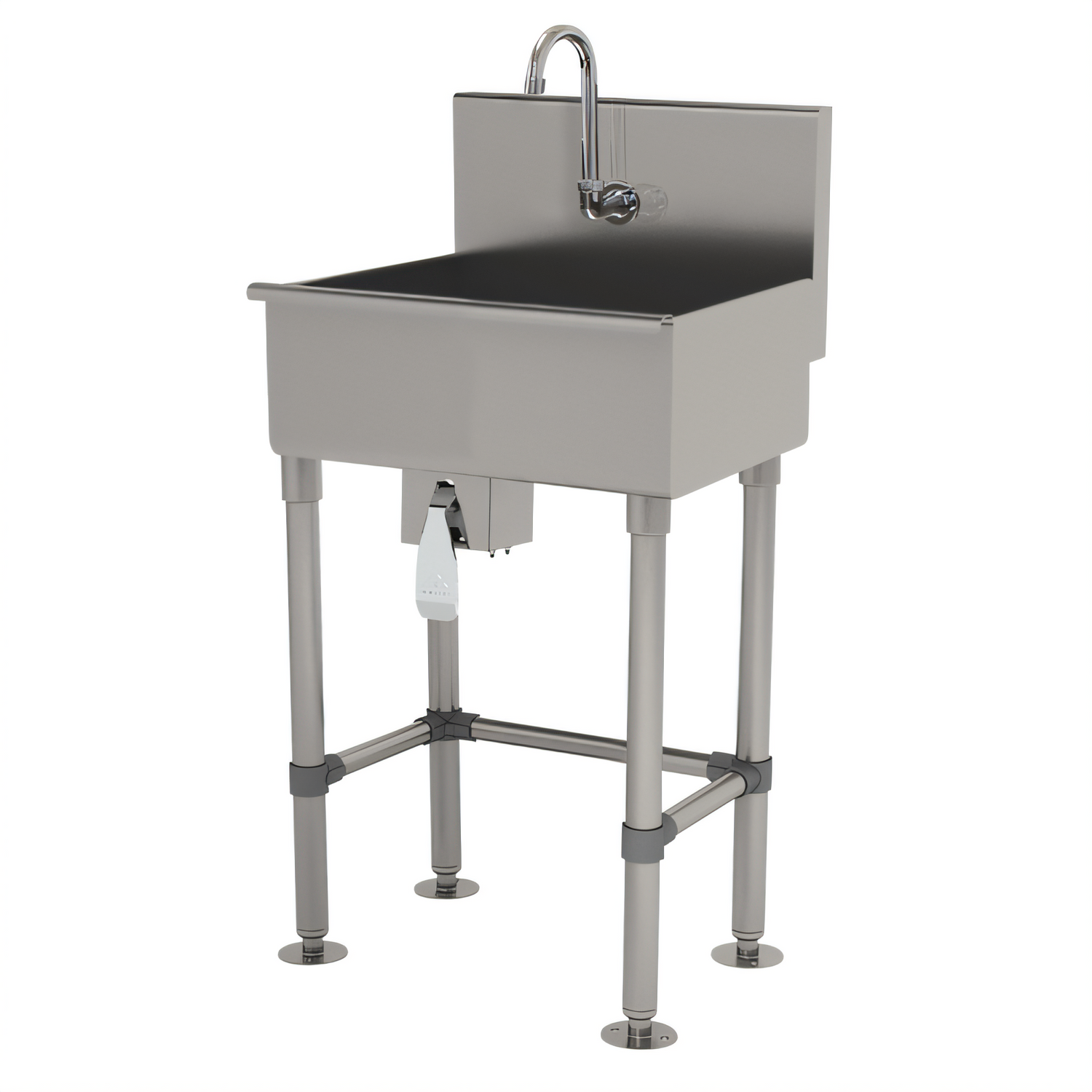

Advance Tabco WSS-16-25KV-FM Knee-Operated Service Sink

22" floor-mounted, 16 ga 304 stainless steel, one station

Built for the rigor of janitorial closets, maintenance rooms, laboratories and commercial kitchens, this heavy-duty service sink delivers sanitary, hands-free operation in a compact 22" footprint. 100 % TIG-welded 16-gauge type 304 stainless steel ensures corrosion-proof longevity, while the included knee valve keeps cross-contamination at bay.

Key Features & Benefits

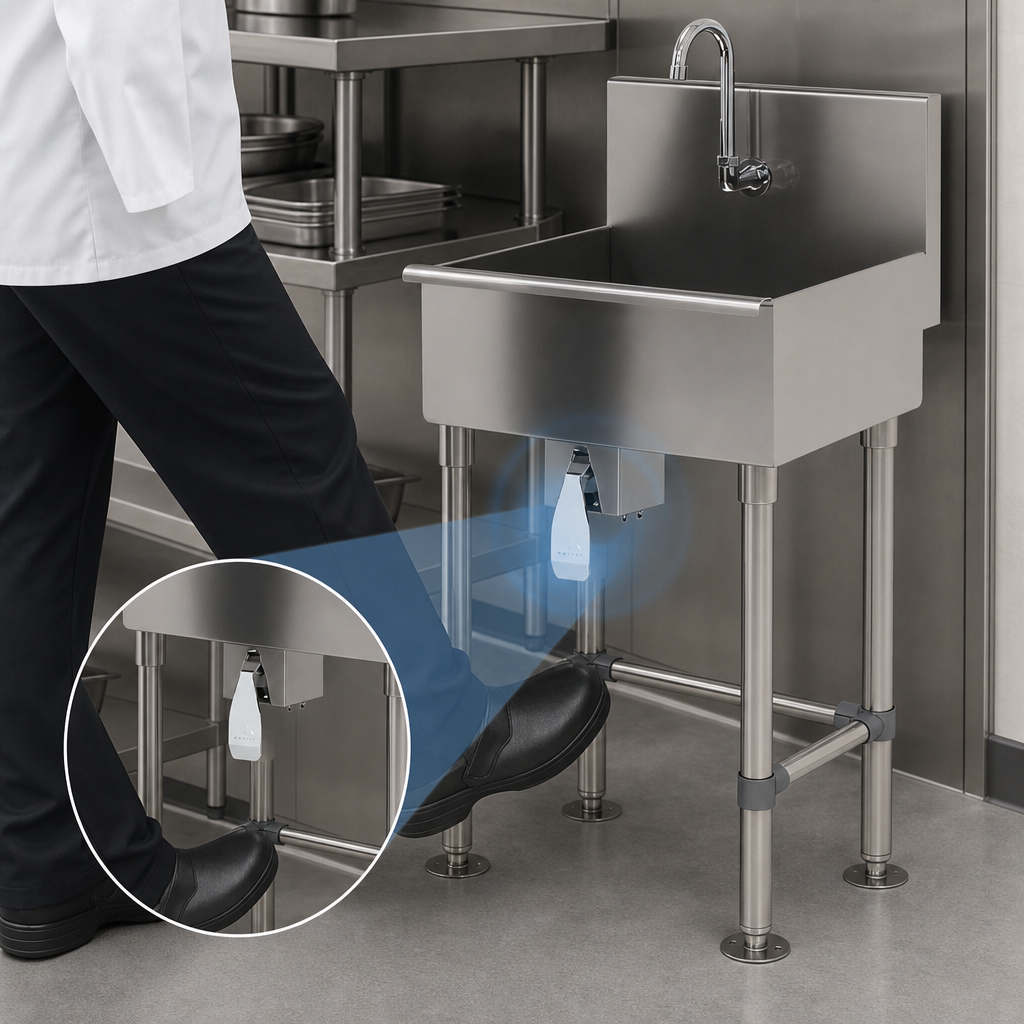

  • Hands-free 7-PS-32 knee valve for hygienic on/off control.
  • Single-hole, splash-mounted K-121 gooseneck spout provides a generous 3-½" reach.
  • Spacious 22" W × 16" D × 8" deep bowl handles bulky mop buckets and cleaning tools.
  • 8-½" high backsplash protects surrounding walls from overspray.
  • All-welded 16 ga type 304 stainless steel bowl, backsplash, legs & cross-bracing—rust-proof and easy to sanitize.
  • Tubular stainless steel legs with flanged bullet feet for secure floor anchoring.
  • Rear 3-½" K-6 basket drain (1-½" IPS) included—ready for quick plumbing connection.
  • Two wall support brackets and a stainless “Z” bracket keep the sink rock-solid under heavy loads.
  • Satin-blended finish hides scratches and maintains a professional appearance.
Perfect For
  • Hospital & health-care janitorial stations
  • Food-service mop & utility rooms
  • Laboratories and clean-rooms
  • Industrial maintenance departments
Included Components
  • Advance Tabco WSS-16-25KV-FM service sink body
  • 7-PS-32 knee valve assembly (pre-drilled & mounted)
  • K-121 single-hole 3-½" gooseneck spout
  • K-6 3-½" stainless steel basket drain with strainer plate
  • (2) Tubular wall support brackets & (1) stainless “Z” bracket
Specifications
Model WSS-16-25KV-FM
Overall dimensions 22" W × 19-½" D × 28-½" H (to rim)
Bowl dimensions 22" W × 16" D × 8" H
Backsplash height 8-½"
Material & finish 16 ga type 304 stainless steel, satin finish
Faucet mounting Single 1-⅜" hole, splash mount
Operation Knee-operated valve with gooseneck spout
Drain K-6 3-½" rear basket drain, 1-½" IPS outlet
Shipping weight 60 lb (27 kg)
Certifications Faucet components comply with NSF-61/9 & AB1953 (low-lead) standards
Optional Accessories (sold separately)
  • K-425 thermostatic mixing valve for tempered water delivery
  • Stainless steel wall-mount soap dispenser (K-13)
  • K-06 splash mount faucet kit (alternative faucet styles)

Need a custom size or additional stations? Contact us for Advance Tabco Smart Fabrication™ quotes.

California Proposition 65 Notice: Components that come into contact with water may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Features & Specs

Manufacturer

Advance Tabco

Height

28.5in

Width

22.0in

Depth

19.5in

Shipping Weight

70.0lbs

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

freestanding

Faucet

faucet included

Specifications

Service Sink, splash mount faucet provision, with stainless steel legs and flanged feet, with knee valve, 22"W x 19-1/2"D x 28-1/2"H OA, 22" wide x 16" front-to-back x 8" deep bowl, 8-1/2"H backsplash, 16 gauge 304 stainless steel, single faucet hole, gooseneck spout, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
