Advance Tabco WSS-16-25FV-FM Hand Sinks
Description

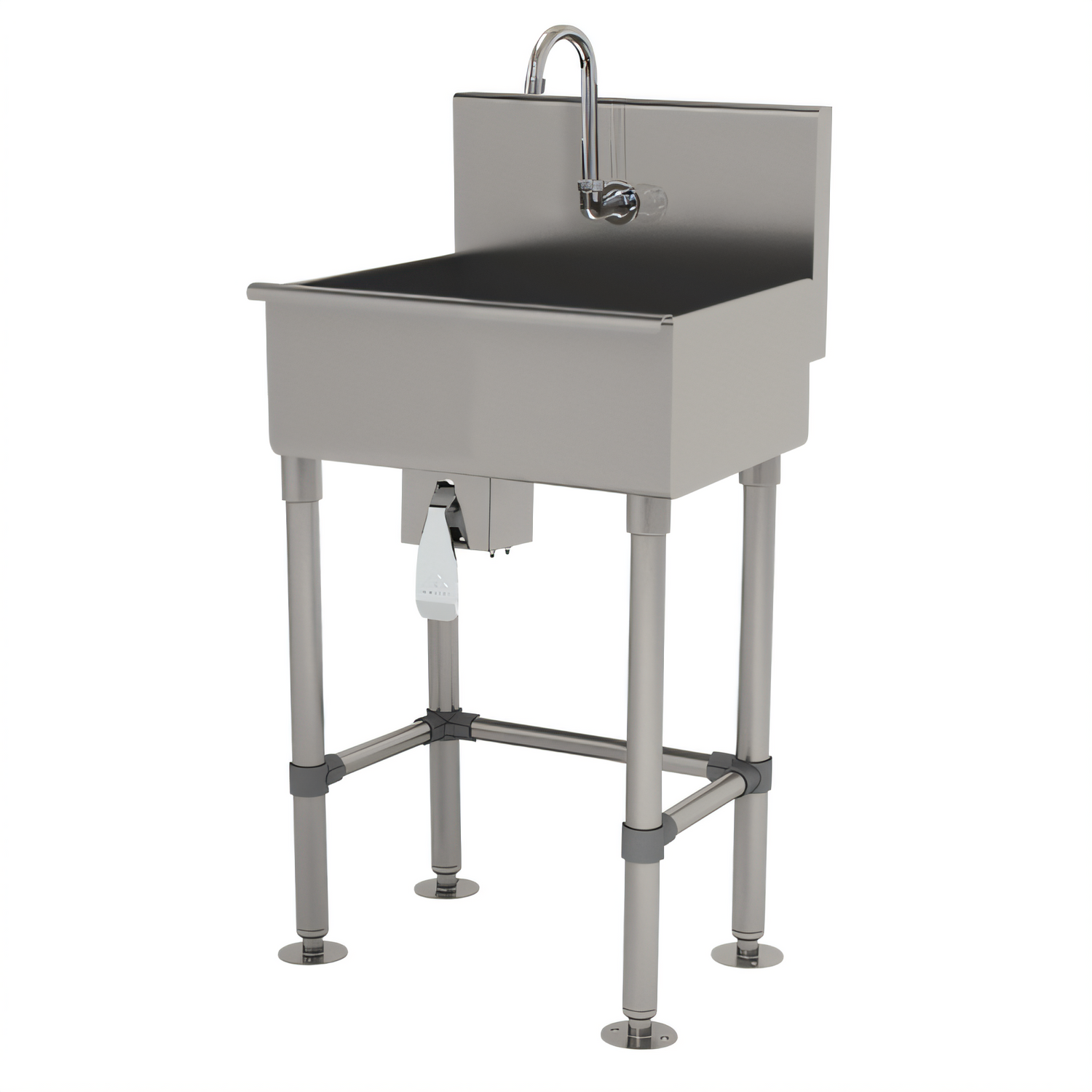

16 Gauge Stainless Steel Service Sink — Toe-Push Operated
Model WSS-16-25FV-FM | One Station, Floor MountBuilt to take on the toughest janitorial and maintenance tasks, this Advance Tabco floor-mounted service sink combines hands-free pedal operation, heavy-duty 16 ga. 304 stainless steel and a space-saving 22 inch footprint. From commercial kitchens and grocery backrooms to healthcare facilities, it delivers durability, hygiene and user safety in one compact station.
Why You’ll Love It

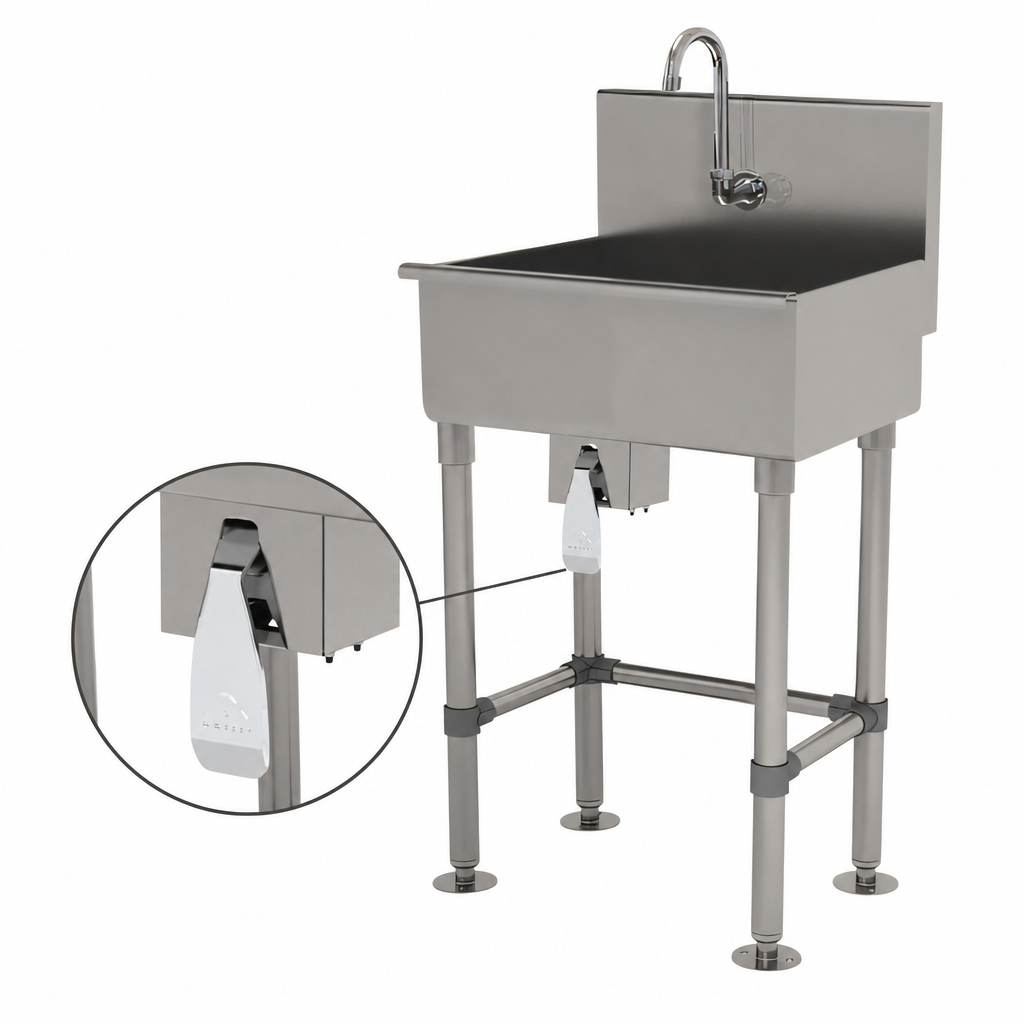

- Hands-free control — K-104 toe-push valve activates water without using your hands or knees.
- Full stainless construction — sink, legs, gussets and support shelf are all 16 ga. type 304 for maximum corrosion resistance.
- Deep 12 inch bowl (22" W × 16" F-B) comfortably accommodates mop buckets and bulky equipment.
- 8-1/2" integral backsplash with single splash-mount faucet hole prevents wall damage.
- Includes K-121 3-1/2" gooseneck spout for generous clearance and NSF 61/9 lead-free compliance.
- 3-1/2" K-6 basket drain with strainer plate keeps solids out of your plumbing.
- Pedal support bracket and four tubular legs with adjustable flanged feet provide rock-solid stability.
- TIG-welded construction with blended satin finish delivers a professional look and easy clean-up.
Perfect For
- Janitorial closets & mop rooms

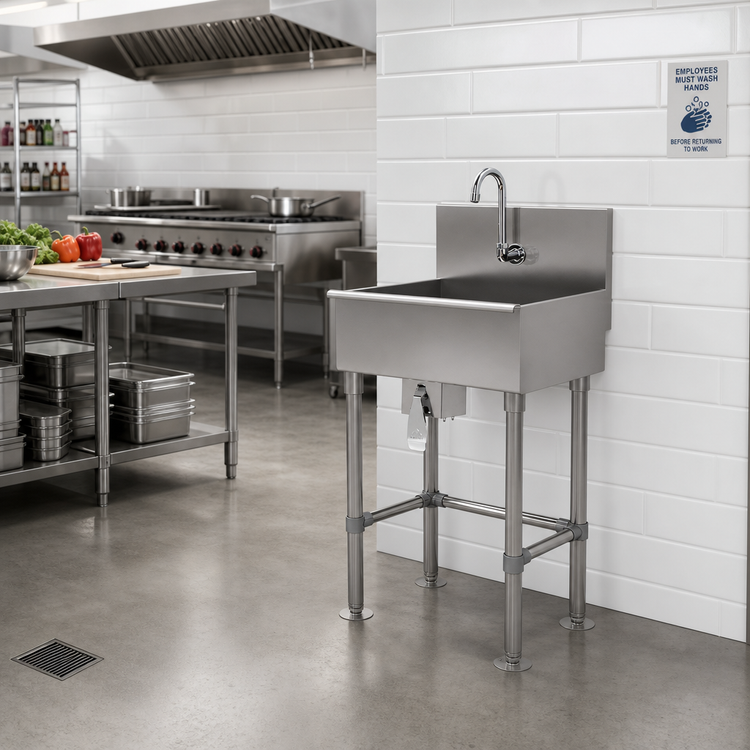

- Commercial kitchens & restaurants
- Grocery & convenience store back-of-house
- Healthcare & laboratory maintenance areas
- Industrial plants & warehouses
Technical Specs
| Overall Width | 22" (559 mm) |
|---|---|
| Overall Depth | 19-1/2" (495 mm) |
| Overall Height | 42-1/2" (1080 mm) to top of backsplash |
| Bowl Size | 22" W × 16" F-B × 12" Deep |
| Backsplash Height | 8-1/2" |
| Material | 16 ga. 304 stainless steel |
| Operation | Toe-push valve (K-104) with single splash-mount hole |
| Faucet Spout | K-121 3-1/2" gooseneck, lead-free, NSF 61/9 compliant |
| Drain | K-6 3-1/2" basket drain with strainer |
| Legs & Feet | 1-5/8" Ø tubular stainless steel legs with adjustable flanged bullet feet |
| Shipping Weight | 70 lb. (32 kg) |
| Ships Via | UPS Ground (18 cu. ft.) |
Single splash-mount faucet hole comes pre-punched. Rough-in height is typically 34" to the rim; always confirm with local code before installation. Detailed install guide available from Advance Tabco here.
