Advance Tabco  |  SKU: WSS-16-25EF  |  UPC: 747545212092

Advance Tabco WSS-16-25EF Hand Sinks

$2,129.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Installation manual 2 Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

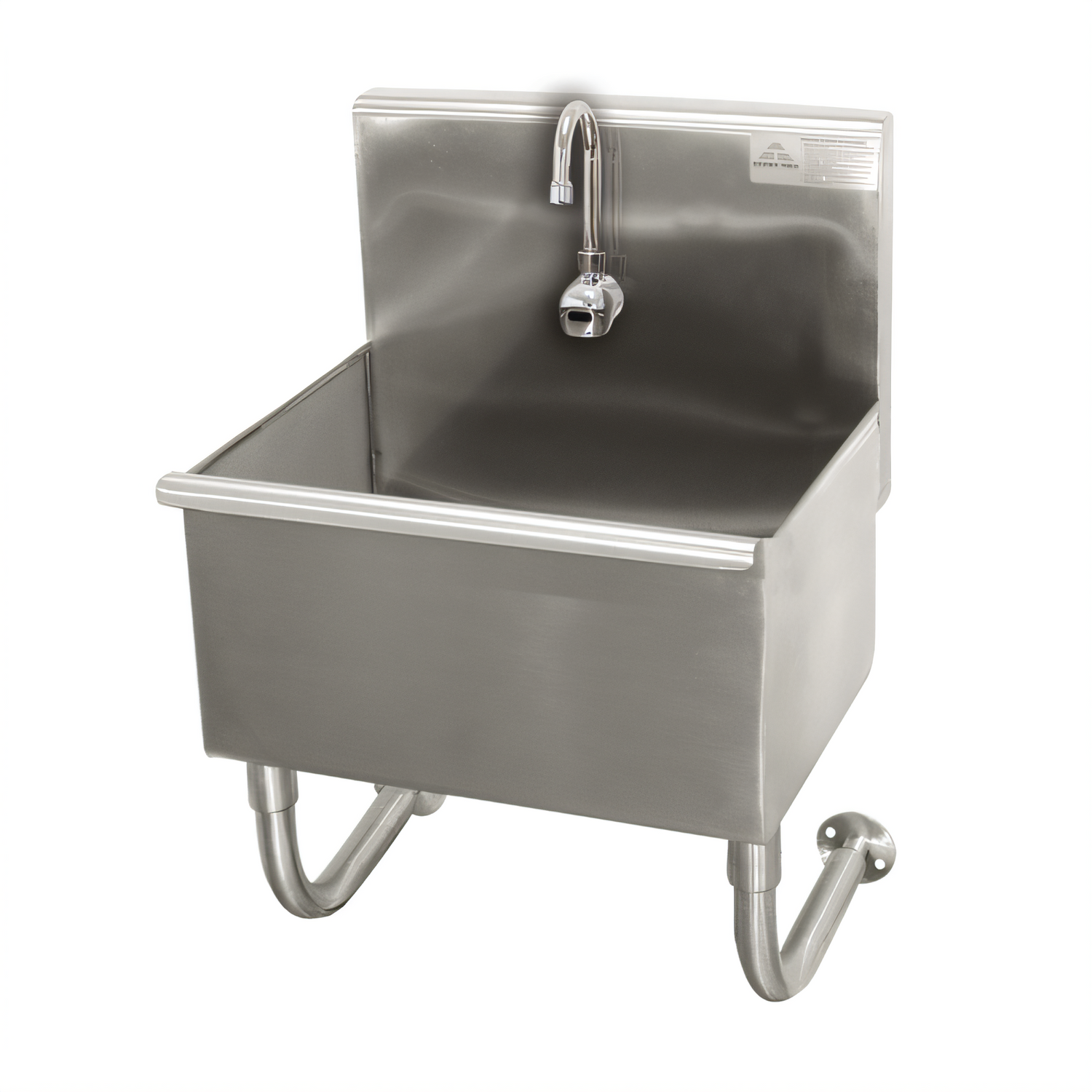

Advance Tabco WSS-16-25EF Wall-Mounted Service Sink

22 in. • 1-Station • 16-Gauge 304 Stainless Steel • Hands-Free Electronic Faucet

Built to take daily abuse in janitorial closets, maintenance rooms and other high-demand environments, the WSS-16-25EF combines Advance Tabco’s legendary stainless-steel craftsmanship with a factory-installed K-175 sensor faucet for a completely touch-free experience.

Why It Stands Out

  • 16-gauge type 304 stainless steel sink & supports - extra-heavy duty, corrosion-resistant construction.
  • Deep 22 in. × 16 in. bowl with 12 in. working depth easily handles buckets and mop heads.
  • 8 ½ in. integral backsplash keeps surrounding walls dry and sanitary.

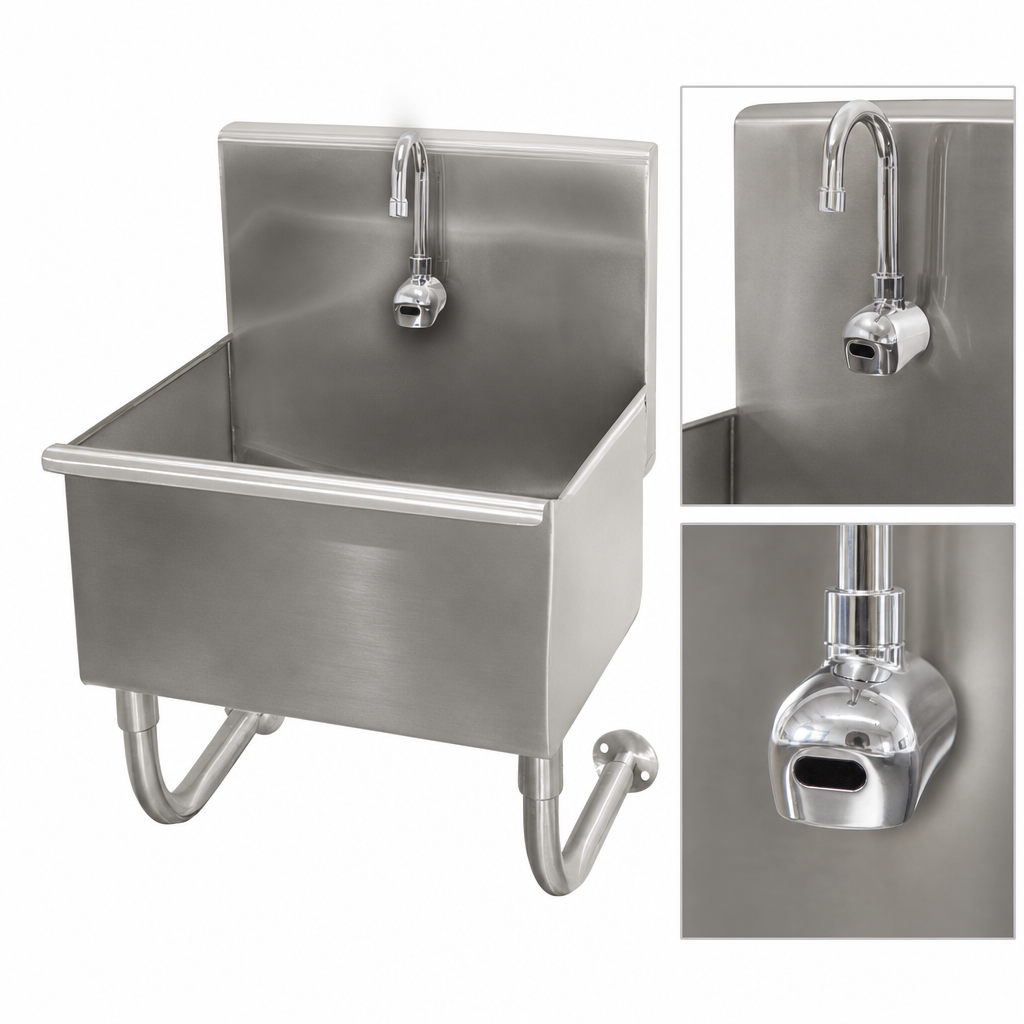

  • K-175 electronic faucet (2.2 GPM aerator) ships mounted and ready - activates automatically for hygienic, water-saving operation.
  • Single pre-punched faucet hole for simple service or future replacement.
  • (2) 1 5⁄8 in. tubular wall brackets + stainless “Z” bracket provide full floor clearance for effortless cleaning beneath the sink.
  • 3 ½ in. stainless basket drain (K-6) included.
  • All TIG-welded seams blended to a smooth satin finish for easy wipe-down.

Technical Specifications

Model WSS-16-25EF
Stations 1
Overall Dimensions 22 W × 19 ½ D × 32 ½ H in.
Inside Bowl Size 22 W × 16 F-to-B × 12 D in.
Backsplash Height 8 ½ in.
Material / Finish 16-ga 304 SS, satin polish
Faucet K-175 splash-mount electronic; NSF 61/9 & AB 1953 compliant
Drain 3 ½ in. basket strainer (K-6)
Wall Mounting (2) tubular SS supports & (1) stainless “Z” bracket (hardware by installer)
Shipping Weight 52 lb

Recommended bracket height: 44 in. from finished floor to top of “Z” bracket. Verify local plumbing codes before installation.

California Prop 65 Warning: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

32.5in

Width

22.0in

Depth

19.5in

Shipping Weight

52.0lbs

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

12" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, with electronic faucet, 22"W x 19-1/2"D x 32-1/2"H OA, 22" wide x 16" front-to-back x 12" deep bowl, 8-1/2"H backsplash, single faucet hole, tubular wall brackets, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
