Advance Tabco  |  SKU: WSS-16-25  |  UPC: 747545170439

Advance Tabco WSS-16-25 Hand Sinks

$1,361.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

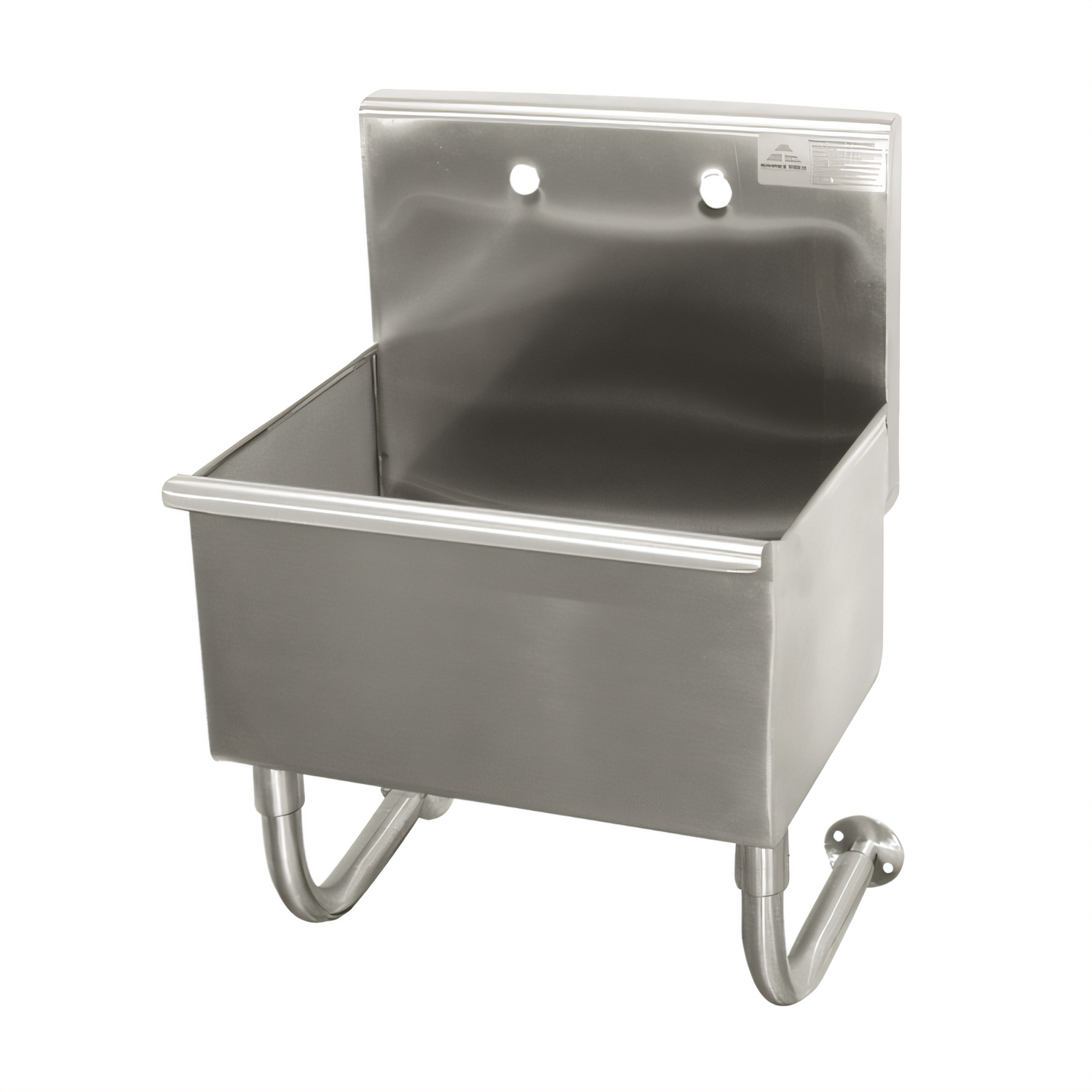

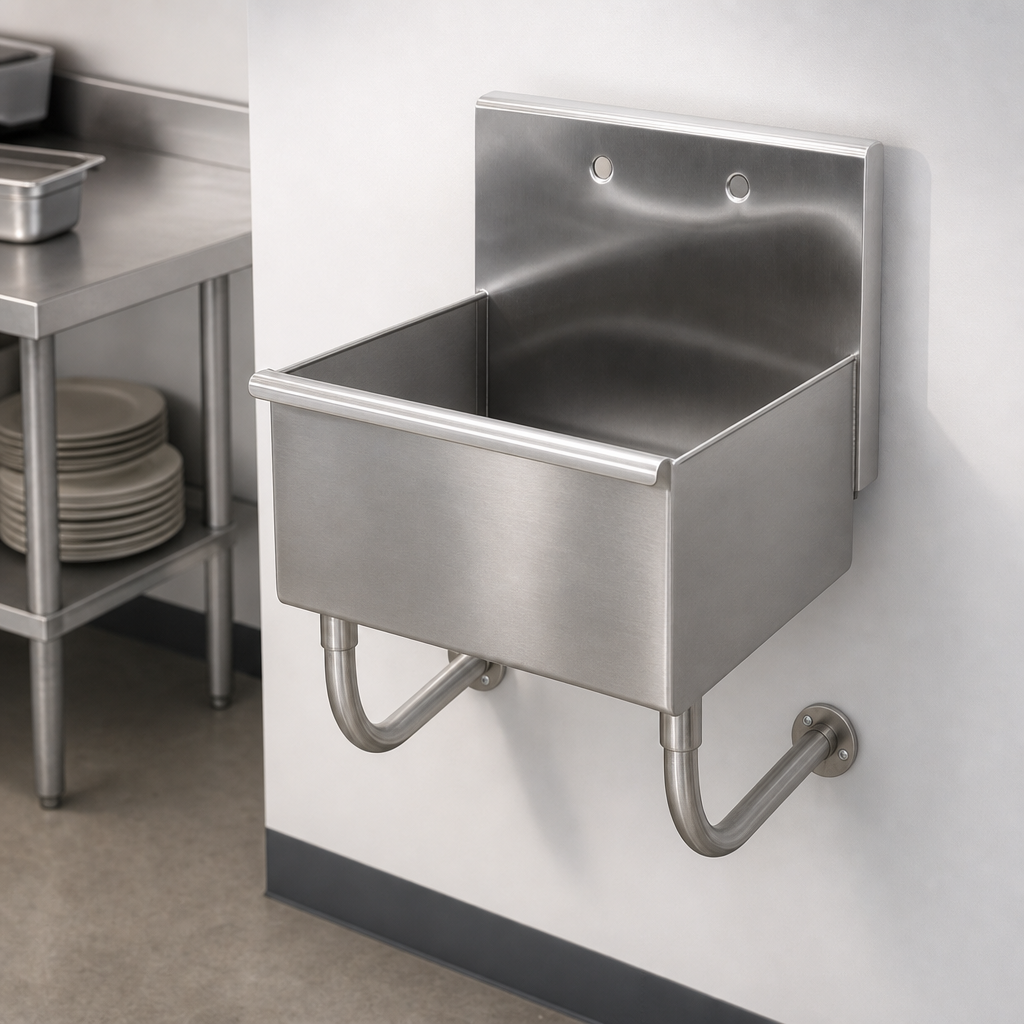

Advance Tabco WSS-16-25 Wall-Mounted Service Sink

One-station 16 ga. 304 SS utility sink with tubular supports – faucet not included

Engineered for heavy-duty janitorial and back-of-house use, the Advance Tabco WSS-16-25 pairs a deep, easy-clean bowl with rock-solid stainless-steel construction. The wall-mount design maximizes floor clearance for quick mop-ups while the 8 ½" backsplash keeps surrounding walls protected.

Key Features

  • 16 ga. type 304 stainless steel – resists dents, corrosion & harsh cleaners
  • Generous 12" bowl depth handles buckets, mop heads & bulky items with ease
  • 8 ½" integral backsplash with pre-punched 8" on-center faucet holes (splash-mount faucet ready)
  • Fully TIG-welded with satin-blended seams for a hygienic, easy-wipe finish
  • (2) tubular 1 5⁄8" Ø 304 SS wall brackets provide full under-sink clearance
  • Includes K-6 3 ½" rear basket drain with strainer plate
  • Ships with stainless “Z” wall bracket for fast, secure mounting

Specifications

Model WSS-16-25 (manual faucet version)
Overall dimensions (W × D × H) 22" × 19 ½" × 32 ½"
Bowl size (W × F-to-B × Depth) 22" × 16" × 12"
Backsplash height 8 ½"
Faucet holes 8" on-center, 1 ¼" Ø (faucet not included)
Mounting hardware (1) stainless “Z” bracket, (2) tubular wall supports
Drain K-6 3 ½" basket drain (1 ½" I.P.S. outlet)
Material / gauge Type 304 stainless steel / 16 ga.
Shipping weight Approx. 52 lb

Popular Accessories (sold separately)

  • K-159 8" O.C. splash-mount gooseneck faucet
  • K-101 8" swing spout splash-mount faucet
  • K-13 wall-mount stainless soap dispenser
  • K-410 strainer plate for 3 ½" drain
  • TA-19 adjustable wall-mount flanges (for tricky installs)

Installing Your Sink

  • Mount “Z” bracket 44" above finished floor (check local & ADA codes)
  • Slide sink onto bracket, level, then secure tubular supports to wall
  • Connect 1 ½" drain line and ½" hot/cold supplies to your selected faucet

Full installation guide and rough-in drawings are included with the unit.

California Prop 65 Notice: Components used with certain faucet options may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Features & Specs

Manufacturer

Advance Tabco

Height

32.5in

Width

22.0in

Depth

19.5in

Shipping Weight

52.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet not included

Style

wall mounted

Bowl Width (left to right)

20" & up

Bowl Height (rim to drain)

12" deep

Specifications

Service Sink, splash mount faucet provision, wall mounted, 22"W x 19-1/2"D x 32-1/2"H OA, 22" wide x 16" front-to-back x 12" deep bowl, 8-1/2"H backsplash, 8" OC faucet holes, tubular wall brackets, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
