Advance Tabco  |  SKU: WSS-16-25-FM  |  UPC: 747545216816

Advance Tabco WSS-16-25-FM Hand Sinks

$1,632.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

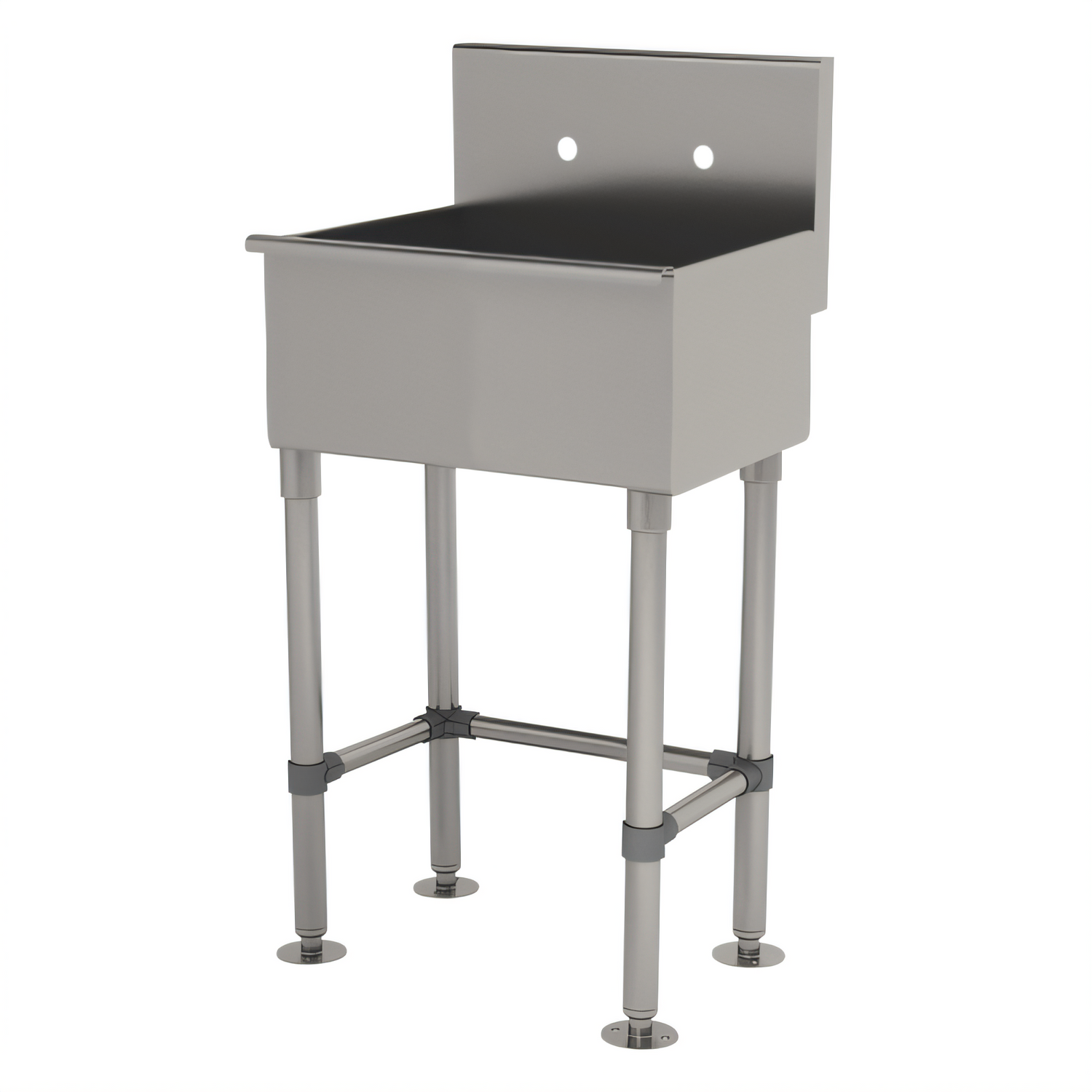

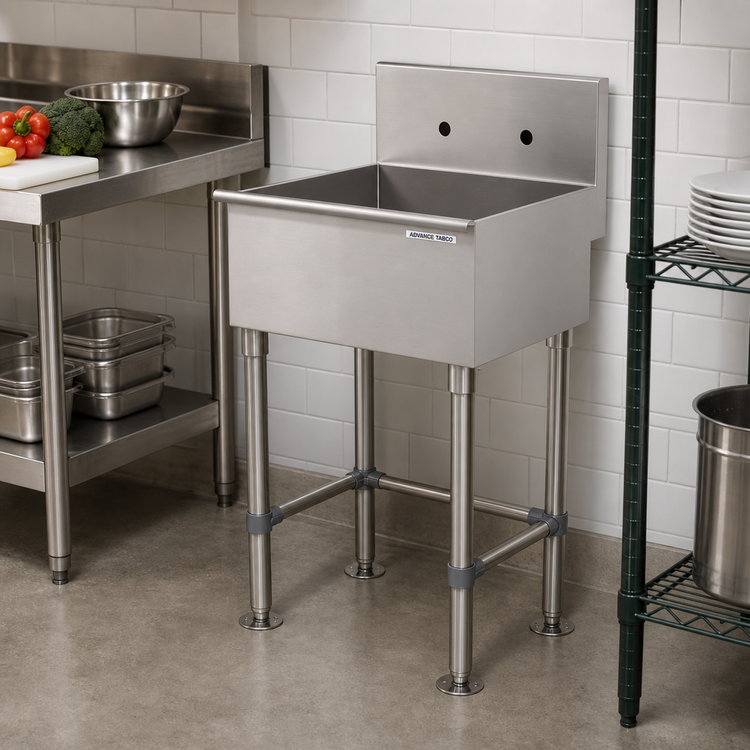

Advance Tabco WSS-16-25-FM Floor-Mounted Service Sink

22" W x 19-1/2" D x 32-1/2" H (to rim) • 16 ga 304 Stainless Steel

Built for the rigors of daily wash-down, mop-filling, and general maintenance tasks, this one-station service sink delivers uncompromising durability in a compact footprint.

Why you’ll love it

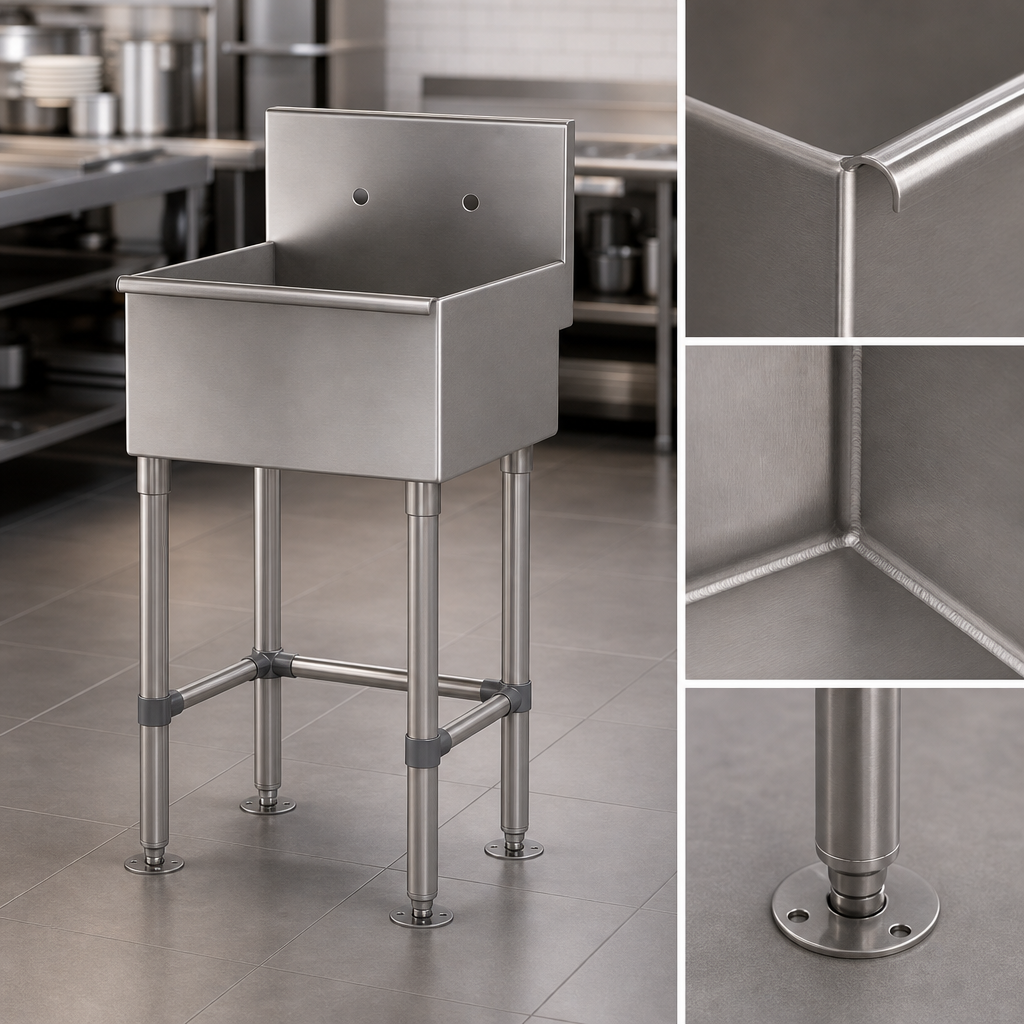

  • Heavy-duty 16 ga type 304 stainless steel resists corrosion & harsh cleaners.
  • Generous 22" × 16" bowl with a full 12" working depth handles bulky buckets and tools.
  • 8-1/2" backsplash protects surrounding walls and includes pre-punched 8" O.C. faucet holes for quick splash-mount installation.
  • 1-5/8" Ø tubular legs with stainless steel flanged feet bolt securely to the floor for rock-solid stability.
  • Adjustable side & rear cross-bracing plus welded stainless gussets stop wobble and racking.
  • TIG-welded seams are blended to a sanitary satin finish—no sharp edges, no exposed crevices.
  • Includes a 3-1/2" rear basket drain (K-6) to keep debris out of your plumbing.
  • Supplied stainless steel “Z” wall bracket relieves stress on the legs when the sink is fully loaded.

Technical specifications

Manufacturer Advance Tabco
Model / SKU WSS-16-25-FM
Overall dimensions (WxDxH) 22" × 19-1/2" × 32-1/2" to sink rim
42-1/2" to top of backsplash
Bowl size (WxDxH) 22" × 16" × 12"
Backsplash height 8-1/2"
Faucet mount Splash mount, 8" on-center (faucet not included)
Material & finish 16 ga type 304 stainless steel, satin finish
Legs / feet 1-5/8" Ø 304 SS tubular legs with flanged feet (floor mount)
Drain 3-1/2" stainless steel basket drain included
Shipping weight ≈ 52 lb
Certifications NSF (sink); faucet compliance depends on selection

Easy to install

  • Pre-drilled backsplash speeds faucet attachment.
  • Flanged feet are pre-punched for secure floor anchoring.
  • “Z” wall bracket adds extra rigidity (hardware by others).

Need a faucet? Compatible Advance Tabco splash-mount models include K-101 swing spout, K-159 gooseneck, and K-160 swivel spout (all 8" O.C.). Sold separately.

Faucet not included. Add a compliant splash-mount faucet to complete your installation.

Features & Specs

Manufacturer

Advance Tabco

Height

32.5in

Width

22.0in

Depth

19.5in

Shipping Weight

62.0lbs

Faucet

faucet not included

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

freestanding

Bowl Height (rim to drain)

12" deep

Specifications

Service Sink, splash mount faucet provision, with stainless steel legs and flanged feet, 22"W x 19-1/2"D x 32-1/2"H OA, 22" wide x 16" front-to-back x 12" deep bowl, 8-1/2"H backsplash, 8" OC faucet holes, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
