Description

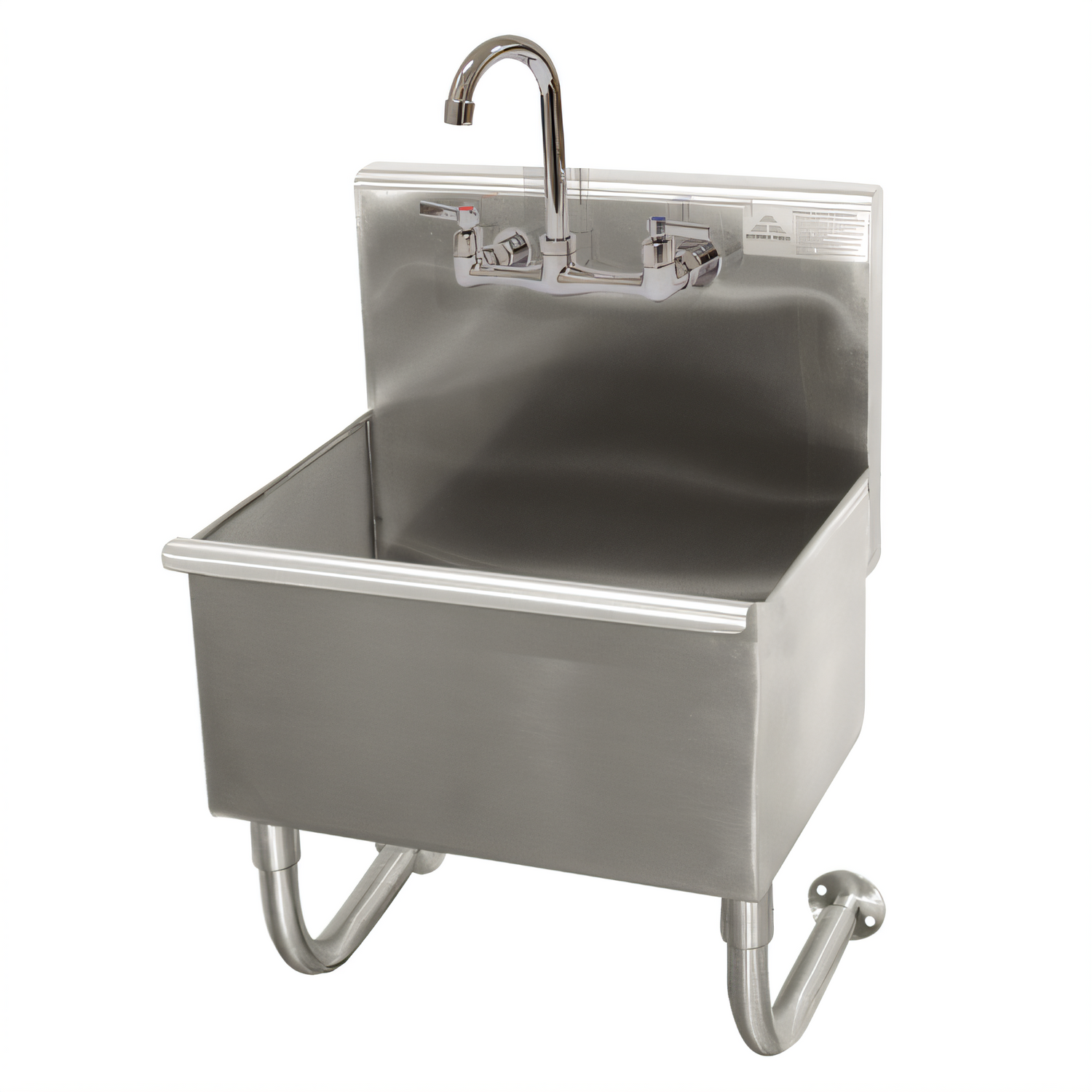

Advance Tabco WSS-16-25-F 22" Wall-Mounted Service Sink

16 ga Type 304 Stainless Steel • Includes K-159 Splash-Mount Gooseneck Faucet

Built for the daily rigors of maintenance rooms, janitorial closets, and commercial kitchens, this one-station service sink delivers uncompromising strength, easy sanitation, and full floor clearance thanks to heavy-duty tubular wall supports.

Key Features

  • Rugged 16 ga type 304 stainless steel resists corrosion and harsh cleaners.
  • Extra-deep 12" bowl (22" W × 16" F/B) handles mop buckets and bulky items with ease.
  • 8-1/2" high integral backsplash with 8" on-center faucet holes helps contain splashes.

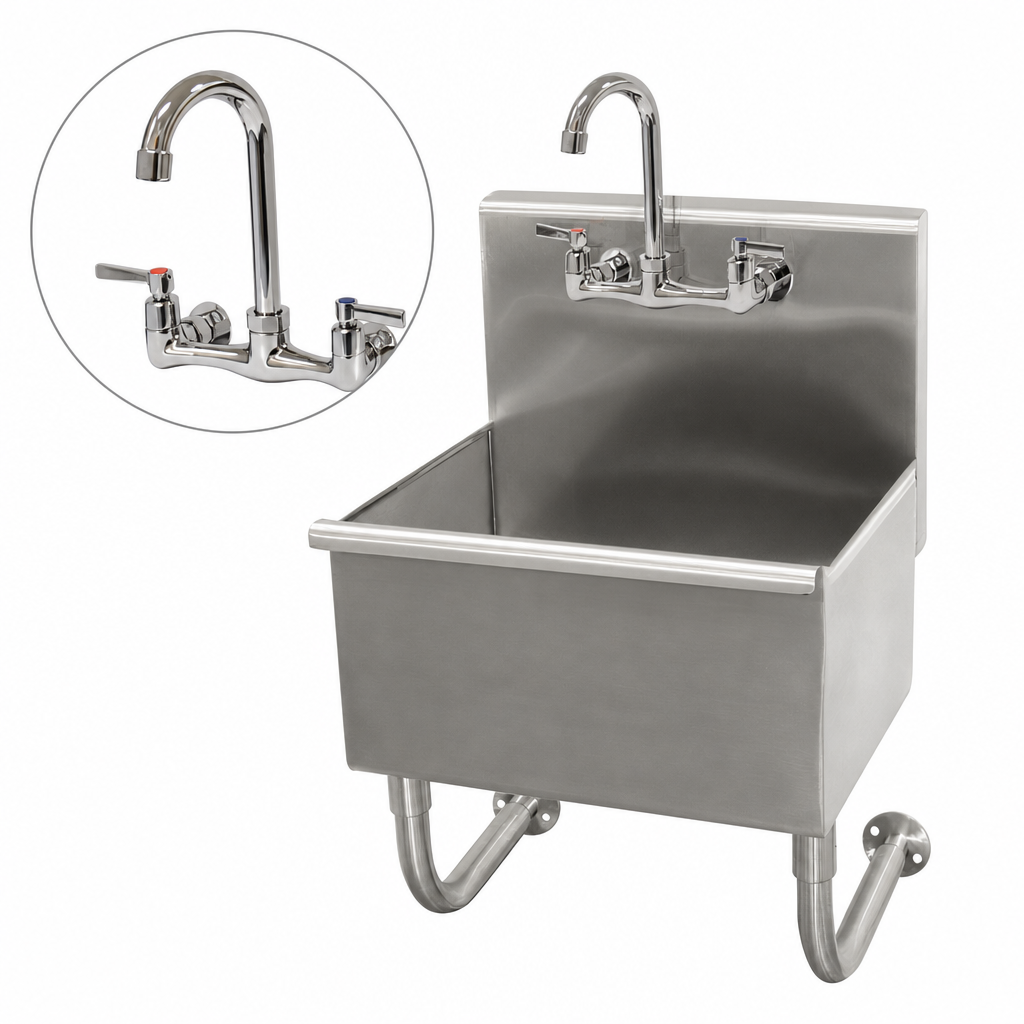

  • Includes K-159 3-1/2" gooseneck faucet—mounts directly to the backsplash for a clean, space-saving install.
  • (2) 1-5/8" tubular stainless steel wall brackets plus stainless “Z” mounting bracket provide full under-sink clearance for easier floor cleaning.
  • TIG-welded construction with blended satin finish maintains a professional look.
  • K-6 3-1/2" rear basket drain with strainer keeps debris out of your plumbing.

Included Components

  • WSS-16-25-F wall-mount service sink
  • K-159 splash-mount 3-1/2" gooseneck faucet (manual, 8" O.C.)
  • K-6 3-1/2" stainless steel basket drain (1-1/2" IPS outlet)
  • (2) tubular wall support brackets & stainless “Z” hanging bracket
  • Mounting hardware & installation instructions

Specifications

Model WSS-16-25-F
Overall Dimensions 22" W × 19-1/2" D × 32-1/2" H
Bowl Dimensions 22" W × 16" F/B × 12" D
Backsplash Height 8-1/2"
Faucet Hole Centers 8"
Material & Gauge 16 ga type 304 stainless steel
Supports (2) 1-5/8" tubular stainless wall brackets + stainless “Z” bracket
Drain Opening 3-1/2" (rear)
Shipping Weight 54 lb
Shipping Volume 11 ft³
Certifications Faucet complies with NSF/ANSI 61 Sec. 9 & AB1953 lead-free requirements

Need multiple stations or optional accessories? Advance Tabco offers matching soap dispensers, strainer plates, swing-spout faucets, and more.

California Prop 65 Notice: This product may expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.

Features & Specs

Manufacturer

Advance Tabco

Height

32.5in

Width

22.0in

Depth

19.5in

Shipping Weight

54.0lbs

Bowl Height (rim to drain)

12" deep

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, includes faucet, 22"W x 19-1/2"D x 32-1/2"H OA, 22" wide x 16" front-to-back x 12" deep bowl, 8-1/2"H backsplash, 8" OC faucet holes, tubular wall brackets, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
