Advance Tabco | SKU:
WSS-14-21KV
Advance Tabco WSS-14-21KV Hand Sinks
$1,649.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco WSS-14-21KV Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco WSS-14-21KV Hand Sinks
$1,649.00
Unit price
/
Unavailable
Description

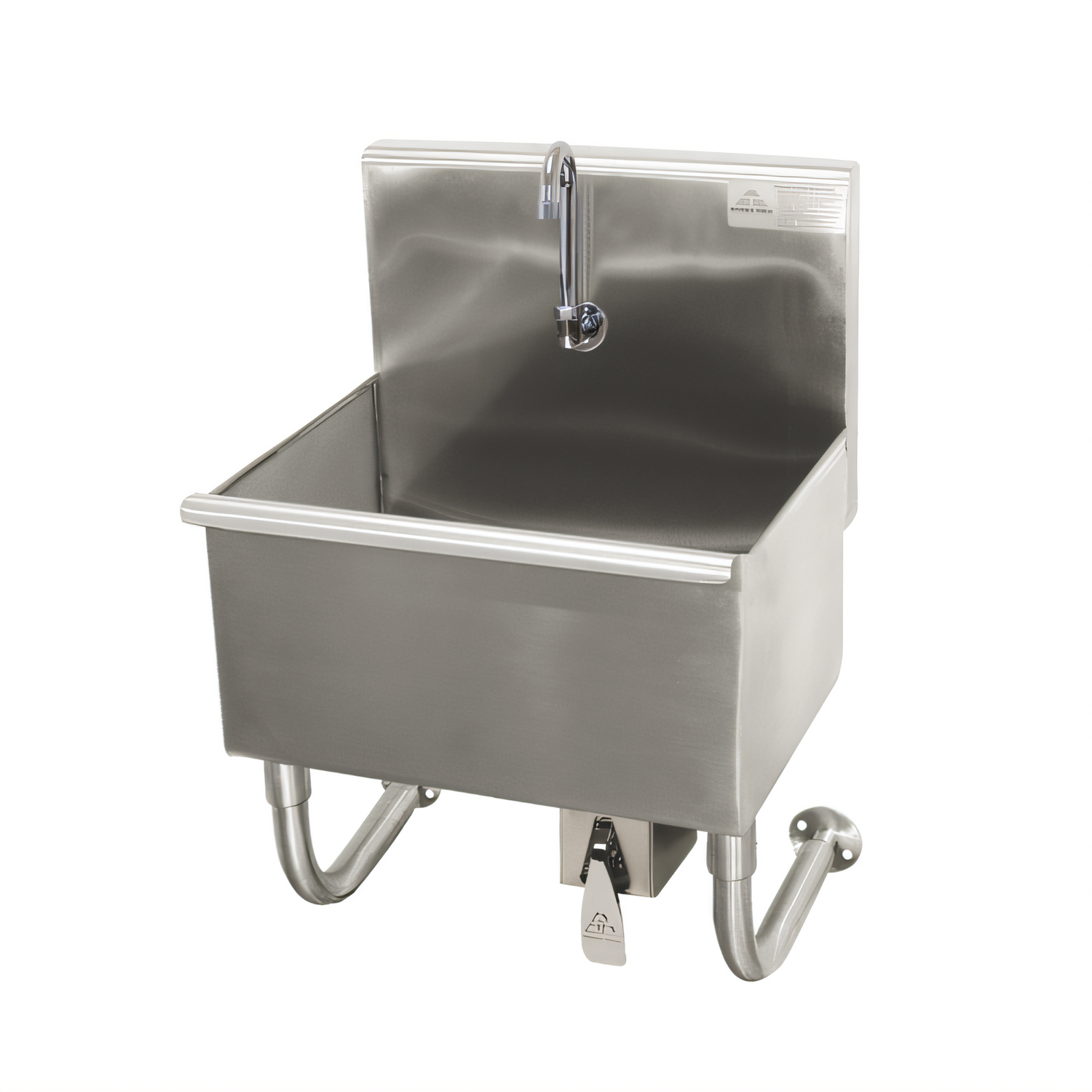

Advance Tabco WSS-14-21KV Wall-Mounted Service Sink
Hands-free knee valve operation • 18" wide heavy-duty 16 ga. 304 stainless steelBuilt for the toughest clean-up jobs in healthcare, foodservice and industrial settings, the WSS-14-21KV delivers rugged durability, fast installation and completely hands-free operation in a compact, wall-mounted package.
Key Features

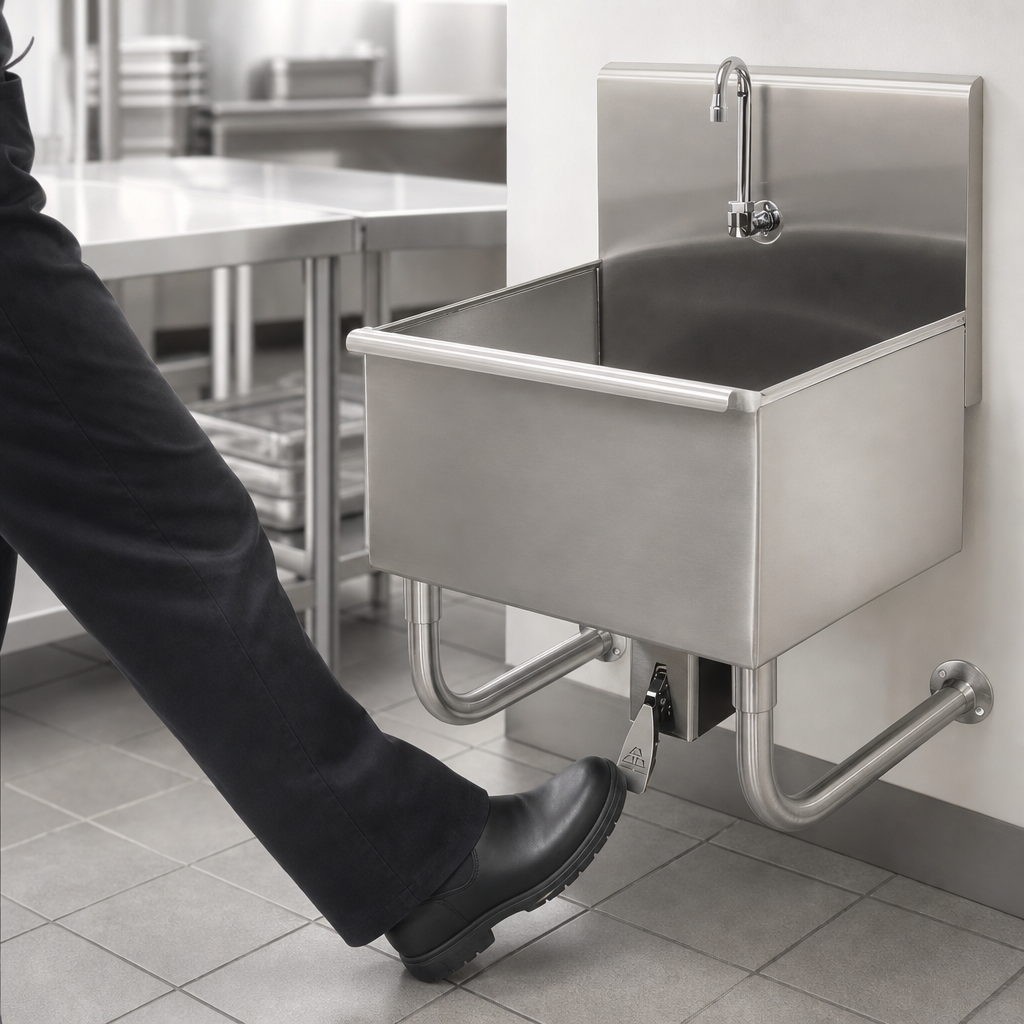

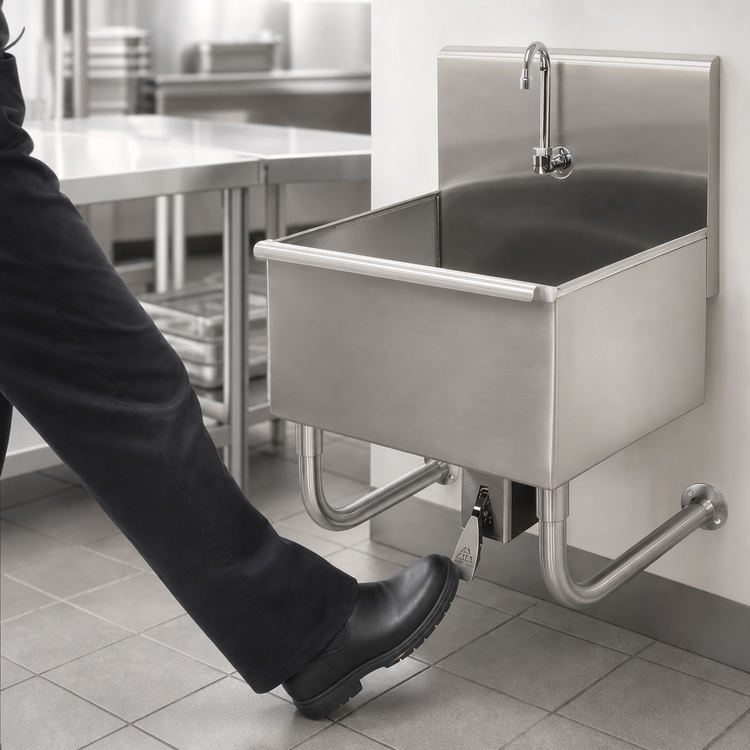

- Hands-free knee valve: includes Advance Tabco 7-PS-32 valve for sanitary on/off control.
- Splash-mounted K-121 3-½" gooseneck spout pre-installed in a single faucet hole.
- Deep, easy-wash bowl – 18" W × 14" F-B × 8" D – contains heavy soil and mop buckets.
- 8-½" high integral backsplash protects walls and keeps water in the sink.
- 16 gauge type 304 stainless steel, fully TIG-welded and blended to a sleek satin finish.
- Pair of 1 5⁄8" Ø tubular 304 SS wall brackets plus stainless “Z” hanger bracket for rock-solid support with full floor clearance.
- Factory-installed K-6 3-½" rear basket drain with strainer plate.
- Ships completely assembled – just mount, hook up water & waste, and get to work.
At-a-Glance Specifications
| Model | WSS-14-21KV |
|---|---|
| Overall dimensions (W × D × H) | 18" × 17 ½" × 28 ½" |
| Usable bowl size | 18" × 14" × 8" deep |
| Backsplash height | 8 ½" |
| Gauge & material | 16 ga. type 304 stainless steel |
| Mounting style | Wall mounted with tubular supports & “Z” bracket |
| Faucet provision | (1) single 1 ³⁄₈" hole, furnished with gooseneck spout & knee valve |
| Drain connection | 3 ½" basket drain, 1 ½" IPS outlet |
| Shipping weight | ≈ 50 lb |
What’s Included
- WSS-14-21KV service sink assembly
- (2) Tubular wall support brackets with adjustable flanges
- Stainless steel “Z” wall hanger bracket
- 7-PS-32 knee valve assembly (lead-free, NSF/ANSI 61-9)
- K-121 splash-mount gooseneck spout
- K-6 3-½" rear basket drain with strainer
- Installation hardware for knee valve to sink
Need tempered water? The sink is compatible with Advance Tabco K-425 thermostatic mixing valves (sold separately).
California Proposition 65 Warning: This product can expose you to chemicals, including lead,
known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information
visit www.P65Warnings.ca.gov.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Height
28.5in
Width
18.0in
Depth
17.5in
Shipping Weight
50.0lbs
Bowl Depth (front to back)
11" - 14" front-to-back
Bowl Width (left to right)
15" - 19"
Bowl Height (rim to drain)
8" deep
Faucet
faucet included
Style
wall mounted
Specifications
Service Sink, splash mount faucet provision, wall mounted, with knee valve, 18"W x 17-1.2"D x 28-1/2"H OA, 18" wide x 14" front-to-back x 8" deep bowl, 8-1/2"H backsplash, single faucet hole, gooseneck spout, tubular wall brackets, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
