Description

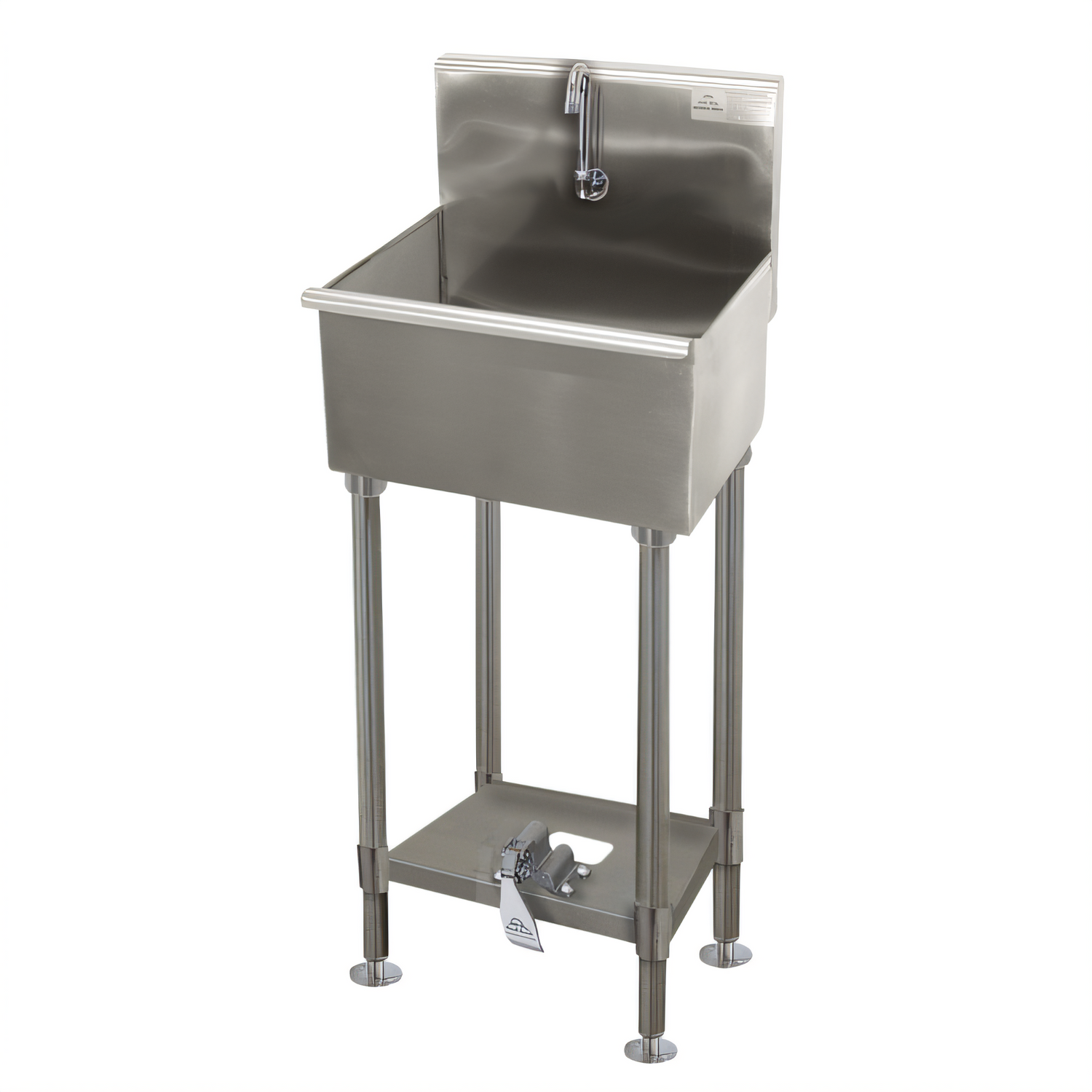

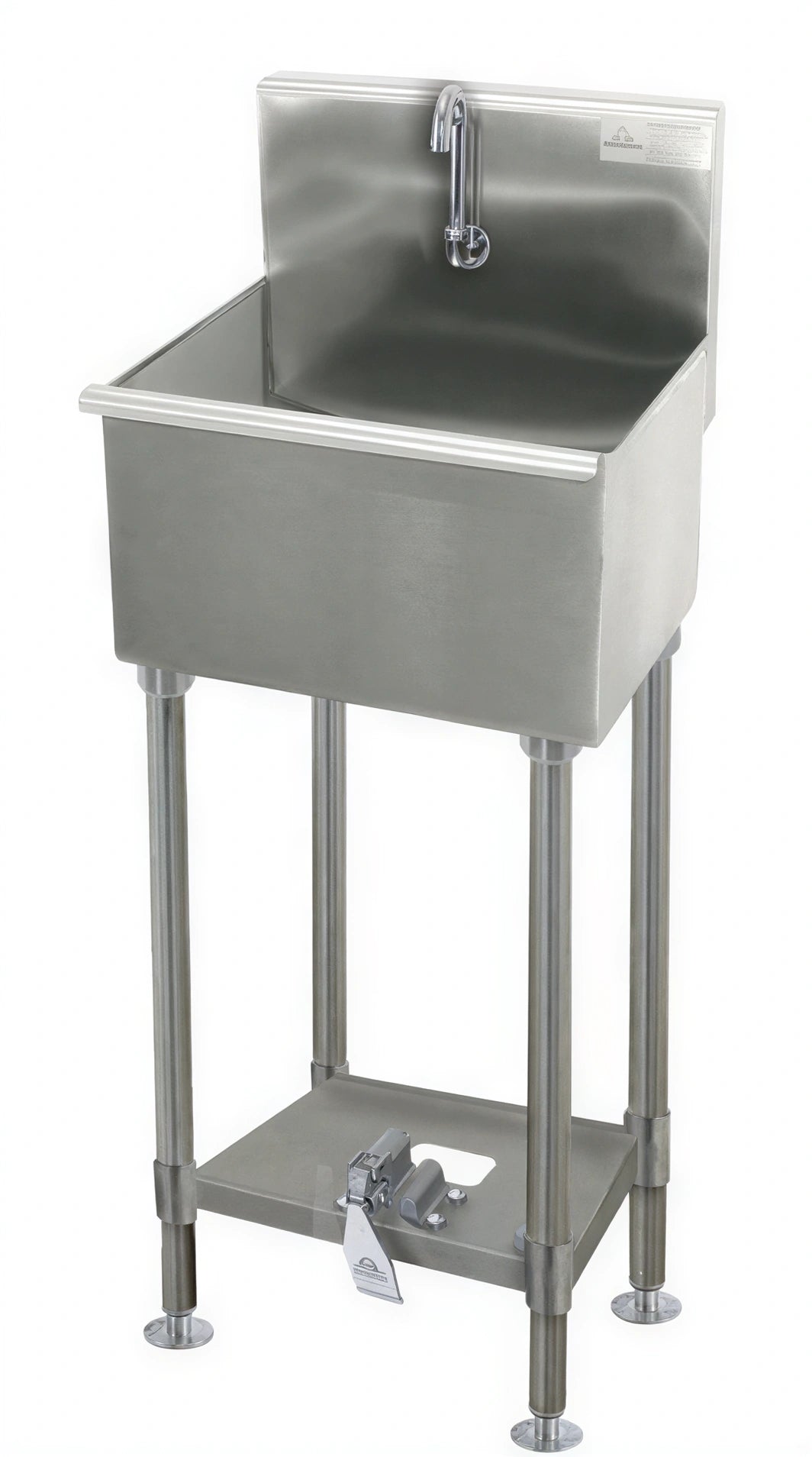

Advance Tabco WSS-14-21FV-FM Floor-Mounted Service Sink

Hands-free toe-push operation • 16-gauge 304 stainless steel • 18" wide bowl

Built for the toughest janitorial, healthcare and food-service environments, this one-station service sink combines rugged 16-gauge stainless steel construction with hygienic, completely hands-free water control. The compact 18" footprint is perfect for tight utility closets while still delivering a generous 12" deep bowl for filling buckets, washing tools and more.

Key Features

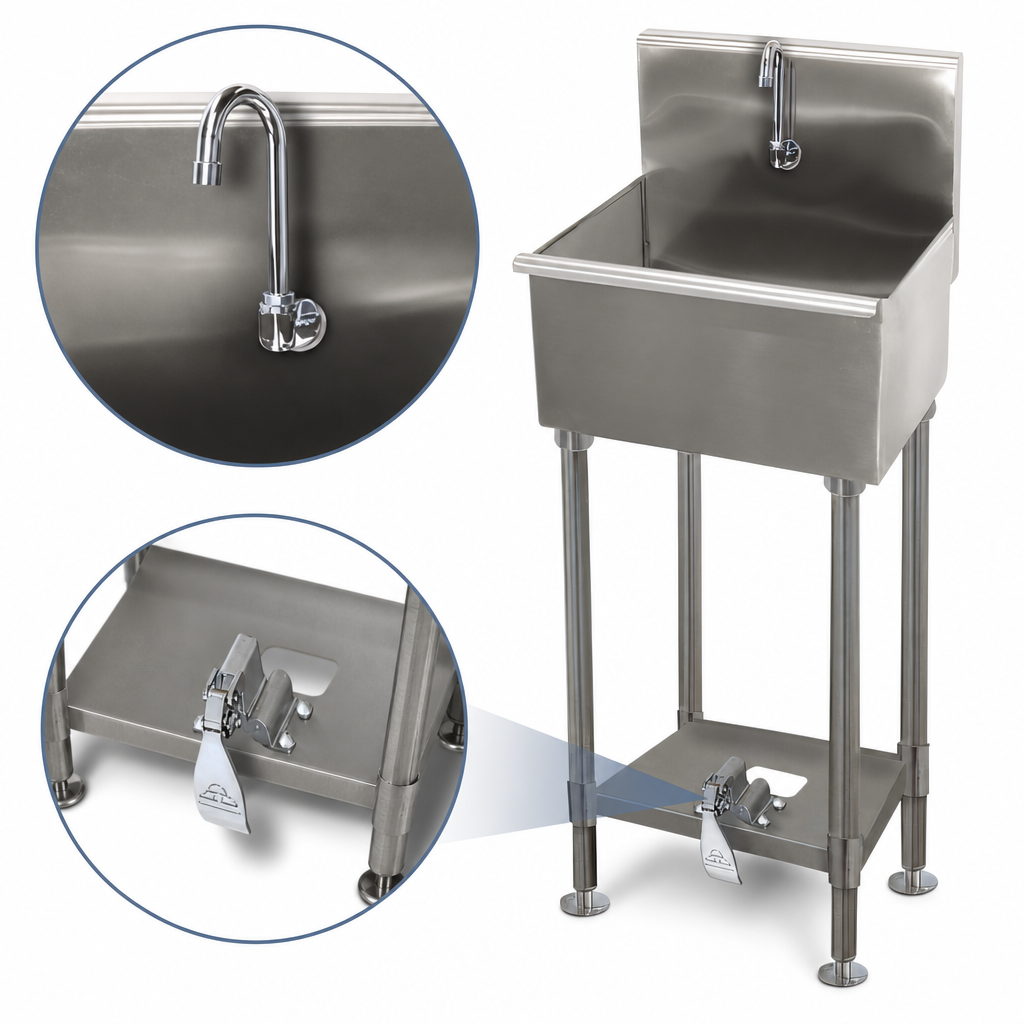

  • K-104 toe-push valve lets staff turn water on/off with a gentle tap of the foot—no handles to touch.
  • Splash-mount K-121 3 ½" gooseneck spout reaches deep into the bowl for fast filling and rinse-down.
  • Heavy-duty 16 ga. type 304 stainless steel sink body, gussets and 1 ⅝" tubular legs resist corrosion and denting.
  • 12" deep bowl (18" W × 14" F-B) handles large mop buckets and cleaning tools.
  • 8 ½" backsplash contains splatter; single pre-punched faucet hole simplifies installation.
  • Integrated stainless steel support shelf with rear turn-up adds rigidity and convenient storage.
  • Adjustable flanged bullet feet anchor securely to the floor and allow quick leveling.
  • TIG-welded seams ground to a satin finish for a smooth, easy-to-sanitize surface.
  • Ships UPS and arrives with everything you need to get up and running fast.

Specifications

Model WSS-14-21FV-FM
Stations 1 (single-user)
Overall dimensions (W × D × H) 18" × 17 ½" × 42 ½"
Bowl size (W × F-B × Depth) 18" × 14" × 12"
Backsplash height 8 ½"
Material / gauge Type 304 stainless steel / 16 ga.
Water control K-104 toe-push valve (pedal)
Spout K-121 splash-mount 3 ½" gooseneck
Faucet holes 1 (centered, 1 ¼" dia.)
Drain K-6 3 ½" basket drain, 1 ½" I.P.S. outlet
Legs / feet 1 ⅝" O.D. tubular 304 SS legs with adjustable flanged bullet feet
Shipping weight 57 lb (14 cu. ft.)
Certifications NSF 61/9 compliant faucet components

What’s Included

  • Advance Tabco WSS-14-21FV-FM service sink
  • K-104 toe-push valve assembly
  • K-121 splash-mount gooseneck spout
  • K-6 3 ½" basket drain with strainer plate
  • Four stainless steel legs with flanged bullet feet
  • Stainless steel support shelf & Z-wall mounting bracket
  • Pedal bracket support and installation hardware

Thermostatic mixing valve, supply lines and waste plumbing are not included and should be supplied by the installer to meet local codes.

Perfect For

  • Janitorial & maintenance closets
  • Hospitals, clinics and laboratories
  • Commercial kitchens & food processing plants
  • Industrial workshops and manufacturing facilities
California Proposition 65 Warning: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

42.5in

Width

18.0in

Depth

17.5in

Shipping Weight

57.0lbs

Faucet

faucet included

Bowl Depth (front to back)

11" - 14" front-to-back

Style

freestanding

Bowl Height (rim to drain)

12" deep

Bowl Width (left to right)

15" - 19"

Specifications

Service Sink, splash mount faucet provision, floor model, with toe-operated push valve, 18"W x 17-1.2"D x 42-1/2"H OA, 18" wide x 14" front-to-back x 12" deep bowl, 8-1/2"H backsplash, single faucet hole, gooseneck spout, includes stainless steel legs & flanged feet, pedal bracket support, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
