Description

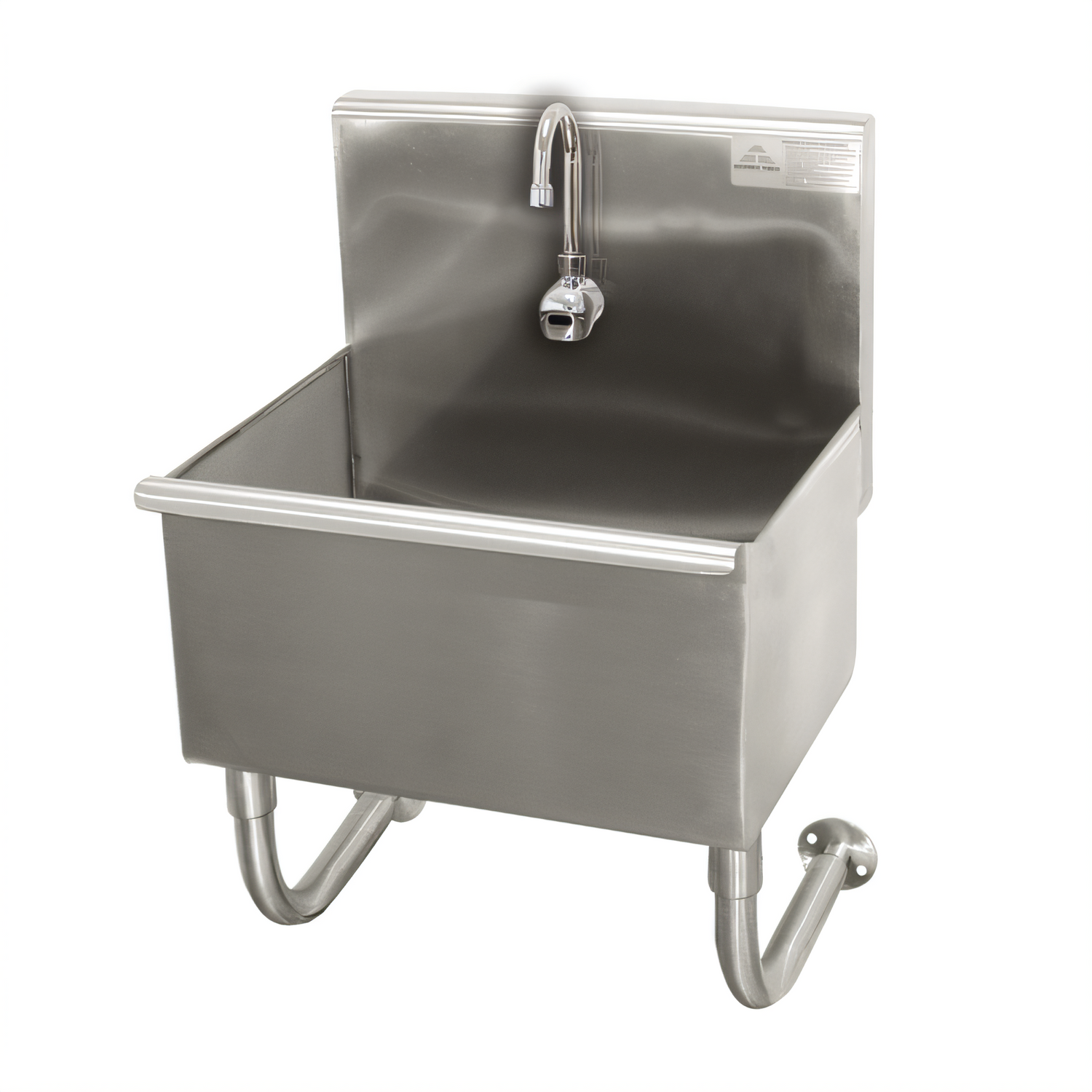

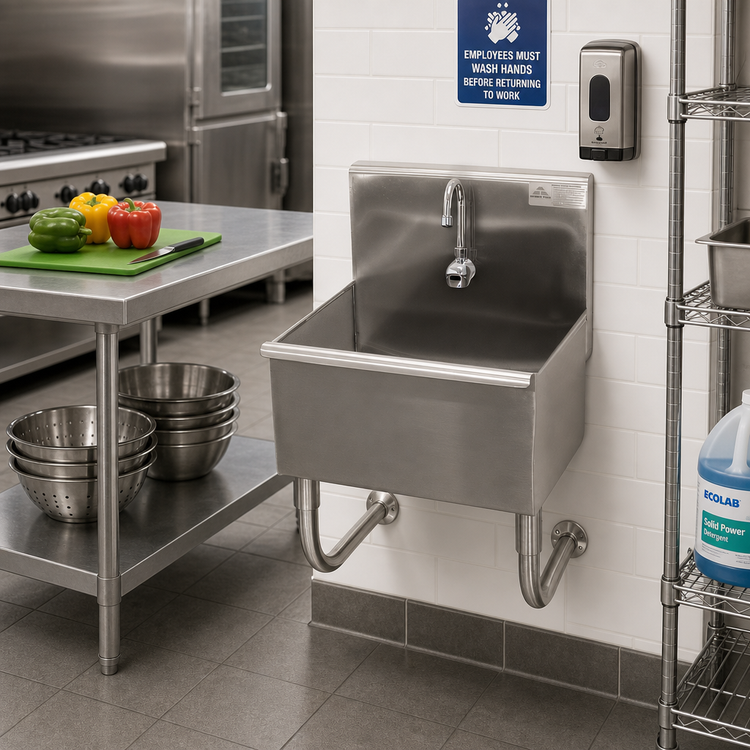

Advance Tabco WSS-14-21EF 18" Wall-Mounted Service Sink

16-Gauge 304 Stainless Steel | Hands-Free Electronic Faucet Included

Built for the rigors of commercial janitorial and utility environments, the WSS-14-21EF service sink delivers a deep 12" bowl, an 8-1/2" backsplash and a touch-free electronic faucet—all in a compact, wall-mounted package that keeps the floor clear for effortless cleaning.

Key Features

  • Generous one-station bowl: 18" W × 14" F-to-B × 12" D handles mop buckets and bulky containers.
  • Integrated 8-1/2" backsplash contains splashes and protects surrounding walls.

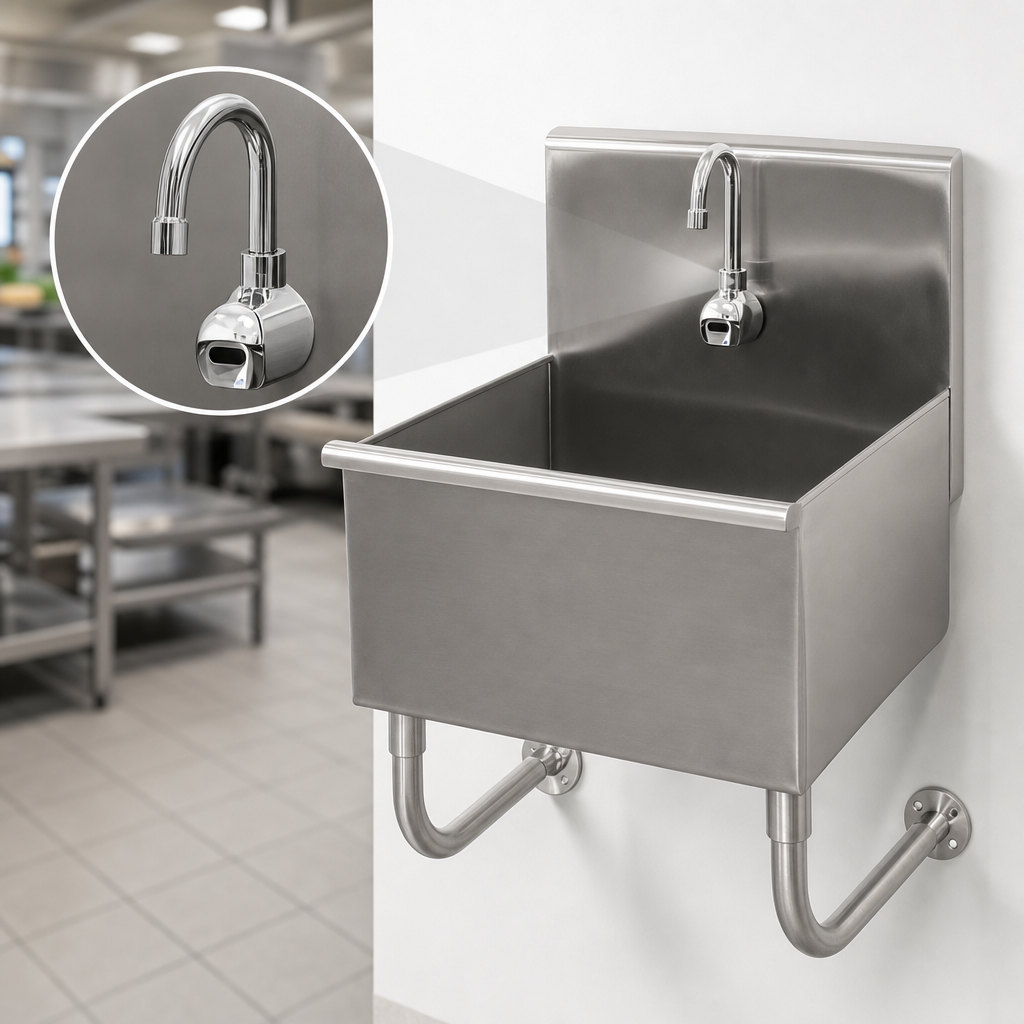

  • Includes K-175 splash-mounted electronic faucet for sanitary, hands-free operation (2.2 GPM aerator, adjustable mixing valve, plug-in control box, UL-listed adapter).
  • Factory-punched single faucet hole—no field drilling required.
  • K-6 3-1/2" basket drain with 1-1/2" IPS outlet and strainer plate included.
  • Rugged 16 ga type 304 stainless steel sink, TIG-welded and satin-finished; stainless gussets for added strength.
  • (2) 1-5/8" Ø tubular 304 SS wall brackets plus stainless “Z” mounting bracket provide rock-solid support and full under-sink clearance.
  • Compact overall footprint—18" W × 17-1/2" D × 32-1/2" H; ships at 42 lb.

Ideal For

  • Janitorial & mop rooms
  • Commercial kitchens & dish areas
  • Maintenance shops & utility closets
  • Healthcare & laboratory service rooms

Technical Specifications

Model WSS-14-21EF
Overall Dimensions (W × D × H) 18" × 17-1/2" × 32-1/2"
Bowl Dimensions (W × F-to-B × Depth) 18" × 14" × 12"
Backsplash Height 8-1/2"
Material / Gauge 16 ga type 304 stainless steel
Faucet Advance Tabco K-175 electronic, splash-mount, single-hole, 2.2 GPM
Drain K-6 3-1/2" basket drain (1-1/2" IPS)
Wall Supports (2) tubular 1-5/8" 304 SS brackets + stainless “Z” bracket
Shipping Weight 42 lb
Compliance Faucet conforms to NSF/ANSI 61 & 9, AB 1953 lead-free; UL-listed control box

Optional accessories: low-flow 0.5 GPM aerator (K-08), wall-mount soap dispenser (K-13), strainer plate (K-410).

California Prop 65 Notice: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Height

32.5in

Width

18.0in

Depth

17.5in

Shipping Weight

42.0lbs

Bowl Height (rim to drain)

12" deep

Bowl Width (left to right)

15" - 19"

Bowl Depth (front to back)

11" - 14" front-to-back

Faucet

faucet included

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, with electronic faucet, 18"W x 17-1/2"D x 32-1/2"H OA, 18" wide x 14" front-to-back x 12" deep bowl, 8-1/2"H backsplash, single faucet hole, tubular wall brackets, 16 gauge 304 stainless steel, includes 3-1/2" basket drain
