Description

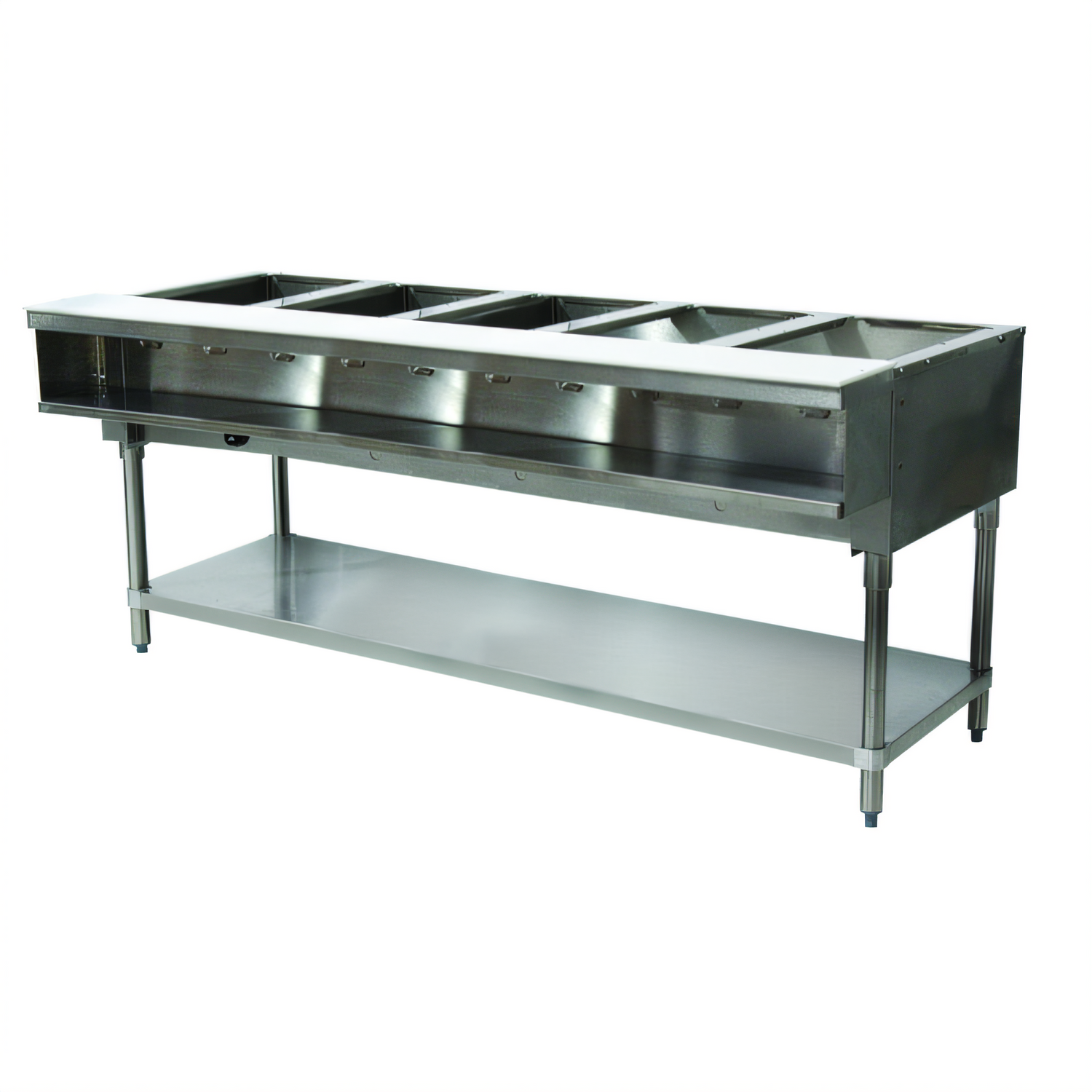

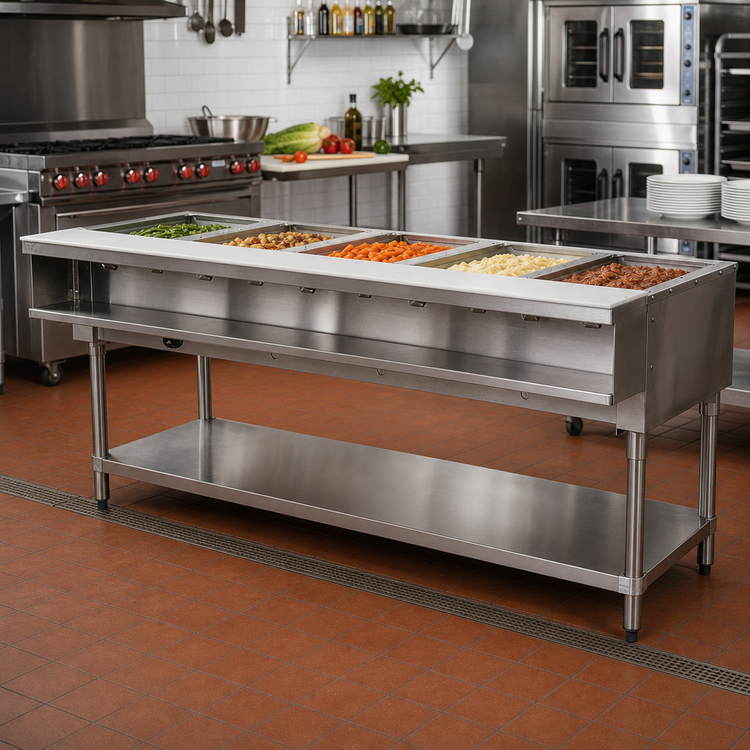

Advance Tabco Triumph (Supreme) 5-Well Gas Wet Bath Table

Model WB-5G-NAT | 77-3/4" W • 25,000 BTU • NSF & cCSAus

Keep a full line-up of entrées, sides, and sauces hot, moist, and ready for service with the Triumph (Supreme) 5-well water-bath table. Built on Advance Tabco’s “Proven” stainless platform, this heavy-duty unit combines steam-gentle holding, an 8" cutting board work zone, and a generous undershelf into one space-saving station.

Why You’ll Love It

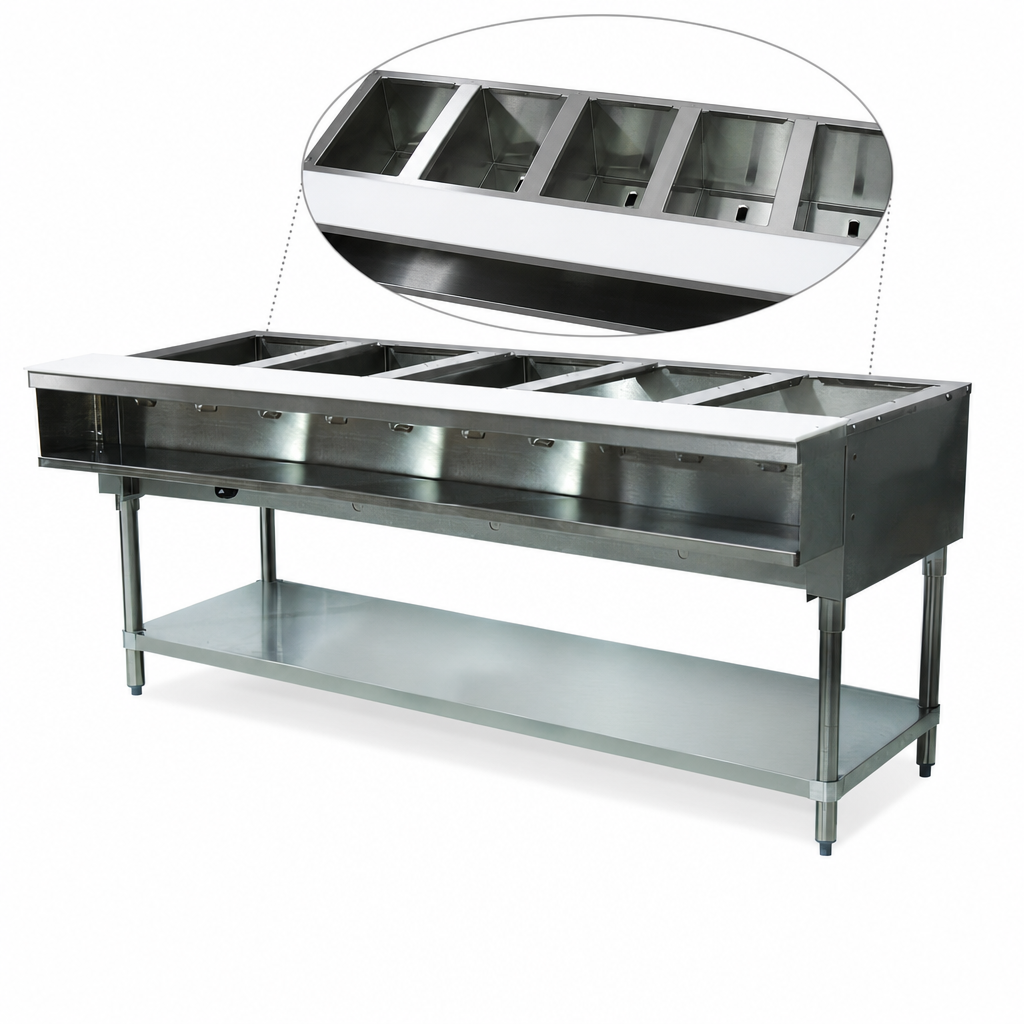

  • 5 die-stamped 12" × 20" wells accept pans up to 7-3/4" deep for high-volume serving.
  • Water-bath design adds gentle steam heat that prevents food from drying out.
  • Single Hi-Med-Lo control knob simplifies operation and trims training time.
  • 20-gauge #302 stainless steel top resists corrosion and wipes clean in seconds.
  • 25,000 BTU natural-gas burner with standing pilot lights fast and holds temp all day.
  • Removable 8" D × 3/8" poly cutting board doubles as a plating shelf.
  • Stainless plate shelf directly below wells keeps dishware within 6" reach.
  • Galvanized legs & undershelf ship K.D. and include adjustable bullet feet for quick leveling.
  • NSF & cCSAus listed for code-compliant installation in the U.S. & Canada.

At-A-Glance Specs

Overall Dimensions 77-3/4" W × 30-5/8" D (incl. board) × 34-3/8" H
Number / Size of Wells 5 wells, 12" × 20"
Liner Depth 8" (#302 SS)
Gas Type / Input Natural Gas, 25,000 BTU/hr
Gas Connection 1/2" NPT female (4" WC supply)
Controls 1 × Hi-Med-Lo knob with pilot indicator
Drain 1" NPT with removable plug
Work Surface 8" D white thermoplastic cutting board, 3/8" thick (removable)
Base Open galvanized undershelf & 1-5/8" Ø legs with plastic bullet feet
Certifications NSF, cCSAus
Shipping Weight ≈ 176 lb (ships knocked-down)

Popular Add-Ons (Sold Separately)

  • SU-25S caster kit – adds four 5" swivel casters (two with brakes) for mobile service lines.
  • SU-23D stainless leg & undershelf upgrade for corrosive or high-humidity environments.
  • SU-15 factory prep for filler faucet if water connection is desired.
  • SU-P-202 replacement Hi-Med-Lo knob keeps the table looking new.
  • Field LP conversion kit available when bottled gas is required.
Important: This unit is designed to hold hot, pre-cooked food. Always bring product to safe serving temperature before placing it in the wells. Add 1–2" of water to each well to generate the proper steam environment.

Need help with sizing, utility connections, or accessories? Our food-service team is ready to assist—just hit the chat button or call us anytime.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Triumph (Supreme)

Certifications

NSF, cCSAus

Height

34.13in

Width

77.75in

Depth

30.63in

Shipping Weight

176.0lbs

Pan Capacity

(5) pan

Base Finish

stainless steel

Well Type

open well

Design

open base with undershelf

Working Height

34"

Overall Width (side - side)

73" - 78"

Specifications

Water Bath Hot Food Table, natural gas, 77-3/4"W x 30-5/8"D x 34-3/8"H, (5) 12" x 20" well openings (accommodates pan inserts up to 7-3/4" deep), stainless steel top, 8"D x 3/8" thick poly cutting board with stainless plate shelf below, single control knob with (3) settings, pilot indicator, galvanized open base with undershelf, 25,000 BTU, cCSAus, NSF (Special Value NET Pricing)
