Advance Tabco  |  Triumph (Supreme)  |  SKU: WB-5G-NAT  |  UPC: 747545194947

Advance Tabco WB-5G-NAT Triumph (Supreme) Serving Counters

$2,784.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Gas conversion kit Owner's manual
Related Searches
Commercial Steam Table Food Bars & Buffets Food Wells & Serving Lines Restaurant Equipment Serving & Display Equipment Serving Counters

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

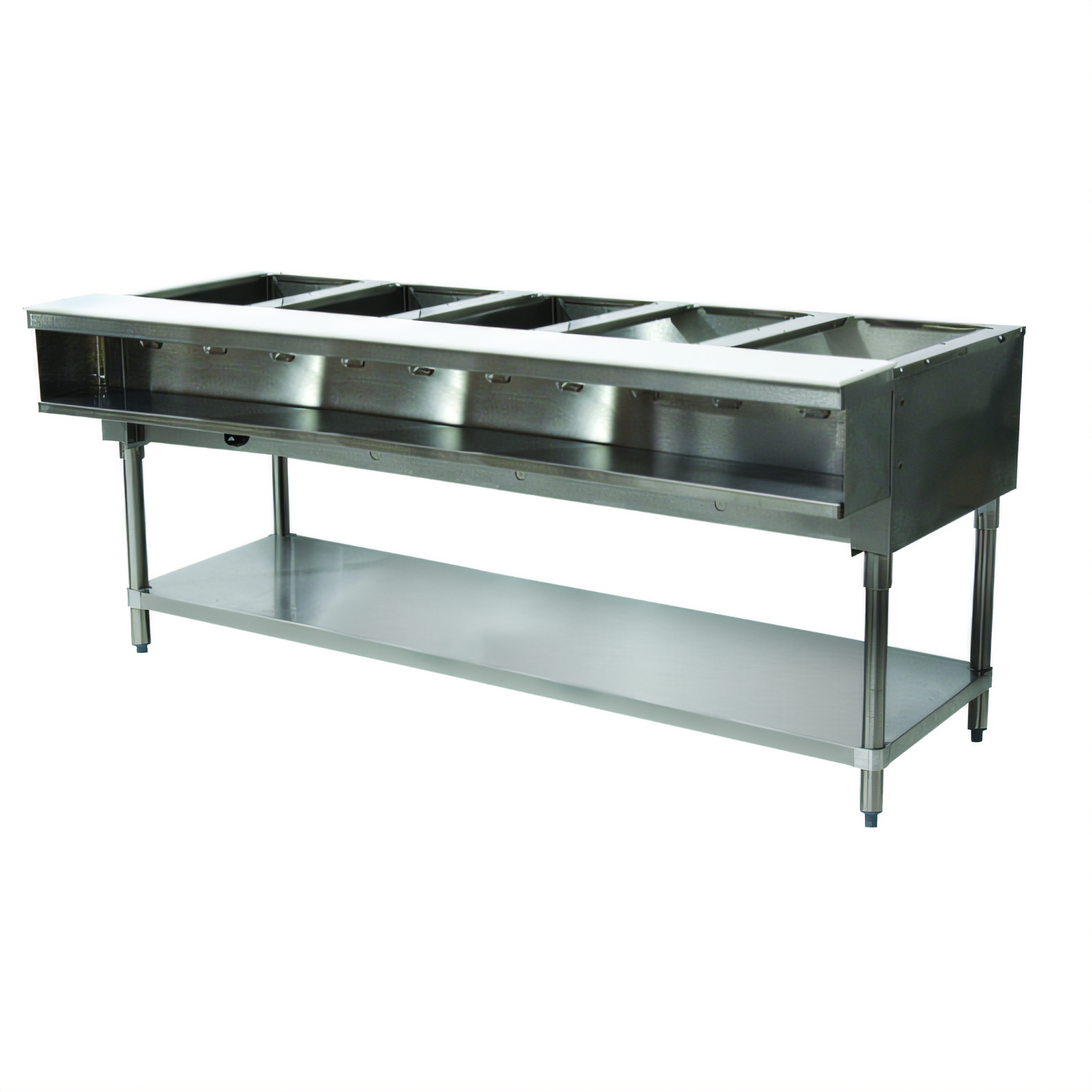

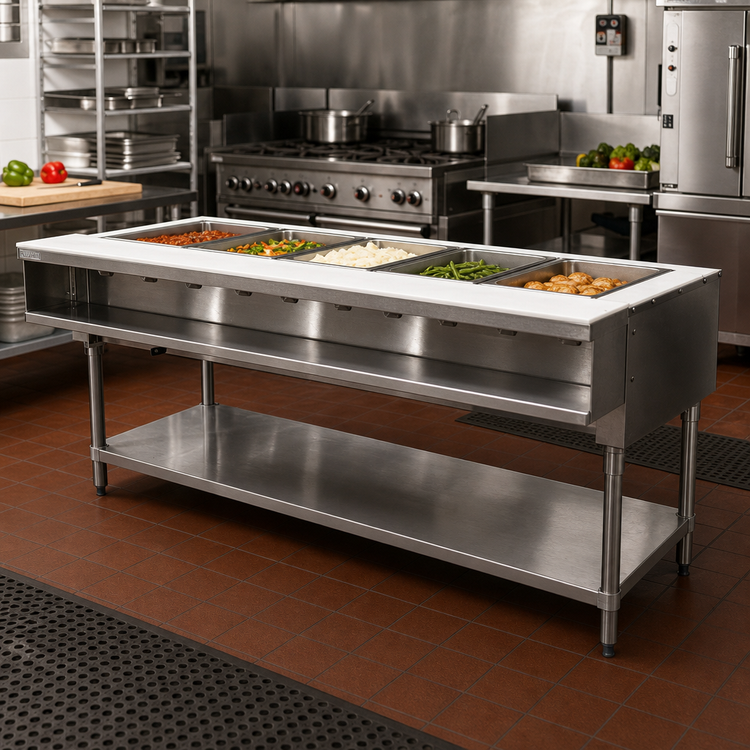

Advance Tabco WB-5G-NAT Water Bath Hot Food Table

Triumph (Supreme) Series • Natural Gas • 5 Wells

Hold large volumes of prepared foods at safe, appetizing serving temperatures with the Advance Tabco WB-5G-NAT. Five full-size steam-table wells, a heavy-duty stainless build, and a generous poly cutting board make this NSF-listed unit a back-of-house workhorse or a front-of-house serving station.

Key Features

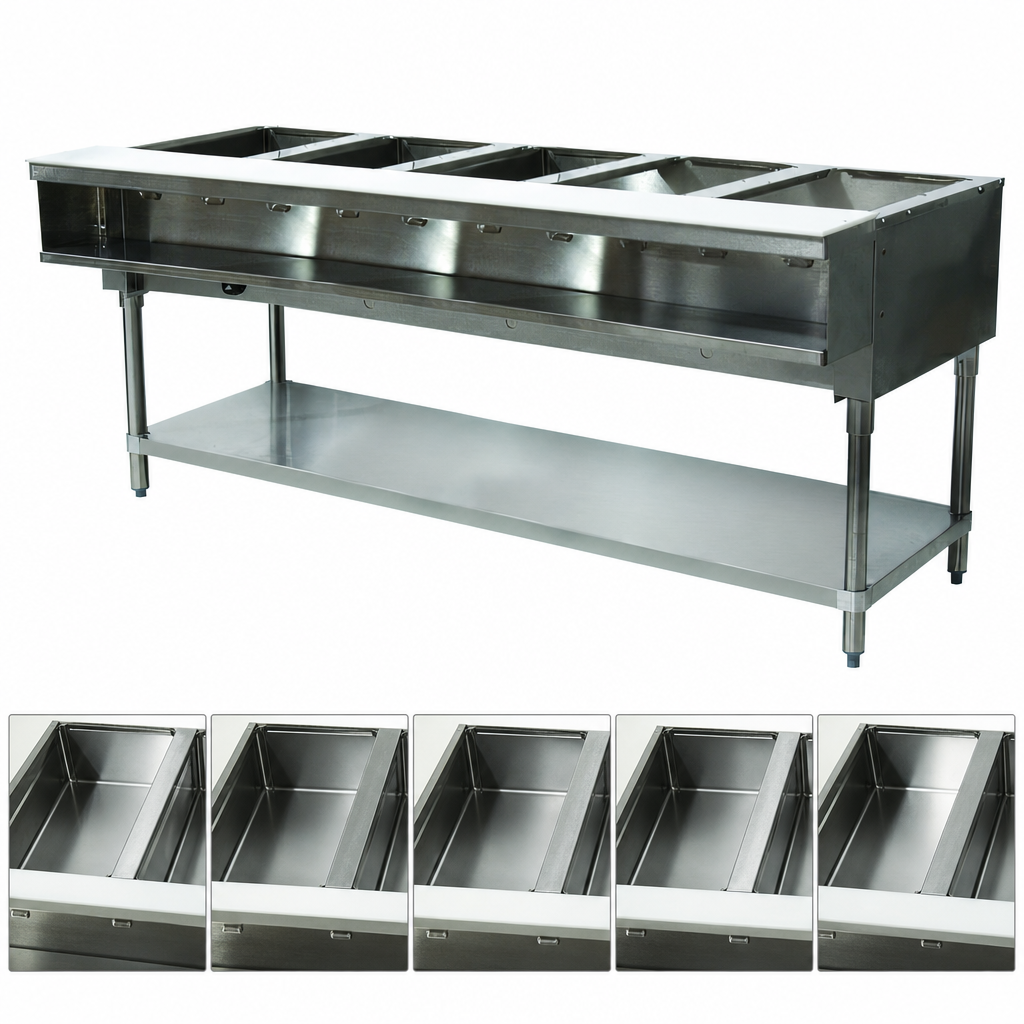

  • (5) die-stamped 12" × 20" wells – accept pans up to 7-3/4" deep
  • 20 ga. 302 stainless steel top with seamless water bath design for even steam heat
  • One Hi-Med-Low control knob simplifies operation for all wells
  • 25,000 BTU tubular burner with standing pilot & indicator opening
  • 8" D × 3/8" thick removable white poly cutting board, supported by a stainless plate shelf
  • Galvanized open base with adjustable undershelf & 1-5/8" Ø galvanized legs
  • 1" adjustable bullet feet level the table on uneven floors
  • cCSAus & NSF certified for gas safety and sanitation

At-a-Glance Specs

Model WB-5G-NAT (Triumph/Supreme)
Fuel Type Natural gas – 25,000 BTU/hr
Overall Dimensions 77 3/4"W × 30 5/8"D × 34 3/8"H*
Cutting Board Size 77 3/4"W × 8"D × 3/8"T (white poly)
Well Dimensions (5) 12" × 20" openings, 8" deep liners
Controls Single 3-position knob (Hi / Med / Lo)
Gas Connection 1/2" NPT female (4" WC inlet pressure†)
Shipping Weight Approx. 176 lb
Construction 302/430 stainless steel top & body, galvanized base
Certifications NSF, cCSAus

*Overall width includes the 8" cutting board.

Ideal For

  • School & corporate cafeterias
  • Buffet serving lines
  • Hospitals & senior-living kitchens
  • Catering commissaries

Popular Accessories / Upgrades

  • SU-25 or SU-25S 5" locking casters kit for mobility
  • SU-15 filler-faucet cut-out preparation
  • Stainless steel leg & undershelf upgrade (SU-23D)
  • Replacement Hi-Med-Low gas control knob (SU-P-202)
Important: This equipment is designed to hold pre-heated food only. Do not attempt to cook or reheat refrigerated/frozen products in the wells.

†An external gas pressure regulator (not supplied) is required. Order separately to maintain 4" WC inlet pressure.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Triumph (Supreme)

Certifications

NSF, cCSAus

Height

34.13in

Width

77.75in

Depth

30.63in

Shipping Weight

176.0lbs

Pan Capacity

(5) pan

Working Height

34"

Well Type

open well

Design

open base with undershelf

Base Finish

stainless steel

Overall Width (side - side)

73" - 78"

Specifications

Water Bath Hot Food Table, natural gas, 77-3/4"W x 30-5/8"D x 34-3/8"H, (5) 12" x 20" well openings (accommodates pan inserts up to 7-3/4" deep), stainless steel top, 8"D x 3/8" thick poly cutting board with stainless plate shelf below, single control knob with (3) settings, pilot indicator, galvanized open base with undershelf, 25,000 BTU, cCSAus, NSF
