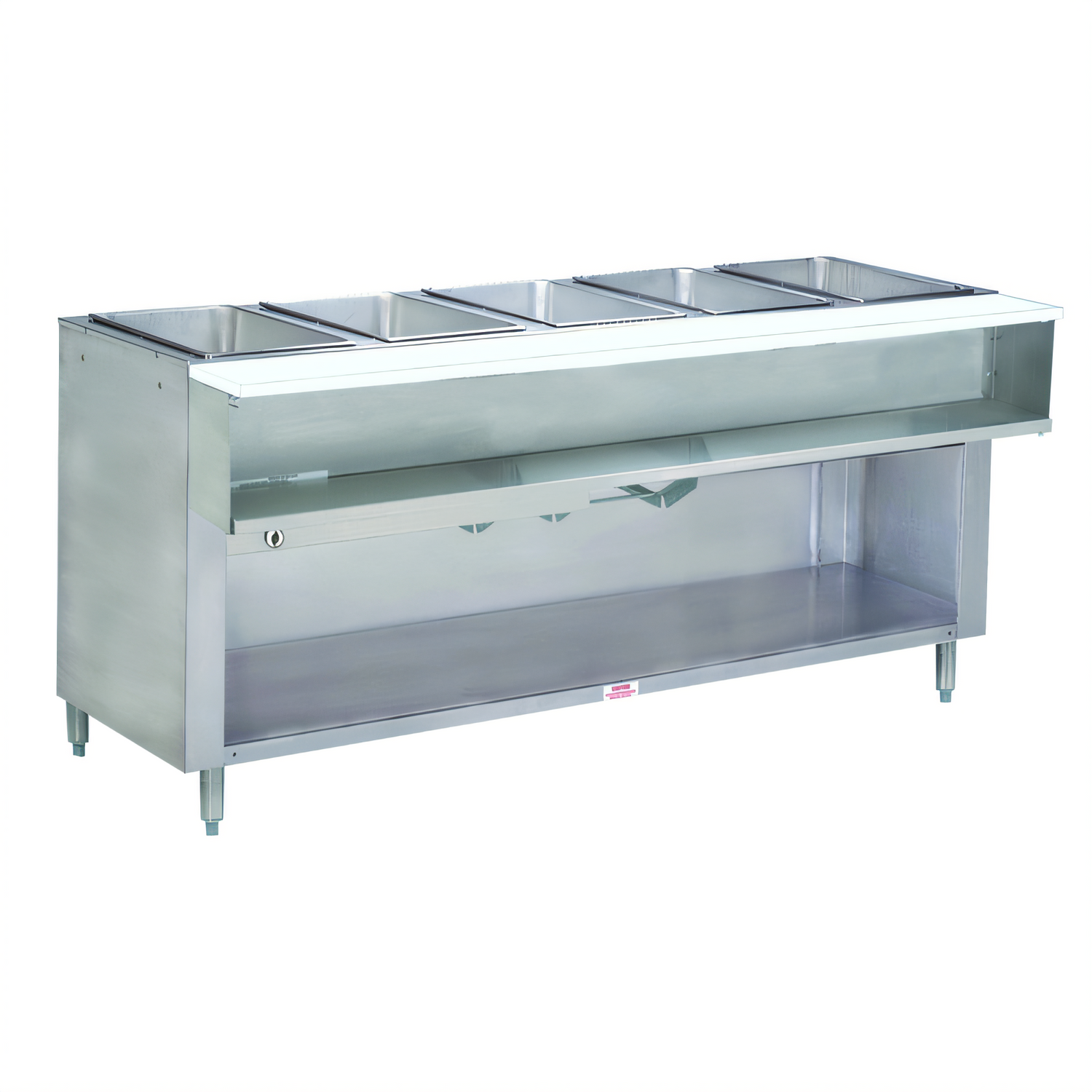

Advance Tabco Triumph Supreme 5-Well Wet Bath Hot Food Table with Open Undershelf, Natural Gas, 77-3/4" W

SKU: WB-5G-NAT-BS
GTIN: 747545194954
$4,214.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Steam Table Food Bars & Buffets Food Wells & Serving Lines New Arrivals Restaurant Equipment Serving & Display Equipment Serving Counters

Advance Tabco Triumph Supreme 5-Well Wet Bath Hot Food Table with Open Undershelf, Natural Gas, 77-3/4" W

Stainless Steel Top and Base, 12" x 20" Well Openings

Built to hold hot foods at serving temperature, this natural gas wet bath table combines durable stainless steel construction with a 5-well layout and integrated prep space.

  • Five 12" x 20" well openings are designed for high-volume hot holding.
  • 25,000 BTU natural gas operation delivers dependable heat for 4- and 5-well units.
  • Single control knob with 3 settings and pilot indicator openings simplifies use.
  • Stainless steel top, cabinet base, and open undershelf provide durability and storage.
  • Includes a removable 3/8" thick white thermoplastic cutting board with stainless support shelf below.
  • Wet bath operation uses water to create steam and maintain food temperature.

Overall Dimensions:

77.75"W x 30.63"D x 34.13"H

Product Weight:

296.0 lb

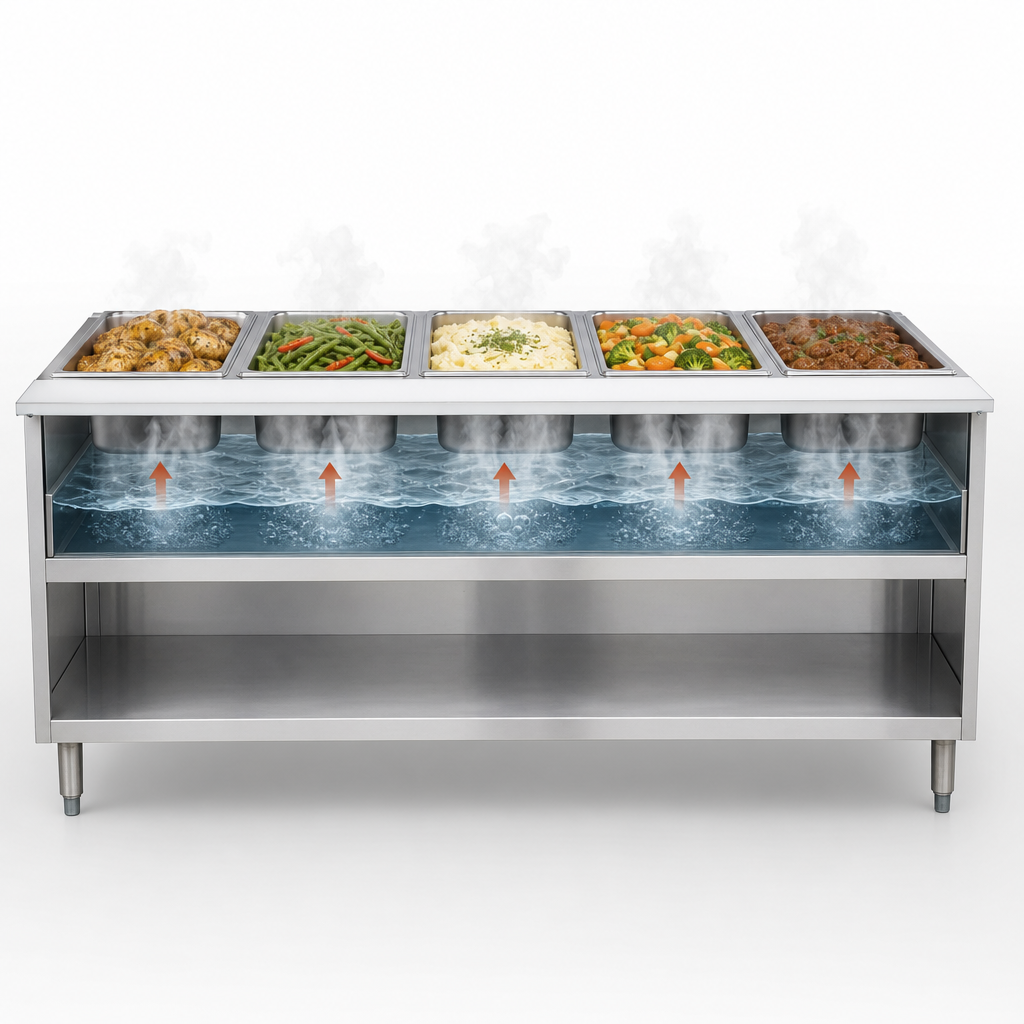

5-Well Wet Bath Design

Maintains hot foods at serving temperature by using water to create hot steam in the wells.

25,000 BTU Natural Gas Heat

High-output gas system is specified for the 4- and 5-well configurations.

Simple Manual Controls

Single control knob with 3 settings and pilot indicator openings for straightforward operation.

Stainless Steel Construction

Built with stainless steel top, cabinet base, undershelf, and stainless steel support components for durability.

Integrated Prep Shelf

Includes an 8" deep, 3/8" thick removable white thermoplastic cutting board with a stainless plate shelf below.

5 Die-Stamped Pan Openings

Well openings measure 12" x 20" and accommodate pan inserts up to 7-3/4" deep.

Adjustable Legs

Stainless steel legs include fully adjustable bullet feet for leveling.

Type Wet Bath Hot Food Table
Style Enclosed Base with Open Undershelf
Installation Type Floor Model
Gas Type Natural Gas
BTU 25,000 BTU
Gas Connection Size 1/2 Inch Female NPT
Gas Inlet Pressure 4 Inches W.C.
Controls Manual, 3 Settings
Pan Capacity 5
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Finish Stainless Steel
Shipping Width 78 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 296 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Gas conversion kit PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It has five 12" x 20" well openings and accommodates pan inserts up to 7-3/4" deep.
This model uses natural gas, has a 25,000 BTU output, and connects with a 1/2" female NPT gas connection to the regulator.
Natural gas units require 4" W.C. inlet pressure, and the documentation notes that an external pressure regulator is required.
No. The unit is designed to maintain food that is already hot; it is not intended to cook or heat frozen or refrigerated foods.
Yes. The documentation includes field conversion instructions from natural gas to LP using the appropriate parts and regulator adjustment, and installation should be done by a qualified gas technician.
