Advance Tabco TVSS-364 Stainless Steel Prep Tables
Description

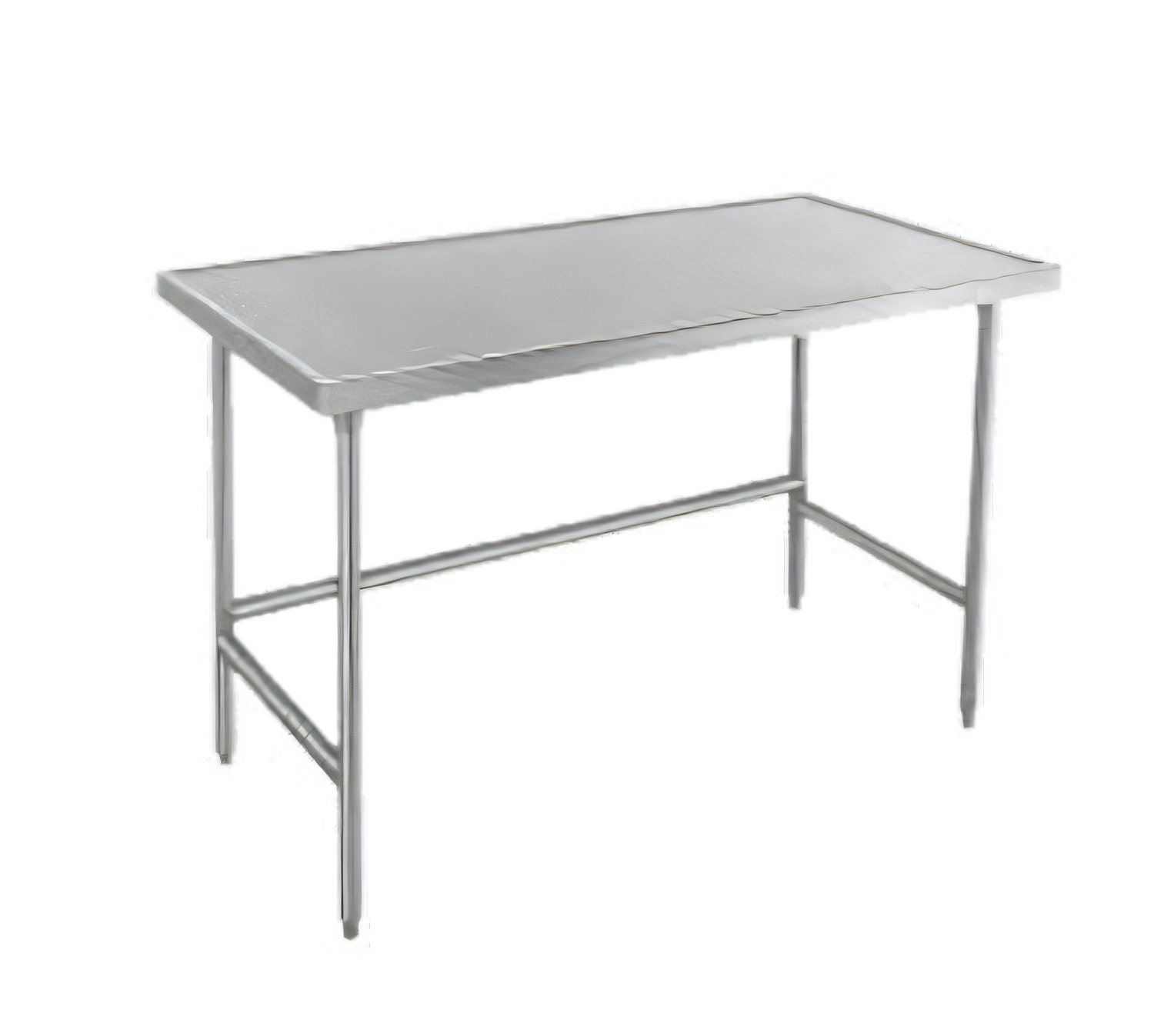

Advance Tabco SPEC-LINE Open-Base Work Table — 48" x 36"
Model TVSS-364 | NSF ListedBuilt for the daily grind of busy commercial kitchens, the TVSS-364 delivers rock-solid stability, a premium 14-gauge 304 stainless steel work surface, and the famous Advance Tabco No-Drip edge—all in a compact 48" x 36" footprint.
Key Benefits

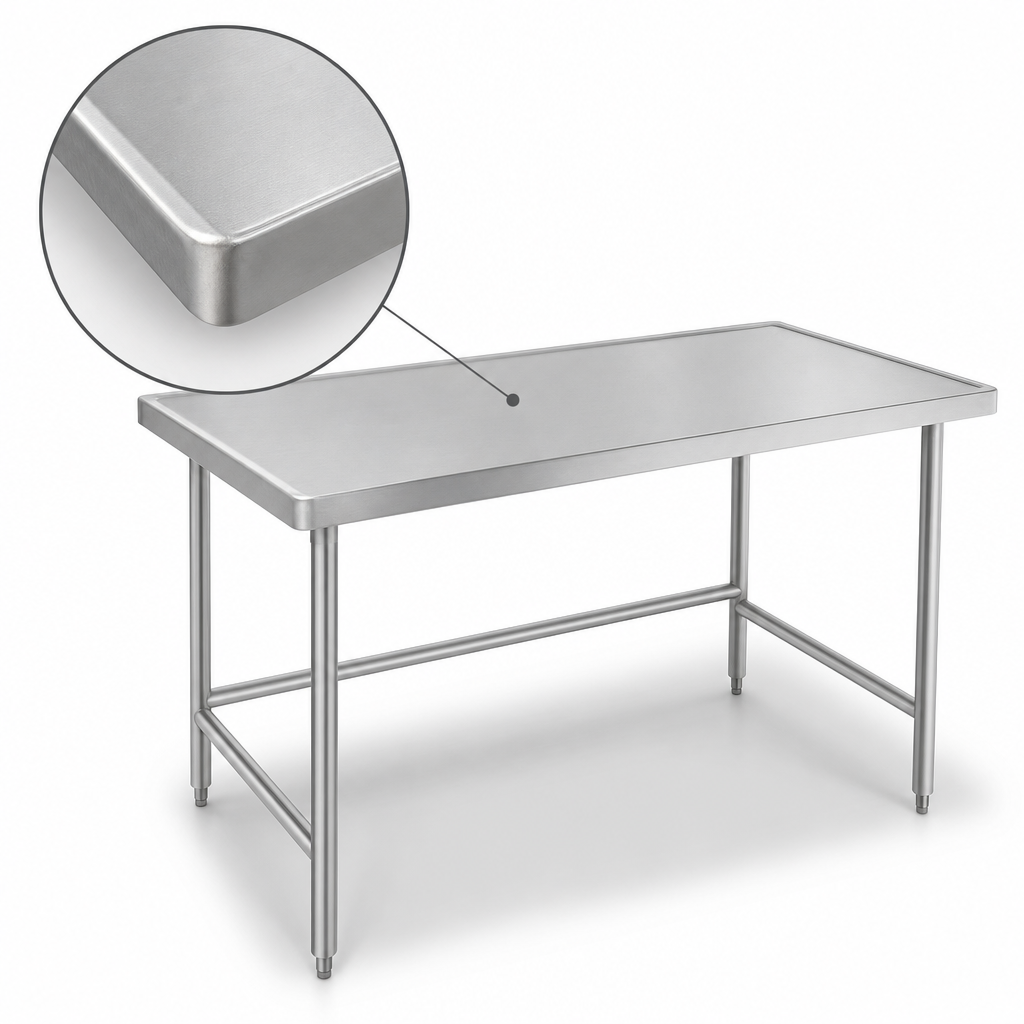

- 14-gauge Type 304 stainless steel flat top—thicker and stronger than 16 or 18 gauge alternatives.
- 2" × 1" square, die-formed No-Drip countertop edge with ½" return on all four sides keeps liquids off the floor.
- Three roll-formed hat channels (galvanized) reinforce the extra-wide 36" top for a consistently level surface.
- All-welded construction; exposed welds are TIG-finished to match the surrounding satin polish.
- 1-5/8" Ø 16-gauge 304 stainless steel legs paired with stainless rear (1-5/8" Ø) and side (1-1/4" Ø) cross rails resist twisting and racking.
- Sound-deadening material beneath the top reduces noise in prep areas.
- 1" adjustable stainless steel bullet feet make leveling quick on uneven floors.
- NSF certified for open food-zone use.
- Ships knock-down (KD) to minimize freight costs; straightforward on-site assembly.
Engineered for Heavy Loads
Advance Tabco rates 14-gauge tops up to 1,000 lb distributed load with an undershelf. Because this model uses an open-base design with rear cross-brace, capacity is conservatively derated by 20 %—resulting in a substantial 800 lb distributed load rating for the work surface.*
*Factory published capacities assume proper installation on a level floor.
Technical Specifications
| Model | TVSS-364 |
|---|---|
| Work Surface (L × D) | 48" × 36" (1219 mm × 914 mm) |
| Top Material / Finish | 14-ga 304 stainless steel / satin polish |
| Edge Detail | No-Drip square edge, 2" h × 1" w with ½" return |
| Under-structure | 3 galvanized hat channels (factory bonded & welded) |
| Legs | 1-5/8" Ø, 16-ga 304 stainless steel, TIG-welded gussets |
| Cross Bracing | Rear: 1-5/8" Ø SS | Sides: 1-1/4" Ø SS |
| Feet | 1" adjustable stainless bullet feet |
| Shipping Weight | 85 lb (38.5 kg) |
| Certifications | NSF Component Listed |
Perfect For
- Food-prep stations & plating lines
- Bakeries and commissaries needing a rigid, easy-clean surface
- Laboratories or clean rooms that require 304 stainless construction
- Custom workstations—pre-engineered angle adapters make adding drawers or shelves simple

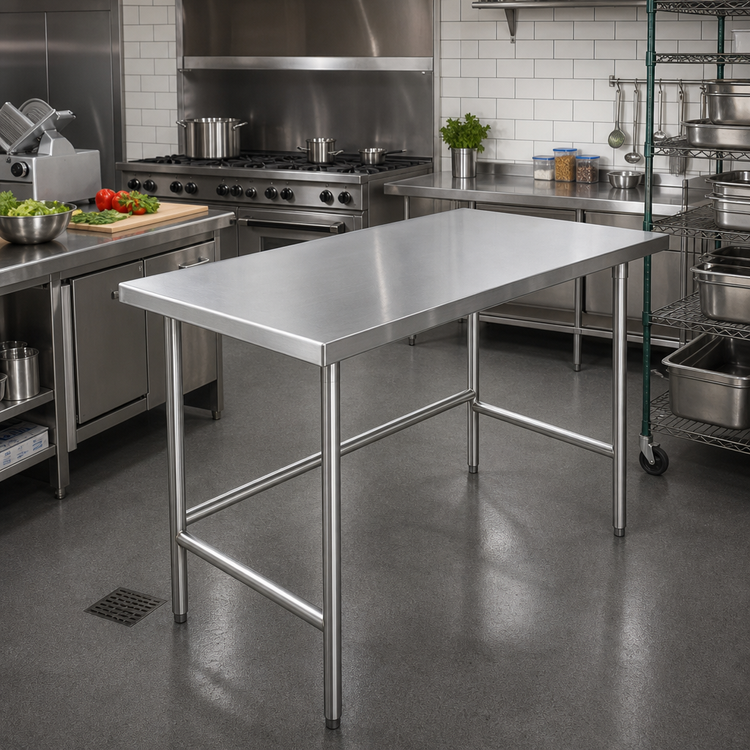

Images may show optional accessories (drawers, casters, overshelves) sold separately. Advance Tabco reserves the right to modify specifications without notice.
