Advance Tabco TVSS-249 Stainless Steel Prep Tables
Description

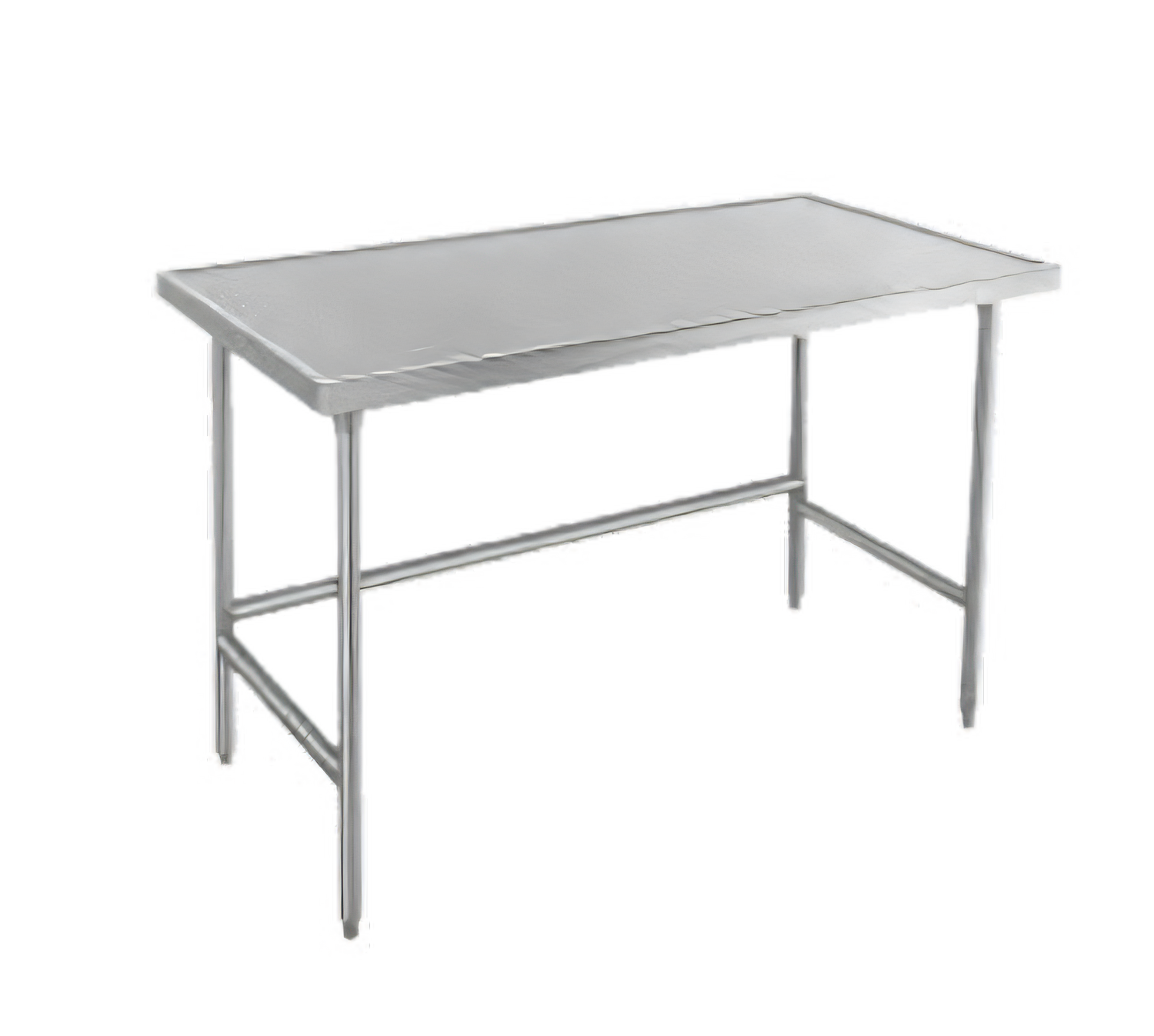

Advance Tabco TVSS-249 Stainless Steel Work Table – 108" W x 24" D
Spec-Line Series • Flat Top • Open BaseGive your production line, commissary, or back-of-house operation a rock-solid prep surface that stands up to the heaviest commercial demands. The Advance Tabco TVSS-249 combines a 14-gauge 304 stainless steel top with full stainless under-structure, providing the strength you need and the NSF sanitation you require.
Key Performance Features

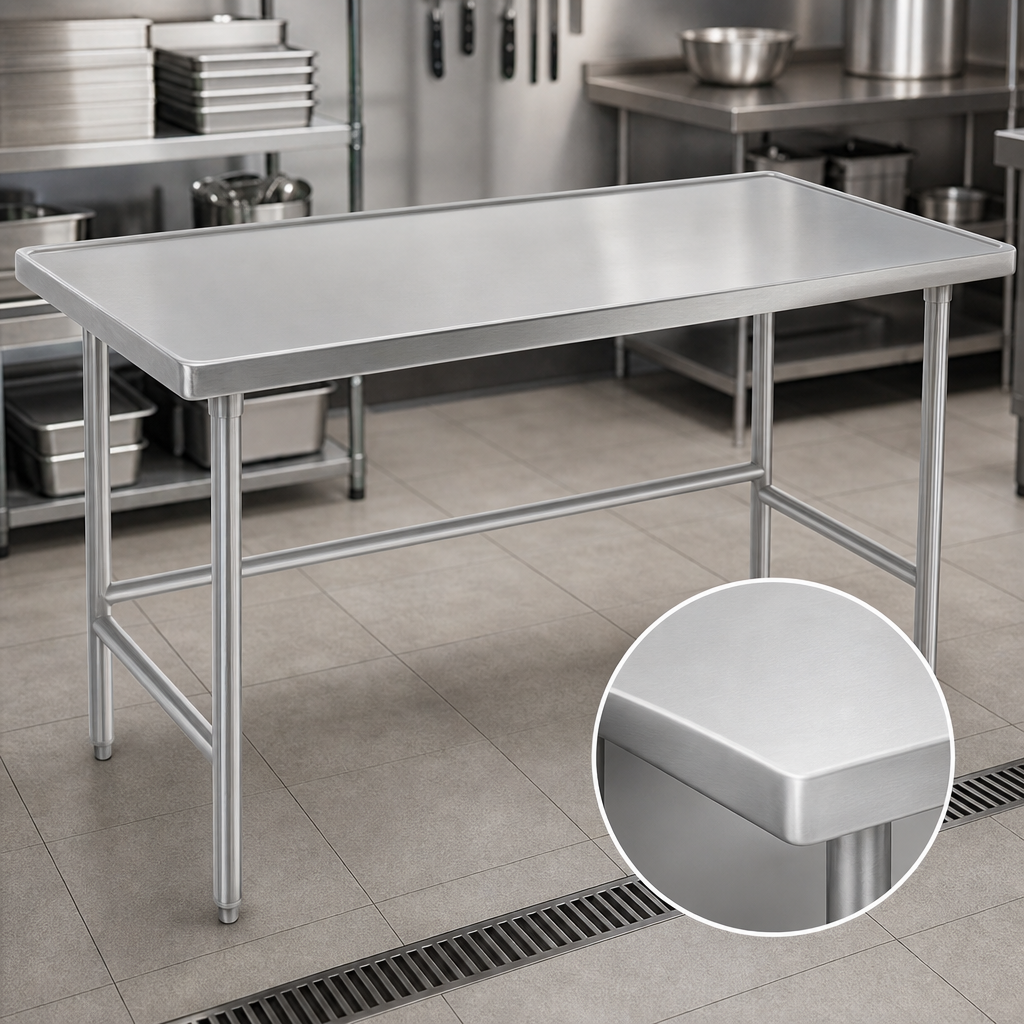

- 14 ga. type 304 stainless steel flat top – thicker and stronger than 16 ga. or 18 ga. tables.

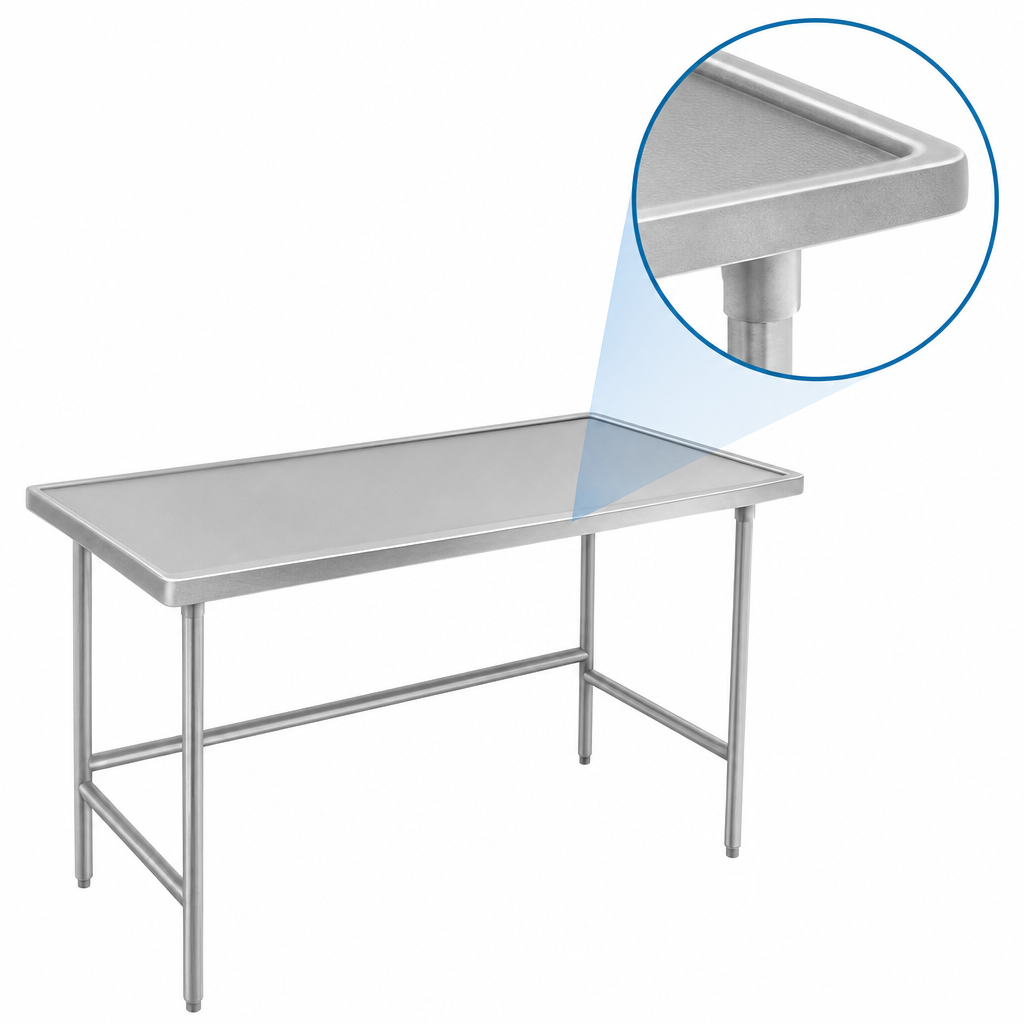

- 2" × 1" die-embossed No-Drip countertop edge with ½" return on all four sides keeps spills off the floor.
- Two heavy-duty roll-formed galvanized hat channels are epoxied & welded under the top for a consistently level work surface.
- All TIG-welded construction; exposed welds are ground & polished to a matching satin finish.
- Sound-deadening top reduces vibration and noise during chopping or equipment use.
- Open-base frame with:
- (6) 1 5⁄8" Ø, 16 ga. 304 stainless steel legs (center leg included on 8 ft.+ models).
- Rear 1 5⁄8" Ø stainless cross-brace plus 1 1⁄4" Ø side cross-braces for torsional rigidity.
- Adjustable stainless steel bullet feet for fast on-site leveling.
- 1200 lb. evenly-distributed load rating* – perfect for mixers, slicers, ingredient bins & more.
- Ships knocked-down (KD) to minimize freight costs; simple field assembly required.
- NSF listed for all food-zone applications.
Technical Specifications
| Model | TVSS-249 |
|---|---|
| Overall Dimensions (W × D × H) | 108" × 24" × 35 1⁄2" (914 mm) |
| Table Top | 14 ga. 304 stainless steel, satin finish, sound deadened |
| Edge Detail | 2" × 1" die-formed “No-Drip” countertop edge with ½" return (all sides) |
| Reinforcement | (2) roll-formed galvanized hat channels, welded & epoxied to underside |
| Legs / Bracing | 1 5⁄8" Ø 304 SS legs with rear & side tubular cross-bracing (304 SS) |
| Feet | 1" adjustable 304 stainless bullet feet |
| Load Capacity* | 1200 lbs. evenly distributed |
| Shipping Weight | Approx. 130 lbs. |
| Certifications | NSF |
*Load rating based on Advance Tabco published data for 14-ga. tops with open base (20 % reduction from undershelf models) and center-leg support for tables over 84".
Optimize Your Workflow
Need a custom drawer, undershelf, or overshelf? Advance Tabco’s Smart Fabrication™ program offers a wide range of add-ons to turn this table into a complete workstation. Contact us for options and lead times.
