Advance Tabco TVKS-369 Stainless Steel Prep Tables
Advance Tabco TVKS-369 Stainless Steel Prep Tables is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

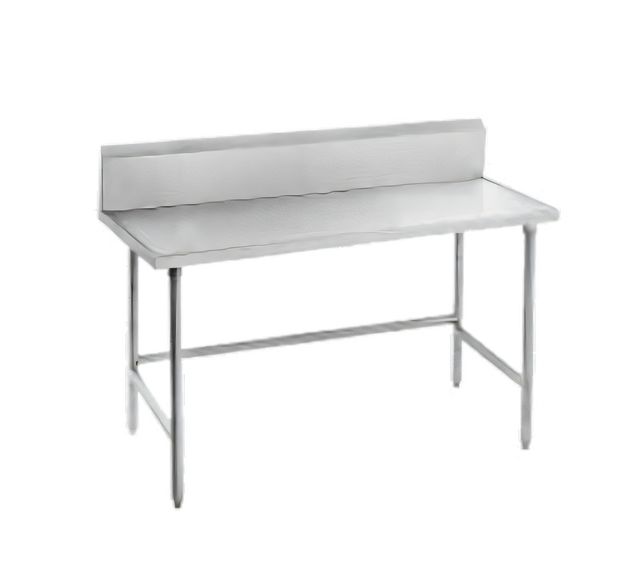

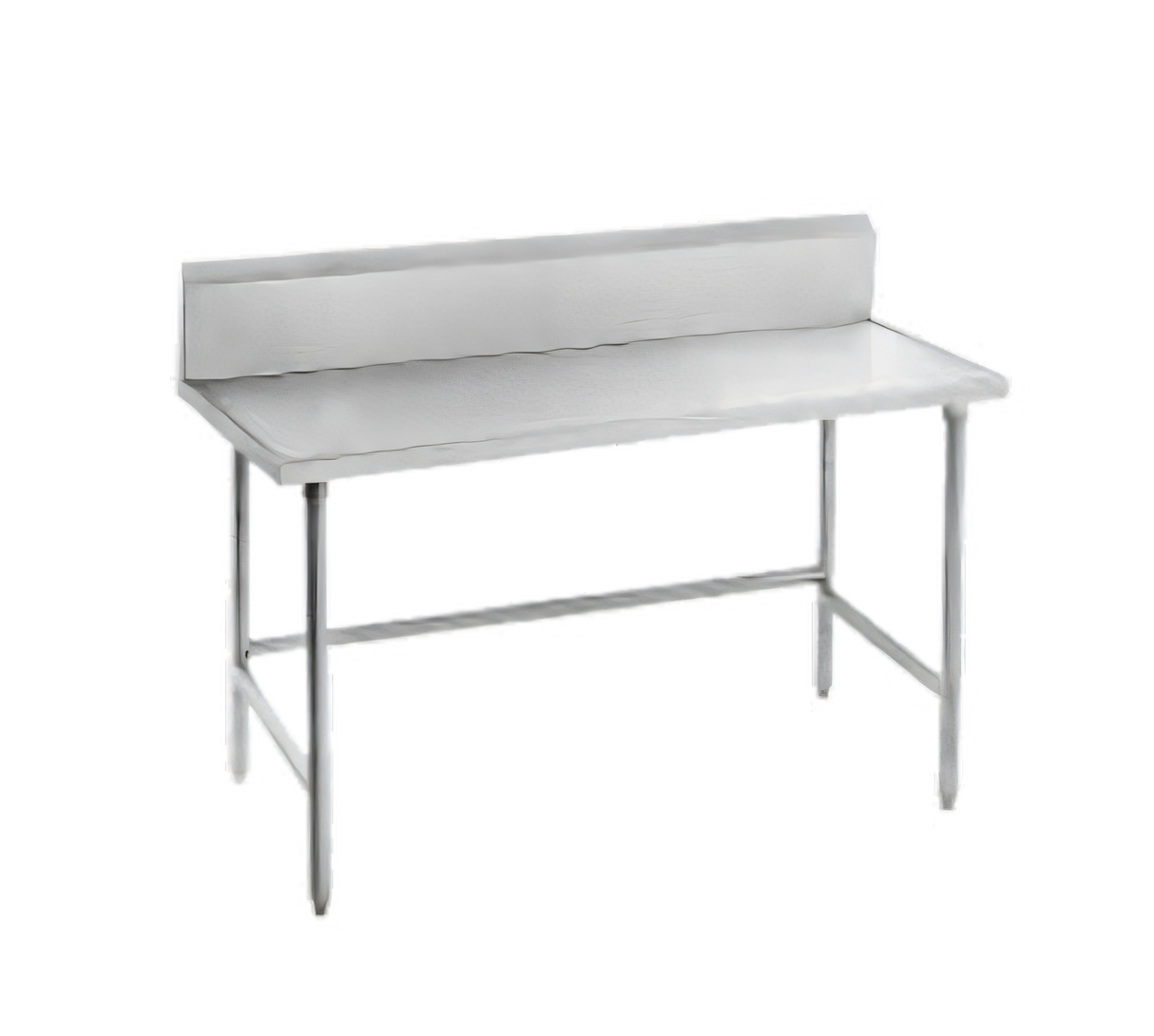

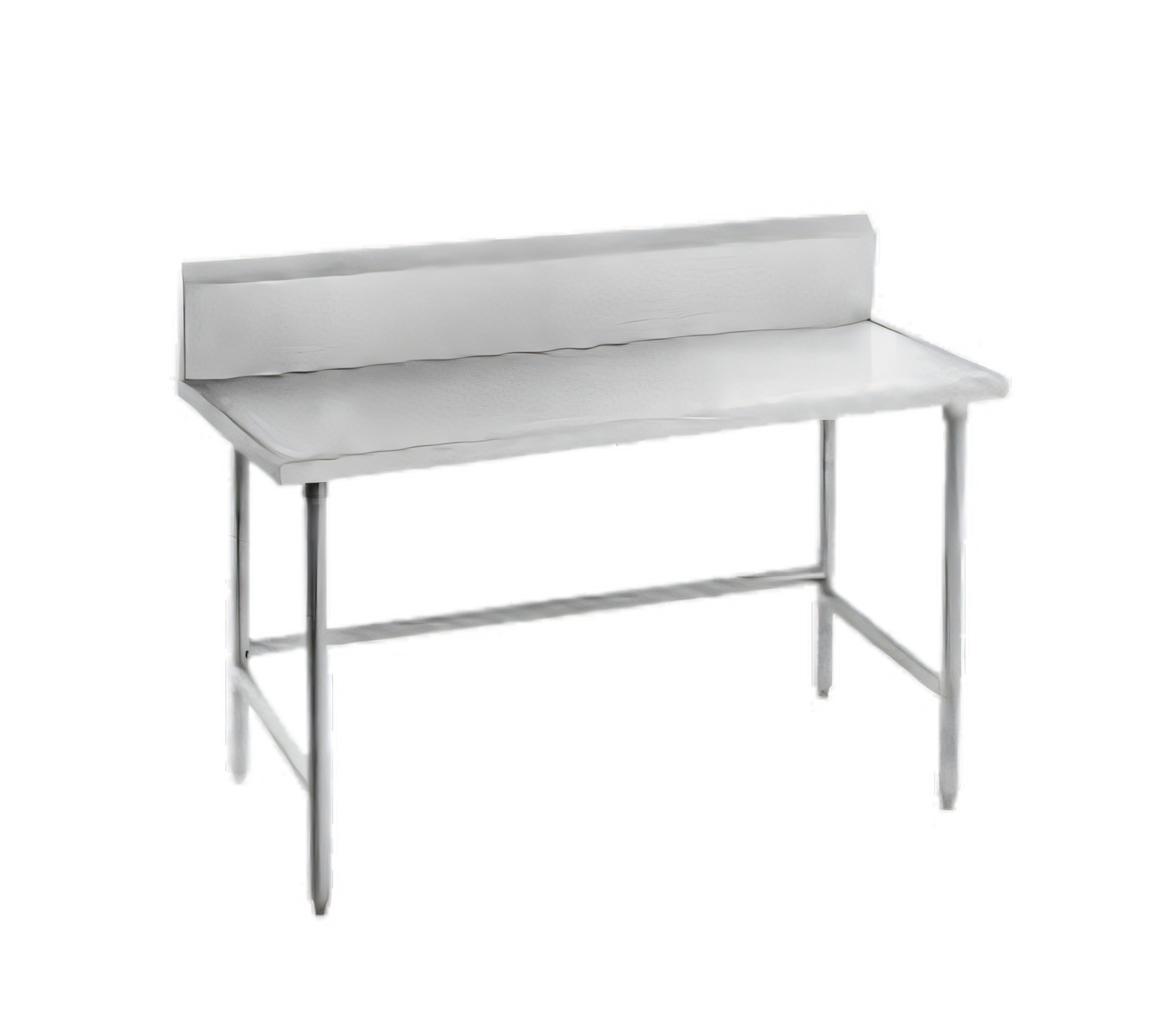

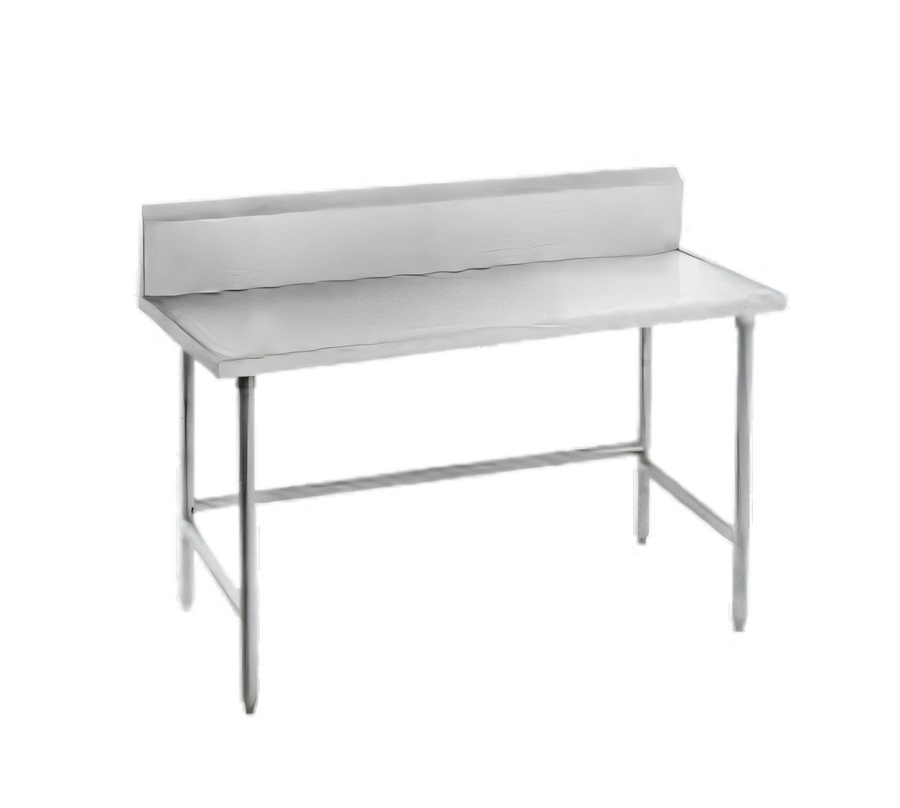

Advance Tabco TVKS-369 Stainless Steel Work Table
108" W x 36" D | Spec-Line Series – 10" Rear Backsplash | Open BaseGive your prep line a rock-solid, easy-to-sanitize foundation. Built from heavy 14-gauge type 304 stainless and reinforced for a perfectly level work surface, the TVKS-369 is engineered to shoulder the daily demands of high-volume commercial kitchens while keeping floors clear and accessible.
Key Features

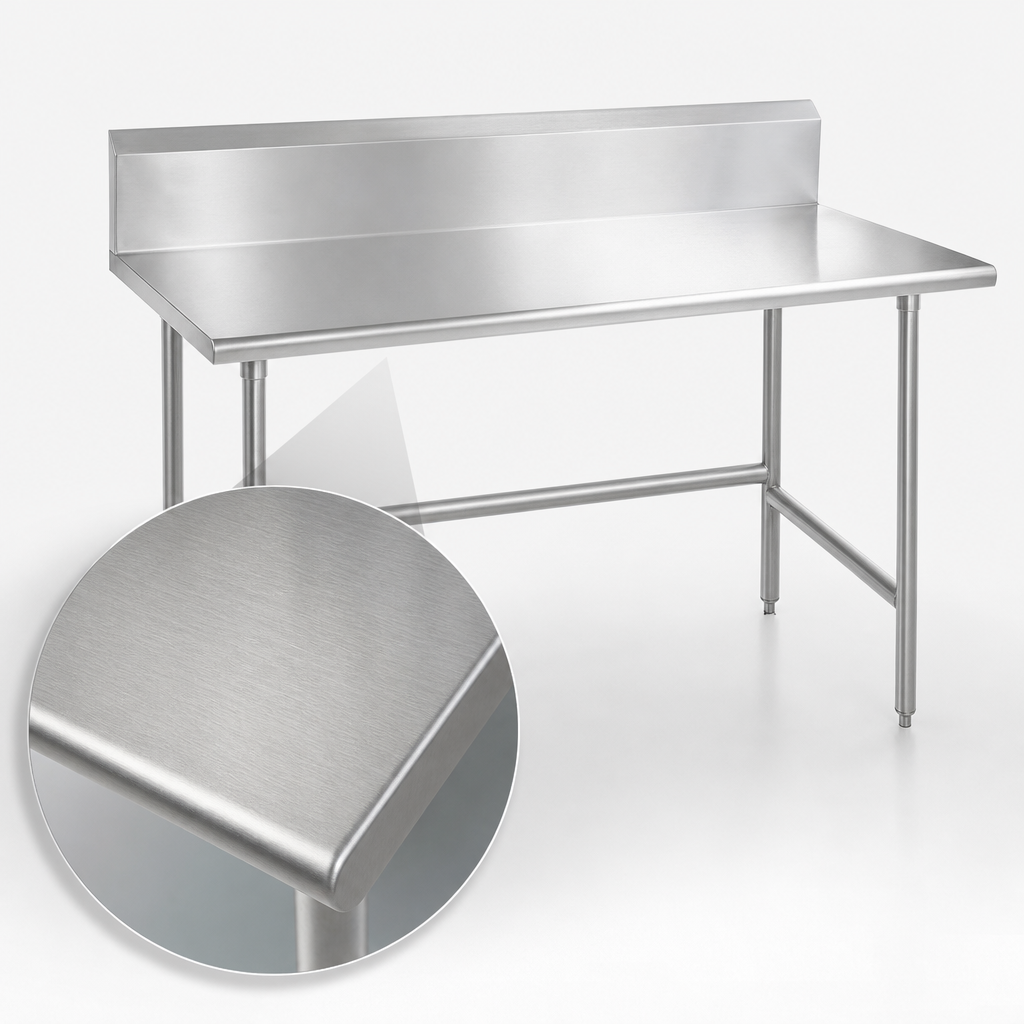

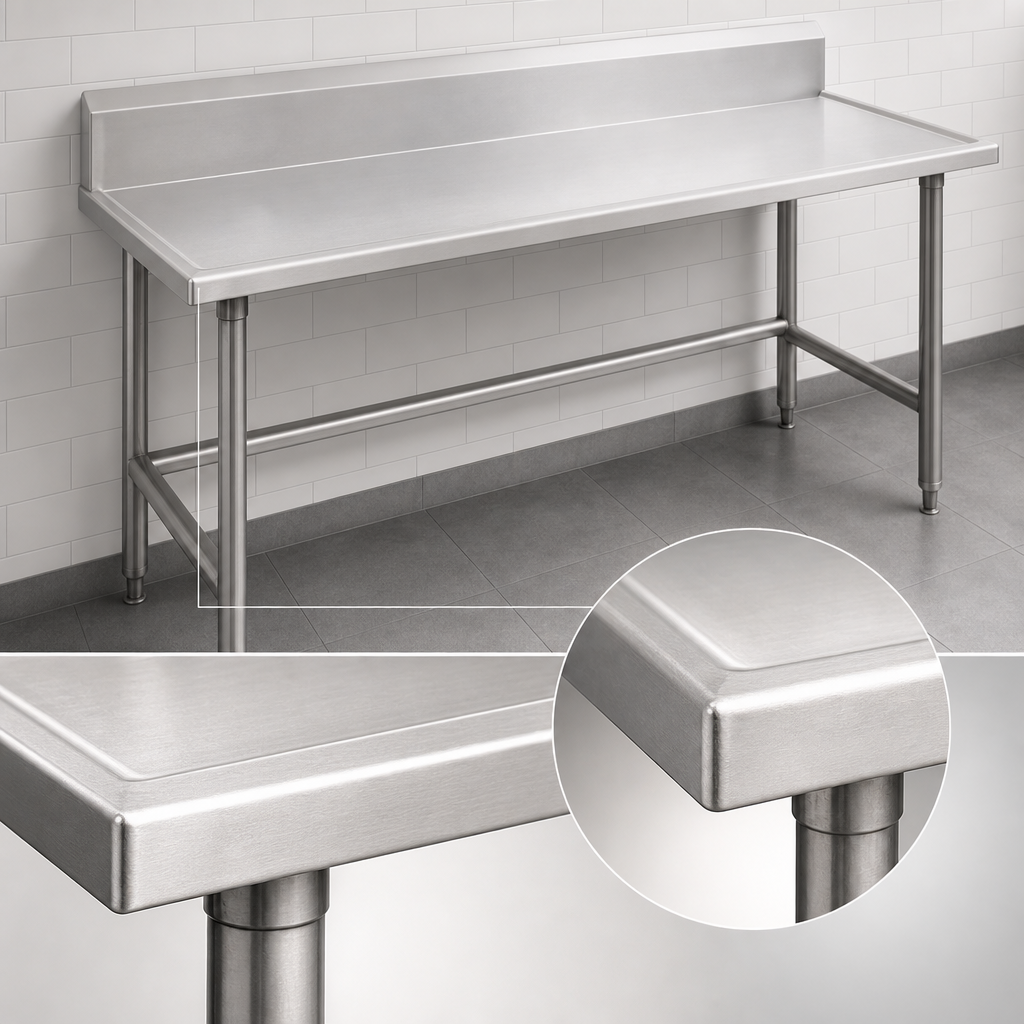

- 14-gauge, type 304 stainless steel top with No-Drip 2" x 1" square die-formed edge ½" return.
- 10" high backsplash with 2" return keeps messes off walls.
- Open-base design with 1 5⁄8" Ø rear & 1 1⁄4" Ø side tubular stainless cross rails for maximum stability.
- (6) 1 5⁄8" Ø, 16-gauge stainless steel legs (center support included) with 1" adjustable stainless bullet feet for leveling.
- (3) roll-formed, galvanized hat-channel stiffeners are stud-welded under the top and sound-deadened for a quiet, rock-steady surface.
- Entire unit TIG-welded; exposed welds polished to match adjacent satin finish—mirror polish on edge profile.
- Pre-engineered angle adapters under the top simplify future drawer installation (sold separately).
- NSF listed and ships knocked-down (KD) to lower freight costs; fast, tool-free leg/brace assembly in the field.
Built for Heavy-Duty Service
With its reinforced 14-gauge top, rear splash, and center leg support, the TVKS-369 safely handles up to 1,200 lb. of evenly distributed load (20 % reduction for open-base per Advance Tabco load chart), making it ideal for mixers, slicers, or bulk ingredient staging.
Perfect For
- Food-prep & portioning lines
- Bakery dough handling
- Packaging & plating stations
- Catering commissaries & ghost kitchens
Specifications
Model | TVKS-369 |
---|---|
Overall Dimensions | 108" W × 36" D × 35 1⁄2" H (work height) 45 1⁄2" H to top of backsplash |
Top Material / Gauge | Type 304 Stainless Steel, 14 ga |
Edge Profile | No-Drip 2" × 1" square edge with ½" return (front & sides) |
Backsplash | 10" H, 2" rear return, welded‐on |
Legs | (6) 1 5⁄8" Ø, 16 ga type 304 stainless |
Cross Bracing | Rear: 1 5⁄8" Ø stainless tube Side: 1 1⁄4" Ø stainless tube |
Feet | 1" adjustable stainless bullet feet |
Reinforcement | (3) roll-formed galvanized hat channels, sound deadened |
Load Capacity | 1,200 lb. distributed |
Shipping Weight | Approx. 165 lb. |
Certifications | NSF |
Ships unassembled for lower freight costs. Simple hardware is included for quick on-site assembly. Optional drawers, undershelves, and other accessories are available—contact us for details.
