Advance Tabco TVKS-309 Stainless Steel Prep Tables
Description

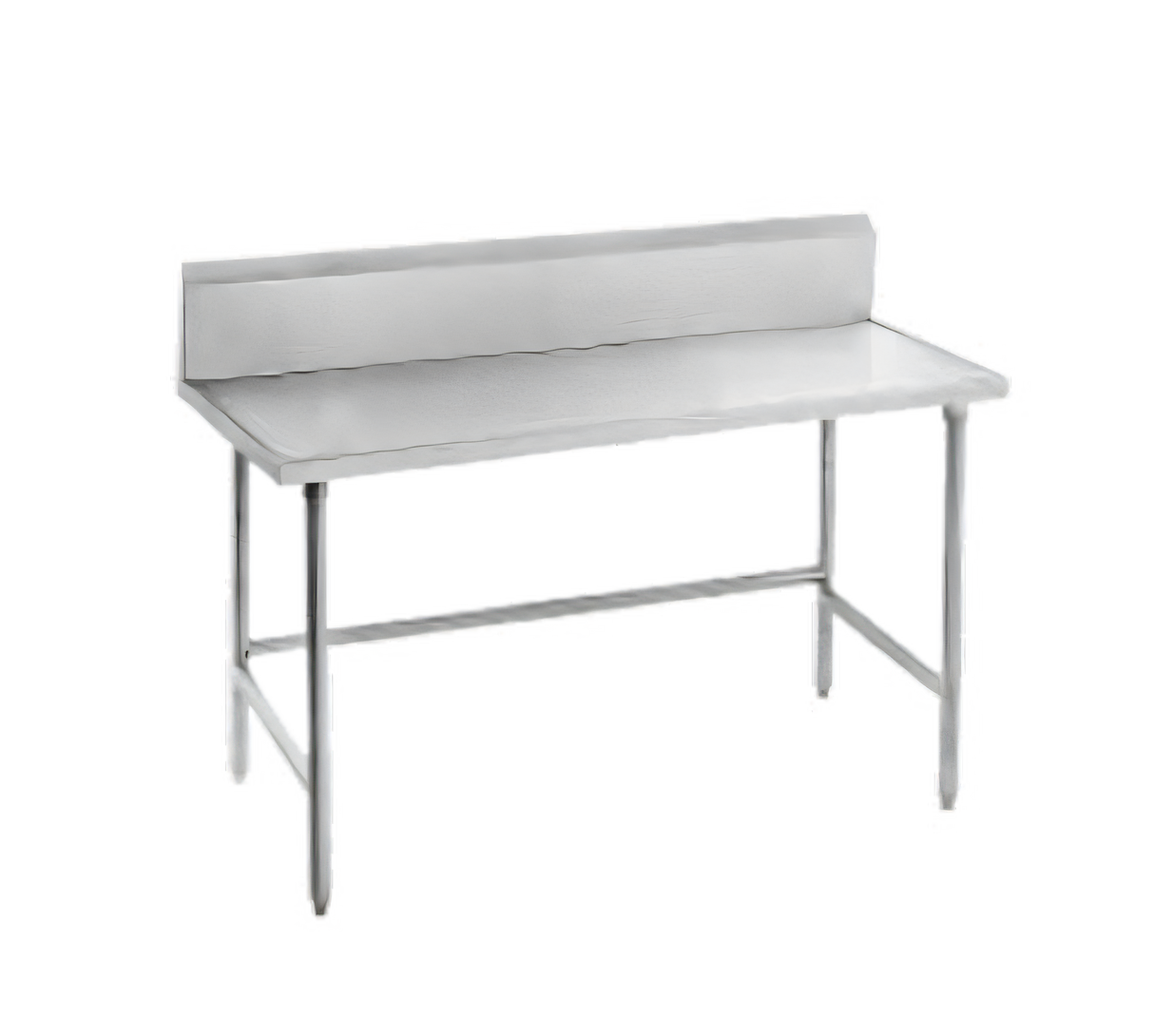

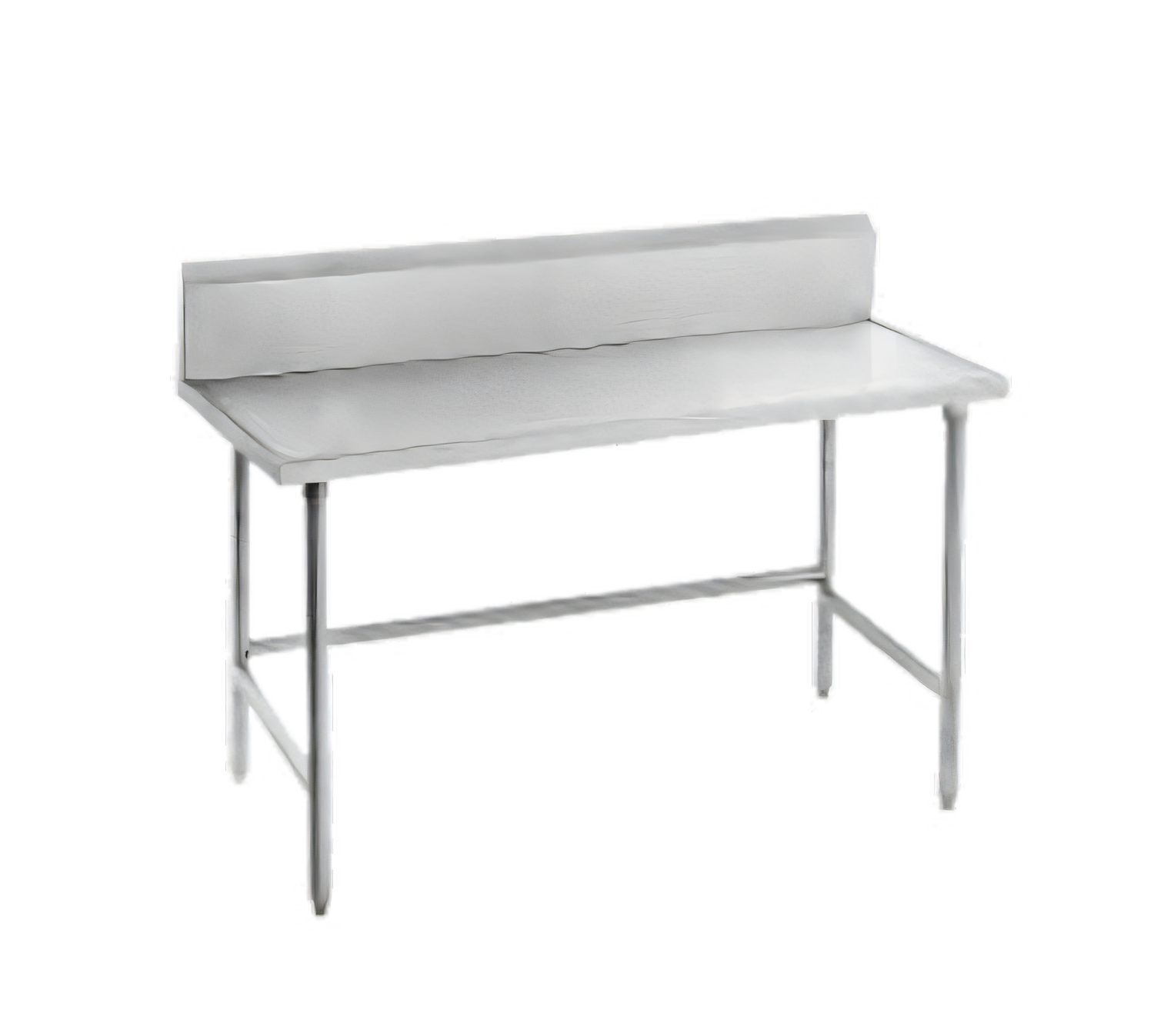

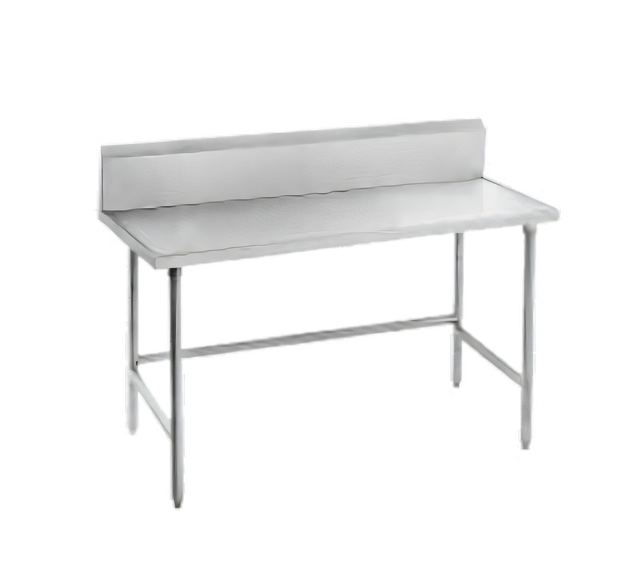

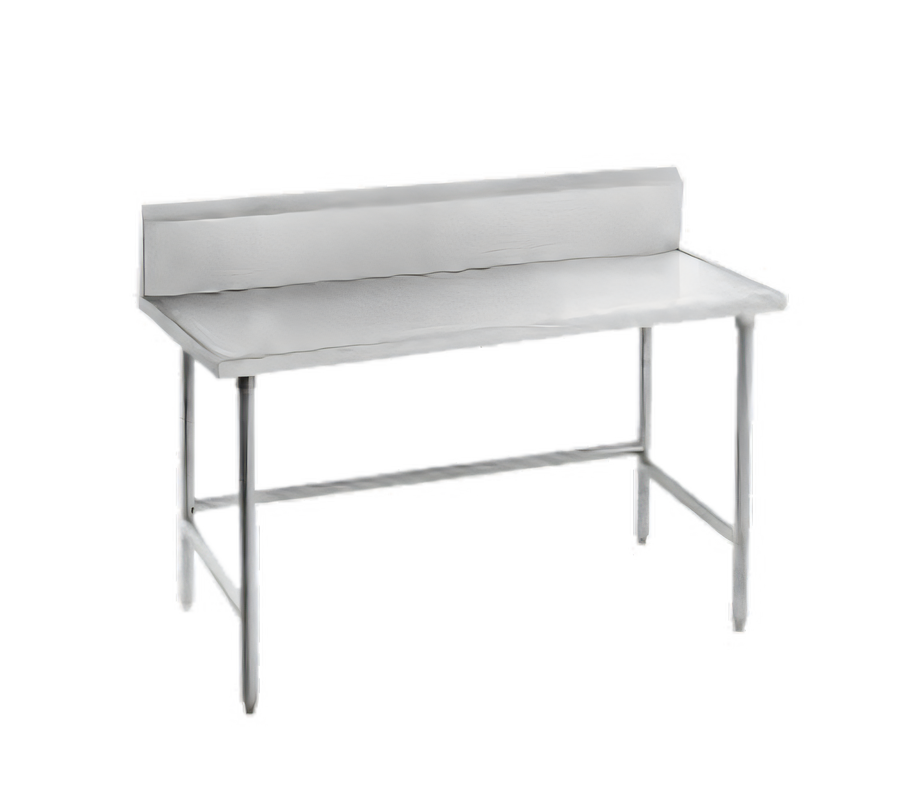

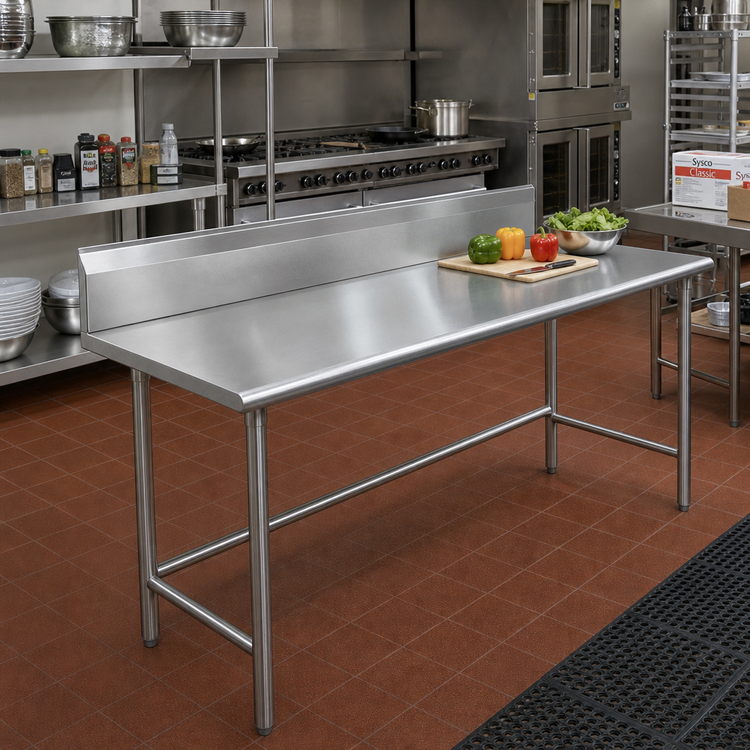

Advance Tabco SPEC-LINE 108" × 30" Stainless Steel Work Table with 10" Rear Backsplash
Model TVKS-309 | Open-Base | NSF ListedGive your prep line a rock-solid, easy-to-sanitize surface that’s built to thrive in the busiest commercial kitchens. The 9 ft. Advance Tabco TVKS-309 combines a heavy-duty 14-gauge Type 304 top with six stainless legs and full tubular cross rails to deliver industry-leading strength, stability and corrosion resistance without the weight or cost of an undershelf.
Why You’ll Love It

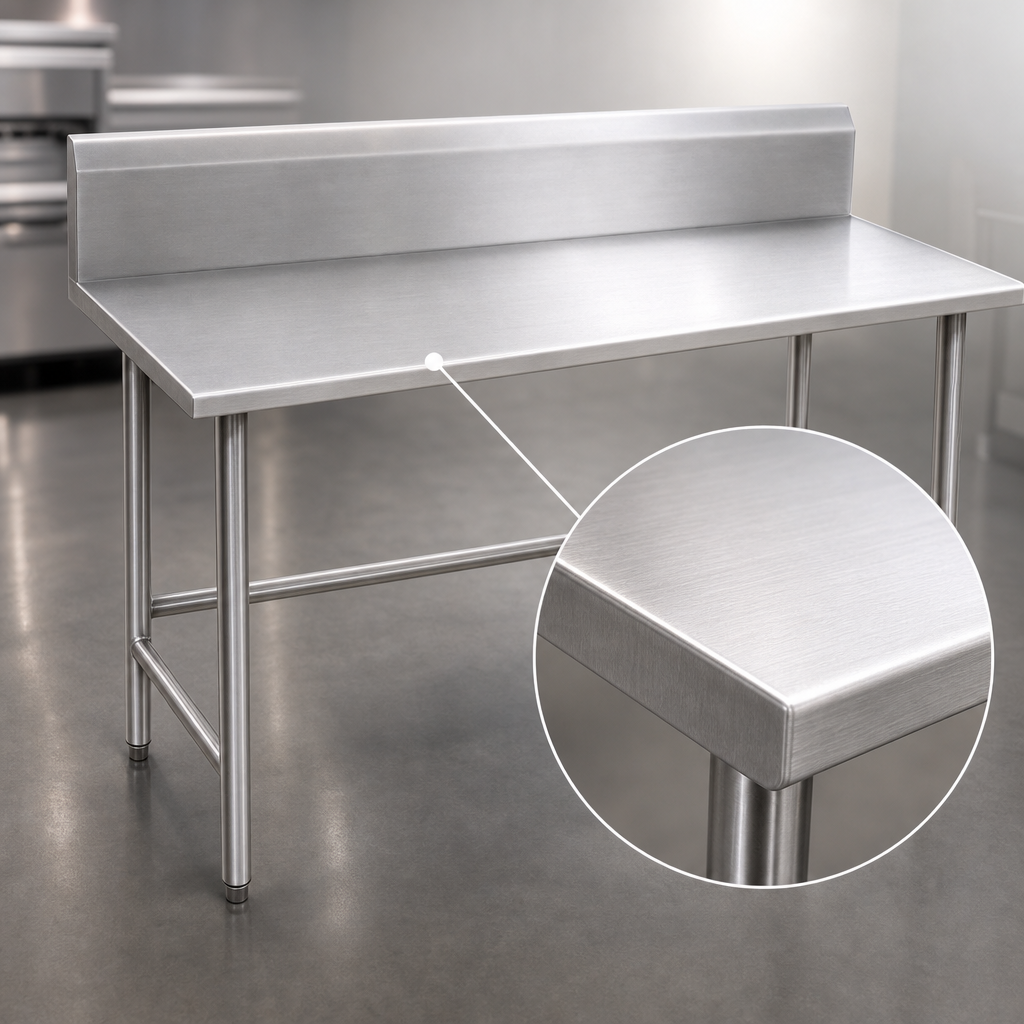

- 14-gauge Type 304 top – food-grade alloy offers superior rust resistance versus 400-series steel.

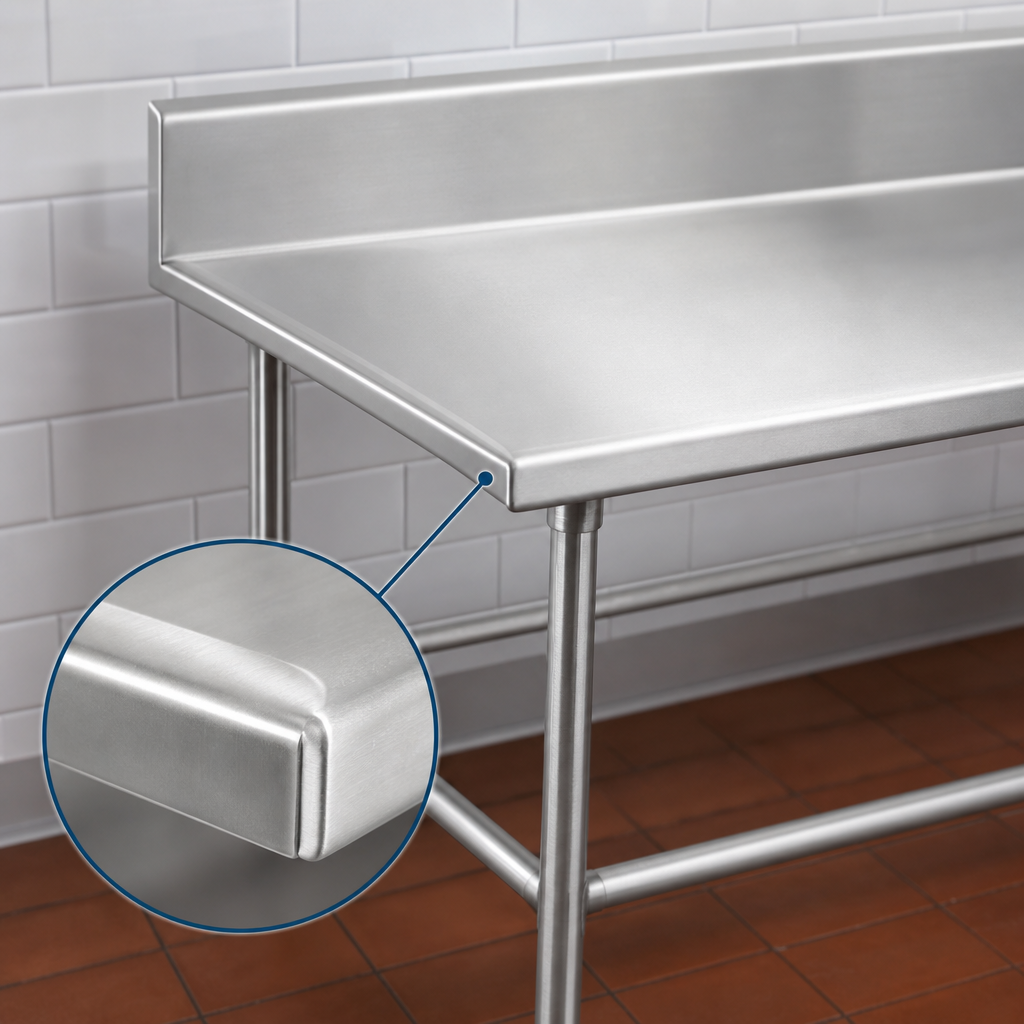

- No-Drip countertop edge – 2" × 1" square die-formed front & side edge with ½" return keeps spills off the floor.
- 10" backsplash with 2" return protects walls and complies with most health codes.
- Triple hat-channel reinforcement (for 30" depth) keeps the extra-long top dead-flat under heavy loads.
- All-stainless open base – 1 ⅝" rear & 1 ¼" side tubular cross rails add rigidity while keeping under-table space clear.
- Six 1 ⅝"-Ø legs with 1" bullet feet – fully adjustable, all stainless, for fast leveling on uneven floors.
- TIG-welded & satin-polished – exposed welds are blended for a seamless, easy-clean finish.
- NSF certified – ready for use in any regulated food-service environment.
Technical Specifications
| Overall dimensions | 108" W × 30" D × 35 ½" H (work height) |
|---|---|
| Work surface | 14-gauge Type 304 stainless steel, sound-deadened |
| Edge profile | 2" × 1" square No-Drip with ½" return (front & sides) |
| Backsplash | 10" high, 2" rear return, integrally welded |
| Reinforcement | 3 galvanized hat channels (stud-welded) |
| Legs | Six 1 ⅝"-Ø, 16-ga. stainless tubes with stainless gussets |
| Cross rails | Rear: 1 ⅝"-Ø stainless tube | Sides: 1 ¼"-Ø stainless tube |
| Feet | 1" adjustable stainless steel bullet feet |
| Shipping weight | Approx. 150 lb (ships KD to minimize freight cost) |
| Load capacity* | Up to ~1,320 lb evenly distributed |
| Certification | NSF |
*Capacity calculated using Advance Tabco load tables: 14-ga. top (1,000 lb) + rear 10" backsplash (+10%) – open base (–20%) + center legs (+50%) = ≈1,320 lb. Always distribute weight evenly.
Perfect For
- High-volume restaurant and hotel prep lines
- Bakery make-up stations requiring extra width
- Institutional commissaries & school cafeterias
- Any space where undershelf clearance is critical for carts or ingredient bins
Need drawers, overshelves or custom cut-outs? Advance Tabco offers a full range of Smart Fabrication options.
