Advance Tabco TVKG-309 Stainless Steel Prep Tables
Description

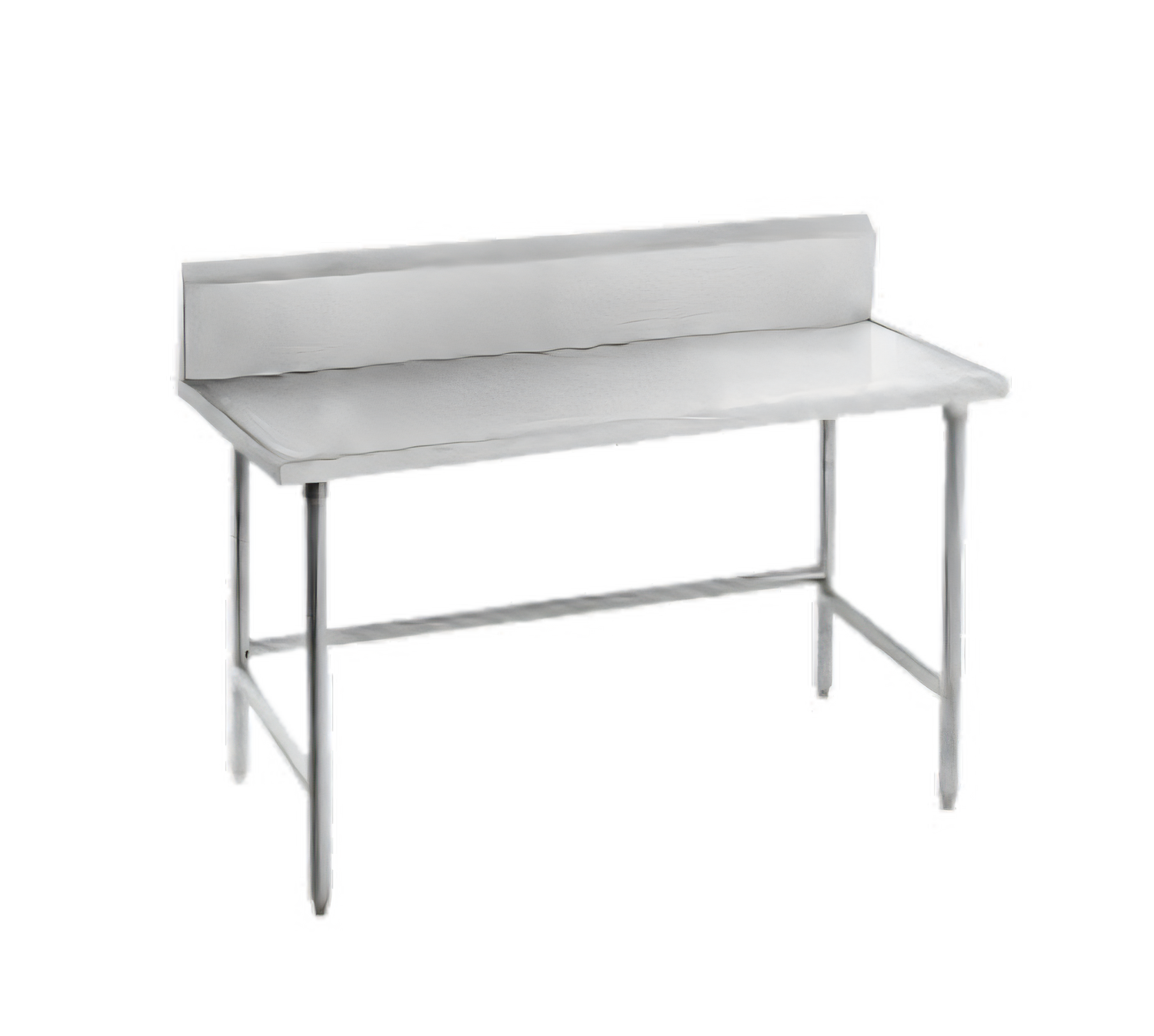

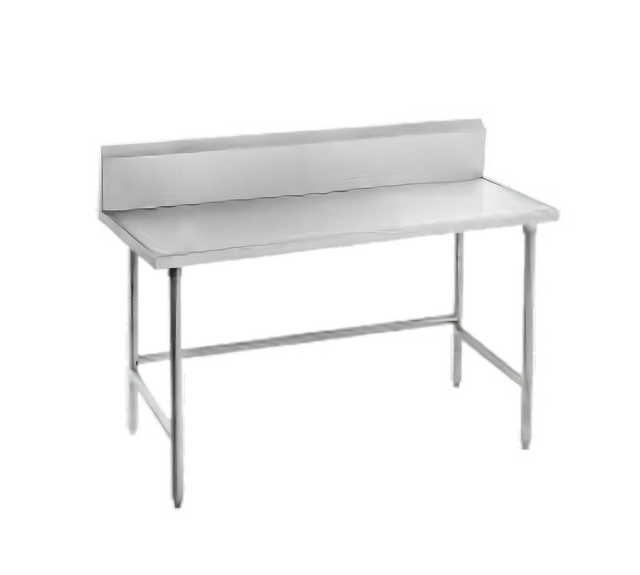

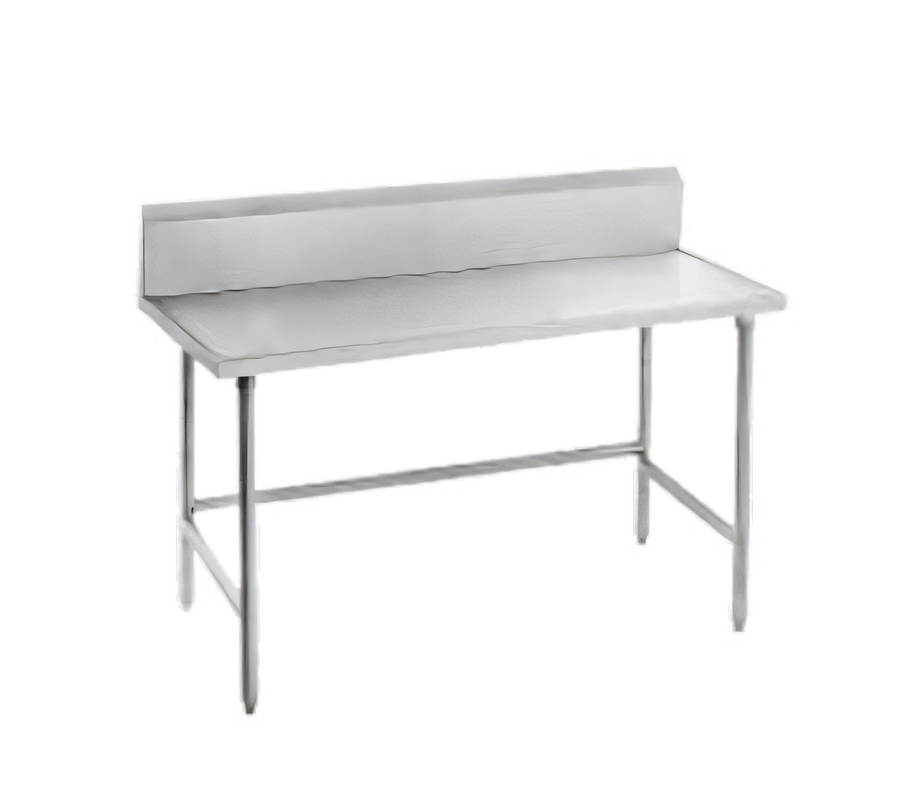

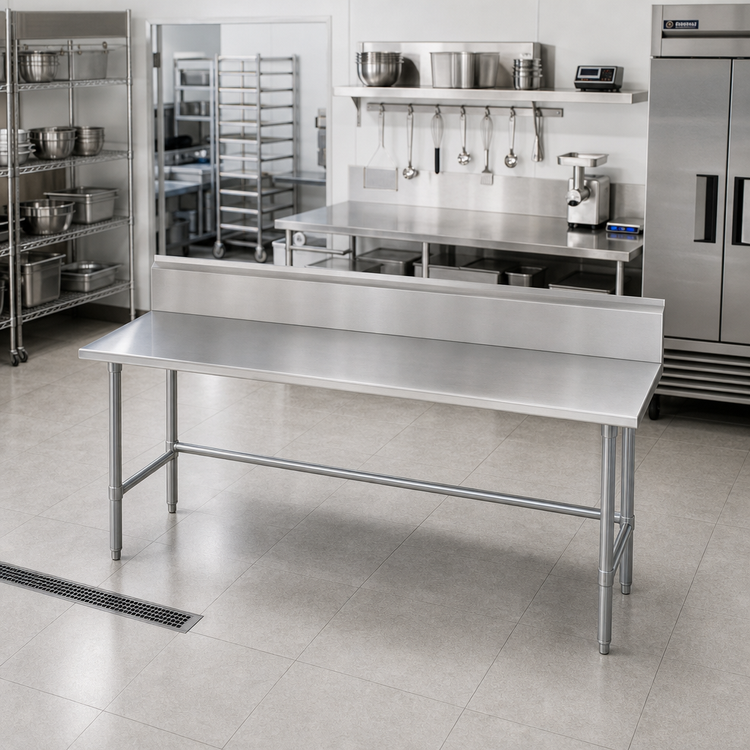

Advance Tabco 108" × 30" Stainless Steel Work Table with 10" Backsplash
Spec-Line Series • Open Base • Model TVKG-309 (Galvanized Leg Assembly)Built for the demands of high-volume food-service operations, this Advance Tabco Spec-Line work table delivers a heavy-duty 14-gauge 304 stainless steel work surface, a full 10" rear backsplash, and an open-base galvanized leg frame that stands up to years of daily punishment.
Key Features & Benefits

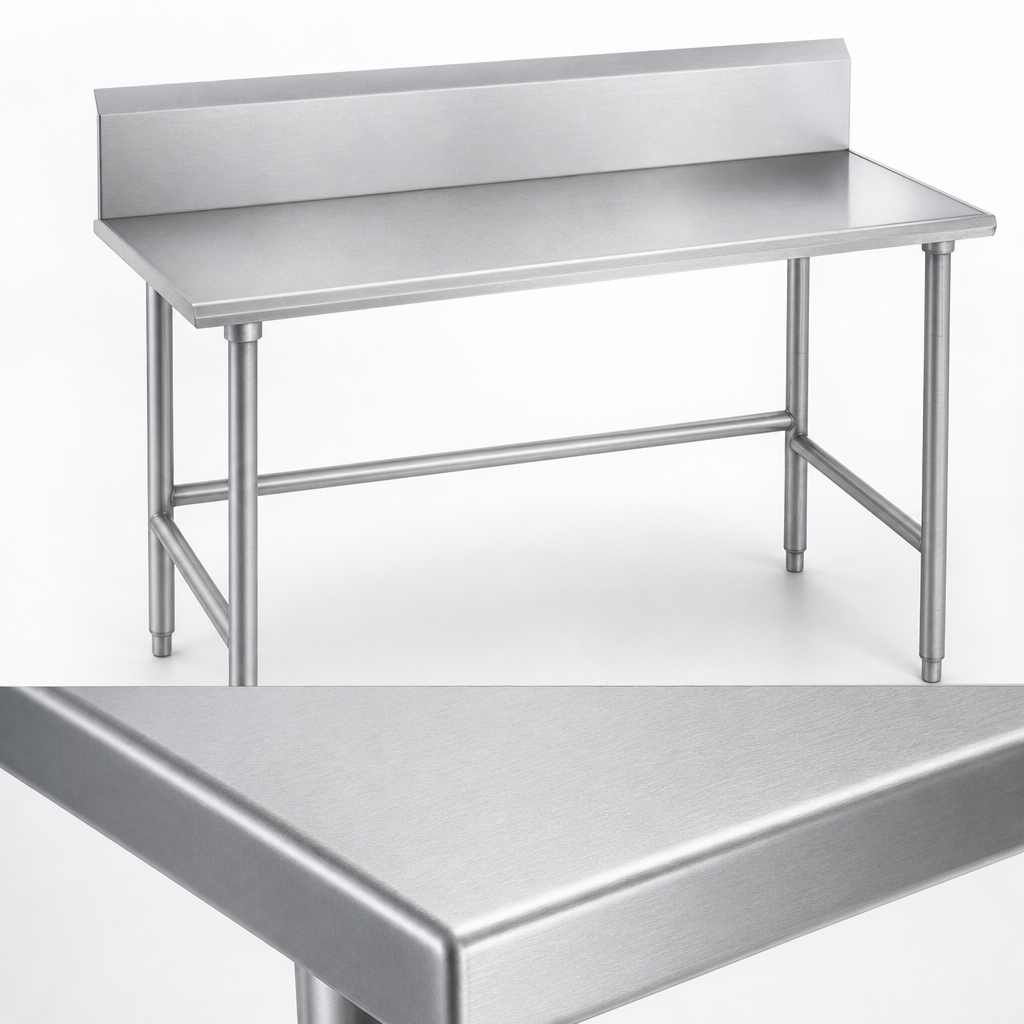

- 14-gauge 304 stainless steel top – extra-thick, corrosion-resistant and mechanically polished to a satin finish.
- No-Drip countertop edge – 2" × 1" die-formed edge with ½" return on three sides keeps spills off the floor.

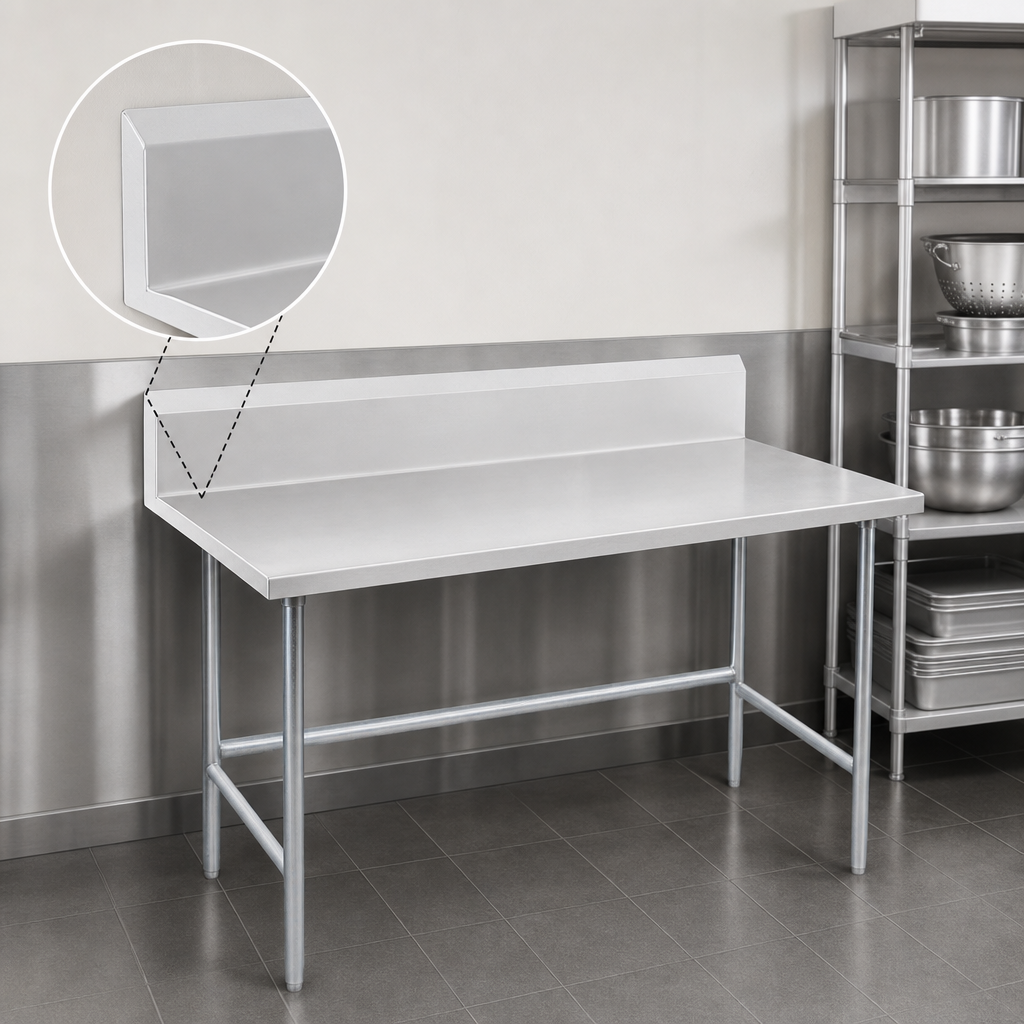

- 10" high backsplash with 2" return protects walls from splatter and meets most local health codes.
- Rugged reinforcement – three roll-formed galvanized hat channels (for 30" depth) are welded and adhesively bonded for a dead-flat top.
- Galvanized open-base frame – 1 ⅝"-dia. 16-gauge legs with 1 ¼"-dia. side cross rails & 1 ⅝" rear cross rail ensure lateral stability.
- Six-leg support – units 8 ft.+ include a center pair of legs for added load capacity and rigidity.
- Adjustable 1" plastic bullet feet level the table on uneven floors and protect finished surfaces.
- All TIG-welded construction with polished welds for a clean, seamless look.
- Top is sound-deadened for a quieter kitchen environment.
- NSF listed for safe use in regulated food-service applications.
- Ships knocked-down (KD) to minimize freight costs and ease job-site delivery.
Product Specifications
| Overall Dimensions (W × D × H) | 108" × 30" × 35 ⅛" (work surface), 45 ⅛" overall height with backsplash |
|---|---|
| Work Surface Material | 14-gauge Type 304 stainless steel |
| Backsplash | 10" high, 2" rear return |
| Edge Style | 2" × 1" die-embossed No-Drip with ½" return on three sides |
| Understructure | 3 galvanized hat channels (bonded & welded) |
| Legs / Bracing | 1 ⅝"-dia. galvanized steel legs, 1 ⅝" rear & 1 ¼" side tubular cross rails |
| Feet | 1" diameter adjustable plastic bullet feet |
| Distributed Load Capacity* | Up to 1,320 lb (evenly distributed) |
| Weight (Shipping) | Approx. 150 lb (ships KD) |
| Certifications | NSF |
*Capacity calculated using Advance Tabco guidelines for 14-gauge tops with 10" backsplash, open base, and additional center legs. Do not exceed maximum combined 1,800 lb table load.
Ideal Applications
- Restaurant and hotel prep kitchens
- Institutional cafeterias & commissaries
- Bakery, deli and catering production lines
- Laboratory or clean-room workstations requiring 304 stainless contact surfaces
Invest in a work table that works as hard as you do—choose the Advance Tabco Spec-Line TVKG-309 and experience uncompromising strength, sanitation and value.
