Advance Tabco TMS-369 Stainless Steel Prep Tables
Description

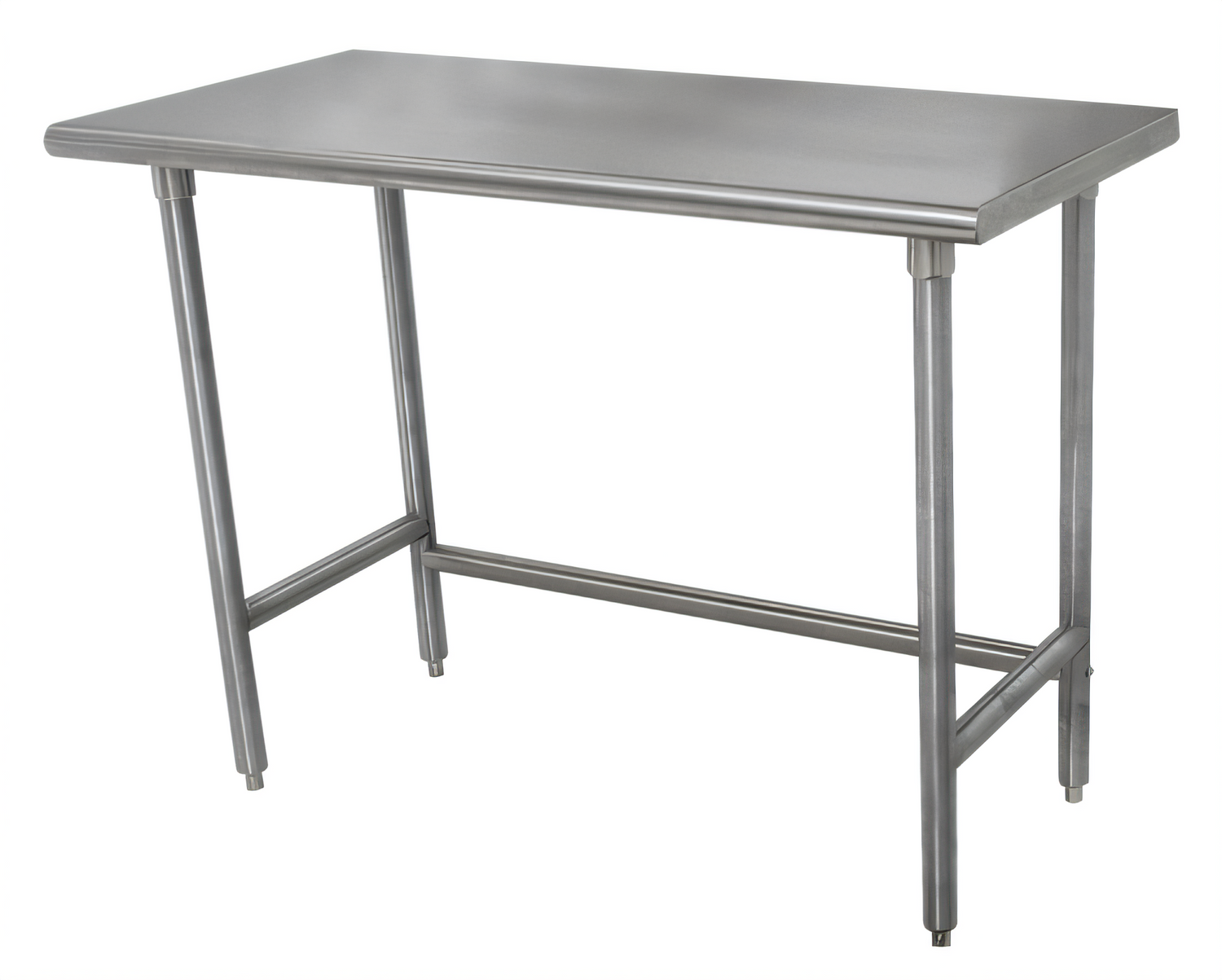

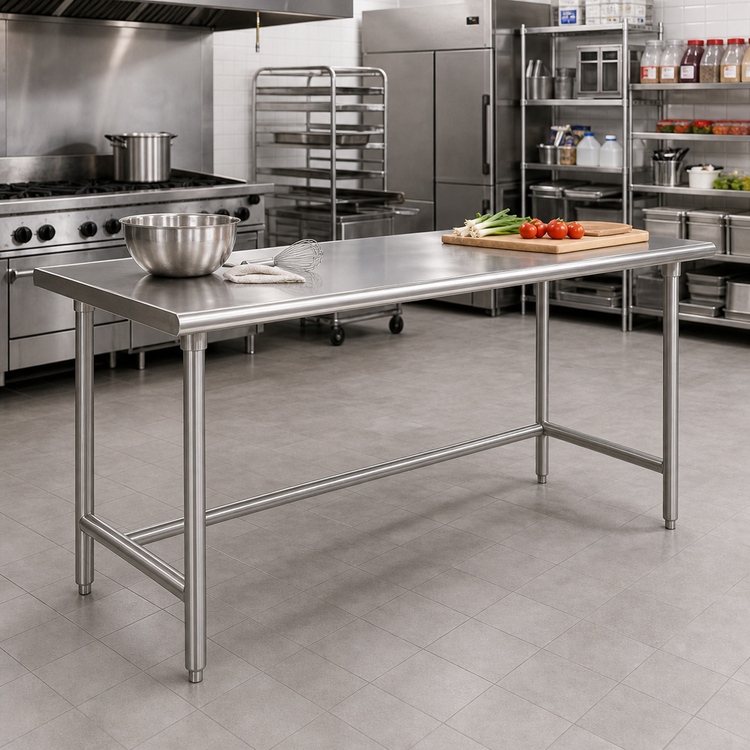

Advance Tabco 108" × 36" Stainless Steel Work Table – Open Base
Model TMS-369 | NSF ListedBuilt for bustling commercial kitchens, bakeries and prep rooms, this 9-foot Advance Tabco work table pairs a rugged 16-gauge type 304 stainless steel top with a rock-solid open-base frame. The result is a sanitary, easy-to-clean workstation that stands up to heavy, everyday use without giving up valuable under-table clearance.
Key Benefits
- Generous 108" W × 36" D flat work surface handles multiple prep tasks at once.

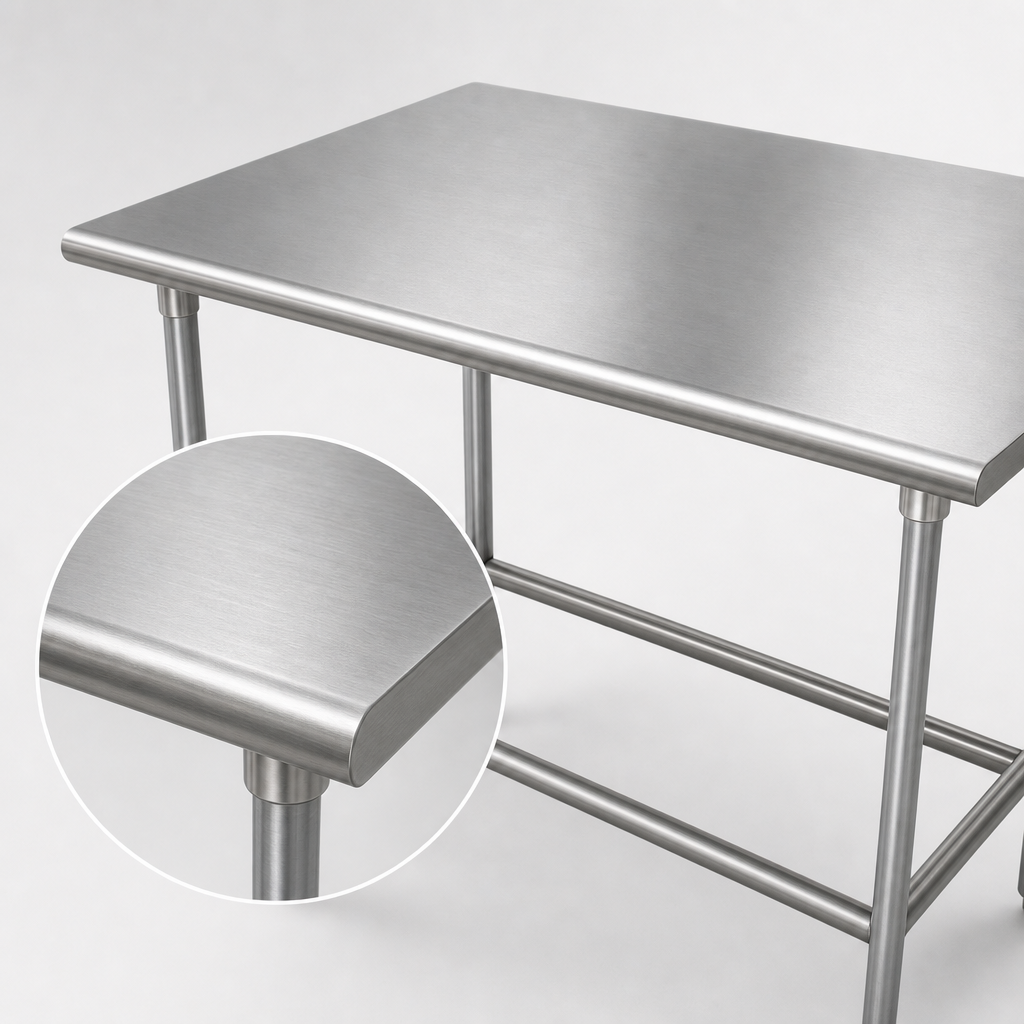

- 16 ga. type 304 stainless steel top delivers exceptional corrosion resistance and longevity.
- 1-5/8" sanitary rolled rim edges (front & back) help contain spills and wipe down fast; square side edges allow seamless line-ups.
- Three roll-formed hat channels plus sound-deadening underlay keep the top level and quiet—even under load.
- 1-5/8" Ø stainless steel legs with 1-1/4" Ø side crossrails & 1-5/8" Ø rear crossrail maximize stability while leaving the base open for carts, ingredient bins or trash cans.
- Six-leg design (required on tables 8 ft & longer) prevents sagging along the span.
- 1" adjustable stainless bullet feet make quick work of leveling on uneven floors.
- Completely TIG-welded & satin-polished for a smooth, professional finish.
- NSF certified for safe use in any food-zone application.
Technical Specifications
| Work Surface (L × D) | 108" × 36" (2743 mm × 914 mm) |
|---|---|
| Overall Height | Approx. 35-1/2" (902 mm) |
| Top Material / Gauge | 16 ga. (1.5 mm) type 304 stainless steel, satin finish |
| Edge Detail | 1-5/8" sanitary rolled rim – front & rear; square sides |
| Under-structure | (3) roll-formed galvanized hat channels, welded & adhesively bonded |
| Legs | (6) 1-5/8" Ø tubular stainless steel w/ welded gussets |
| Cross-Bracing | Rear: 1-5/8" Ø tubular stainless steel Side: 1-1/4" Ø tubular stainless steel |
| Feet | 1" adjustable stainless steel bullet feet |
| Weight | Approx. 165 lb (75 kg) – ships knock-down (KD) to reduce freight costs |
| Certifications | NSF – suitable for direct food-contact zones |
| Country of Origin | USA |
Load Capacity
Advance Tabco rates a 16-gauge top with center legs at 1,200 lb distributed load. Because this model uses an open-base (rear cross-brace) design, capacity is reduced by 20 % per factory guidelines, yielding an approximate 960 lb distributed load.
Maximum table load (top + any undershelf or accessories) shall not exceed 1,800 lb.
Ideal Applications
- High-volume ingredient prep & portioning lines
- Large bakery dough-forming stations
- Bulk packaging or sorting areas
- Catering commissaries & ghost kitchens
Simple Assembly
The table ships knock-down with hardware included. Attach legs, cross-bracing and feet, then tighten for a rock-solid fit in minutes.
Need custom cut-outs, drawers or overshelves? Contact our Smart Fabrication™ team for a fast quote.
