Advance Tabco TMS-309 Stainless Steel Prep Tables
Description

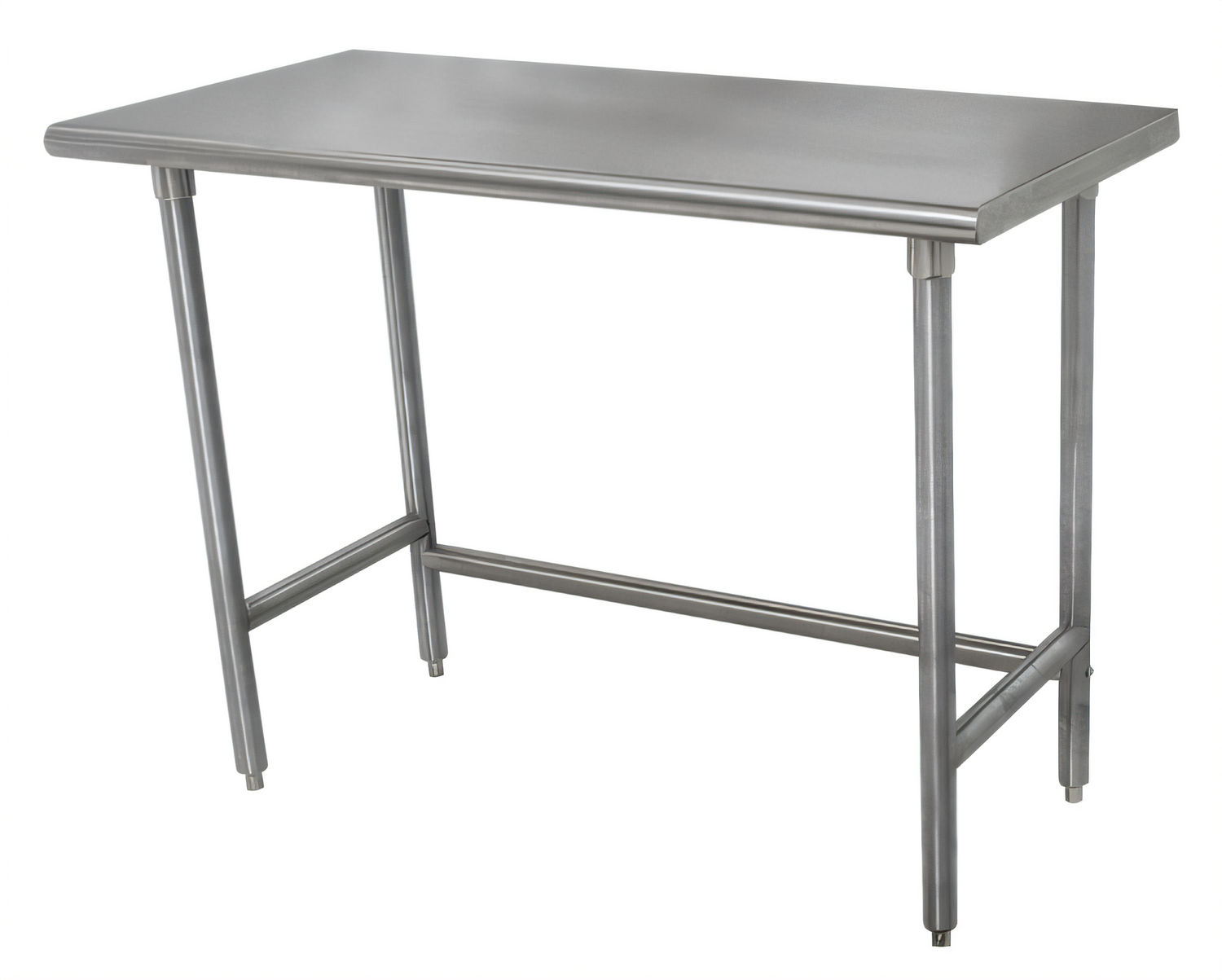

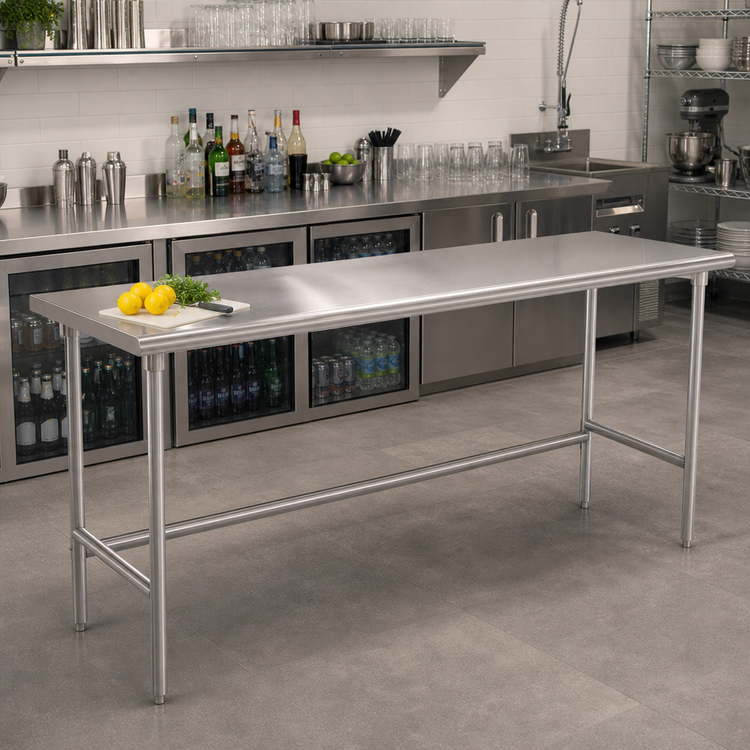

Advance Tabco 108" x 30" Stainless Steel Work Table – Open Base
TMS-309 | Standard Series · Flat TopA rugged, 9-foot prep surface built for busy commercial kitchens. Featuring a 16 ga. 304 stainless steel top, all-stainless open base, and NSF certification, this Advance Tabco work table delivers long-term durability, easy sanitation, and the strength to handle nearly any task you throw at it.
Key Features

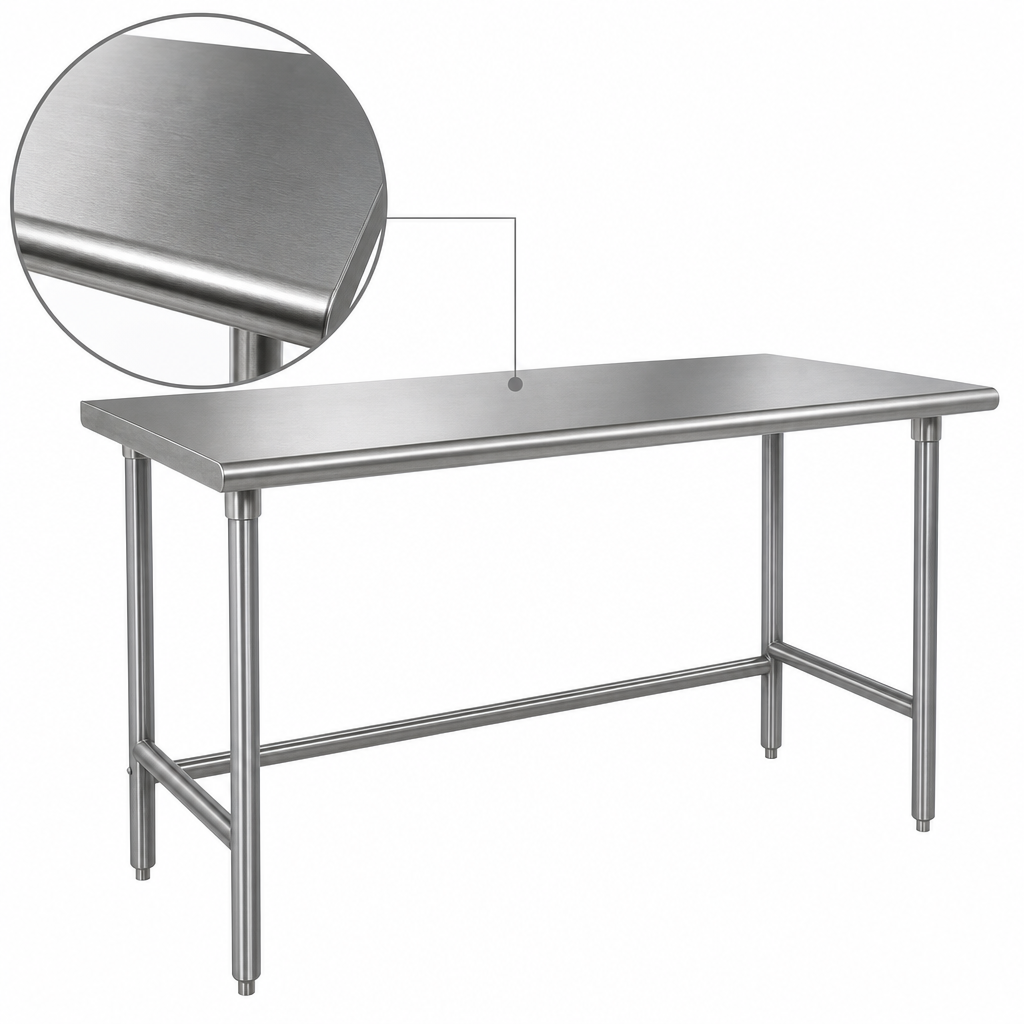

- 16 ga. type 304 stainless steel top with sanitary 1 5⁄8" rolled rim on front & rear; square side edges.
- (3) roll-formed galvanized hat channels bonded to the underside for a consistently level work surface.
- All-TIG-welded construction; exposed welds polished to a matching satin finish.

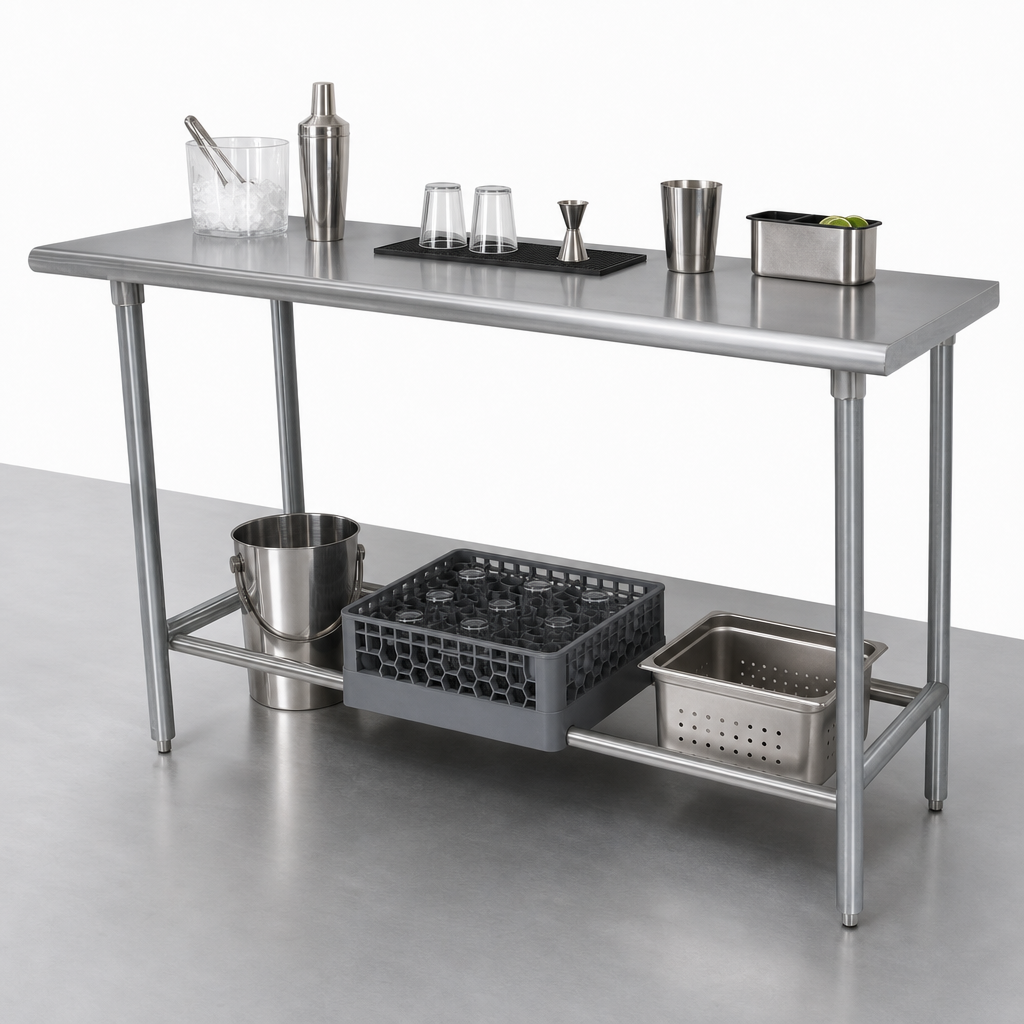

- 1 5⁄8" Ø stainless steel legs with 1 5⁄8" Ø rear & 1 1⁄4" Ø side cross rails for rock-solid open-base stability.
- Six-leg frame (models 8 ft.+) distributes weight evenly across the full 108" length.
- Adjustable stainless steel bullet feet for fast leveling on uneven floors.
- Shipped knock-down (KD) to minimize freight costs; field assembly is quick and straightforward.
- NSF listed for food-zone use.
Typical Applications
- Food prep & plating lines
- Bakery dough handling
- Packaging, sorting & staging areas
- Back-of-house storage & small-equipment support
Technical Specifications
| Model | TMS-309 |
|---|---|
| Overall Dimensions | 108" W × 30" D × 35 1⁄8" H |
| Work Surface | 16 ga. (1.5 mm) 304 stainless steel, satin finish |
| Top Edge | 1 5⁄8" sanitary rolled rim (front/rear) |
| Bracing | Rear: 1 5⁄8" Ø SS tube | Sides: 1 1⁄4" Ø SS tube |
| Legs | 1 5⁄8" Ø 304 stainless steel tube (6 legs) |
| Feet | Adjustable stainless steel bullet feet |
| Load Rating* | ≈ 960 lb. evenly distributed |
| Net Weight | 150 lb. |
| Certifications | NSF |
| Shipping | Knock-down (KD), boxed |
*Based on Advance Tabco published table load capacities for 16 ga. open-base work tables longer than 84". For maximum longevity, evenly distribute weight loads and avoid point loading.
Compatible Accessories (ordered separately)
- Stainless steel drawers (pre-engineered adapters already welded in place)
- Overshelves, pot racks & utensil bars
- Casters (swivel or rigid) for mobile stations
- Undershelves or intermediate shelves
Need a custom size or configuration? Contact us for Advance Tabco Smart Fabrication™ quotes.
