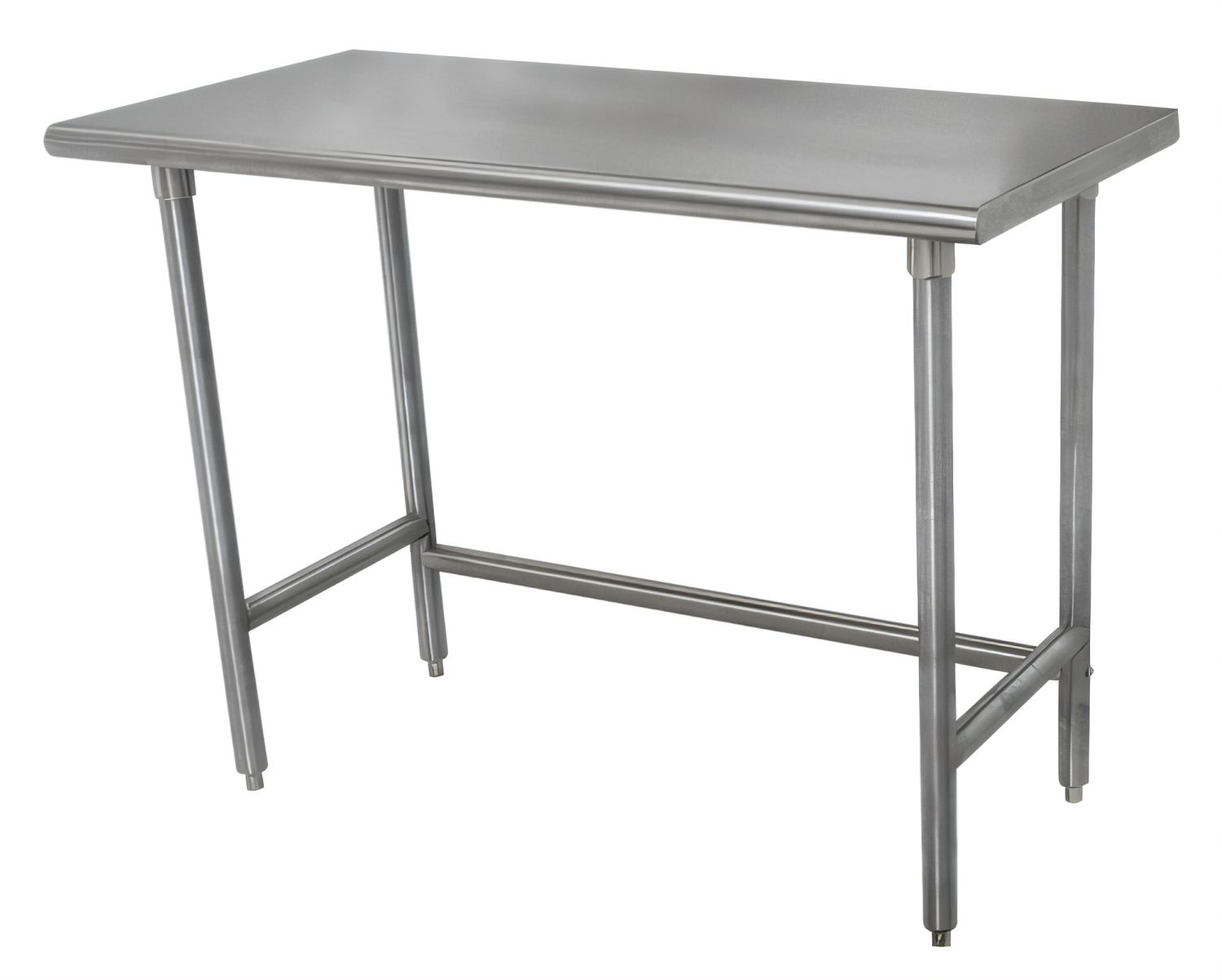

Advance Tabco TAG-242 24 Inches x 24 Inches Stainless Steel Work Table — 16 Gauge Type 430 Top, Galvanized Legs, Open Base

SKU: TAG-242
GTIN: 747545155306
$621.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers New Arrivals Restaurant Equipment Restaurant Equipment Parts Stainless Steel Prep Tables Tables & Workstations Work Table Drawers Work Table Parts & Accessories

Advance Tabco TAG-242 24 Inches x 24 Inches Stainless Steel Work Table — 16 Gauge Type 430 Top, Galvanized Legs, Open Base

Flat top with rolled rim front & rear, square side edges; galvanized tubular legs with adjustable bullet feet

Commercial-grade 24" x 24" work table with a 16-gauge Type 430 stainless steel top, galvanized tubular legs and reinforced side/rear cross-bracing — prepped for drawer installation and NSF listed.

  • 16 gauge Type 430 stainless steel top with satin mechanical polish and sound deadening
  • Galvanized tubular legs with side and rear cross-bracing for enhanced rigidity
  • Rolled rim edges on front & rear and square side edges; 1" adjustable plastic bullet feet
  • Pre-engineered welded angle adapters for easy future drawer installation (see Section K accessories)
  • Shipped knocked-down (KD) for reduced shipping costs

Overall Dimensions:

24.0"W x 24.0"D x 35.5"H

Product Weight:

25.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

Top Material

16 gauge Type 430 stainless steel top; mechanically polished to a satin finish and sound deadened.

Edges

Sanitary 1-5/8" rolled rim edges on front and rear with square side edges.

Base Construction

Open-base design with galvanized tubular legs and galvanized steel gussets.

Cross-Bracing

Rear cross-brace: 1-5/8" dia. tubular galvanized steel; Side cross-braces: 1-1/4" dia. tubular galvanized steel.

Legs & Feet

1-5/8" diameter tubular galvanized steel legs with 1" adjustable plastic bullet feet.

Reinforcement

24" wide tables supplied with two roll-formed hat channels secured with adhesive and weld studs; gussets welded to support hat sections.

Drawer Ready

Pre-engineered welded angle adapters included to simplify future drawer installation; compatible drawer kits available (see Section K).

Load Capacity

Designed for heavy-duty use — 16 gauge top rated at 800 Pounds (with undershelf for lengths up to 60"); open-base construction reduces capacity by 20% resulting in a 640 Pounds distributed load for this model.

Type Work Table
Style Open Base
Installation Type Floor Model
Material Stainless Steel
Top Stainless Series 430 Series
Top Gauge 16 Gauge
Base Material Galvanized Steel
Edge Type Rolled Rim Front & Rear; Square Side Edges
Leg Diameter 1 5/8 Inches
Cross-Bracing Rear: 1 5/8 Inches Dia Tubular Galvanized Steel; Sides: 1 1/4 Inches Dia Tubular Galvanized Steel
Feet 1 Inch Adjustable Plastic Bullet Feet
Capacity 640 Pounds
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 36 Inches
Shipping Weight 25 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Product standards and use guide PDF Download

Frequently Asked Questions

The TAG-242 features a 16 gauge Type 430 stainless steel top that is mechanically polished to a satin finish and is sound deadened.
Yes. This model is NSF listed.
A 16 gauge flat top with an undershelf is rated at 800 Pounds for lengths up to 60". Because the TAG-242 is an open-base table, capacity is reduced by 20%, giving a distributed load capacity of approximately 640 Pounds.
Yes — the TAG-242 includes 1" adjustable plastic bullet feet. All units are shipped knocked-down (KD) for reduced shipping costs and require assembly.
Yes — the table is supplied with pre-engineered welded angle adapters to simplify future drawer installation. Specific drawer kits and other accessories are listed in Section K of the catalog.
