Advance Tabco TA-529 9-Foot Drop-In Stainless Steel Urn Trough with Louvered Cover and Drain

SKU: TA-529
GTIN: 747545153968
$541.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

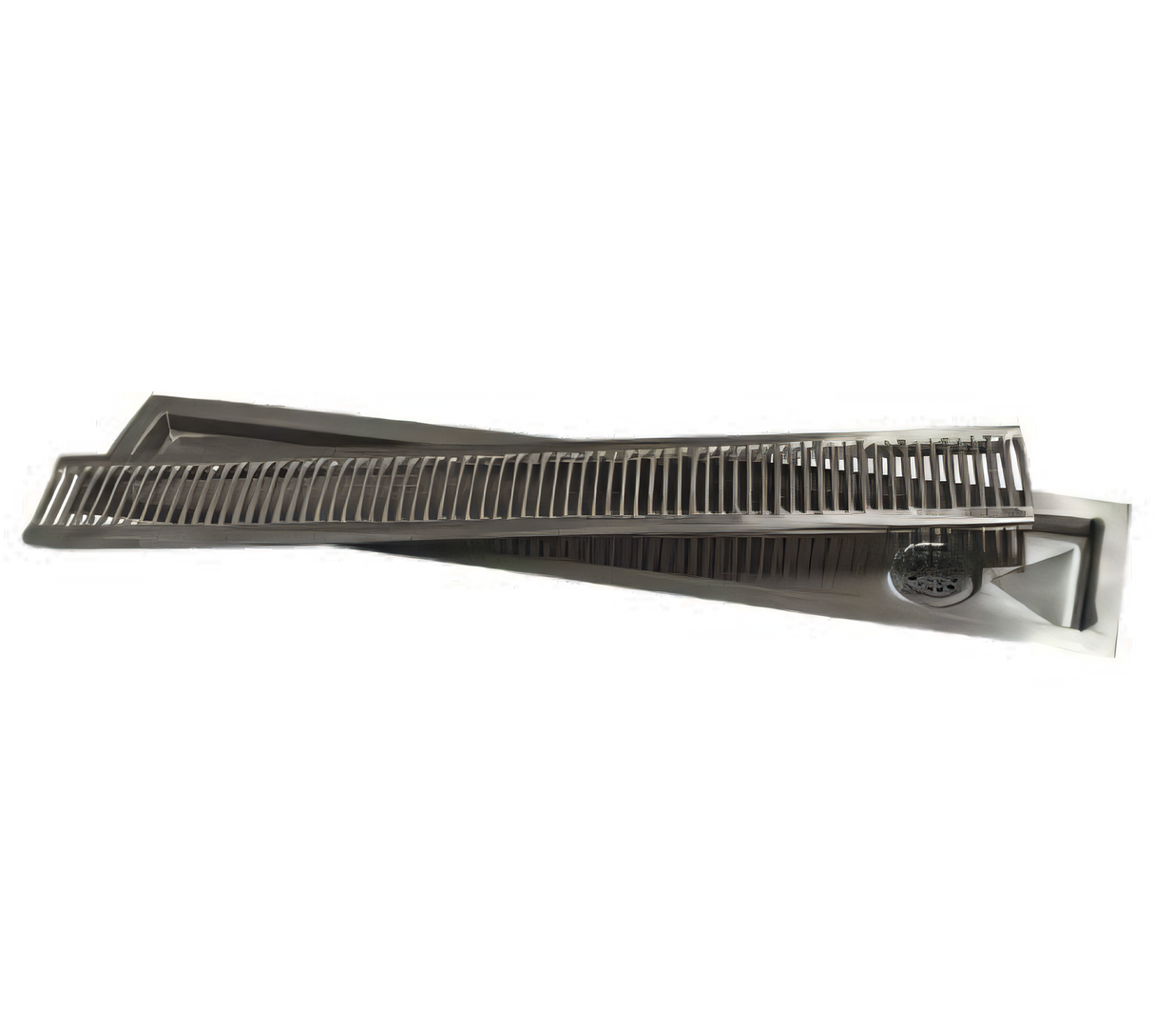

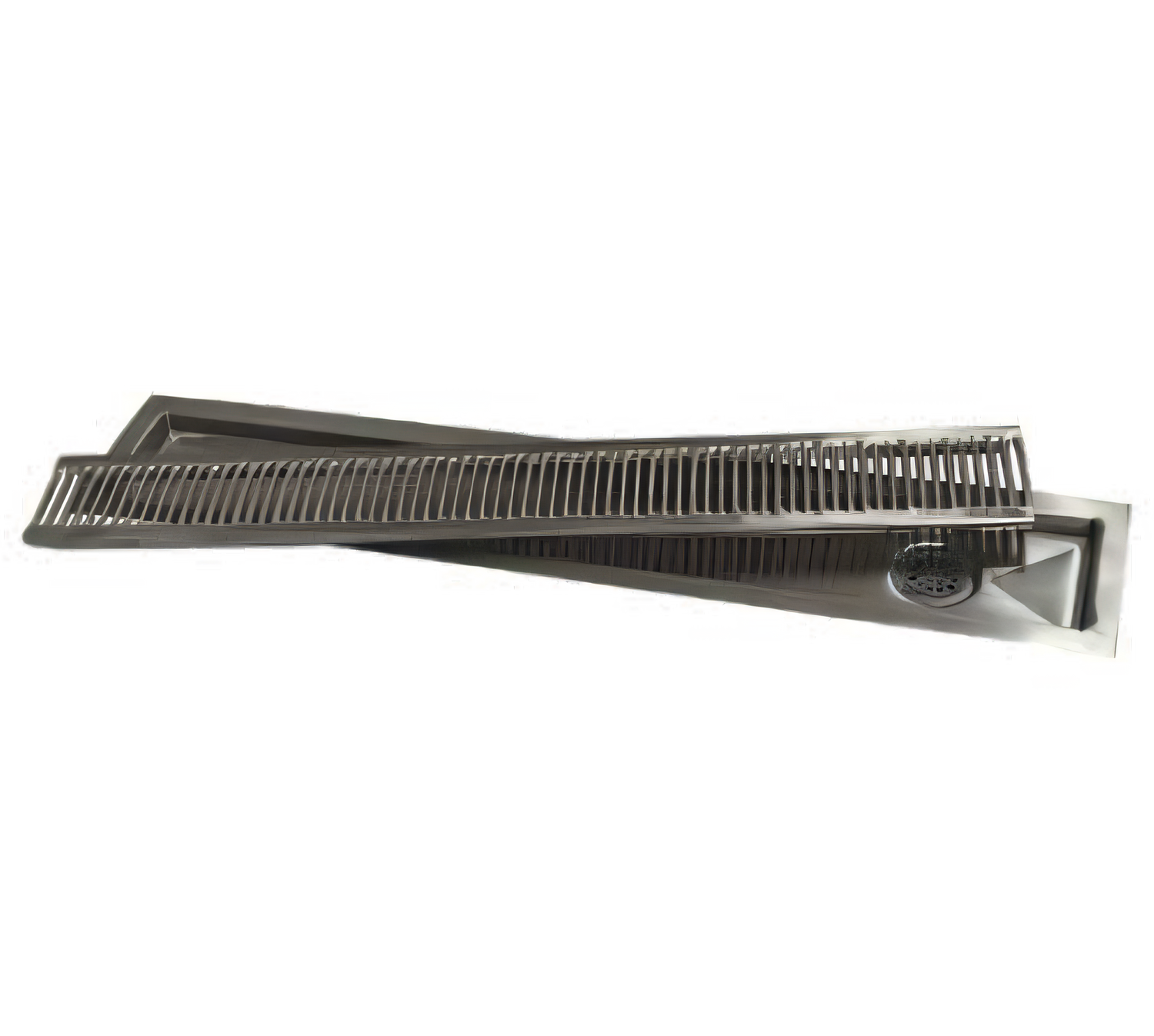

Advance Tabco TA-529 9-Foot Drop-In Stainless Steel Urn Trough with Louvered Cover and Drain

Field Installation Only; 5 1/8-Inch Countertop Opening Required

This 9-foot drop-in urn trough delivers a durable stainless steel beverage station solution with an included louvered cover and drain for clean, efficient service-counter installation.

  • 9-foot overall length with a drop-in design for beverage service counters.
  • Requires a 5 1/8-inch wide countertop opening and uses a 1-inch flange on all four sides for support.
  • Constructed from 16-gauge type 304 stainless steel with exposed surfaces polished to a satin finish.
  • Includes a slotted/louvered cover plate and a 1 1/2-inch IPS drain.
  • All TIG welded for durability and long-term commercial use.
  • Field installation only; consult the factory for custom lengths.

Overall Dimensions:

110.0"W x 7.0"D x 1.25"H

Product Weight:

23.0 lb

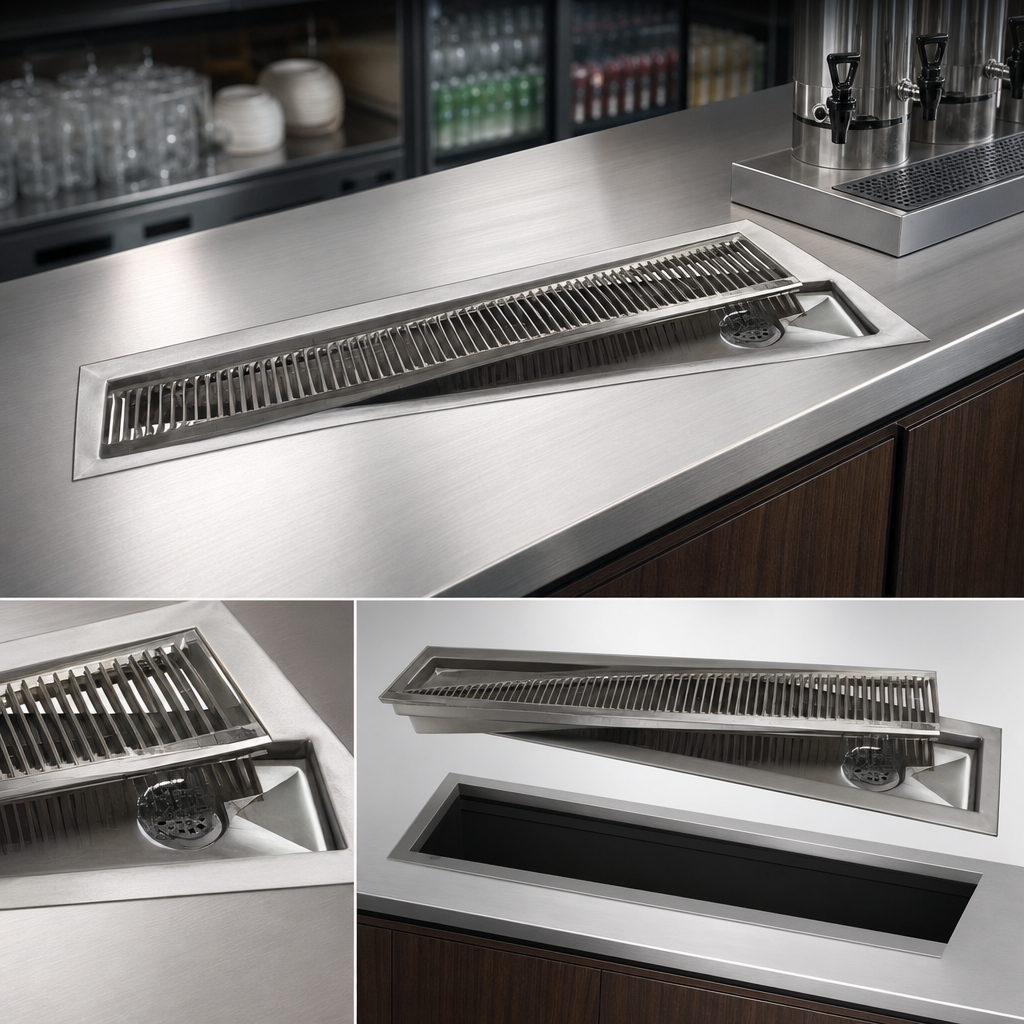

Drop-In Design

Installs into a countertop opening for a clean, built-in beverage service appearance.

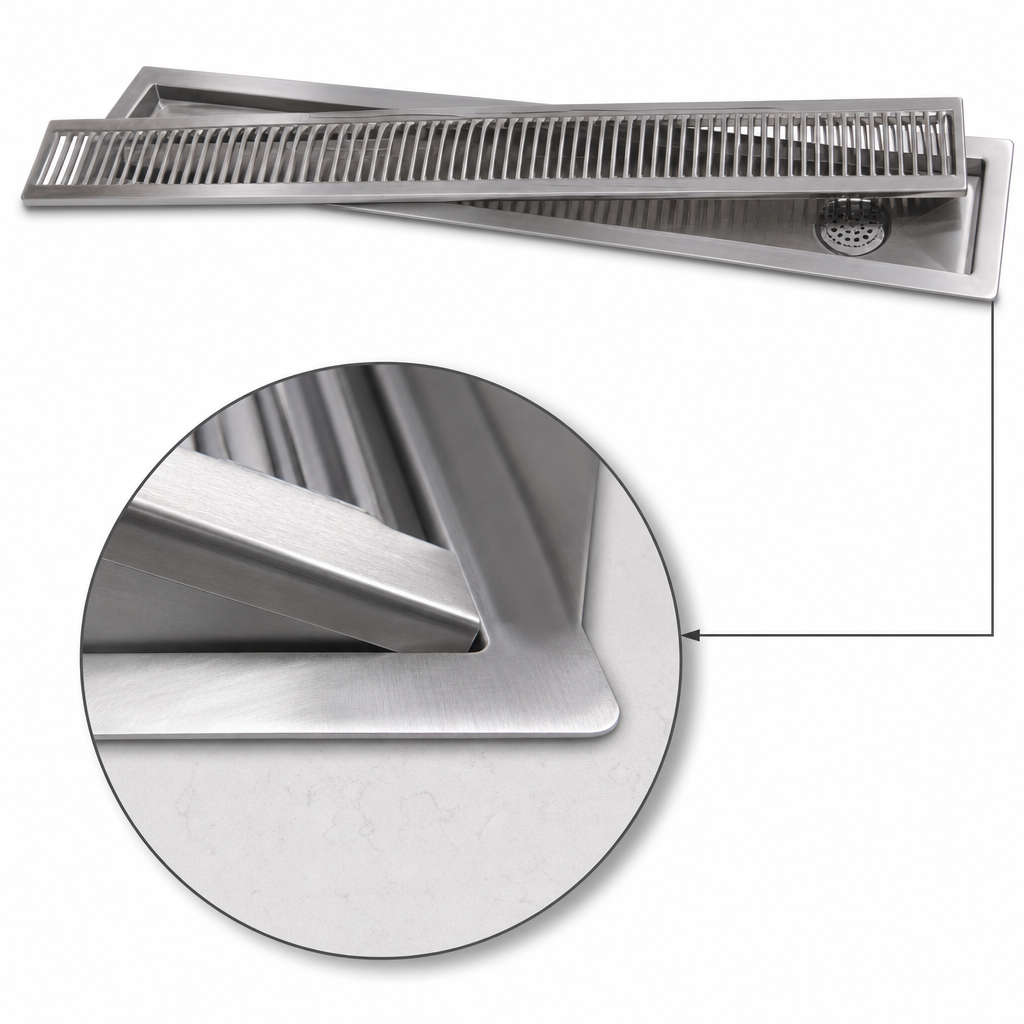

Countertop Support Flange

A 1-inch flange on all four sides supports the trough in the countertop.

Countertop Cutout Requirement

Requires a 5 1/8-inch wide opening in the countertop for installation.

304 Stainless Steel Construction

Made from 16-gauge type 304 stainless steel for corrosion resistance and durability.

Satin Finish

Exposed stainless steel surfaces are polished to a satin finish.

TIG Welded Construction

All seams are TIG welded for a durable, professional build.

Slotted Cover Plate

Includes a slotted/louvered urn trough cover plate.

Drain Included

Features a 1 1/2-inch IPS drain connection.

Custom Lengths Available

Custom lengths are available; consult the factory for details.

Field Installation Only

This model is intended for field installation; for factory installation, see TA-64.

Type Urn Trough
Style Drop-In
Installation Type Drop-In
Material 304 Stainless Steel
Finish Satin Finish
Drain Connection Size 1 1/2 Inches IPS
Shipping Width 110 Inches
Shipping Depth 7 Inches
Shipping Height 2 Inches
Shipping Weight 23 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It requires a 5 1/8-inch wide opening in the countertop.
Yes. It includes a slotted, louvered cover plate.
It is constructed from 16-gauge type 304 stainless steel.
It includes a 1 1/2-inch IPS drain.
No. This model is for field installation only; the factory installation version is TA-64.
Yes. The document states that custom lengths are available; consult the factory.
