Advance Tabco TA-525 60-Inch Drop-In Urn Trough with Louvered Cover and Drain

SKU: TA-525
GTIN: 747545153920
$443.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

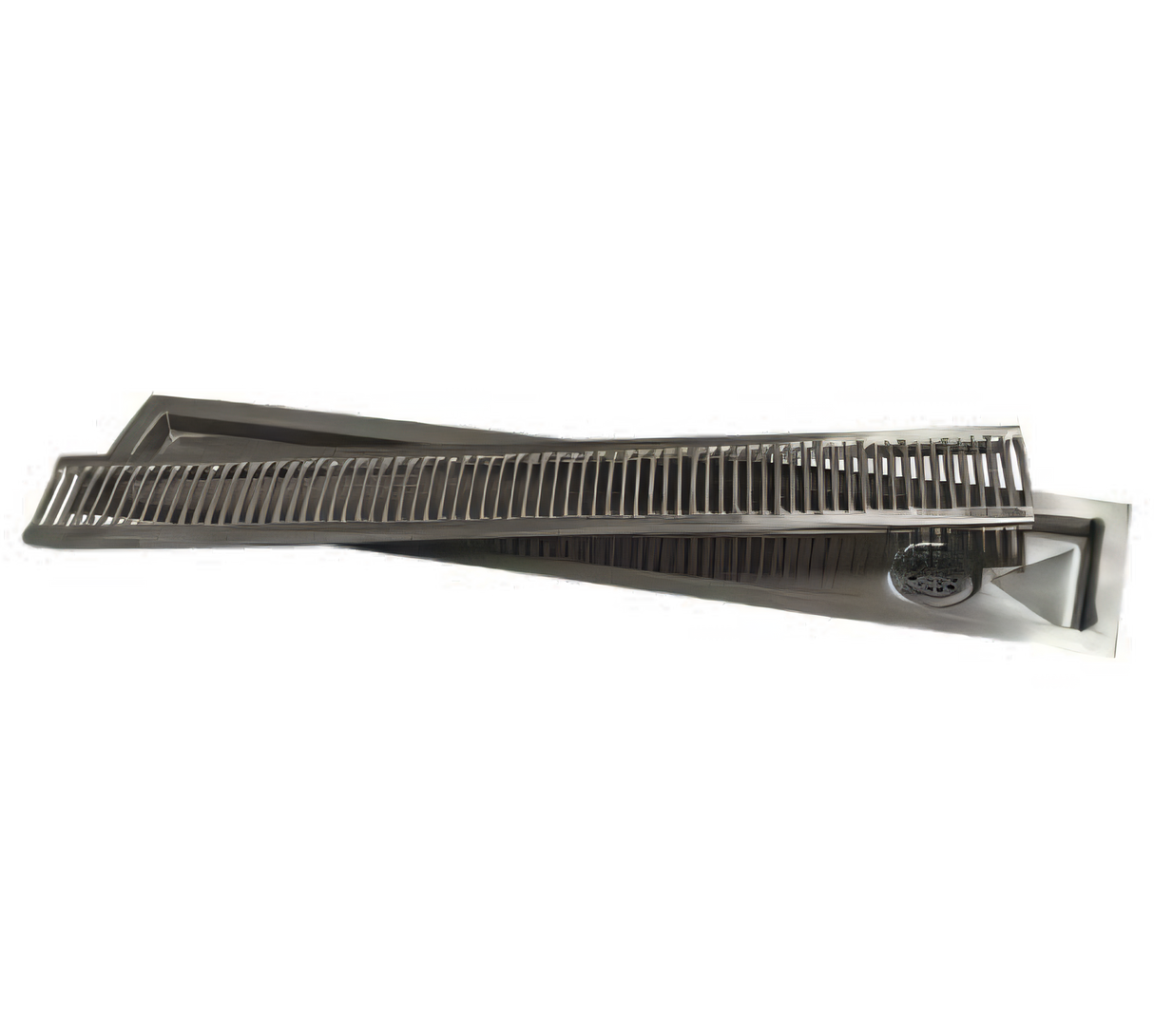

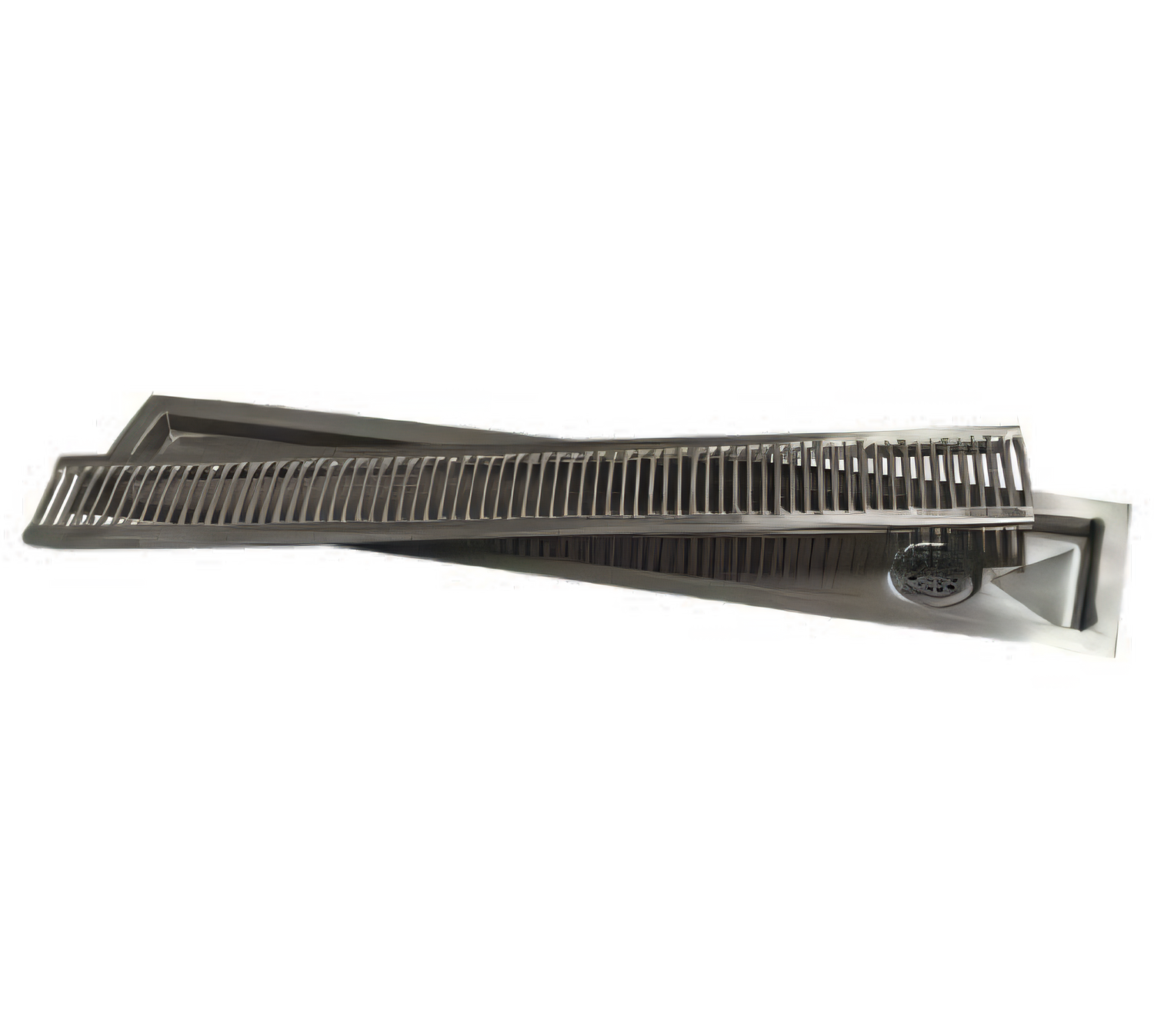

Advance Tabco TA-525 60-Inch Drop-In Urn Trough with Louvered Cover and Drain

304 Stainless Steel, Field Installation Only

A durable 5-foot urn trough designed for beverage countertops, with a louvered cover, built-in drain, and countertop-supporting flange for secure field installation.

  • 60-inch drop-in urn trough for beverage service countertop applications
  • 16-gauge 304 stainless steel construction for commercial durability
  • TIG-welded build with polished satin-finish exposed surfaces
  • Includes a slotted/louvered cover plate and 1 1/2-inch IPS drain
  • 1-inch flange on all four sides supports the trough in the countertop
  • Requires a 5 1/8-inch wide countertop opening; field installation only

Overall Dimensions:

62.0"W x 7.0"D x 1.25"H

Product Weight:

15.0 lb

Drop-In Field Installation

Designed for field installation as a drop-in urn trough.

1-Inch Support Flange

Flange on all four sides helps support the trough in the countertop opening.

16-Gauge 304 Stainless Steel

Durable stainless steel construction suited for commercial beverage areas.

TIG-Welded Construction

TIG-welded assembly for a strong, long-lasting build.

Satin-Finished Surfaces

Exposed stainless steel surfaces are polished to a satin finish for a clean appearance.

Slotted Cover Plate Included

Includes a slotted urn trough cover plate to help cover the trough opening.

1 1/2-Inch IPS Drain

Built with a 1 1/2-inch IPS drain connection.

Countertop Opening Requirement

Requires a 5 1/8-inch wide countertop opening; TA-525 cutout dimensions are listed as 5 1/4 x 60 1/4 inches.

Type Urn Trough
Style Drop-In
Installation Type Drop-In
Material 304 Stainless Steel
Finish Satin Finish
Drain Connection Size 1 1/2 Inches IPS
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 62 Inches
Shipping Depth 7 Inches
Shipping Height 2 Inches
Shipping Weight 15 lb.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The TA-525 is listed as 60 inches long (5 ft.).
It requires a 5 1/8-inch wide countertop opening, and the TA-525 cutout dimensions are listed as 5 1/4 x 60 1/4 inches.
It is constructed from 16-gauge type 304 stainless steel.
Yes. The document states that it includes a slotted urn trough cover plate and a 1 1/2-inch IPS drain.
This version is for field installation only. For factory installation, the document references TA-64.
