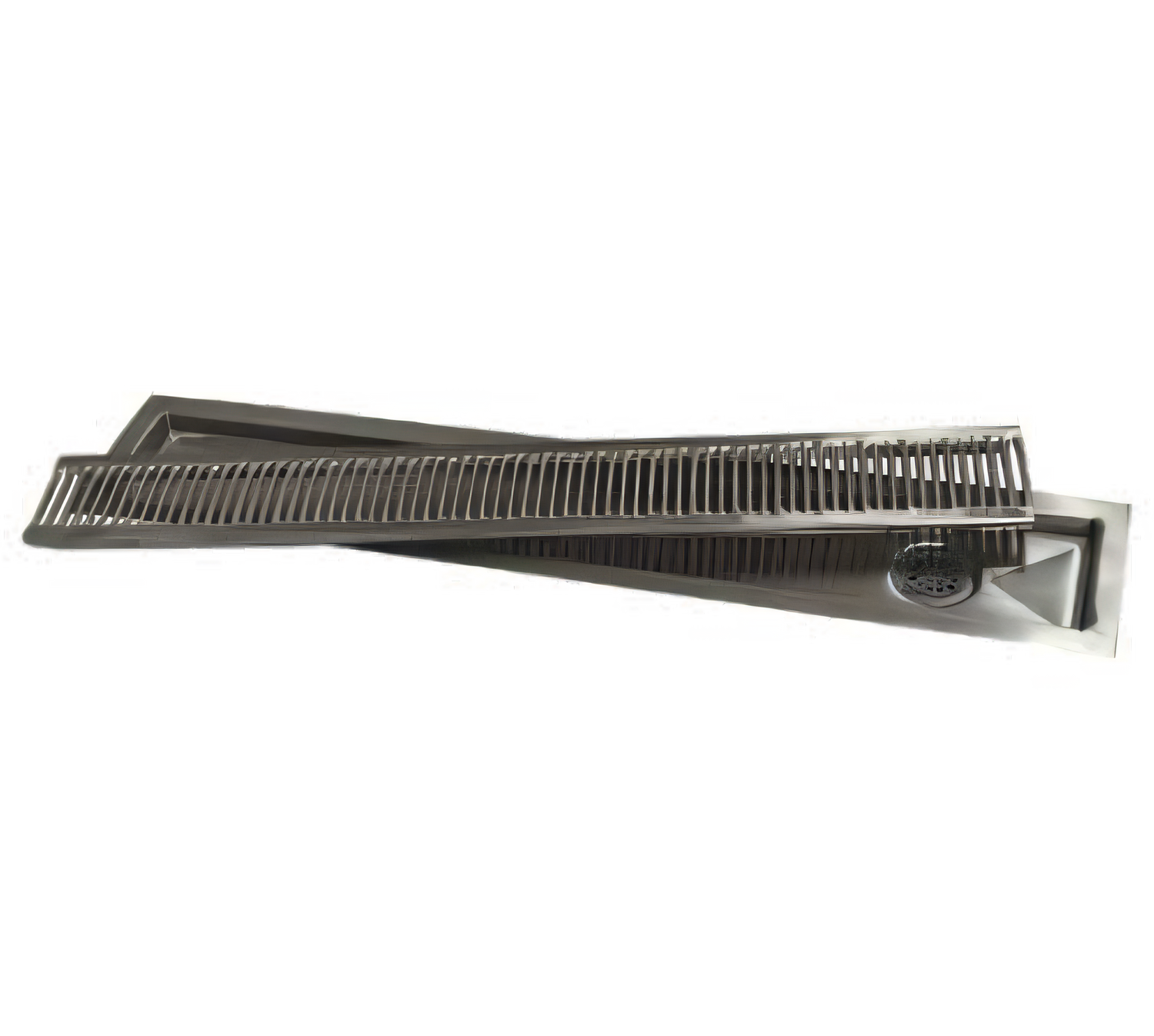

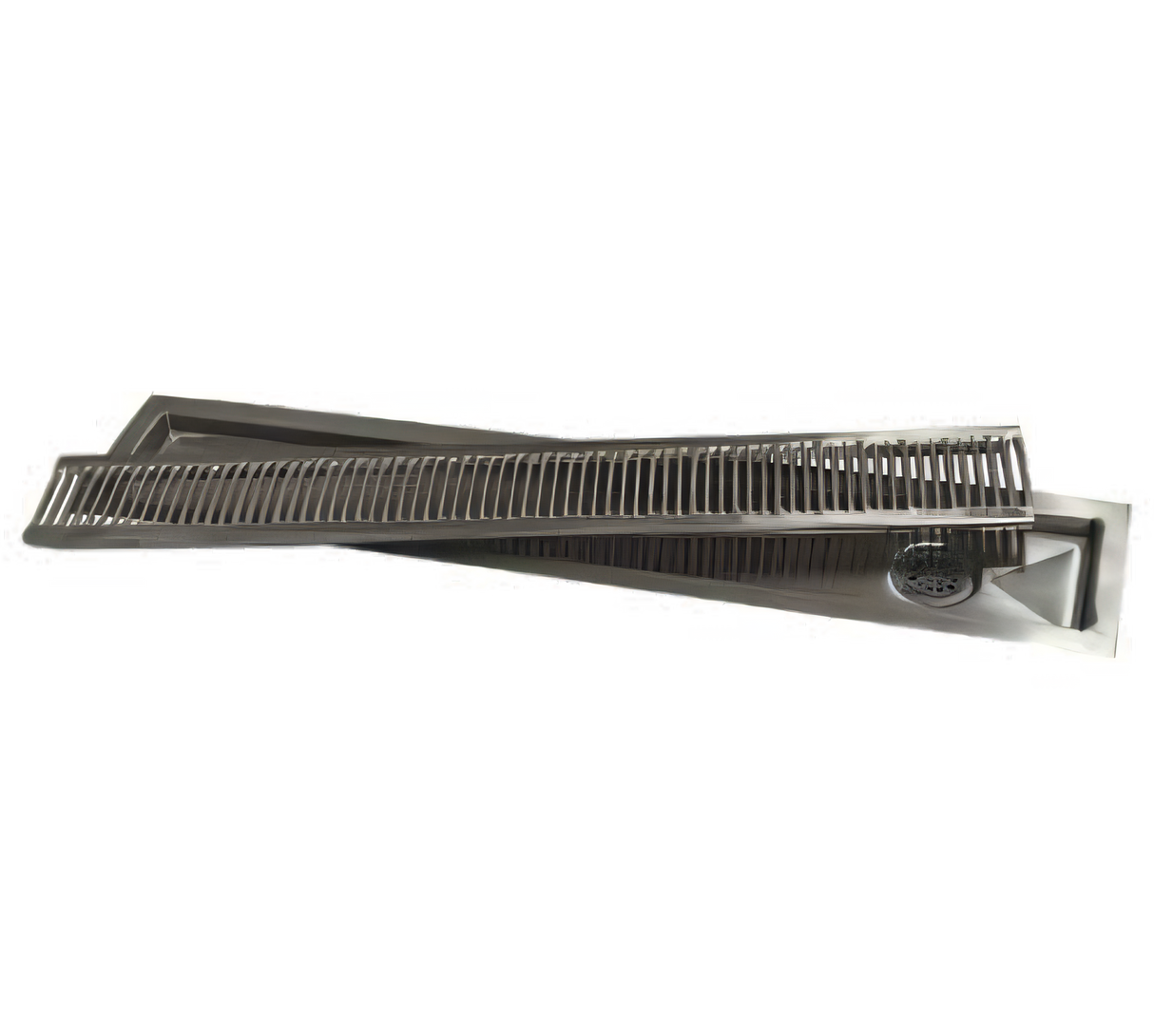

Advance Tabco TA-524 48-Inch Drop-In Stainless Steel Urn Trough with Louvered Cover and Drain
Advance Tabco TA-524 48-Inch Drop-In Stainless Steel Urn Trough with Louvered Cover and Drain
Field installation only; 16-gauge 304 stainless steel
A durable, field-install urn trough that gives beverage stations a clean stainless steel finish, integrated drain, and louvered cover in a 48-inch drop-in format.
- 48-inch drop-in urn trough for countertop beverage applications
- Requires a 5 1/8-inch-wide countertop opening and supports on a 1-inch flange
- Includes a slotted/louvered cover plate and 1 1/2-inch IPS drain
- Built from 16-gauge type 304 stainless steel with TIG-welded construction
- Exposed stainless steel surfaces are polished to a satin finish
- Field installation only; consult TA-64 for the factory-install version
Overall Dimensions:
50.0"W x 7.0"D x 1.25"HProduct Weight:
12.0 lbField Installation Only
Designed for field installation in a countertop opening; factory installation version is available separately as TA-64.
Countertop Support Flange
A 1-inch flange on all four sides supports the trough in the countertop opening.
304 Stainless Steel Construction
Made from 16-gauge type 304 stainless steel for durable, commercial-grade use.
TIG-Welded Build
All TIG welded construction helps provide a strong, clean assembly.
Satin Polished Finish
Exposed stainless steel surfaces are polished to a satin finish for a clean presentation.
Slotted Cover Plate
Includes a slotted urn trough cover plate / louvered cover.
Integrated Drain
Includes a 1 1/2-inch IPS drain.
