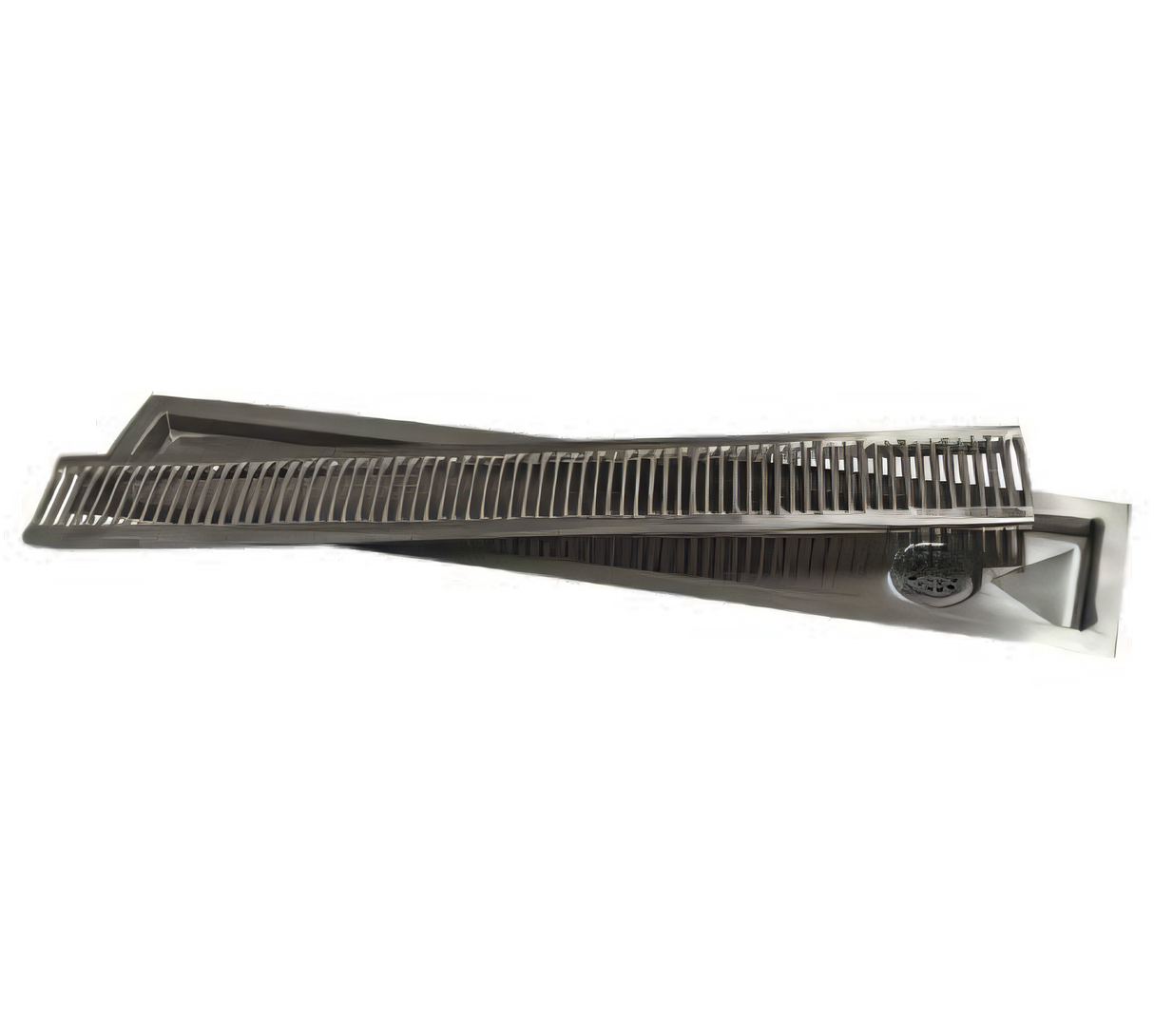

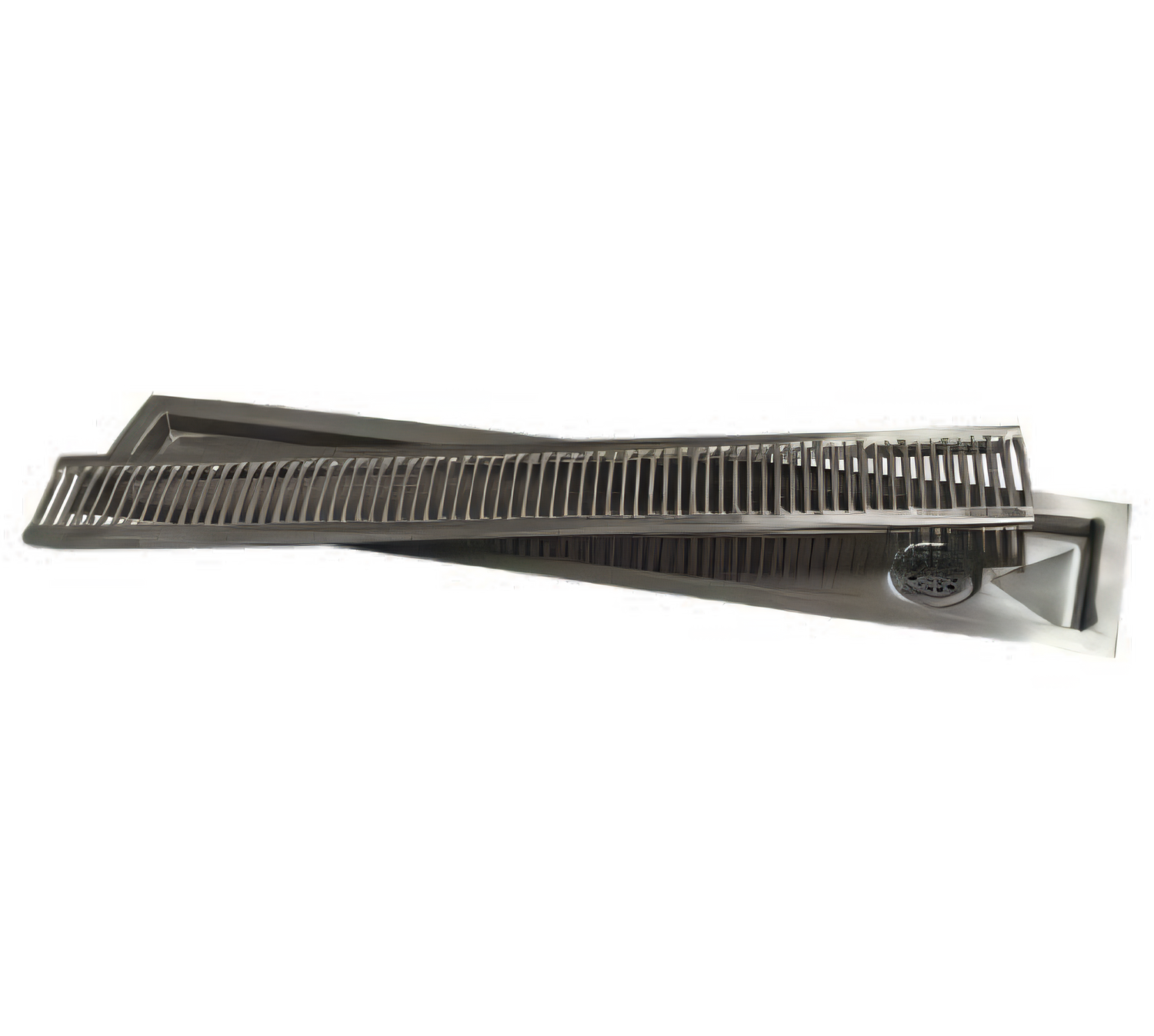

Advance Tabco TA-523 3-Foot Drop-In Stainless Steel Urn Trough with Louvered Cover and Drain

SKU: TA-523
GTIN: 747545153906
$321.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

Advance Tabco TA-523 3-Foot Drop-In Stainless Steel Urn Trough with Louvered Cover and Drain

Field installation only; satin-finish 304 stainless steel

A durable drop-in urn trough designed for a clean countertop installation in beverage service areas.

  • 3-foot drop-in urn trough for beverage stations and countertop service areas
  • Made from 16-gauge type 304 stainless steel for lasting durability
  • Includes a louvered/slotted cover plate and 1 1/2-inch IPS drain
  • 1-inch flange on all four sides supports the trough in the countertop opening
  • Requires a 5 1/8-inch wide countertop opening; field installation only
  • Exposed stainless steel surfaces are polished to a satin finish; custom lengths are available from the factory

Overall Dimensions:

38.0"W x 7.0"D x 1.25"H

Product Weight:

9.0 lb

Drop-In Countertop Design

Installs into a countertop opening for a finished, built-in look.

304 Stainless Steel Construction

Built from 16-gauge type 304 stainless steel for durability in beverage service applications.

Louvered Cover Plate Included

Includes a slotted cover plate to help keep the trough covered while allowing drainage.

1-Inch Flange on Four Sides

The flange supports the trough securely in the countertop opening.

TIG Welded Construction

All TIG welded construction adds strength and long-term reliability.

1 1/2-Inch IPS Drain

Built-in drain connection simplifies field installation.

Satin-Finished Exposed Surfaces

Polished stainless steel exterior provides a clean, professional appearance.

Field Installation Only

This model is intended for field installation; for factory installation, see TA-64.

Custom Lengths Available

Custom lengths are available; consult the factory for special requirements.

Type Urn Trough
Installation Type Drop-In
Material 304 Stainless Steel
Finish Satin
Drain Connection Size 1 1/2 Inches IPS
Shipping Width 38 Inches
Shipping Depth 7 Inches
Shipping Height 2 Inches
Shipping Weight 9 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The cutsheet states that it requires a 5 1/8-inch wide opening in the countertop. The TA-523 cutout dimensions are also listed as 5 1/4 x 36 1/4 inches.
Yes. It includes a louvered/slotted cover plate and a 1 1/2-inch IPS drain.
It is made from 16-gauge type 304 stainless steel.
This model is for field installation only. The factory-installation version is TA-64.
Yes. The cutsheet notes that custom lengths are available; consult the factory.
