Advance Tabco  |  Special Value Series  |  SKU: T9-2-36-18RL-X  |  UPC: 747545152046

Advance Tabco T9-2-36-18RL-X Special Value Series Compartment Sinks

$1,761.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

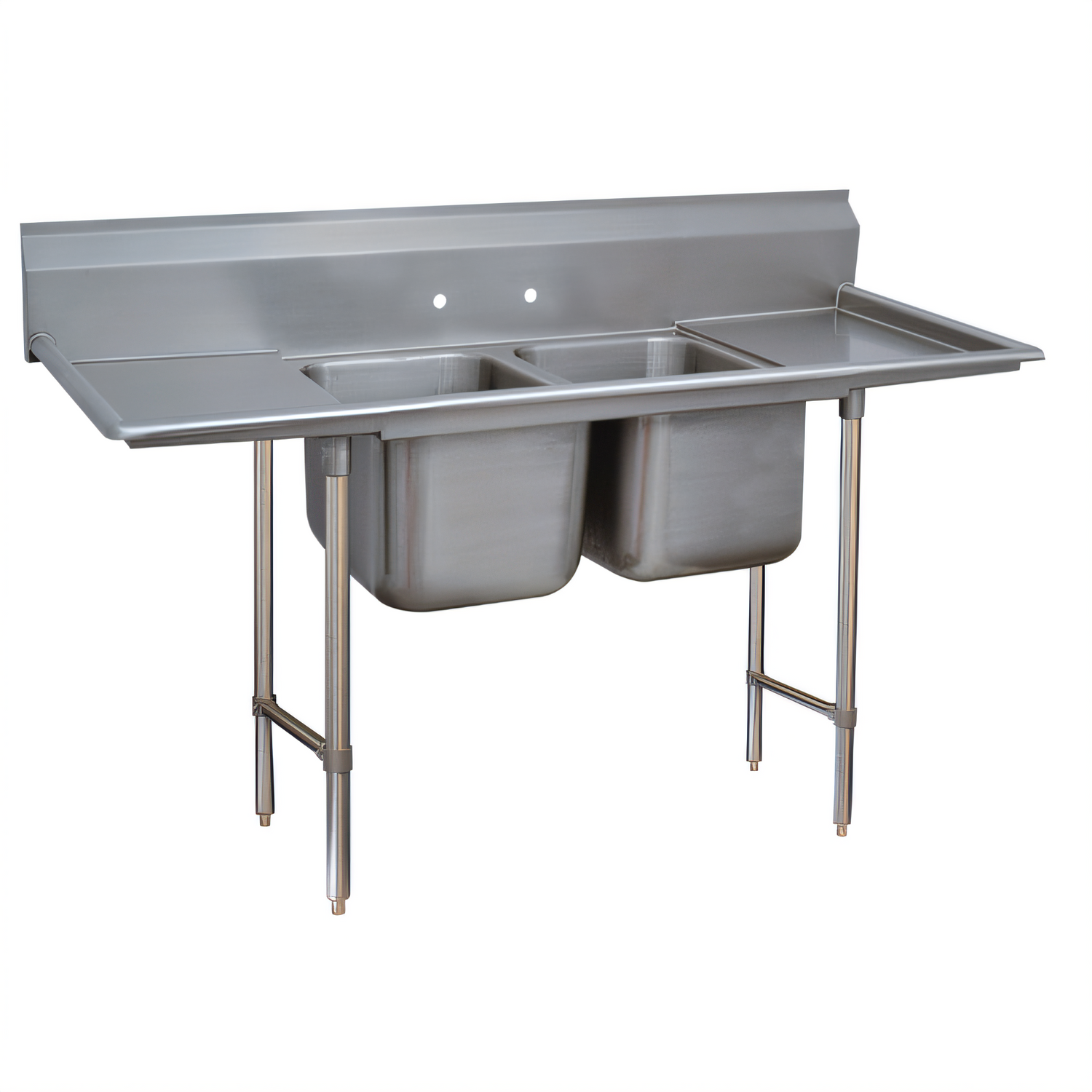

Advance Tabco Special Value Series Regaline Sink

Model T9-2-36-18RL • 2 Compartments • 72" W/ Dual 18" Drainboards

Built for busy dishrooms, cafeterias and back-of-house prep areas, the Special Value Series Regaline sink delivers Advance Tabco quality at an economy-minded price. Deep-drawn, seamless bowls, rugged galvanized framing and all-304 stainless steel working surfaces give you years of dependable service while meeting NSF sanitation standards.

Key Features

  • 2 large compartments – each 20" front-to-back x 16" wide x 12" deep
  • Integrated 18" drainboards on both left & right sides with splash
  • 8" high backsplash with tile edge for neat, watertight wall installation
  • Seamless deep-drawn bowls formed from a single sheet of 18-gauge 304 stainless steel
  • Galvanized open frame base with side crossrails for extra rigidity
  • 1 ⅝"-dia. galvanized legs with 1" adjustable plastic bullet feet
  • TIG-welded construction; welds blended to a uniform satin finish
  • Accepts Poly-Vance cutting boards & sink covers (sold separately)
  • NSF listed for food-service sanitation

Included

  • (2) 1 ½" IPS stainless steel basket drains (centered in each bowl)
  • Pre-punched 8"-on-center faucet holes (hot & cold ½" IPS supplies)
  • Adjustable side cross-bracing hardware
Heads-up: Faucets, cutting boards and sink covers are not included and must be ordered separately.

Specifications

Compartments 2
Bowl size (each) 20" F/B × 16" L/R × 12" D
Drainboards 18" left & 18" right (integral)
Overall dimensions 28" front-to-back × 72" left-to-right
Backsplash height 8"
Material 18-gauge type 304 stainless steel bowls, drainboards & splash
Base / legs Galvanized steel, 1 ⅝" O.D., with adjustable plastic feet
Drain connection 1 ½" IPS basket drains (included)
Faucet mounting 8"-on-center holes, ½" IPS (faucet not included)
Approx. weight 120 lb
Certifications NSF

Need a different configuration? Advance Tabco offers hundreds of made-to-order sink options — contact us for a fast quote.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Special Value Series

Height

42.0in

Width

72.0in

Depth

28.0in

Shipping Weight

85.0lbs

Base Type

legs with side crossrails

Compartment Width (side - side)

16"

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Top Gauge

18 gauge

Drainboards

with left & right-hand drainboards

Top Stainless Series

300 series

Base Construction

galvanized

Overall Length

63" - 72"

Splash Height

8"

Specifications

Special Value Regaline Sink, 2-compartment, with 18" left & right-hand drainboards, 20" front-to-back x 16" W compartment, 12" deep, with 8"H backsplash, galvanized open frame base with side crossrails, 18 gauge 304 stainless steel, overall 28" F/B x 72" L/R
