Advance Tabco T9-1-24-18R-X Special Value Series Compartment Sinks
Description

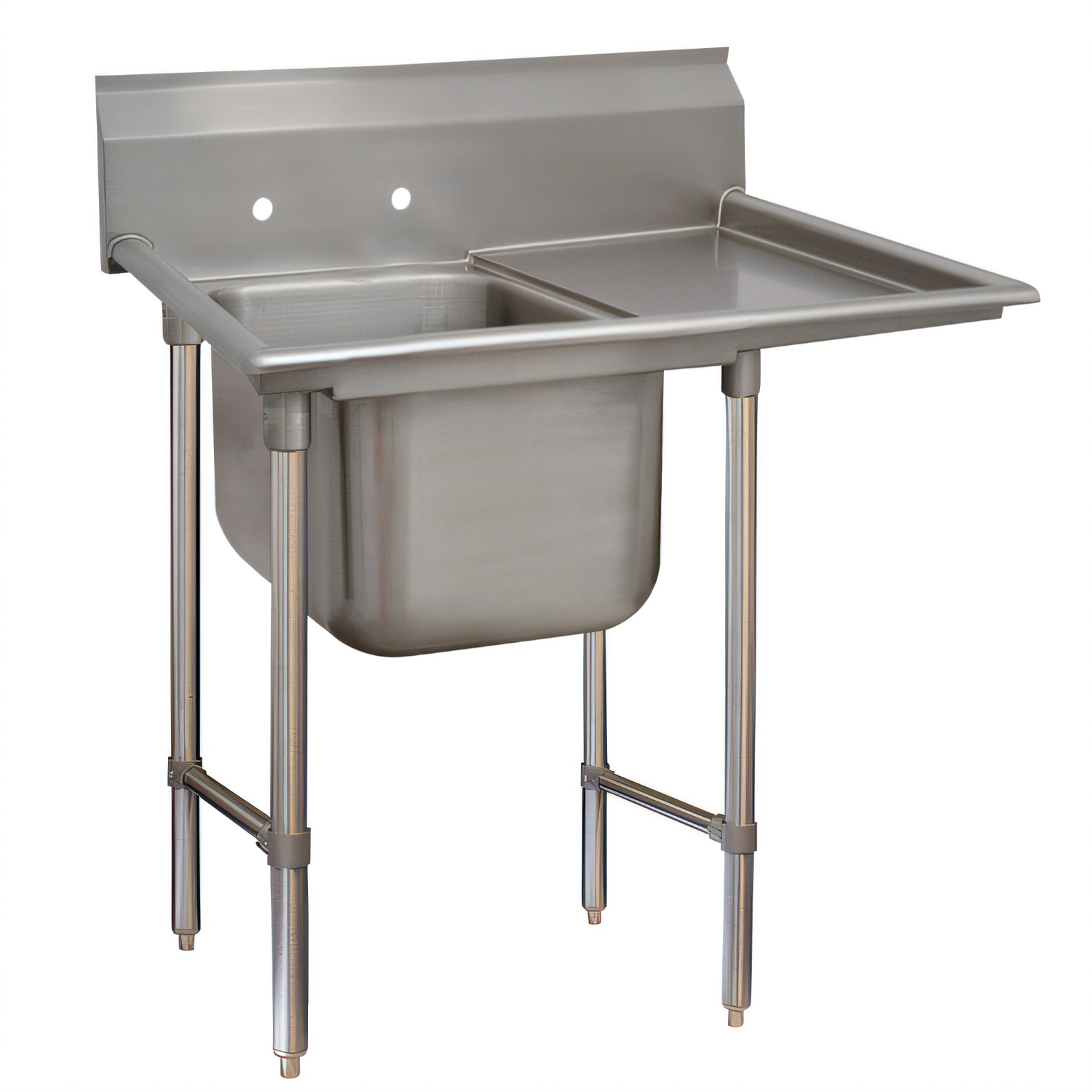

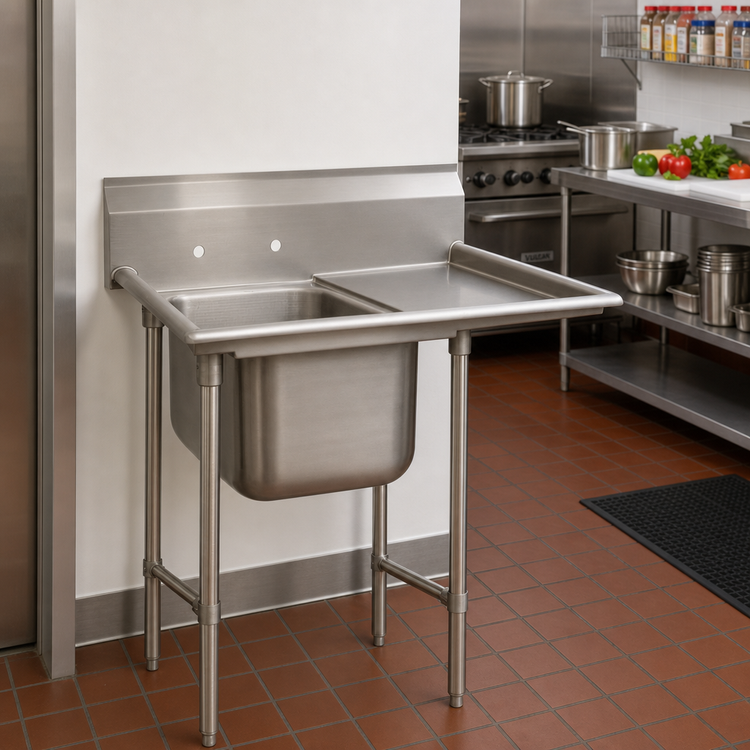

Special Value Series 1-Compartment Regaline Sink w/ 18" Right Drainboard
Advance Tabco T9-1-24-18R – NSF Listed, 18 ga 304 Stainless SteelBuilt for busy dish rooms, prep areas, and bar stations, this Advance Tabco Special Value Regaline sink gives you premium T9-Series construction in a compact, one-compartment footprint. A seamless deep-drawn bowl, 18″ pitched drainboard, and rugged galvanized frame deliver the durability you need at a price that keeps your budget on track.
Why You’ll Love It
- Seamless 16 ″ W x 20 ″ F/B x 12 ″ D bowl is deep-drawn from a single sheet of 18 ga type 304 stainless steel—no welded corners to trap debris.

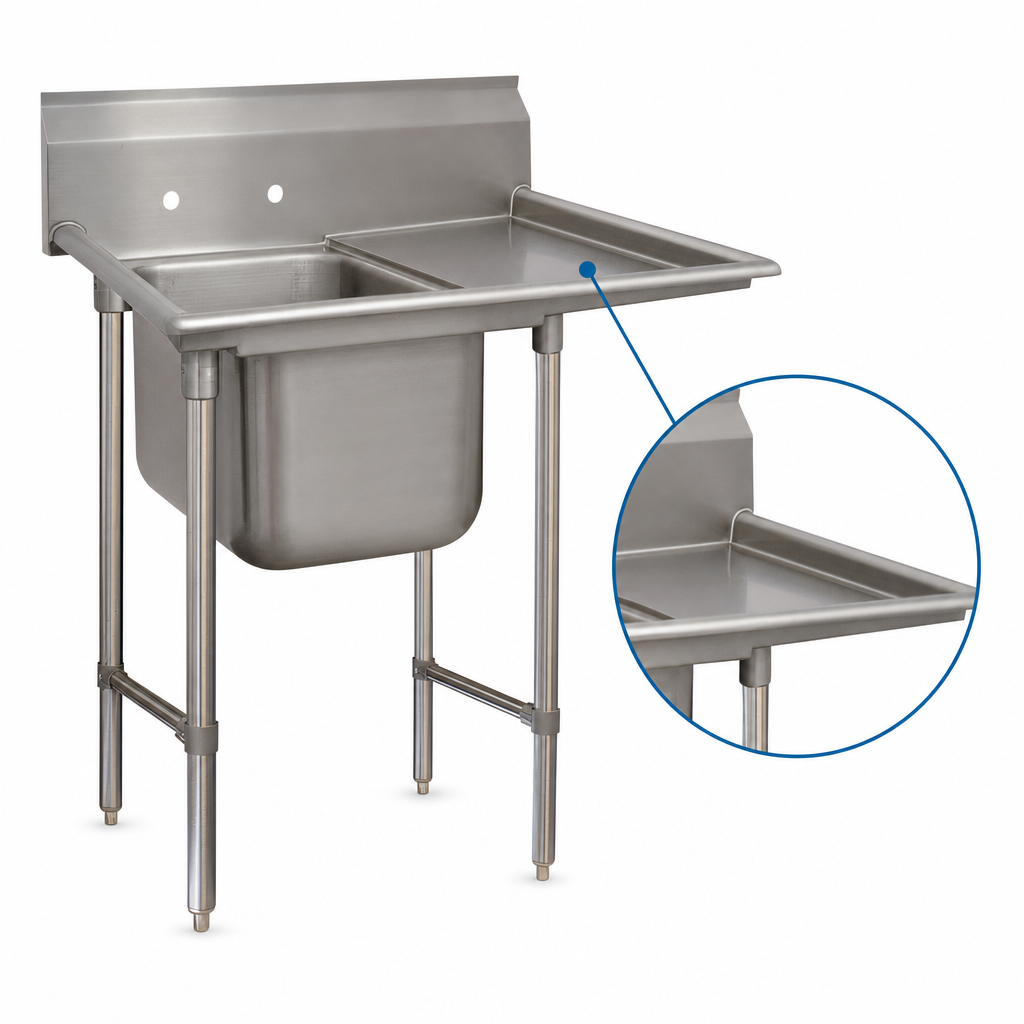

- Integrated 18 ″ right-hand drainboard with stamped pitch for fast drying and positive drainage back to the bowl.
- 8 ″ high backsplash with tile edge and two pre-punched 8 ″ O.C. faucet holes for quick, flush installation.
- 1 ⅝ ″ O.D. galvanized legs, gussets & adjustable side crossrails add outstanding rigidity without the cost of full undershelf framing.
- 1 ″ adjustable plastic bullet feet level the sink on uneven floors in seconds.
- Large 3 ″ bowl radius simplifies cleaning and accommodates bulky pots and sheet pans.
- Includes 1 ½ ″ IPS stainless steel basket drain; simply hook up and you’re ready to wash.
- NSF certified for guaranteed food-service sanitation compliance.
At-a-Glance Specs
| Model | T9-1-24-18R |
|---|---|
| Compartments | 1 |
| Bowl Size (F/B × L/R × Depth) | 20 ″ × 16 ″ × 12 ″ |
| Drainboard | 18 ″ right-hand, integrally welded |
| Overall Dimensions (L/R × F/B) | 44 ″ × 28 ″* |
| Backsplash Height | 8 ″ |
| Working Height | 34 ″ to deck / approx. 42 ″ to backsplash top |
| Material Thickness | 18 ga type 304 stainless steel (bowl, deck, drainboard & backsplash) |
| Legs / Bracing | 1 ⅝ ″ O.D. galvanized steel legs with adjustable side crossrails |
| Drain Included | 1 ½ ″ IPS S/S basket drain (center outlet) |
| Faucet Holes | (2) holes, 8 ″ on-center, 1 ⅛ ″ dia. |
| Shipping Weight | ≈ 65 lb. |
| Certifications | NSF |
Quick Installation Notes
- Hot & cold water supply: ½ ″ IPS.
- Center drain outlet: 1 ½ ″ IPS (open floor, wall, or through-floor connection).
- Tile-edge backsplash lets you set the sink tight against your finished wall for a sanitary seal.
*Overall front-to-back dimension includes rolled rim & backsplash.
