Advance Tabco SW-5E-240-X Triumph (Supreme) Serving Counters
Description

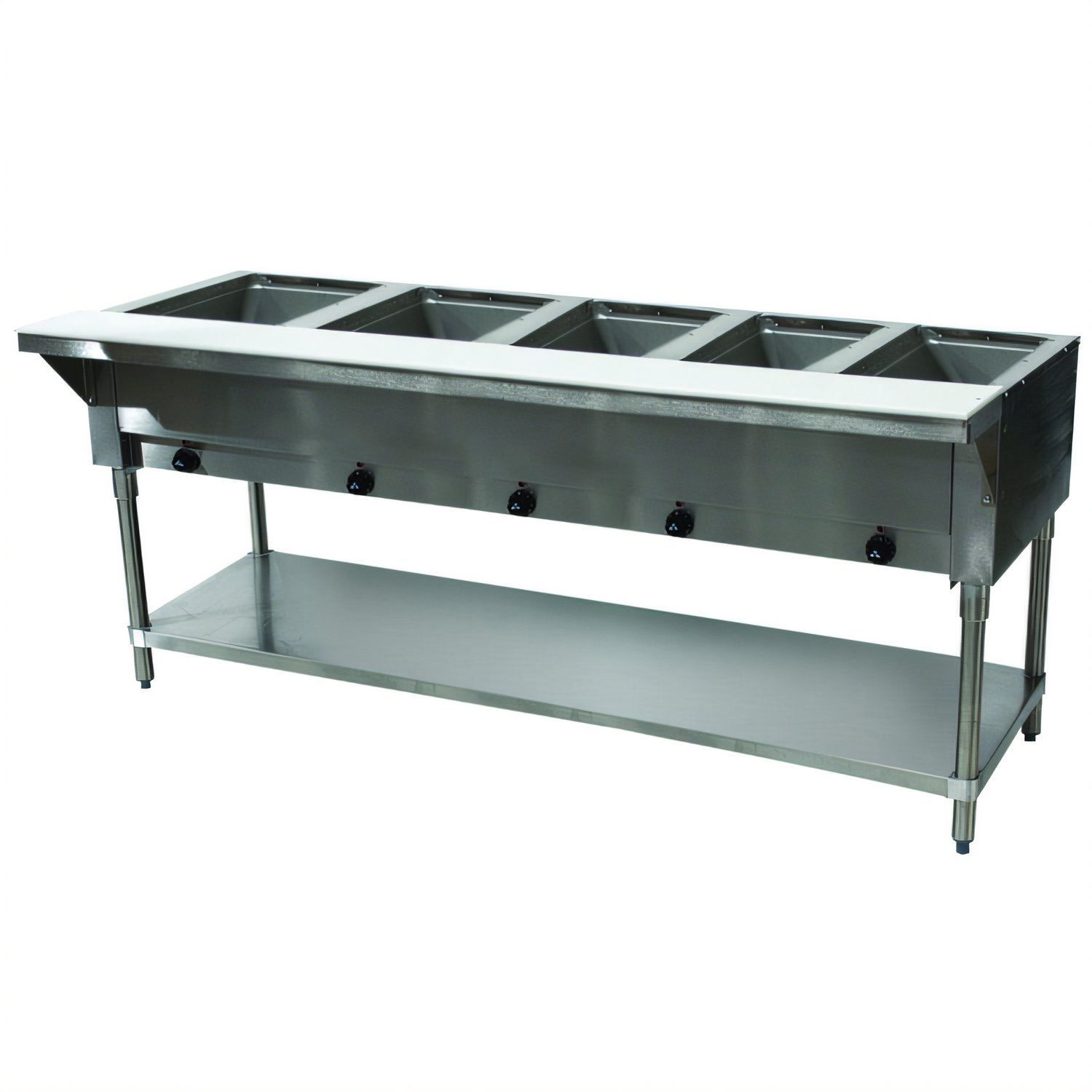

Advance Tabco “Triumph (Supreme)” 5-Well Sealed Hot Food Table
Model SW-5E-240 | 208-240 V | UL & NSF ListedKeep entrées, sides and sauces at safe, appetizing temperatures during your busiest rush with the industry-proven Advance Tabco sealed-well hot food table. Built on the rugged SW series platform, this 77 ¾" wide model delivers five individually controlled wells, a full-length poly cutting board and a heavy-duty undershelf—everything you need for fast, efficient service.
Why You’ll Love It

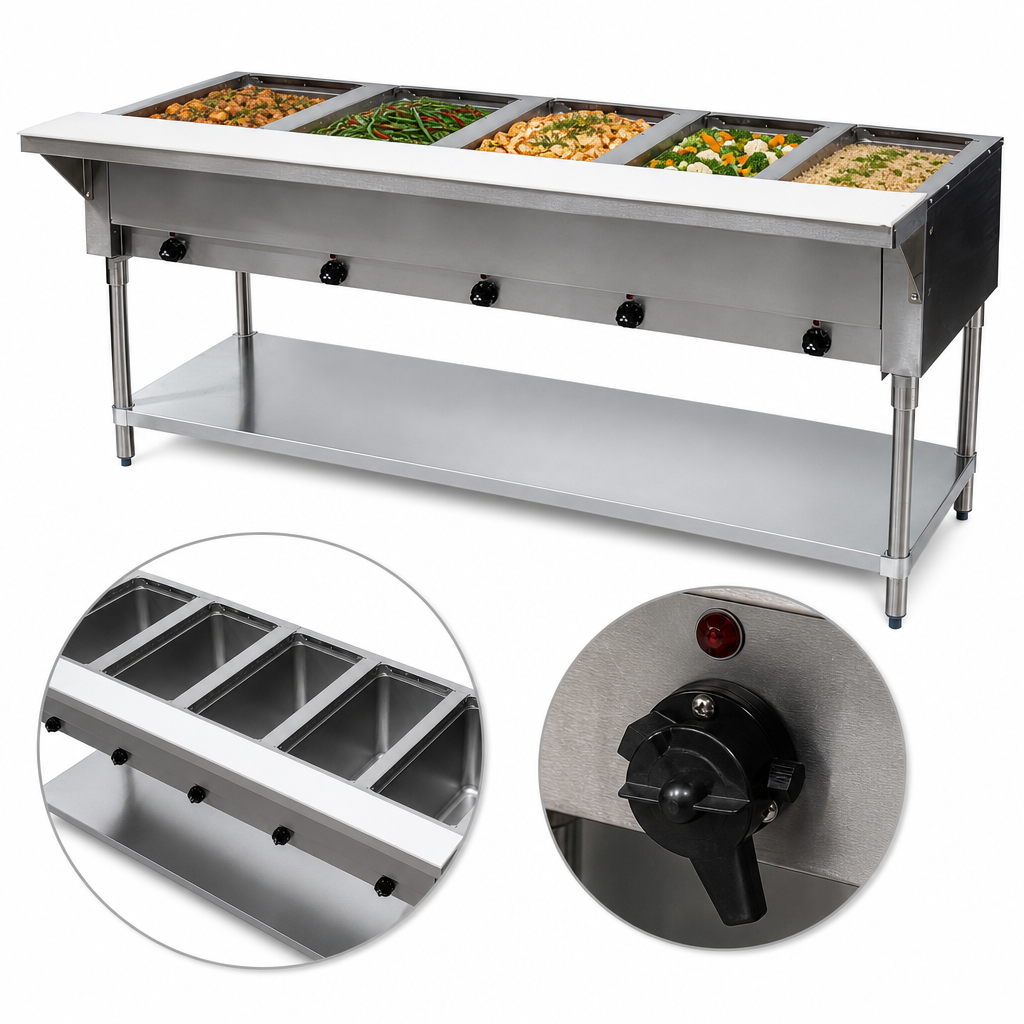

- Five 12" × 20" sealed wells accept pans up to 6" deep.

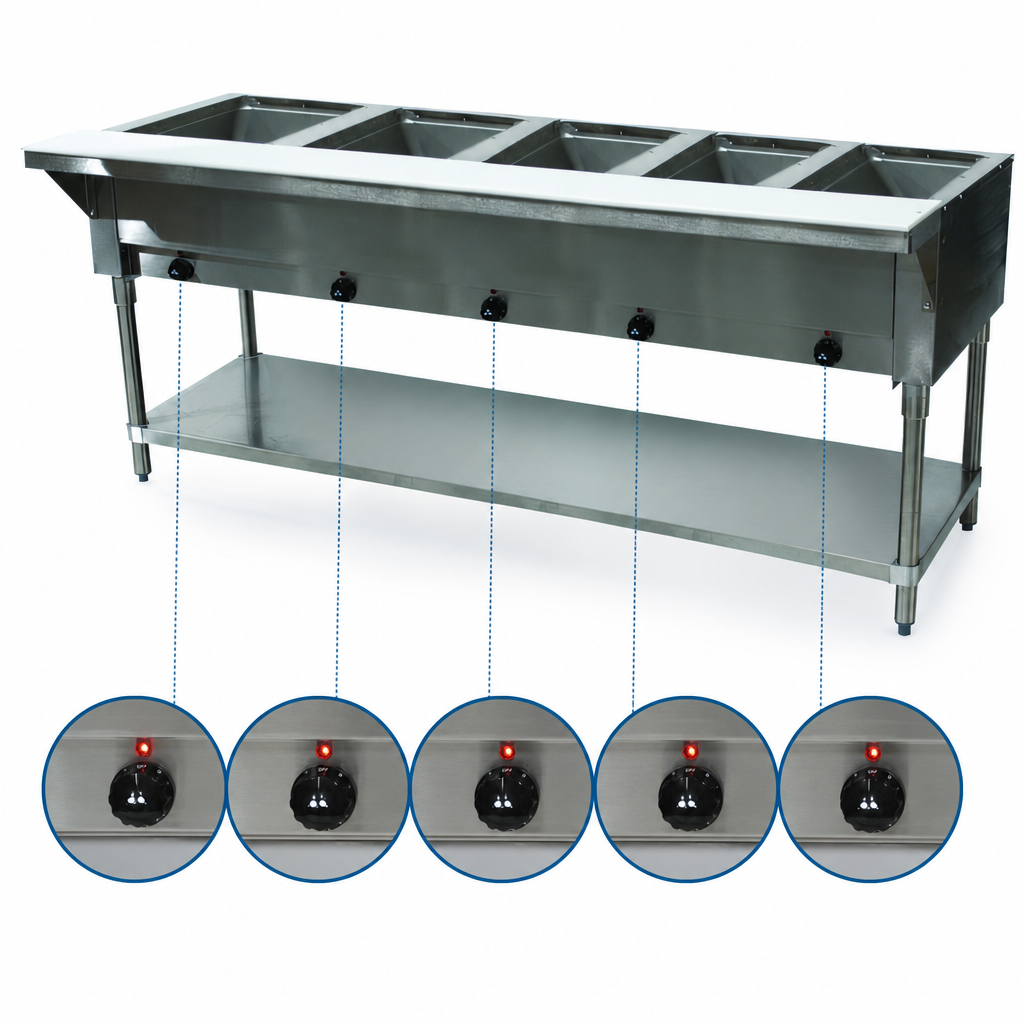

- Dedicated infinite control & pilot light for each well—dial in precise holding temps.
- Built-in drain valve per well speeds cleanup; no ladling out water.
- 20-gauge stainless steel well liners resist corrosion and pitting.
- 3/8" thick, 8"-wide white poly cutting board doubles as a convenient plating surface.
- Fiberglass insulation between wells improves efficiency and keeps exterior surfaces cooler.
- Galvanized open base with adjustable undershelf stores utensils, pans and chemicals.
- 1 ⅝" Ø galvanized legs with adjustable bullet feet for rock-solid stability.
- Shipped with an 8' power cord & NEMA L6-30P plug—no hardwiring required.
Built to Last
- Top: 20-gauge #302 stainless steel with deep-drawn pan openings.
- Body: 22-gauge #430 stainless steel.
- Cutting Board Brackets: 16-gauge #302 stainless steel for extra rigidity.
- Undershelf: Heavy galvanized steel (stainless upgrade available).
Technical Specs
| Overall Dimensions (W × D × H) | 77 ¾" × 30 5⁄8" × 34 1⁄8" |
|---|---|
| Number of Wells | 5 sealed, wet operation |
| Well Size | 12" × 20" each (standard full size hotel pan) |
| Electrical | 208/240 V, single phase |
| Total Wattage | 4,125 W @ 208 V / 5,500 W @ 240 V |
| Amperage | 19.85 A @ 208 V / 22.90 A @ 240 V |
| NEMA Plug | L6-30P (factory installed 8' cord) |
| Weight | Approx. 270 lb (shipping) |
| Certifications | UL, NSF |
Popular Add-Ons (Sold Separately)
- SU-23D stainless steel leg & undershelf upgrade for all-steel construction.
- SU-25S 5" locking casters—mobility without sacrificing working height.
- SU-90 Auto-Fill kit maintains water level automatically (requires manifold drain option).
- -T thermostatic control (per well) for exact temperature regulation.
- 10" buffet or serving shelves with acrylic side panels to meet NSF sneeze-guard requirements.
Need help choosing accessories or replacement parts? Call Advance Tabco customer service at 1-800-645-3166 or email customer@advancetabco.com.
