Advance Tabco  |  Triumph (Supreme)  |  SKU: SW-4E-240-DR  |  UPC: 747545194077

Advance Tabco SW-4E-240-DR Triumph (Supreme) Serving Counters

$5,454.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Diagram Parts list Owner's manual
Related Searches
Food Warmers & Holding Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

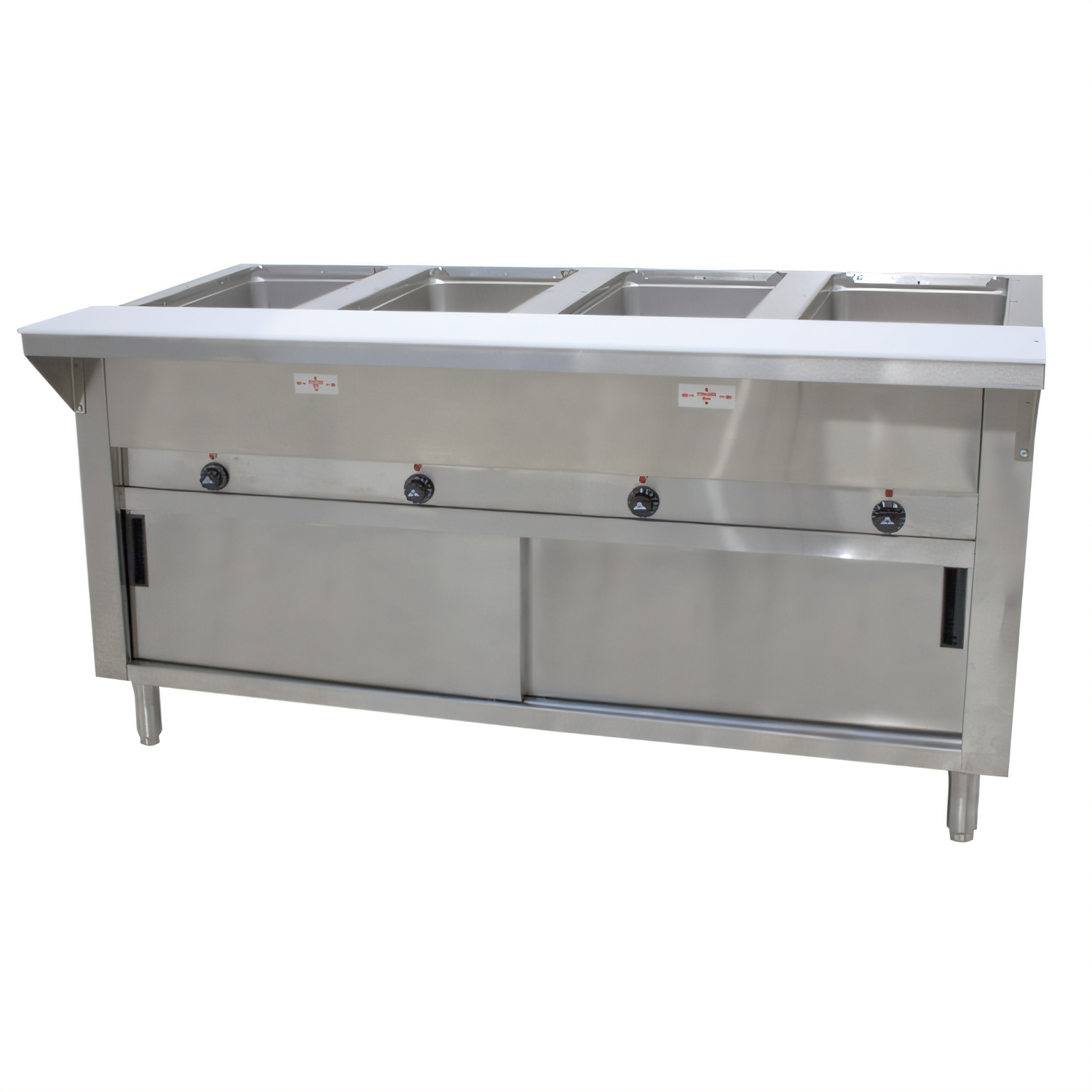

Advance Tabco Triumph Supreme Sealed-Well Hot Food Table – 4 Wells

Model SW-4E-240-DR | 208/240 V • 4,400 W

Built for high-volume cafeterias, restaurants and catering operations, the Triumph Supreme keeps your signature dishes at perfect serving temperature while providing rugged storage and a handy prep surface—all in one, space-saving footprint.

Key Features

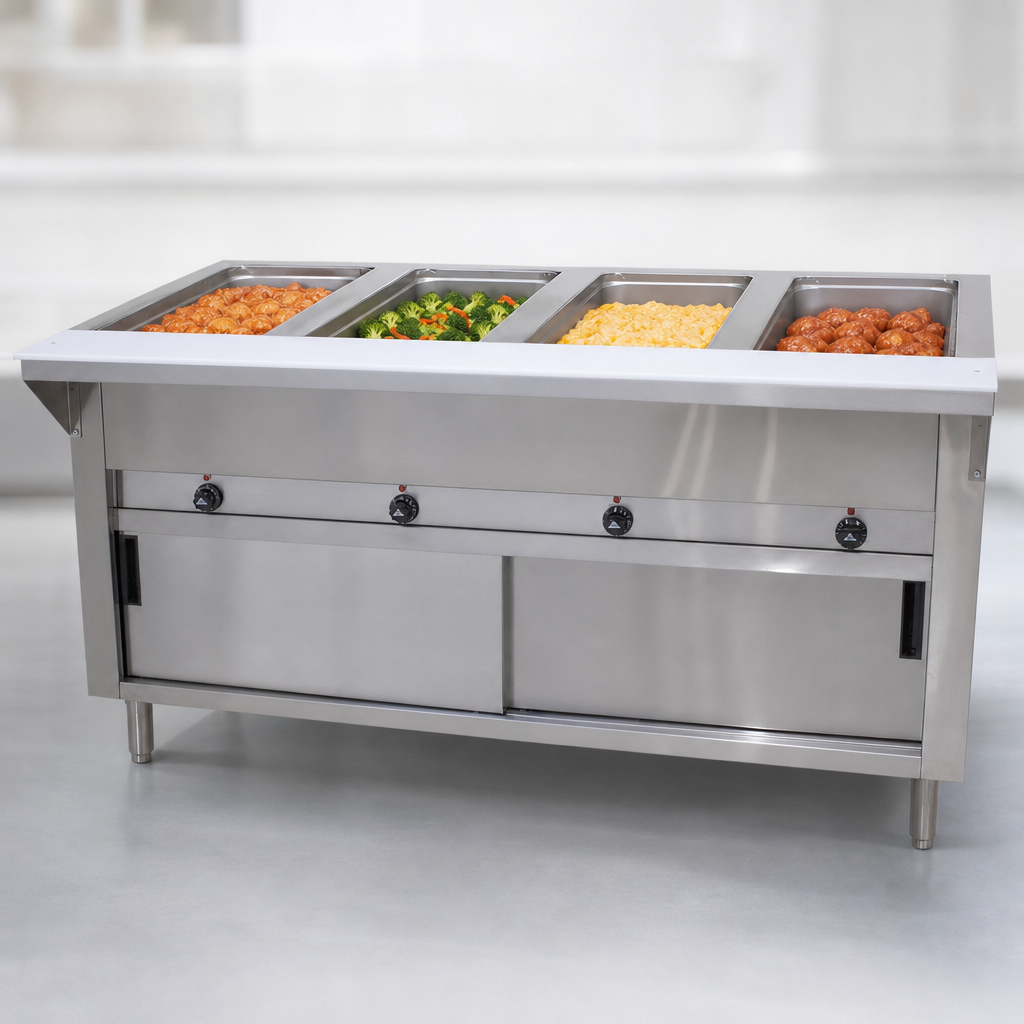

  • Four 12″ × 20″ sealed wells with individual gate-style drain valves

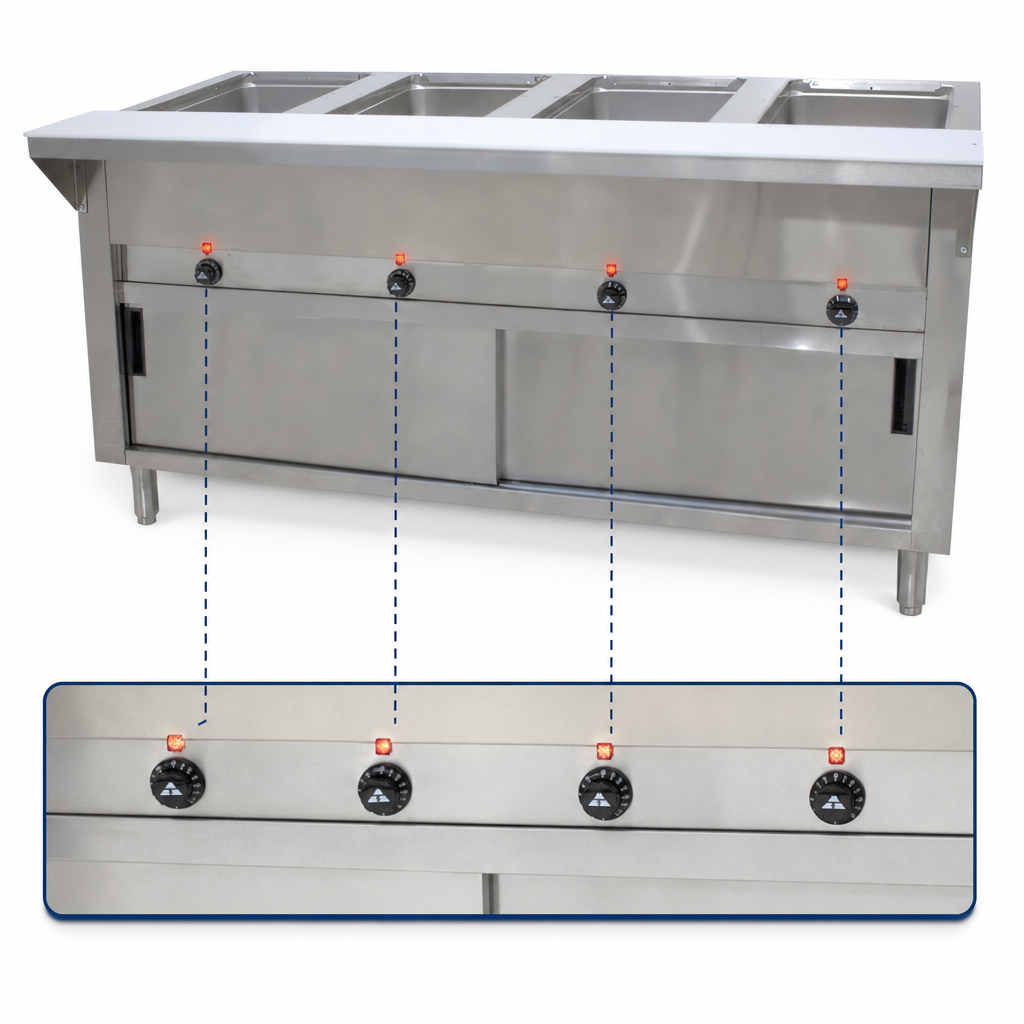

  • Independent infinite controls & pilot indicator lights for each well
  • Holds full-, half- or third-size pans up to 6″ deep
  • 8″-wide, 3/8″-thick white poly cutting board (removable)
  • Enclosed base with two sliding stainless-steel doors for convenient storage
  • All-stainless-steel construction—20 ga 302 top, 22 ga 430 body, 18 ga base
  • Fiberglass insulation between wells minimizes energy loss
  • 6′ factory-installed cord with locking NEMA L6-30P plug
  • UL listed & NSF certified

Specifications

Overall dimensions (W × D × H) 62-7/16″ × 30-5/8″ × 34-1/8″
Number of wells 4 sealed stainless-steel wells
Well openings 11.875″ × 20.062″ (die-stamped)
Pan capacity Up to 6″-deep inserts
Controls 4 infinite switches with pilot lights
Drainage 1″ drains with gate valves (one per well)
Cutting board 8″ wide, 3/8″ thick thermoplastic
Electrical 208/240 V, 18.33 A, 4,400 W, single phase, NEMA L6-30P
Storage Enclosed base, 2 sliding doors
Shipping weight Approx. 197 lb
Certifications UL, NSF

Popular Options & Accessories

  • TA-255P 5″ swivel casters (2 with brakes) – maintains working height
  • 10″ buffet or serving shelves with optional acrylic side panels
  • -M manifold drain assembly for centralized draining
  • -T thermostatic control (per well) for automatic temperature regulation
  • SU-90 autofill kit for constant water level maintenance
Important: This unit is designed to hold food that is already hot. It is not intended to cook or to bring cold or frozen product up to serving temperature.

Looking for a different size? The Triumph Supreme series is available in 2-, 3-, 5- and 6-well configurations—contact us for details.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Triumph (Supreme)

Certifications

NSF, UL

Height

34.13in

Width

62.44in

Depth

30.63in

Shipping Weight

197.0lbs

Type

stationary

Design

enclosed storage base

Well Type

sealed well

Working Height

34"

Overall Width (side - side)

61" - 66"

Base Finish

stainless steel

Top Construction

stainless steel

Pan Capacity

(4) pan

Specifications

Hot Food Table, electric, 62-7/16"W x 30-5/8"D x 34-1/8"H, (4) 12" x 20" sealed wells with individual drain valves (accommodates pan inserts up to 6" deep), individual infinite controls with indicator lights, 3/8" thick poly cutting board, enclosed base with (2) sliding doors, stainless steel construction, UL, NSF (208-240v)
