Advance Tabco SW-4E-240-BS Triumph (Supreme) Serving Counters
Description

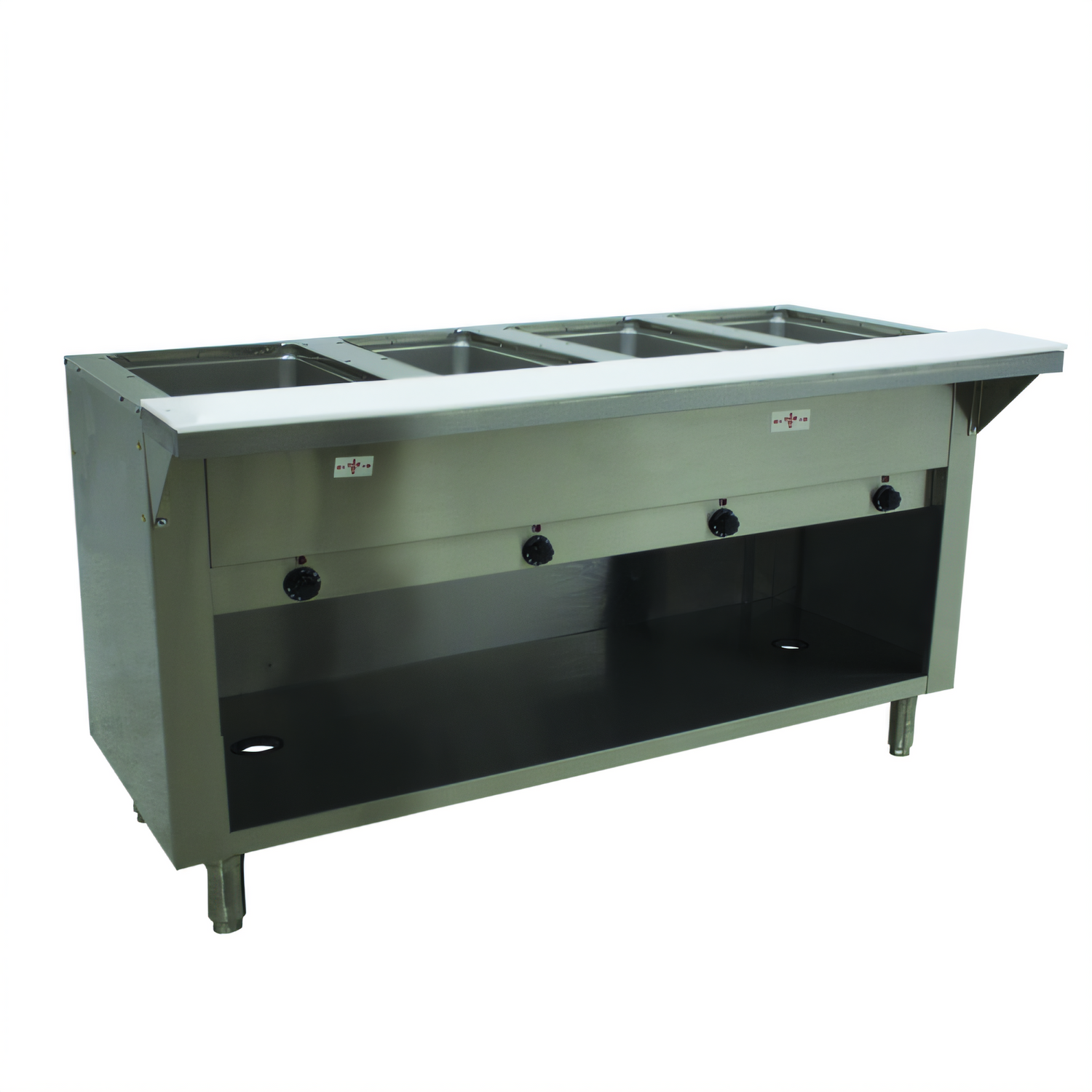

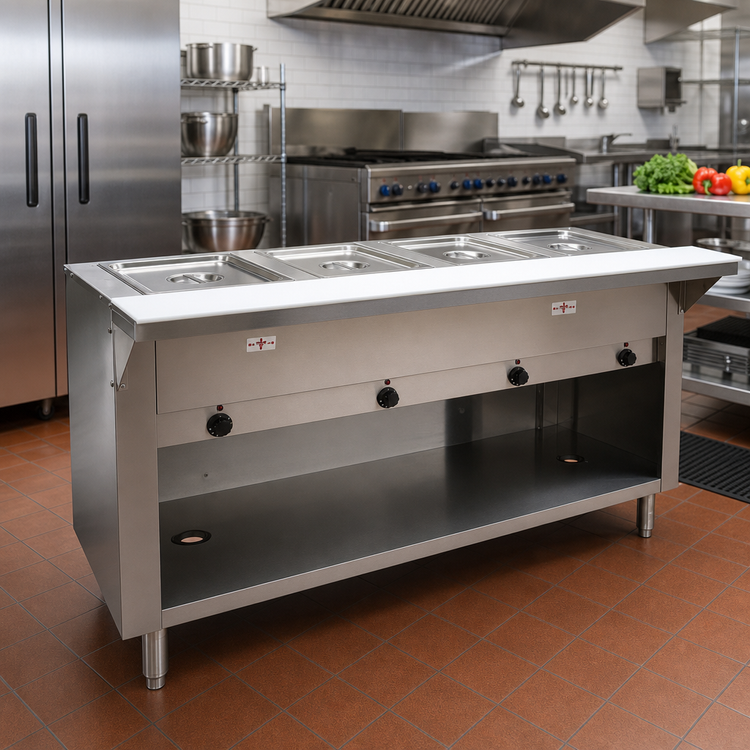

Triumph (Supreme) 4-Well Sealed Electric Hot Food Table
Model SW-4E-240 • 62-7/16″ W • 208–240 VKeep entrées, sides and sauces at safe, ready-to-serve temperatures with the Advance Tabco Triumph (Supreme) hot food table. Four individually controlled, fully sealed wells, rugged stainless-steel construction and a convenient cutting-board work surface make this unit a dependable hub for cafeterias, buffets and catering lines.

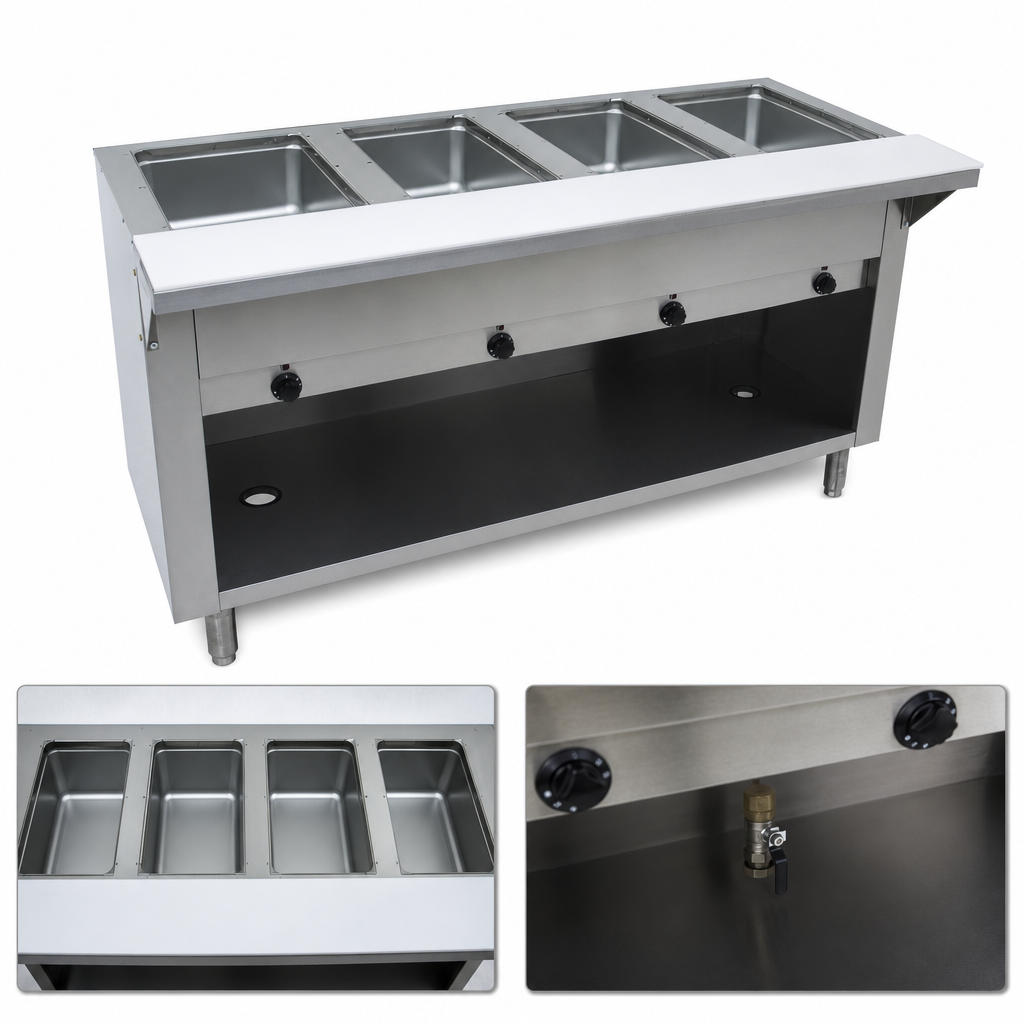

- (4) 12″ × 20″ sealed wells with individual drain valves for quick, splash-free clean-up.

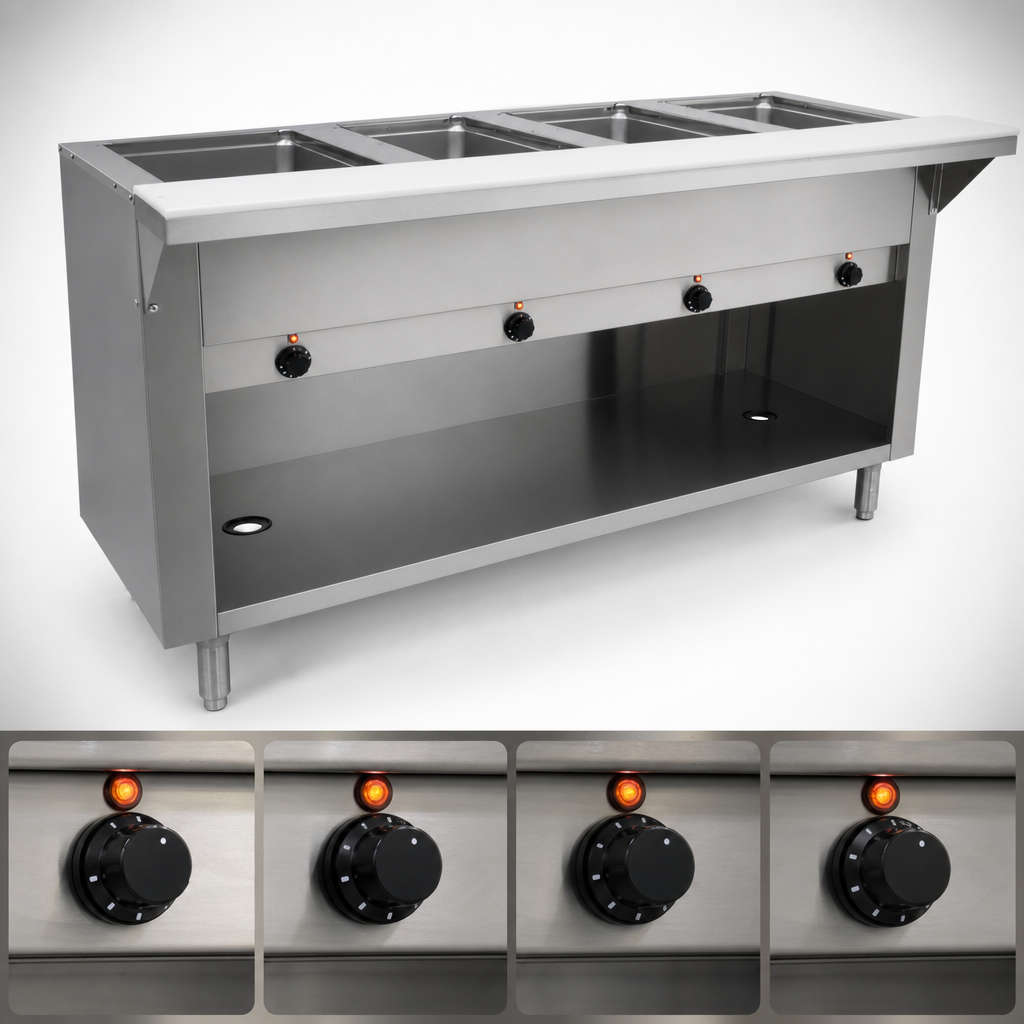

- Infinite heat controls and pilot indicator lights on every well—hold different foods at their ideal temperature.
- Handles full-size pans up to 6″ deep; adapter bars available for fractional pans.
- 8″-wide, 3/8″-thick poly cutting board spans the full width for plating and garnishing.
- Open cabinet base with an adjustable stainless-steel undershelf keeps lids, utensils and extra pans organized.
- All-stainless top, body and liners with fiberglass insulation between wells for superior heat retention and energy efficiency.
- Factory-installed 8′ cord with NEMA L6-30P twist-lock plug—no hard-wiring required.
- UL Listed & NSF certified for safety and sanitation.
| Model | SW-4E-240 |
|---|---|
| Overall Dimensions | 62-7/16″ W × 30-5/8″ D × 34-1/8″ H* |
| Number of Wells | 4 sealed wet/dry wells with drains |
| Well Opening | 11.875″ W × 20.062″ L (per well) |
| Pan Capacity | 4 full-size 12″ × 20″ pans, up to 6″ deep |
| Controls | Infinite knob & pilot light per well; high-limit safety cutoff |
| Electrical | 208 V / 15.88 A / 3,300 W • 240 V / 18.32 A / 4,400 W • Single phase |
| Power Connection | 8′ cord, NEMA L6-30P plug (twist-lock) |
| Construction | 20-ga 302 SS top • 22-ga 430 SS body & undershelf • 18-ga SS base frame |
| Cutting Board | 3/8″ thick white thermoplastic, removable |
| Shipping Weight | Approx. 187 lb |
| Certifications | UL, NSF |
*Height based on adjustable bullet feet fully lowered. Optional casters maintain working height.
- TA-255P 5″ swivel caster kit (2 locking).
- 10″ buffet or serving shelves with acrylic food shields (models TBS-4 / TSS-4).
- -T thermostatic control upgrade (per well).
- -M manifold drain assembly for single-point drainage.
- SU-90 autofill system to maintain water level automatically.
- Adapter bars (SU-45A / SU-45B) for fractional pans.
