Advance Tabco SW-4E-120-X Triumph (Supreme) Serving Counters
Description

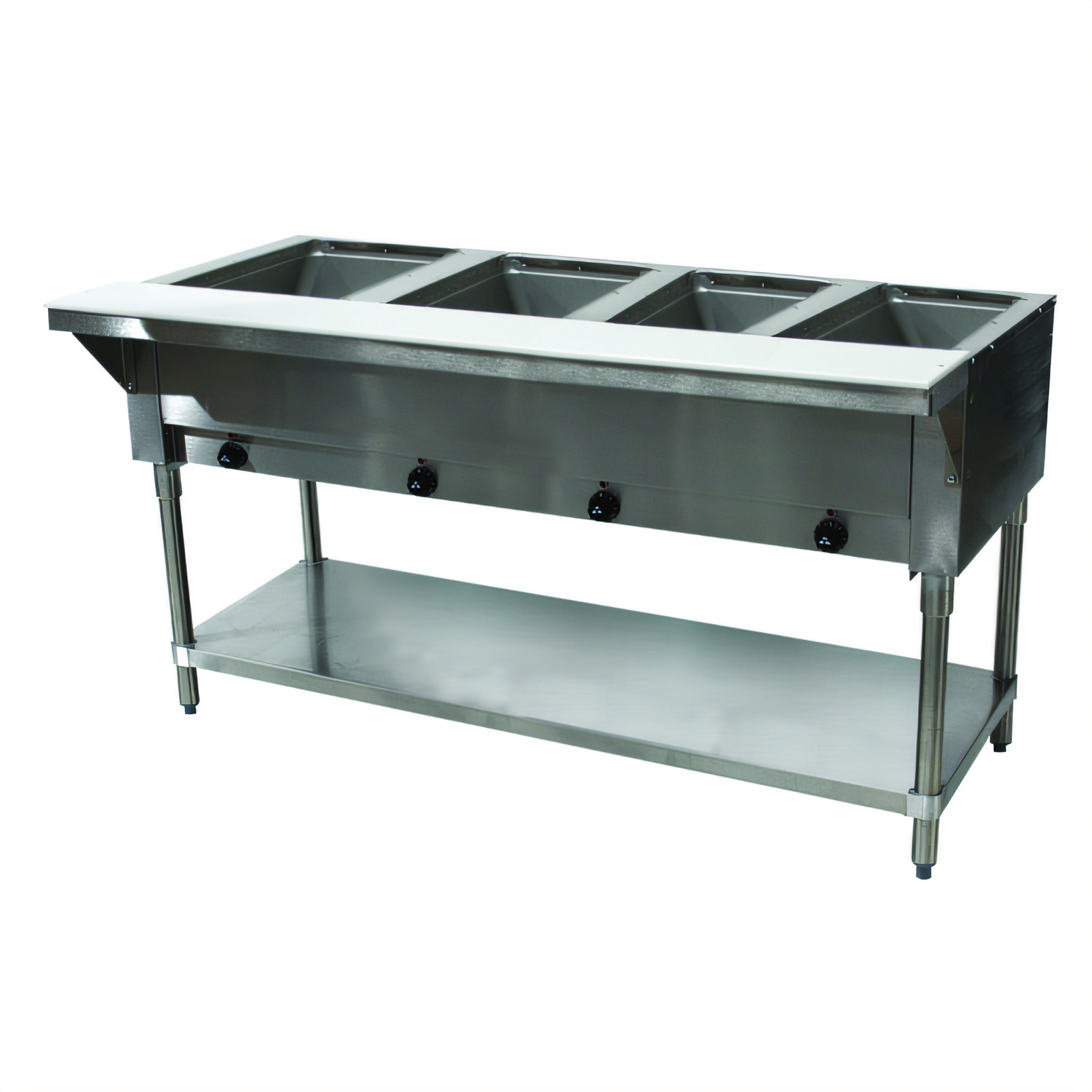

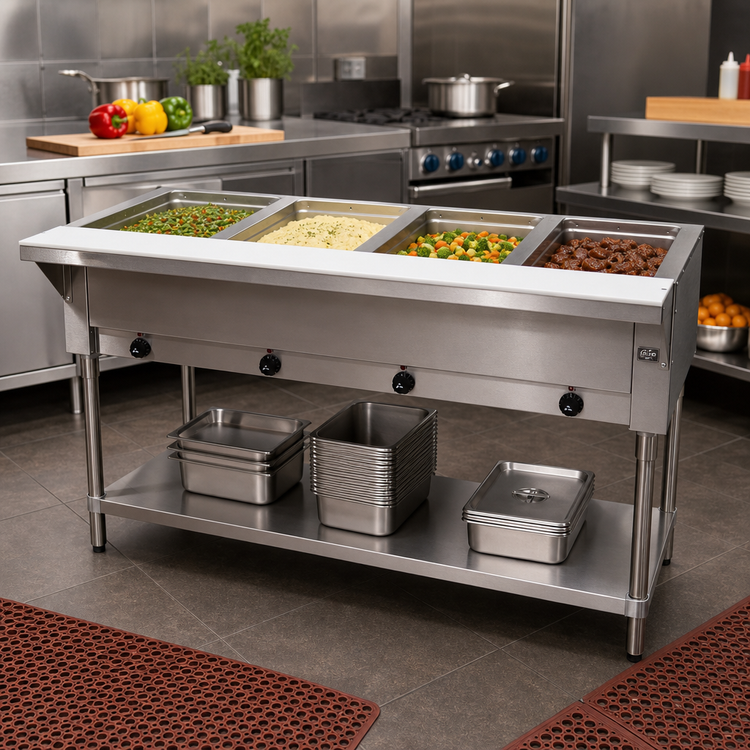

Advance Tabco Triumph Supreme SW-4E Sealed-Well Electric Hot Food Table
4 Wells • 62-7/16" Wide • 120 V Single PhaseDeliver perfectly held entrées, sides, and sauces during every service with the Triumph Supreme SW-4E hot food table. Engineered by Advance Tabco for demanding commercial kitchens, this 4-well unit pairs independent heat control with rugged stainless-steel construction and a convenient cutting-board work shelf—so you can prep, serve, and restock without skipping a beat.
Key Features

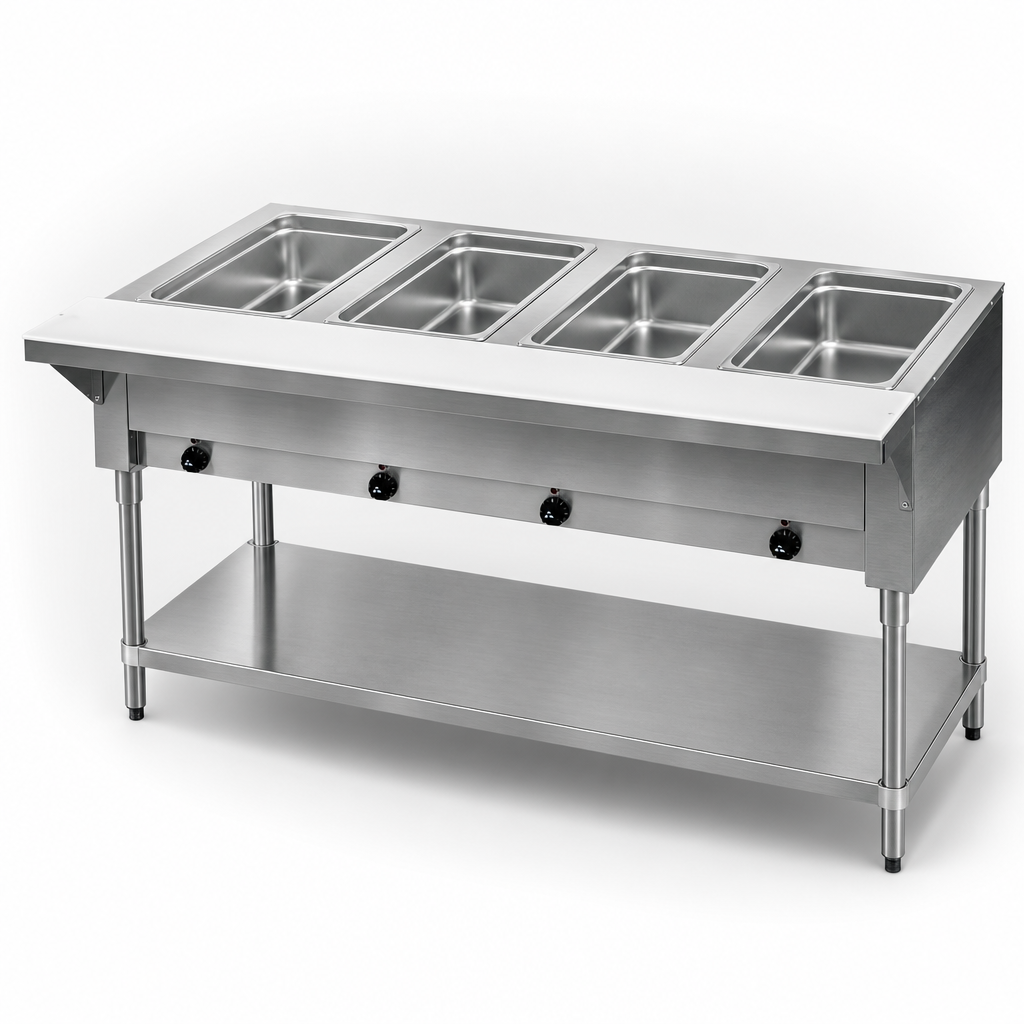

- (4) 12" × 20" sealed wells accommodate pans up to 6" deep.

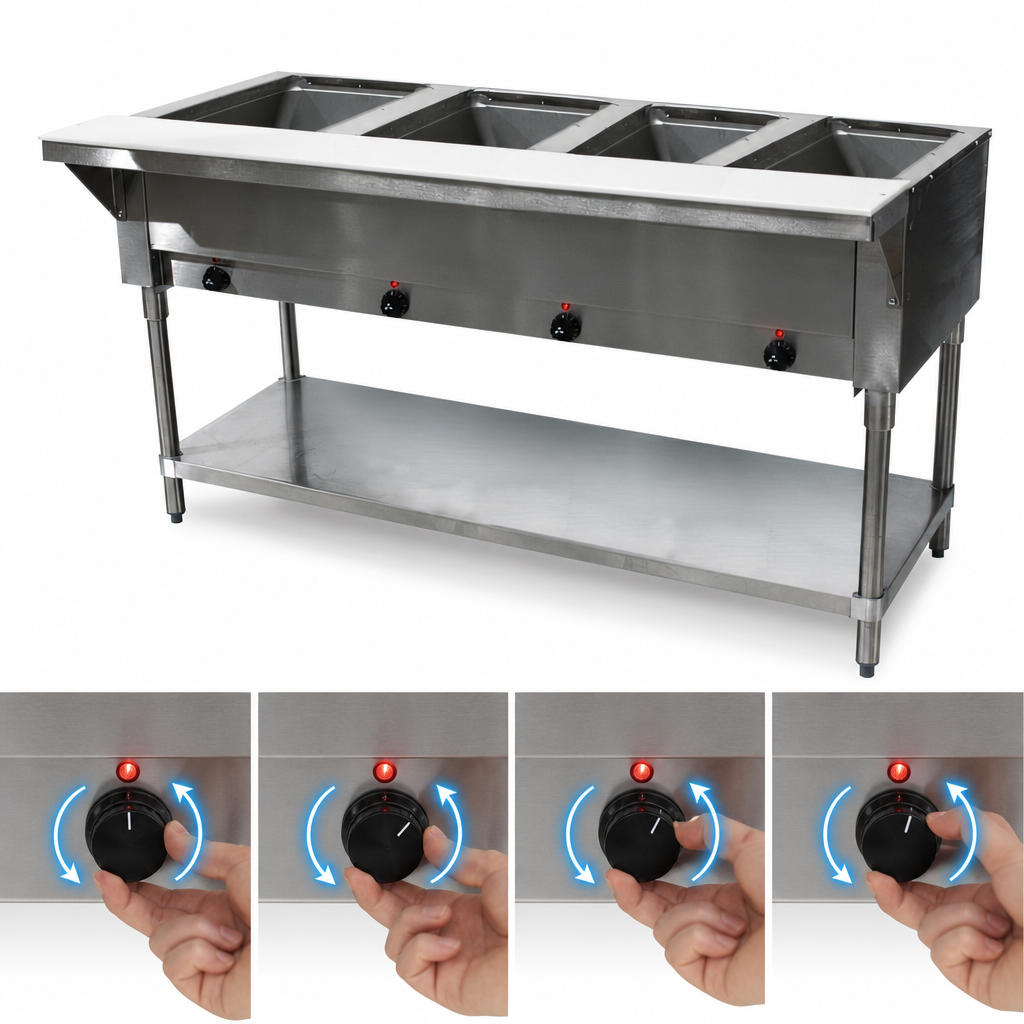

- Individual infinite control knobs and indicator lights for precise temperature holding.
- Built-in gate-style drain valve on every well for quick, splash-free water removal.
- Stainless steel deep-drawn well liners surrounded by fiberglass insulation to retain heat and save energy.
- 3/8" thick, 8"-wide white poly cutting board doubles as a prep or service shelf and removes for cleaning.
- 20 ga. #302 stainless steel top with die-stamped openings—no sharp edges to damage pans.
- Galvanized open base with adjustable undershelf for extra storage.
- 1-5/8" Ø galvanized legs with adjustable bullet feet for a level, wobble-free setup.
- Factory-installed 8' cord with NEMA L5-30P twist-lock plug; plug in and go.
- UL Listed & NSF certified for electrical and food-safety compliance.
Ideal Applications
- Buffet lines & cafeterias
- School, hospital, and corporate dining
- Catering holding stations & banquet service
- Convenience stores & concession stands
Technical Specifications
| Model | SW-4E-120 (Triumph Supreme Series) |
|---|---|
| Overall Dimensions | 62-7/16" W × 30-5/8" D × 34-1/8" H* |
| Number of Wells | 4 sealed wet wells |
| Pan Capacity | (4) full-size 12" × 20" steam pans or fractional equivalents |
| Maximum Pan Depth | 6" |
| Controls | Independent infinite switches with pilot lights |
| Drainage | One gate valve per well |
| Electrical | 120 V / 1-phase / 21.33 A / 2,560 W |
| NEMA Plug | L5-30P (8' cord attached) |
| Construction | 20 ga. 302 SS top, 22 ga. 430 SS body, galvanized legs & undershelf |
| Cutting Board Shelf | 3/8"-thick white thermoplastic, 8" deep (removable) |
| Approx. Weight | 230 lb |
| Certifications | UL, NSF |
*Height does not include optional caster kits.
Popular Upgrades (sold separately)
- SU-23C all-stainless legs & undershelf kit
- SU-25S 5" swivel caster set with brakes (maintains original working height)
- 10" buffet or serving shelves with acrylic food shields & side panels
- -T thermostatic control or -M manifold drain factory options (per well)
