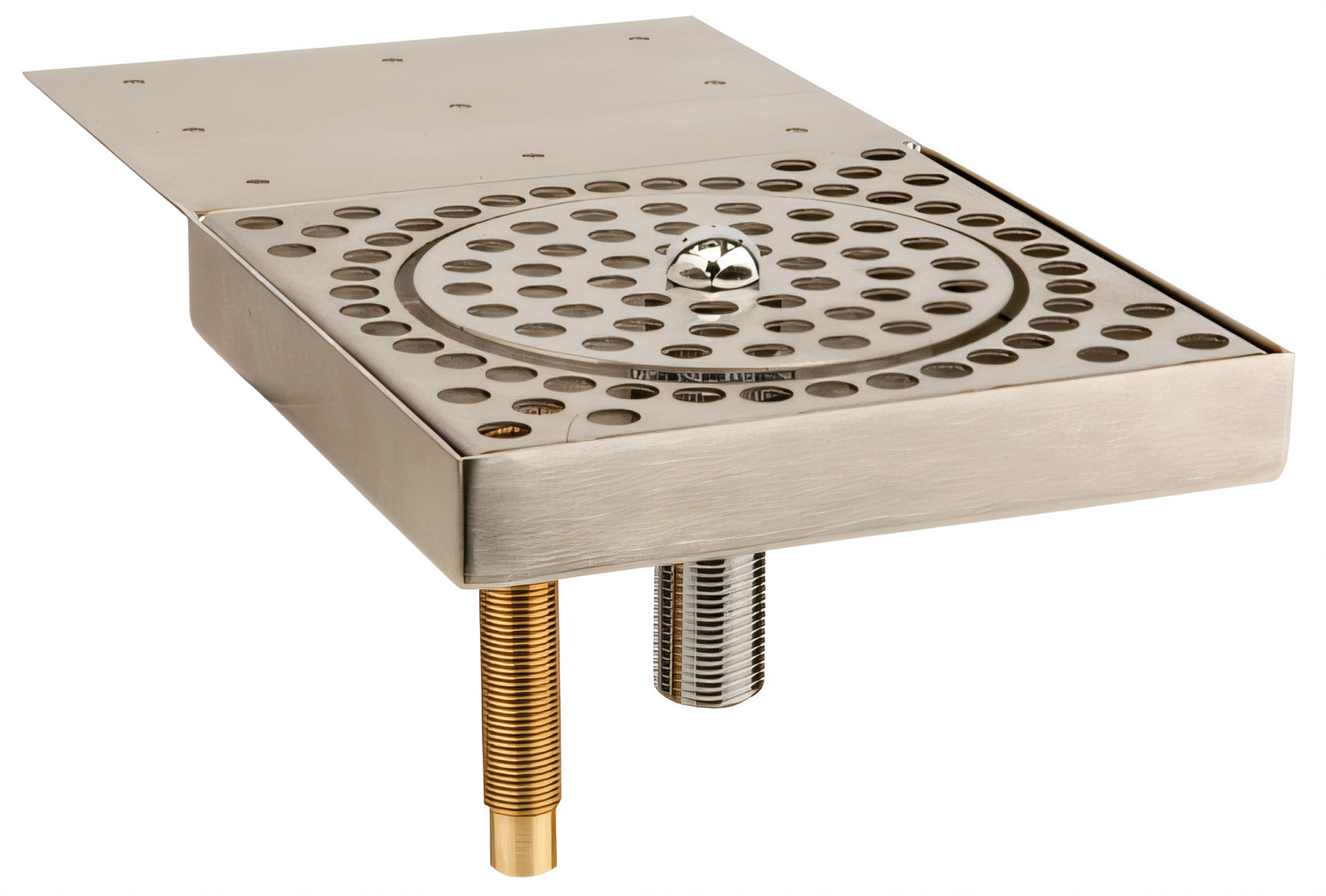

Advance Tabco SU-16UM Undercounter Stainless Steel Glass Rinser

Mounts beneath wood bars or countertops; 1/2-inch BSP water inlet and 1/2-inch drain connection

A compact undercounter glass rinser that keeps beverage service moving with fast push-down rinsing and durable stainless steel construction.

  • Undercounter-mounted glass rinser designed for installation beneath a wood bar or countertop.
  • Brushed 18-gauge stainless steel construction for durability and a clean underbar appearance.
  • Push-down glass actuator rinses glasses quickly with simple manual operation.
  • Compact 4-1/2-inch rinser area helps save space at busy beverage stations.
  • 5-inch mounting flange helps secure the unit to the underside of the counter.
  • 1/2-inch BSP water inlet and 1/2-inch drain hose connection simplify plumbing.
  • Requires a check valve, shut-off, and pressure regulator set to 15 PSI, supplied by others.

Overall Dimensions:

7.0"W x 1.0"D x 7.0"H

Product Weight:

7.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

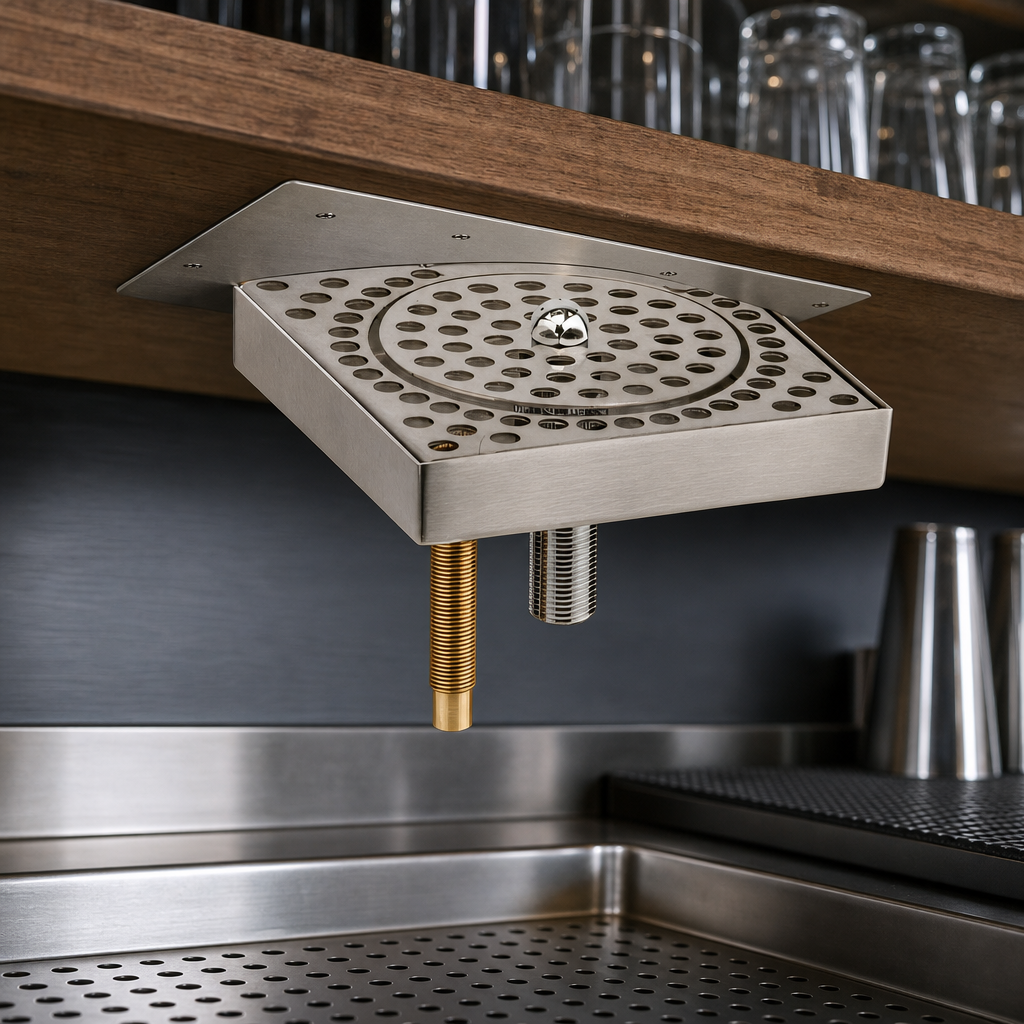

Undercounter Mount

Mounts easily to the underside of a wood substrate or underbar equipment.

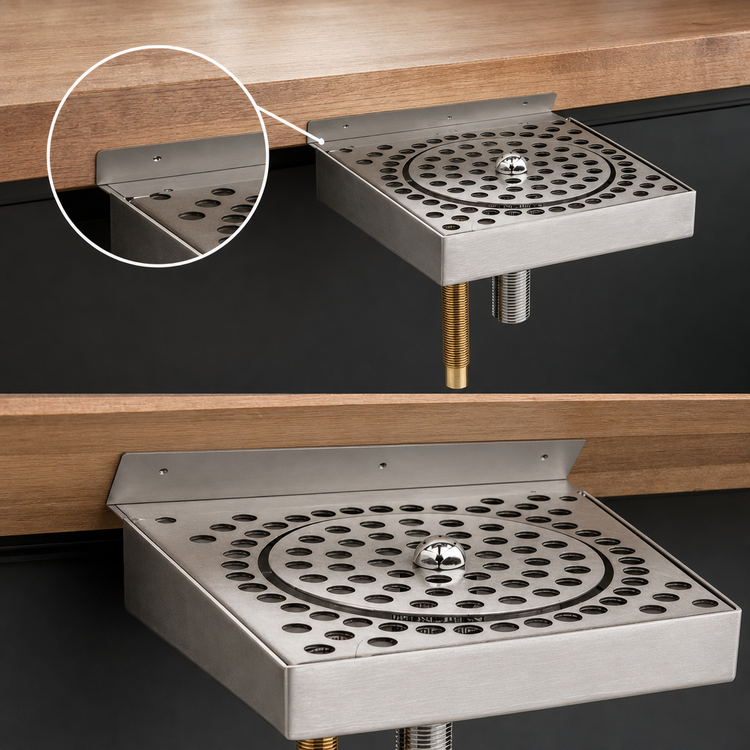

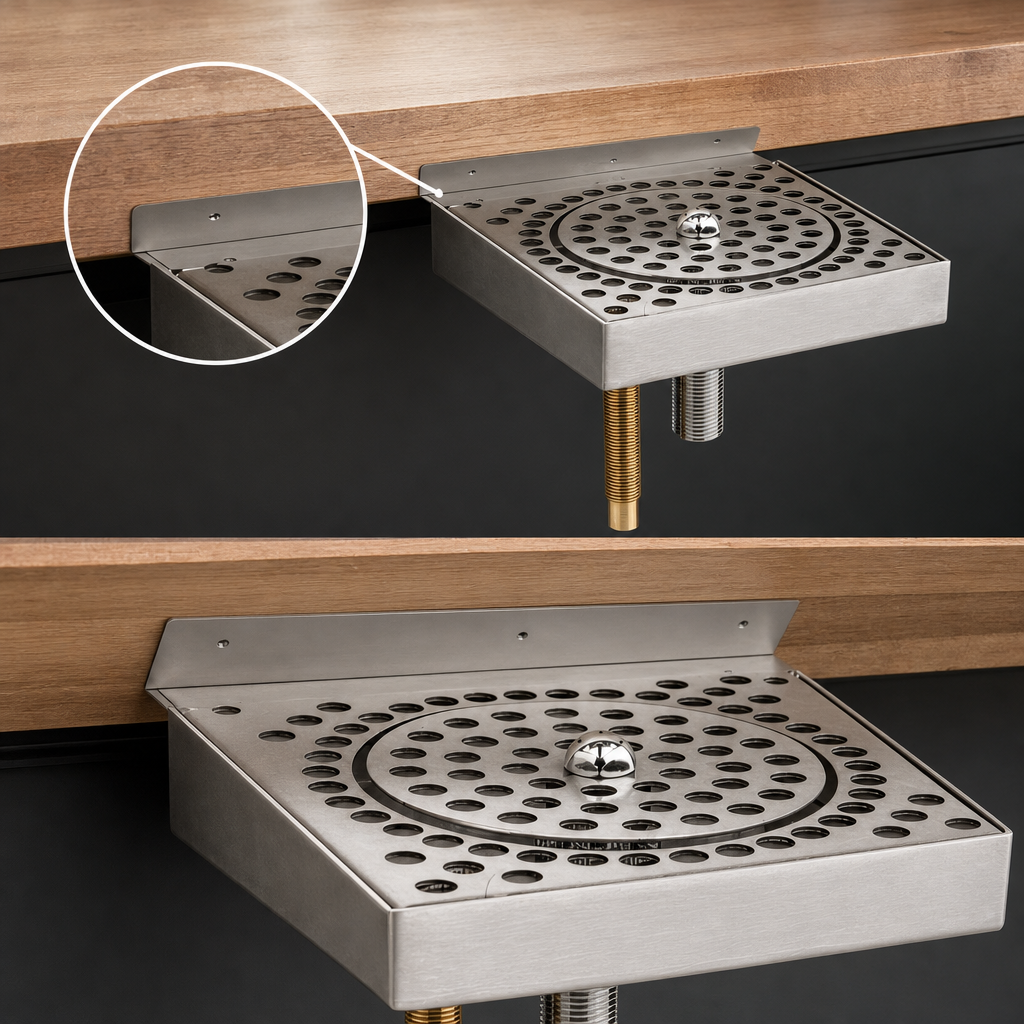

5-Inch Mounting Flange

Helps secure the unit beneath a wood bar or countertop.

Brushed Stainless Steel Finish

Clean, professional appearance for beverage stations.

18-Gauge Stainless Steel Construction

Durable stainless build for daily use in high-traffic service areas.

Push-Down Glass Actuator

Rinses when the glass is pressed down on the actuator plate.

4-1/2-Inch Glass Rinser Area

Compact rinsing area designed for bar service.

1/2-Inch Water Connection

External 1/2-inch BSP standard plumbing connection.

1/2-Inch Drain Connection

Threaded drain hose connection with a 1/2-inch flat barb.

External Pressure Control Required

Requires a check valve, shut-off, and pressure regulator set to 15 PSI, supplied by others.

Type Glass Rinser
Installation Type Undercounter
Material Stainless Steel
Finish Brushed Stainless Steel
Controls Manual
Water Inlet Size 1/2 Inch BSP
Drain Connection Size 1/2 Inch Flat Barb
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It mounts to the underside of a wood substrate or underbar equipment and is designed for undercounter installation.
It uses an external 1/2-inch BSP water connection and a 1/2-inch drain hose connection.
No. A check valve, shut-off, and pressure regulator set to 15 PSI are required and supplied by others.
Press the glass down on the actuator plate to activate the rinsing action.
It is built from 18-gauge stainless steel with a brushed stainless steel finish.
Yes. The documentation also references the SU-16 countertop model and the SU-16P model for perforated drainboards.
