Advance Tabco Underbar Basics™ 36-Inch Stainless Steel Cocktail Unit with 16-Inch Deep Ice Bin and 7-Circuit Cold Plate

SKU: SLI-16-36-7
GTIN: 747545191724
$2,232.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

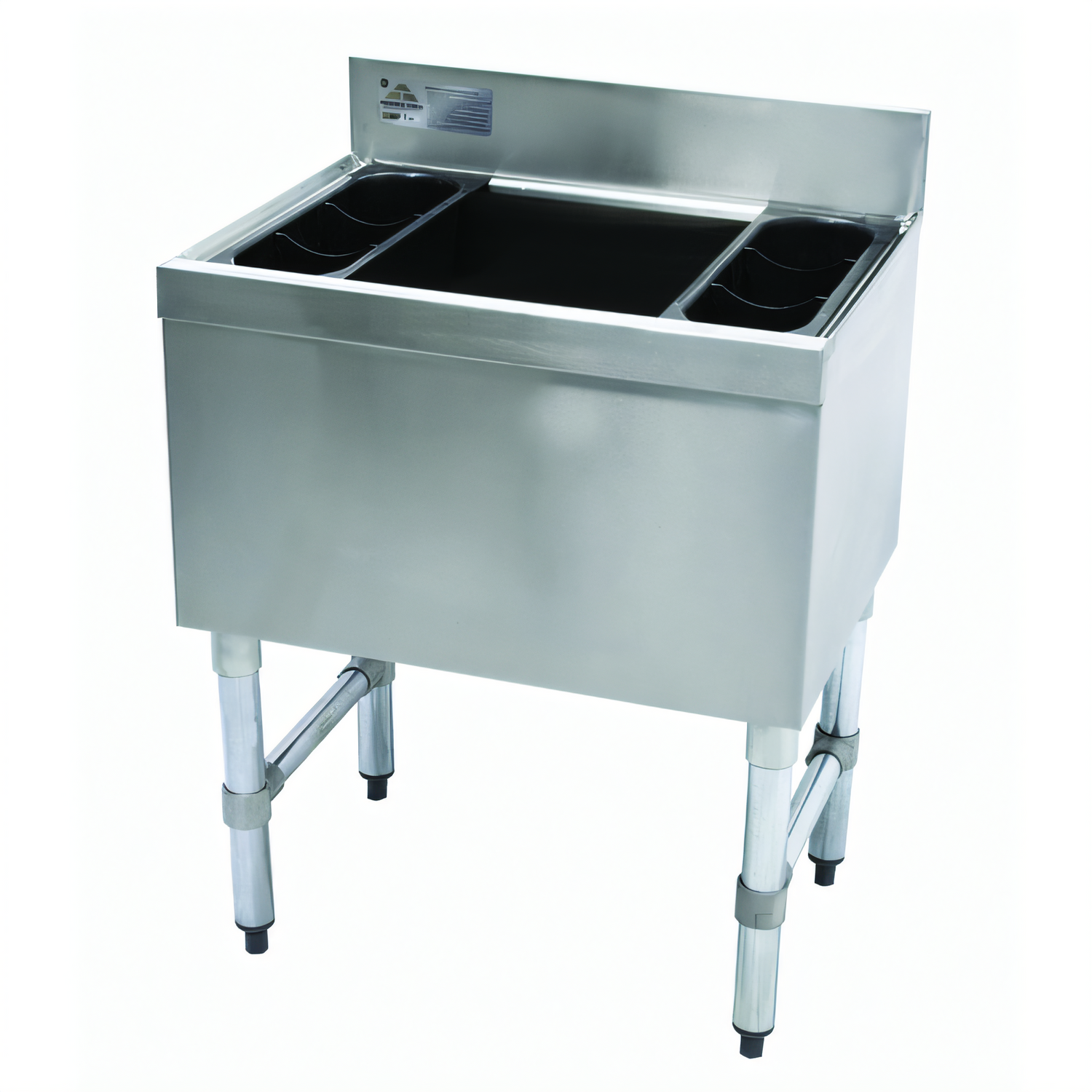

Advance Tabco Underbar Basics™ 36-Inch Stainless Steel Cocktail Unit with 16-Inch Deep Ice Bin and 7-Circuit Cold Plate

155-Lb. Ice Capacity, 4-Inch Backsplash, Galvanized Legs

Built for busy bars, this 36-inch underbar cocktail unit combines a deep insulated ice bin with a sealed 7-circuit cold plate for efficient drink prep.

  • 36-inch-wide underbar cocktail unit with a 16-inch deep insulated ice bin.
  • Sealed 7-circuit cold plate helps keep mixed drinks cold during service.
  • 155-lb. ice capacity supports high-volume bar operations.
  • Stainless steel ice bin, front apron, and backsplash with durable 430 stainless sides.
  • Includes two removable plastic bottle racks for organized syrup and garnish storage.
  • Galvanized legs with adjustable bullet feet provide stable support.
  • 4-inch backsplash helps contain spills and splashes.

Overall Dimensions:

36.0"W x 18.0"D x 33.0"H

Product Weight:

112.0 lb

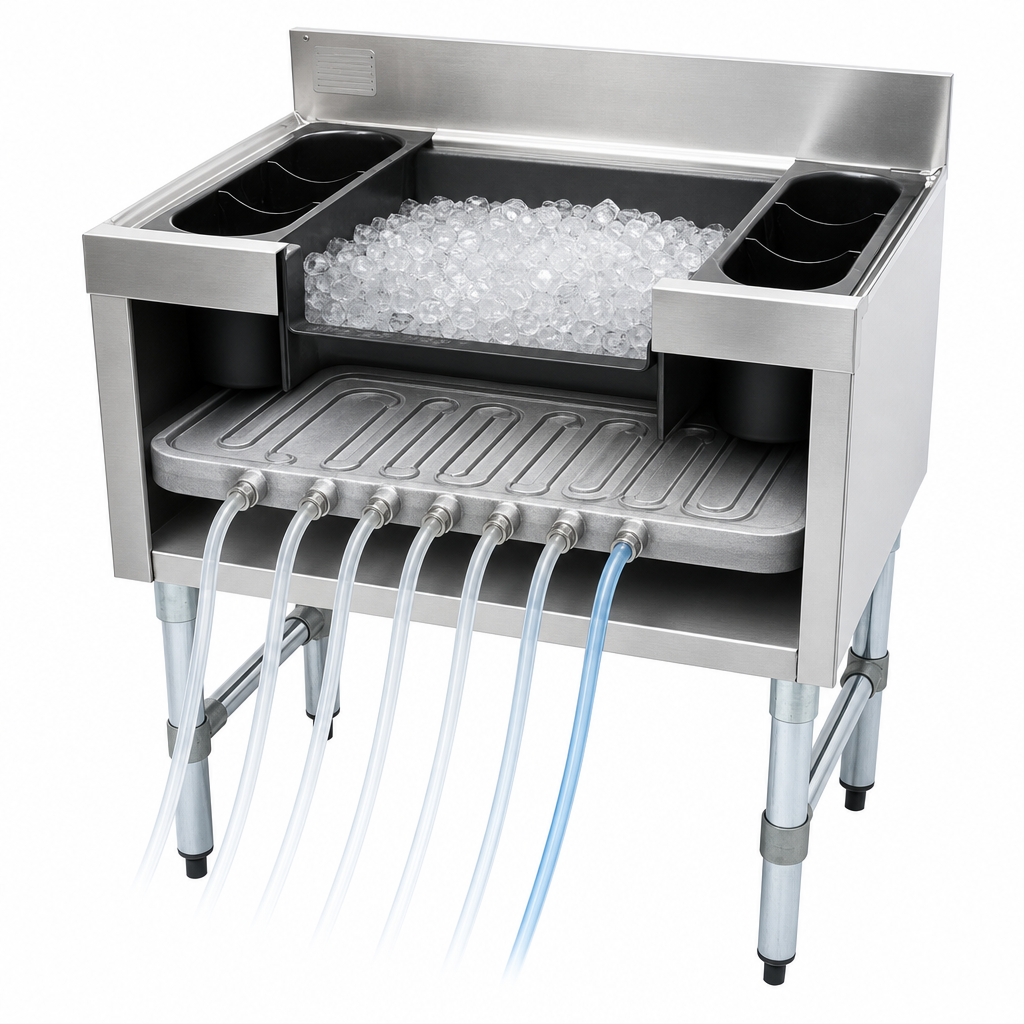

7-Circuit Cold Plate

Cast aluminum cold plate sealed into the bottom of the bin with five syrup lines and two water lines.

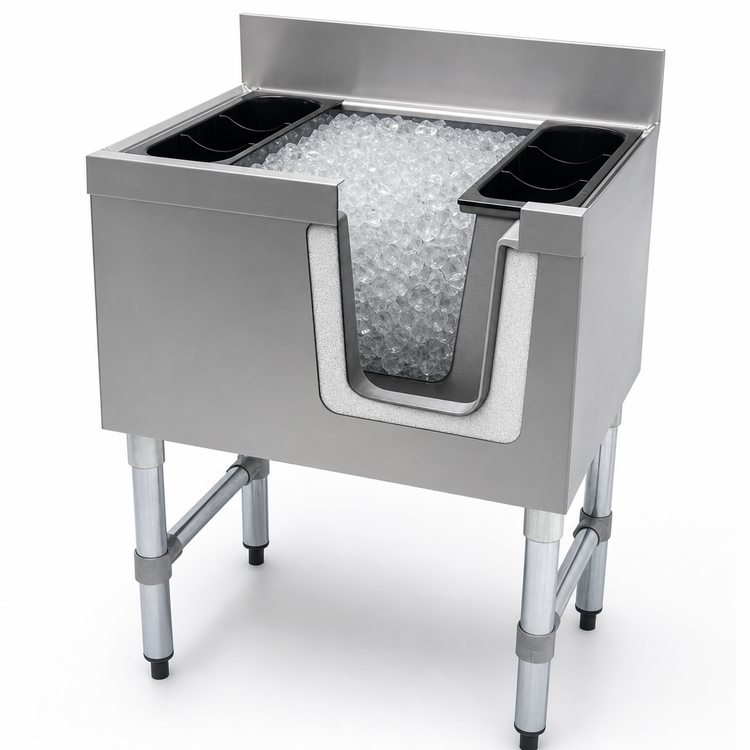

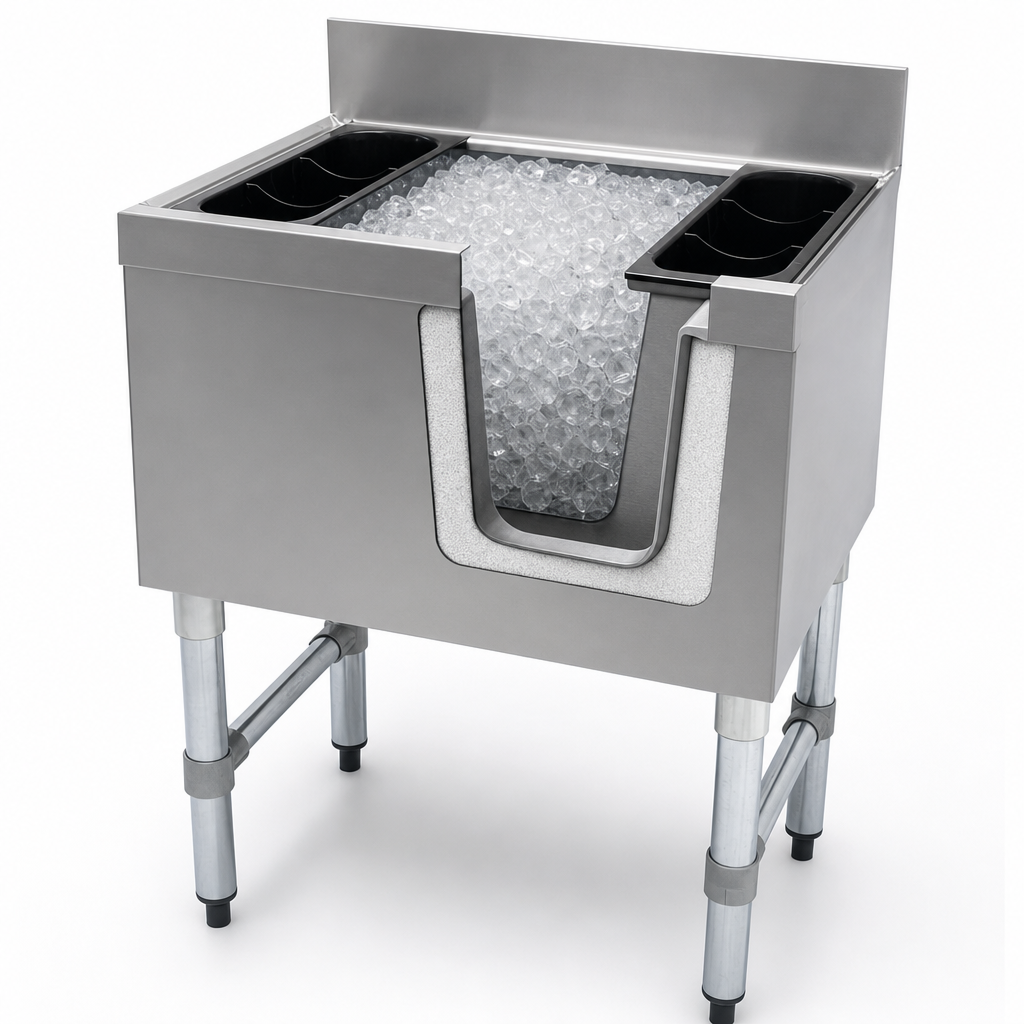

16-Inch Deep Insulated Ice Bin

Foam-insulated chest provides generous ice storage and helps maintain ice temperature.

Stainless Steel Ice Bin Assembly

Ice bin, front apron, and backsplash are constructed from 22-gauge 300 series stainless steel.

430 Stainless Steel Sides

20-gauge 430 stainless steel sides add durability to the underbar unit.

4-Inch Backsplash

Helps protect the wall behind the unit and contain splash-back during service.

Removable Bottle Racks

Includes two removable injection-molded 3-pack plastic bottle racks.

Galvanized Legs With Adjustable Feet

Galvanized steel legs with adjustable plastic bullet feet help level the unit on uneven floors.

1/2-Inch IPS Drain

Cold plate bin includes a 1/2-inch IPS drain connection.

Type Bar Ice Bin
Style Cocktail Unit
Installation Type Floor Model
Capacity 155 Pounds
Material Stainless Steel
Backsplash 4 Inches
Bin Depth 16 Inches
Cold Plate 7-Circuit
Drain Connection Size 1/2 Inch IPS
Shipping Width 36 Inches
Shipping Depth 18 Inches
Shipping Height 33 Inches
Shipping Weight 112 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 155-lb. ice capacity.
The ice bin is 16 inches deep.
It uses a sealed 7-circuit cold plate with five syrup lines and two water lines.
The ice bin, front apron, and backsplash are 22-gauge 300 series stainless steel, and the sides are 20-gauge 430 stainless steel.
The cold plate bin uses a 1/2-inch IPS drain connection.
Yes, the documentation lists an optional sliding stainless steel cover for the 36-inch unit: SSC-36.
