Advance Tabco  |  Underbar Basics™  |  SKU: SLI-16-36-10  |  UPC: 747545206398

Advance Tabco SLI-16-36-10 Underbar Basics™ Bar Equipment

$2,691.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Underbar Basics™ 36" Cocktail Ice Bin w/ 10-Circuit Cold Plate

Advance Tabco • Model SLI-16-36-10 • 155 lb Ice Capacity

Engineered for busy cocktail stations, the Underbar Basics™ ice chest gives bartenders instant access to a mountain of ice while flash-chilling every post-mix line that runs through it. Rugged stainless construction, generous 16" bin depth and a powerful 10-circuit cold plate make this unit a long-term workhorse behind any bar.

Key Features

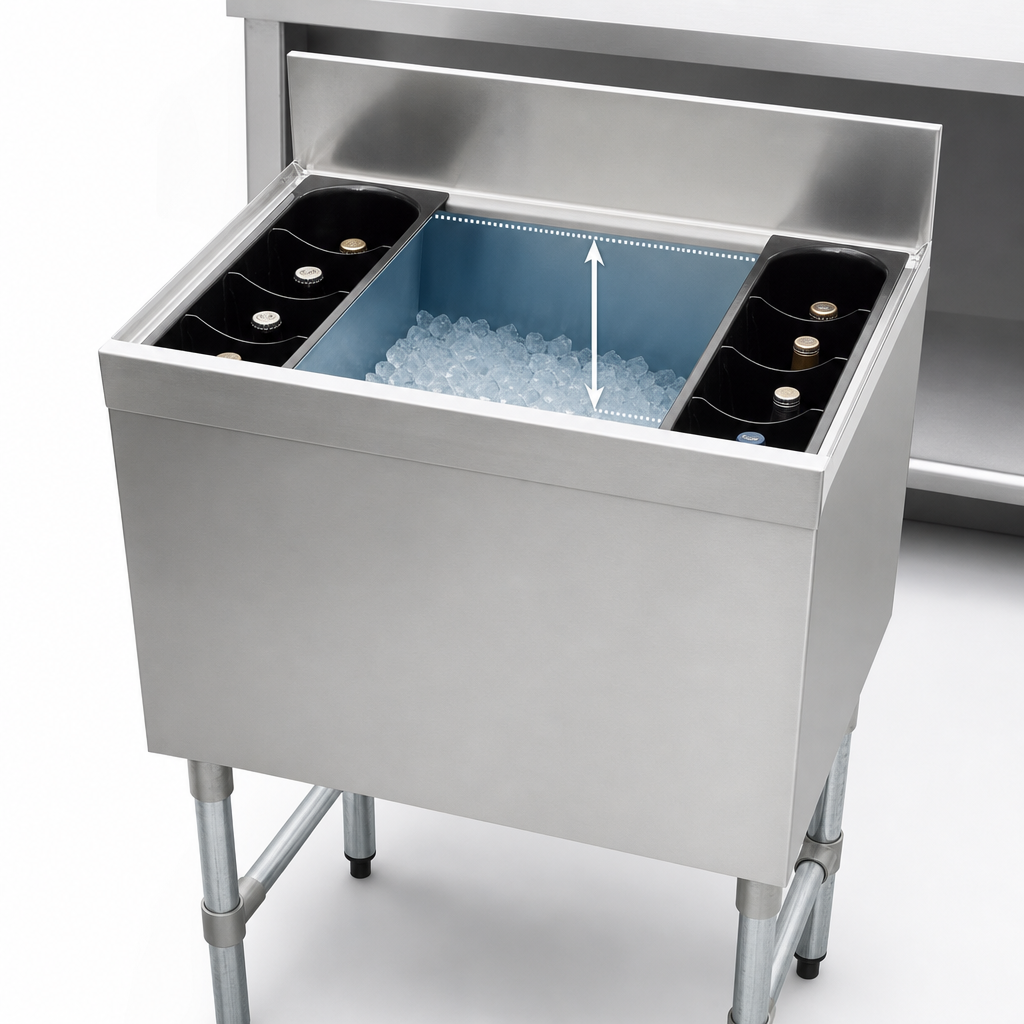

  • Foam-insulated 16" deep chest stores up to 155 lb of ice.

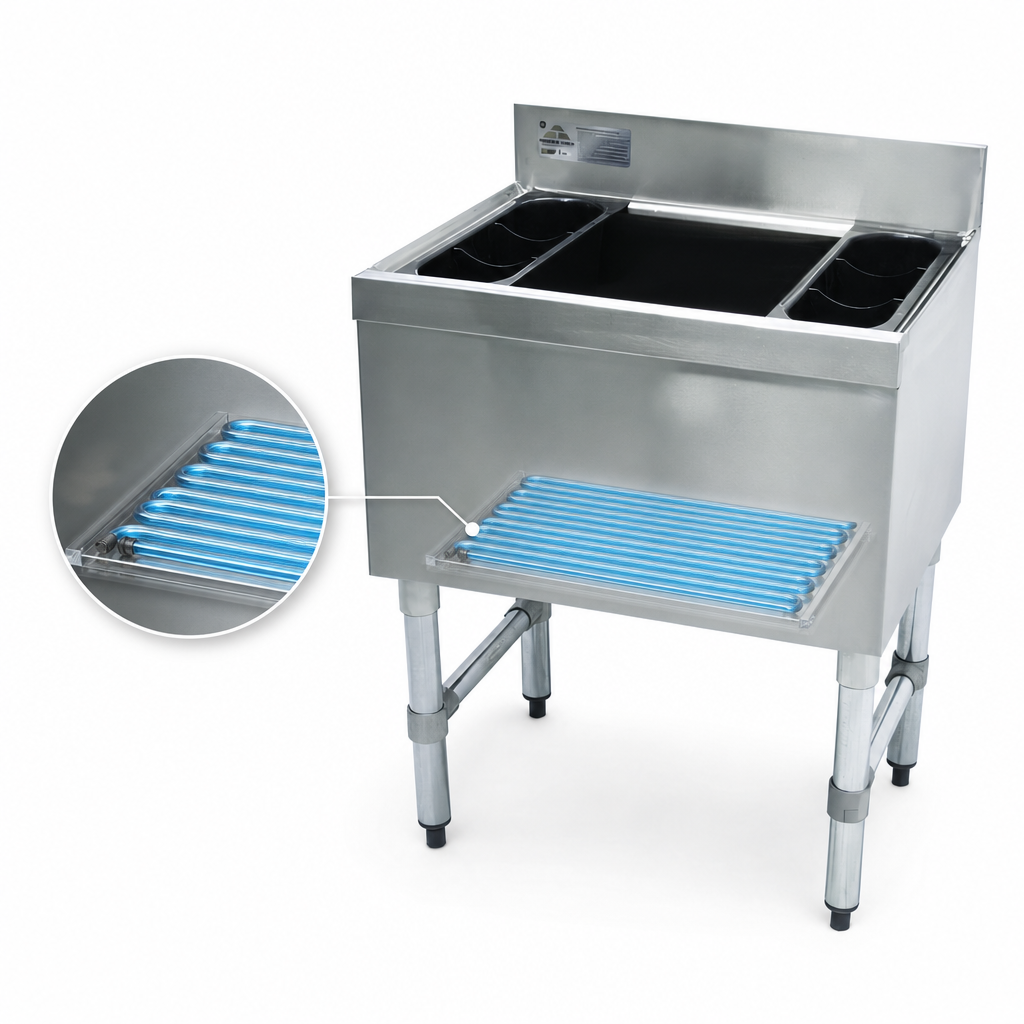

  • Integrated cast-aluminum 10-circuit post-mix cold plate chills syrup & water lines for ice-cold pours.
  • 22-ga 300 series stainless steel ice bin, front apron & 4" backsplash resist corrosion and everyday bar abuse.
  • 20-ga 430 stainless steel side panels balance durability with cost efficiency.
  • (2) removable 3-pack plastic bottle racks keep popular mixers organized and within reach.
  • Galvanized 1 ⅝" O.D. tubular legs with adjustable bullet feet level the unit on uneven floors.
  • 1/2" IPS welded drain for fast, reliable plumbing hook-up.
  • NSF listed for open food-contact applications.

Specifications

Overall width 36"
Overall depth (front – back) 18"
Work surface height 33"
Backsplash height 4"
Ice bin depth 16"
Ice capacity 155 lb
Cold plate Cast aluminum, 10 post-mix circuits
Drain connection 1/2" IPS
Bottle racks (2) injection-molded plastic, removable
Main material 22-ga 300 series stainless steel
Sides 20-ga 430 stainless steel
Legs / feet Galvanized steel legs with adjustable bullet feet
Certifications NSF
Approx. shipping weight 185 lb
Bottle racks must be removed for NSF compliance and when using the optional stainless-steel sliding ice-bin cover (sold separately).

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

36.0in

Depth

18.0in

Shipping Weight

112.0lbs

Width (side - side) OA

31" - 36"

Cold Plate

(10) circuit

Construction

stainless steel & galvanized

Bin Depth

16" deep ice bin

Depth (front - back) OA

18" - 19"

Ice Capacity

150 - 199 lbs.

Splash

4"

Specifications

Underbar Basics™ Cocktail Unit, 16" deep chest with 10-circuit post mix cold plate, 36"W X 18"D X 33"H, 4" splash, 155-lbs. ice capacity, (2) plastic bottle racks, 22/300 series stainless steel ice bin, front apron & backsplash, 20/430 stainless steel sides, galvanized legs with adjustable bullet feet, NSF
