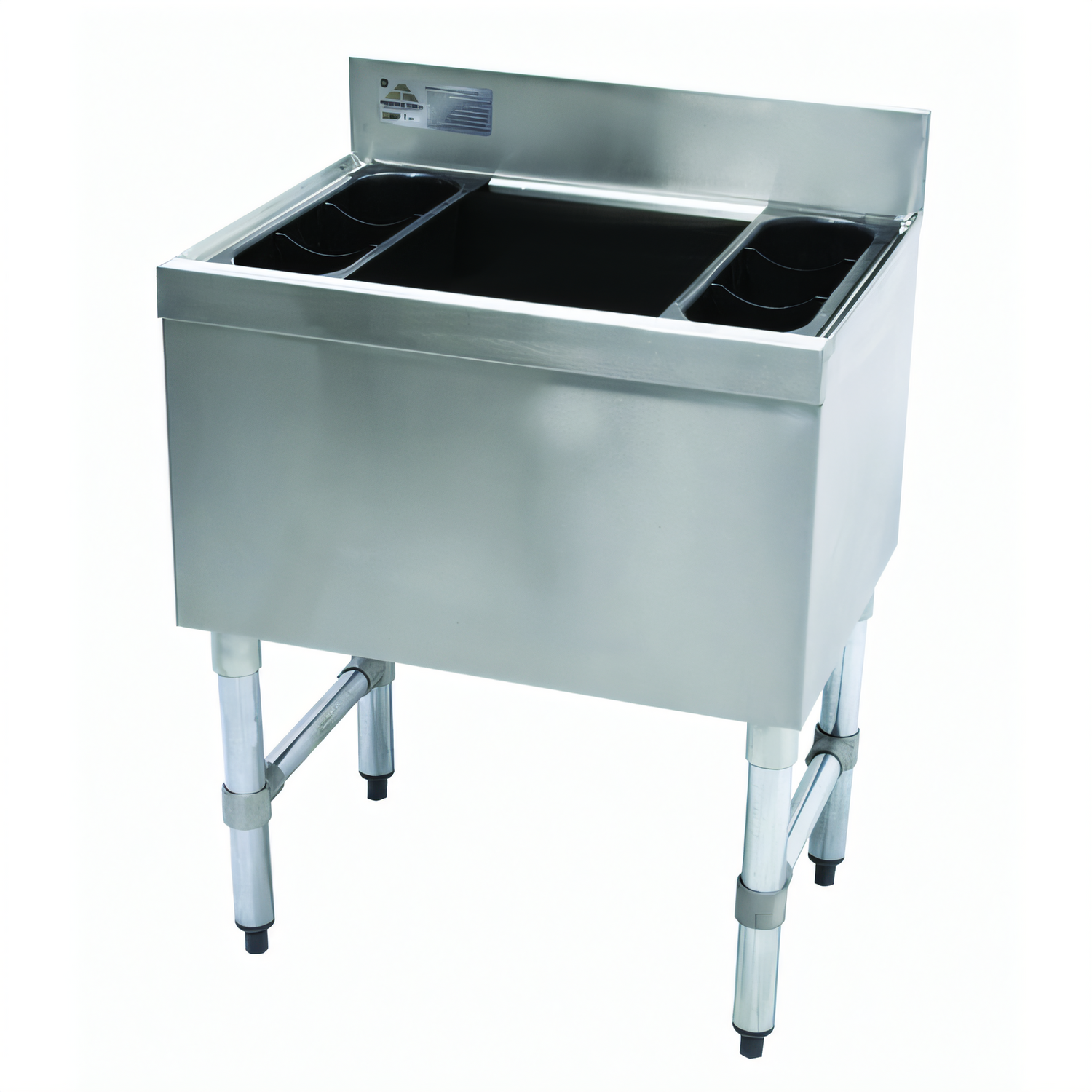

Advance Tabco Underbar Basics™ 30-Inch Cocktail Unit Bar Ice Bin with 16-Inch Deep 7-Circuit Cold Plate
Advance Tabco Underbar Basics™ 30-Inch Cocktail Unit Bar Ice Bin with 16-Inch Deep 7-Circuit Cold Plate
30"W x 18"D x 33"H, 127-lb. Ice Capacity, 4" Splash
Built for compact bar stations, this stainless steel cocktail unit combines a 16-inch deep insulated ice bin with a sealed 7-circuit cold plate for efficient post-mix service.
- 16-inch deep insulated ice bin holds up to 127 lb. of ice.
- Built-in 7-circuit cold plate is sealed into the bottom of the bin.
- 4-inch backsplash helps contain spills and protect the wall behind the unit.
- Includes two removable injection-molded plastic bottle racks.
- Stainless steel construction with galvanized legs and adjustable bullet feet for stability.
- NSF listed for commercial foodservice use.
Overall Dimensions:
30.0"W x 18.0"D x 33.0"HProduct Weight:

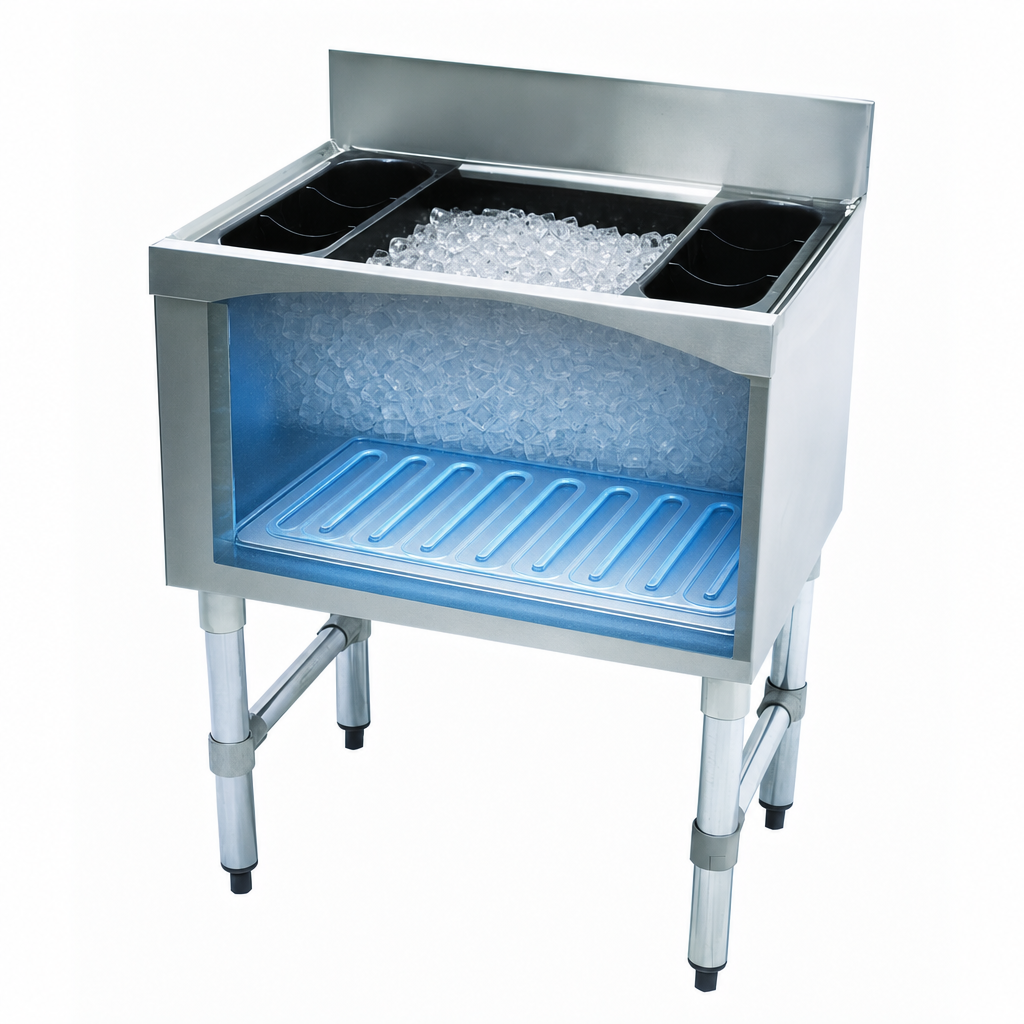

104.0 lb7-Circuit Cold Plate
Cast aluminum cold plate is sealed into the bottom of the ice bin for post-mix beverage service.

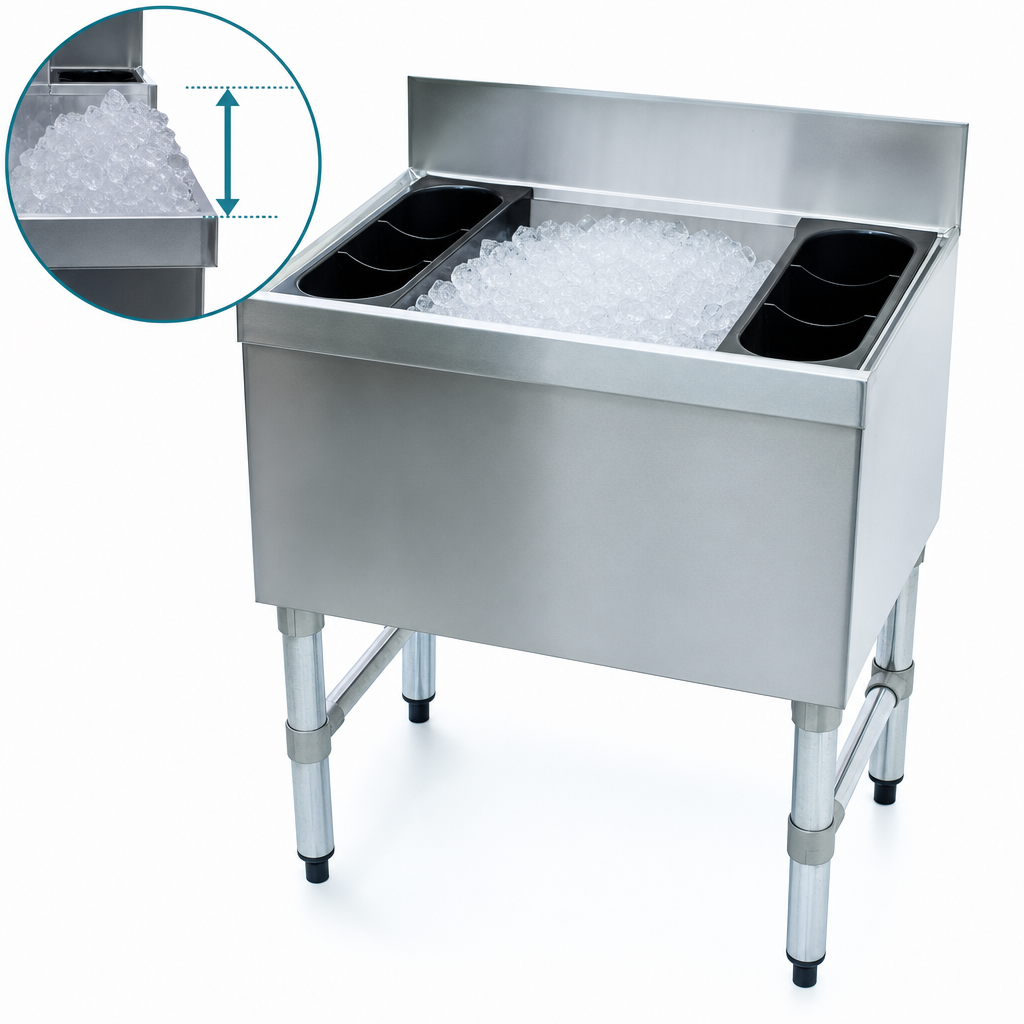

16-Inch Deep Insulated Ice Bin
Deep ice storage provides a 127 lb. ice capacity for bar service.
Stainless Steel Construction
Ice bin, front apron, and backsplash are 22-gauge 300 series stainless steel; sides are 20-gauge 430 stainless steel.
4-Inch Backsplash
Built-in splash helps contain messes and protect surrounding surfaces.
Bottle Racks Included
Includes two removable injection-molded 3-pack plastic bottle racks.
Sturdy Base
Galvanized legs with adjustable plastic bullet feet and side cross-bracing help keep the unit stable.
Drain Connection
Cold plate bin includes a 1/2-inch IPS drain.
