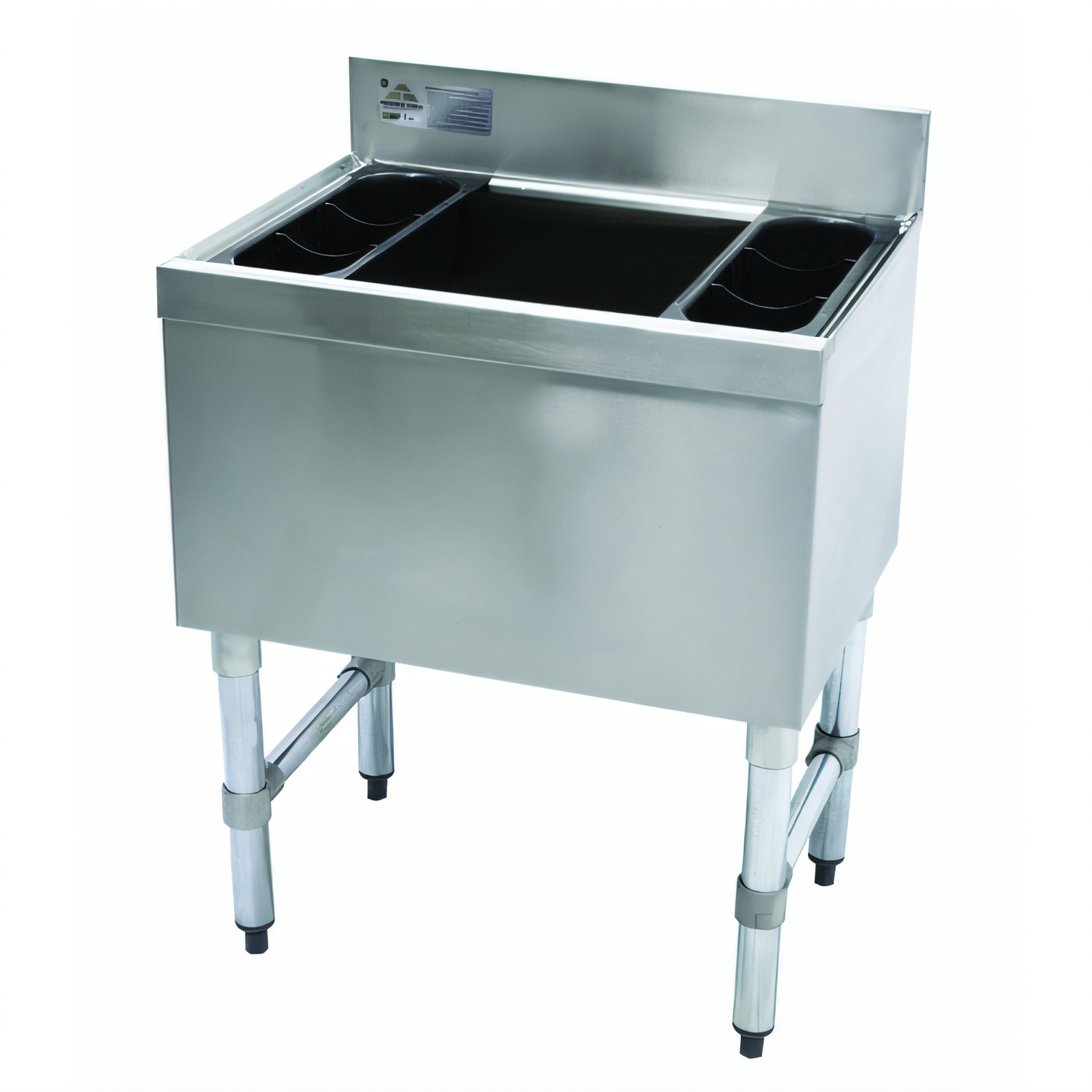

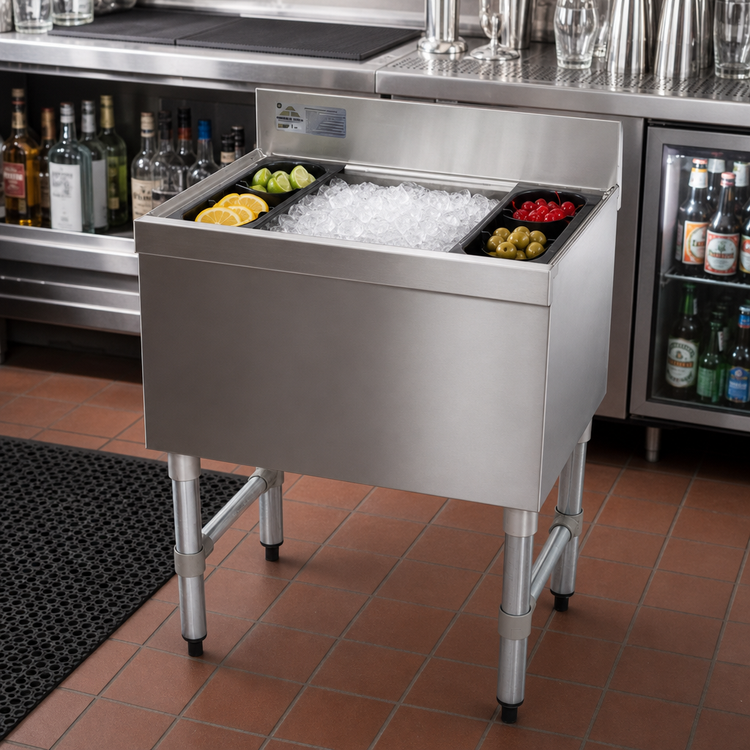

Advance Tabco Underbar Basics™ 30-Inch Stainless Steel Cocktail Unit with 16-Inch Deep Ice Bin and 10-Circuit Cold Plate
Advance Tabco Underbar Basics™ 30-Inch Stainless Steel Cocktail Unit with 16-Inch Deep Ice Bin and 10-Circuit Cold Plate
4-Inch Backsplash, 127-Lb Ice Capacity, NSF Listed
A compact underbar cocktail station that keeps ice and post-mix lines chilled while standing up to heavy bar service.
- 10-circuit cold plate helps keep post-mix beverages cold at the point of service.
- 16-inch deep insulated ice bin holds up to 127 lb. of ice.
- 30-inch-wide footprint with a 4-inch backsplash fits busy underbar layouts.
- Stainless steel ice bin, front apron, and backsplash with galvanized sides and legs for durability.
- Includes two removable plastic bottle racks for organized service.
- Galvanized legs with adjustable bullet feet help level the unit on uneven floors.
Overall Dimensions:
30.0"W x 18.0"D x 33.0"HProduct Weight:

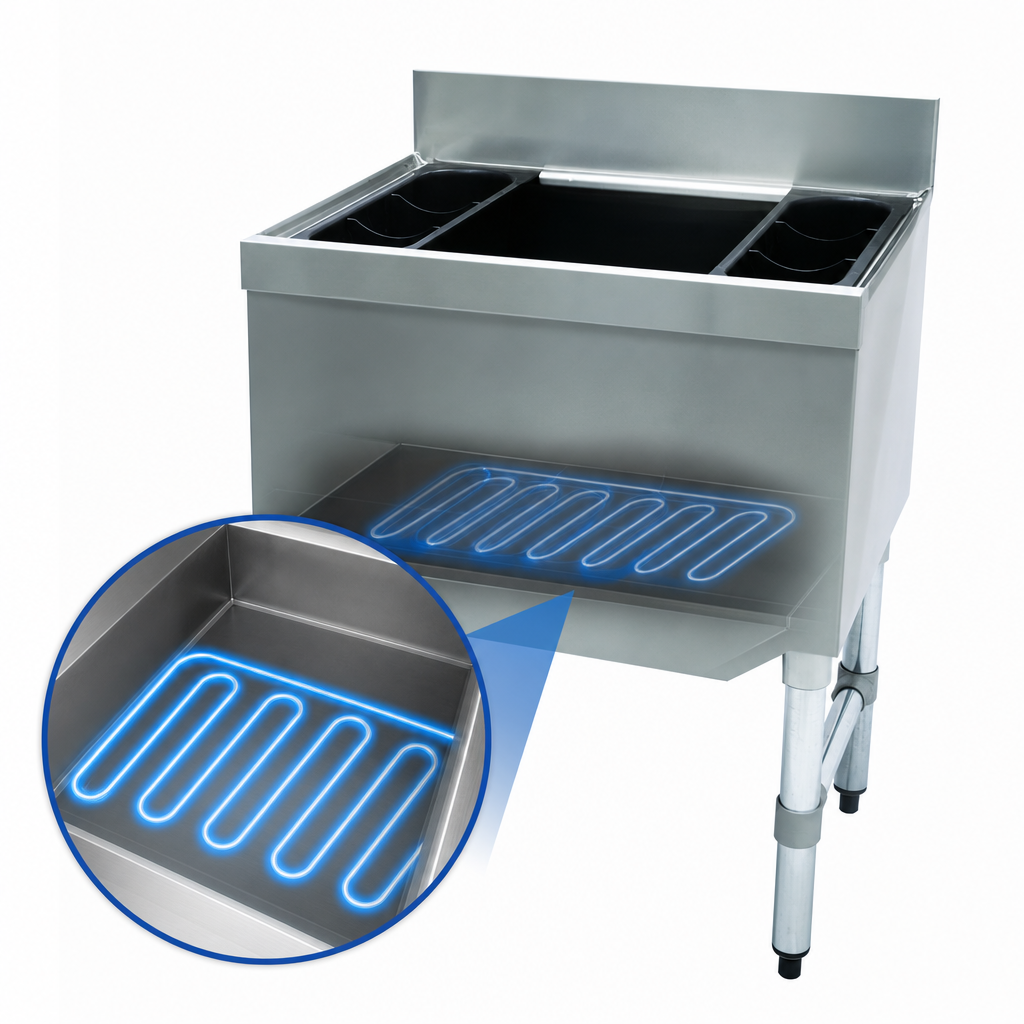

104.0 lb10-Circuit Cold Plate
Post-mix cold plate is sealed into the bottom of the bin to help keep beverage lines chilled.

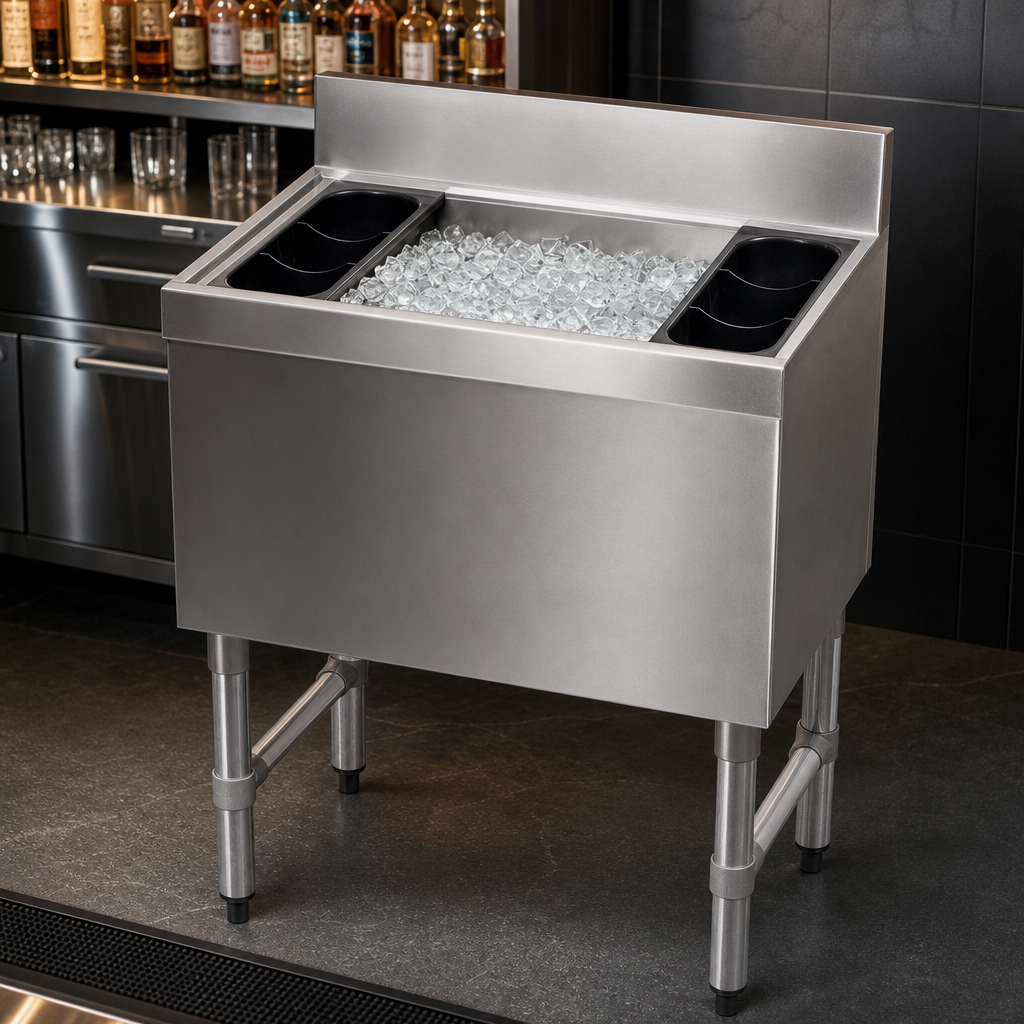

16-Inch Deep Insulated Ice Bin
Deep insulated bin provides 127 lb. of ice capacity for high-volume bar service.
Stainless Steel Construction
22-gauge 300 series stainless steel ice bin, front apron, and backsplash with 20-gauge 430 stainless steel sides.
4-Inch Backsplash
Helps contain splashes and protect the wall behind the unit.
Removable Bottle Racks
Includes two injection molded plastic bottle racks for convenient garnish and bottle organization.
Galvanized Legs and Bullet Feet
Galvanized steel legs with adjustable bullet feet help with leveling and stability.
1/2-Inch IPS Drain
Built for straightforward drainage from the cold plate bin.
NSF Compliance Note
Bottle racks must be removed for NSF compliance and for use with the optional sliding cover.
