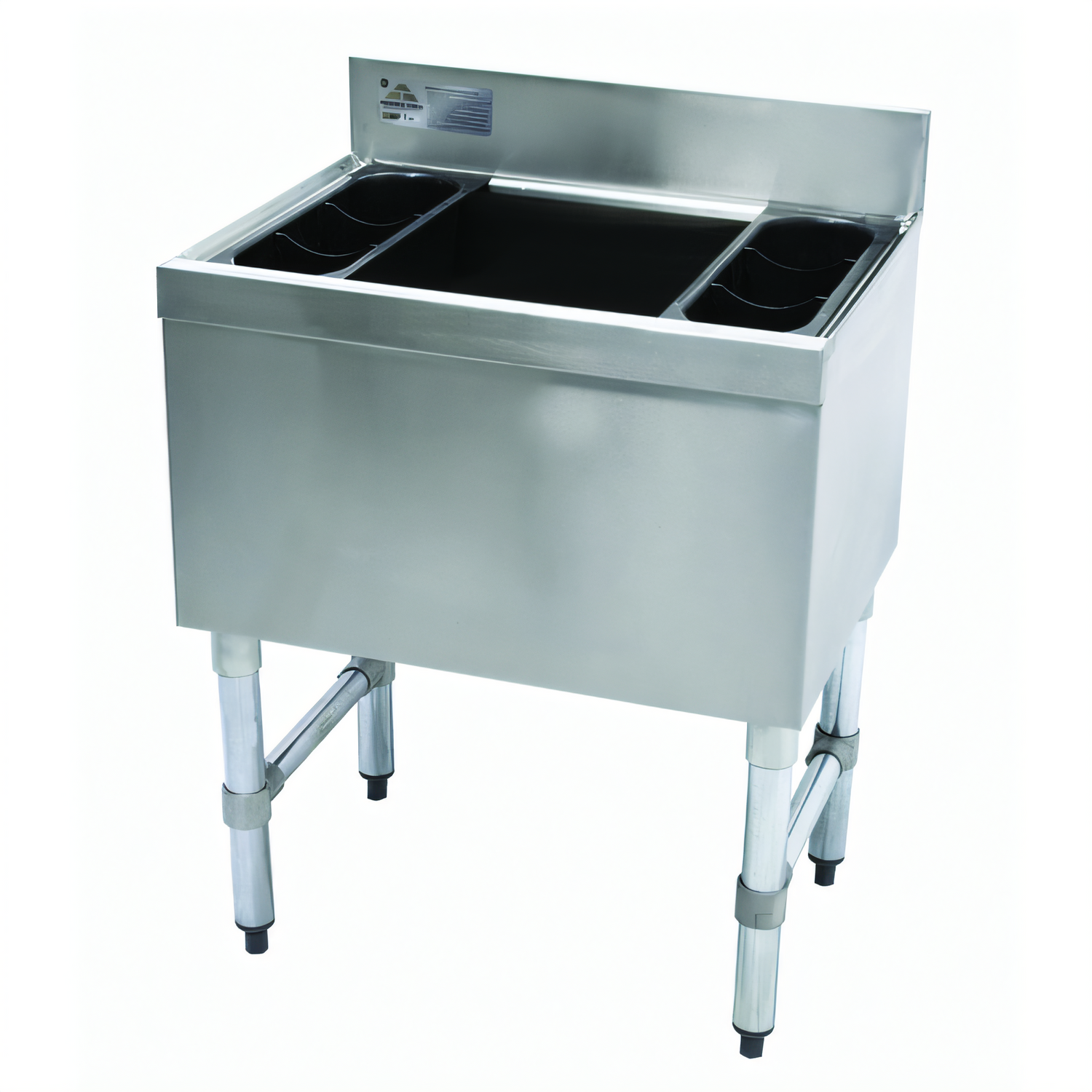

Advance Tabco Underbar Basics 48-Inch Stainless Steel Cocktail Unit Bar Ice Bin with 12-Inch Deep Ice Bin and 7-Circuit Cold Plate
Advance Tabco Underbar Basics 48-Inch Stainless Steel Cocktail Unit Bar Ice Bin with 12-Inch Deep Ice Bin and 7-Circuit Cold Plate
48" W x 18" D x 33" H, 161-lb. ice capacity, 4" backsplash
A durable, high-capacity cocktail unit that keeps ice and beverages within easy reach with a 12-inch-deep insulated bin and integrated 7-circuit cold plate.
- 48-inch-wide cocktail unit with a 12-inch-deep insulated ice bin.
- Integrated 7-circuit cold plate helps keep drinks chilled at the bar.
- Holds up to 161 lb. of ice for high-volume service.
- Built with stainless steel panels and galvanized legs with adjustable bullet feet.
- Includes two removable bottle racks and a 4-inch backsplash; SSC-48 cover sold separately.
Overall Dimensions:
48.0"W x 18.0"D x 33.0"HProduct Weight:

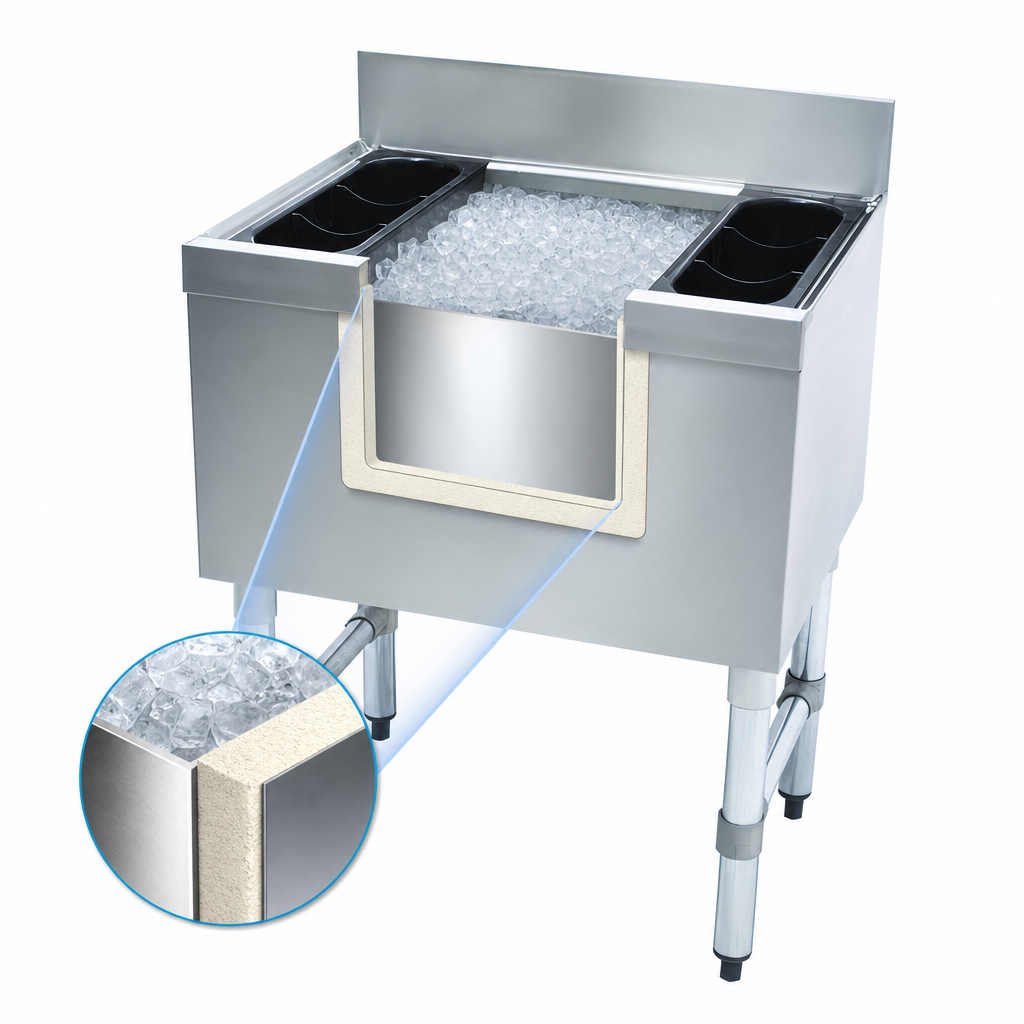

110.0 lb12-Inch Deep Insulated Ice Bin
Foam insulation helps keep ice colder longer in a 12-inch-deep chest.

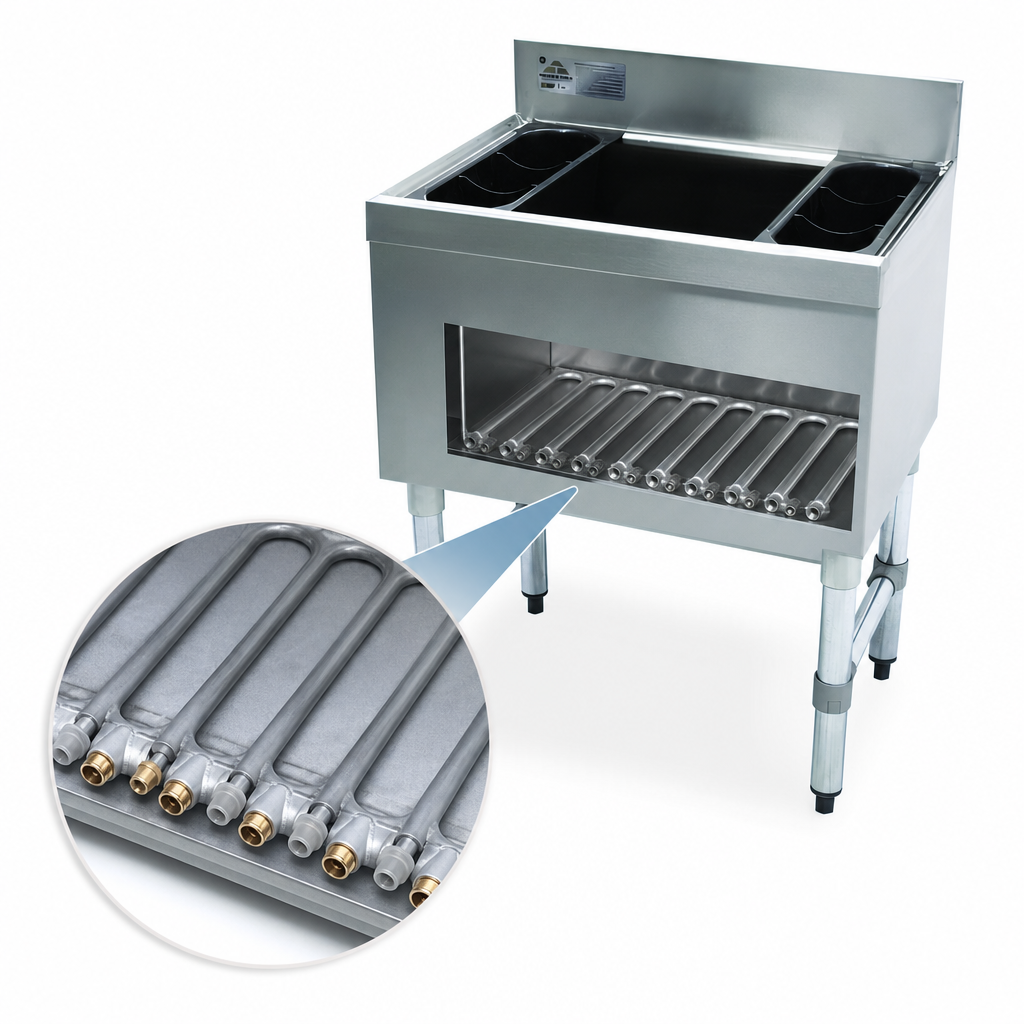

7-Circuit Sealed Cold Plate
Cast aluminum cold plate is sealed into the bin bottom and includes 5 syrup lines and 2 water lines for chilled beverage service.
161-Lb. Ice Capacity
Large ice storage capacity supports busy bar and cocktail service.
Stainless Steel Construction
Ice bin, front apron, and backsplash are 22-gauge 300 series stainless steel with 20-gauge 430 stainless steel sides.
4-Inch Backsplash
Helps contain spills and protect the wall behind the unit.
Removable Bottle Racks
Includes two removable injection-molded 3-pack plastic bottle racks for organized bottle storage.
Galvanized Legs with Adjustable Bullet Feet
Sturdy support with adjustable feet for leveling on uneven floors.
1/2-Inch IPS Drain
Provides a standard drain connection for the cold plate bin.
