Advance Tabco  |  Underbar Basics™  |  SKU: SLI-12-42-10  |  UPC: 747545208323

Advance Tabco SLI-12-42-10 Underbar Basics™ Bar Equipment

$2,327.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

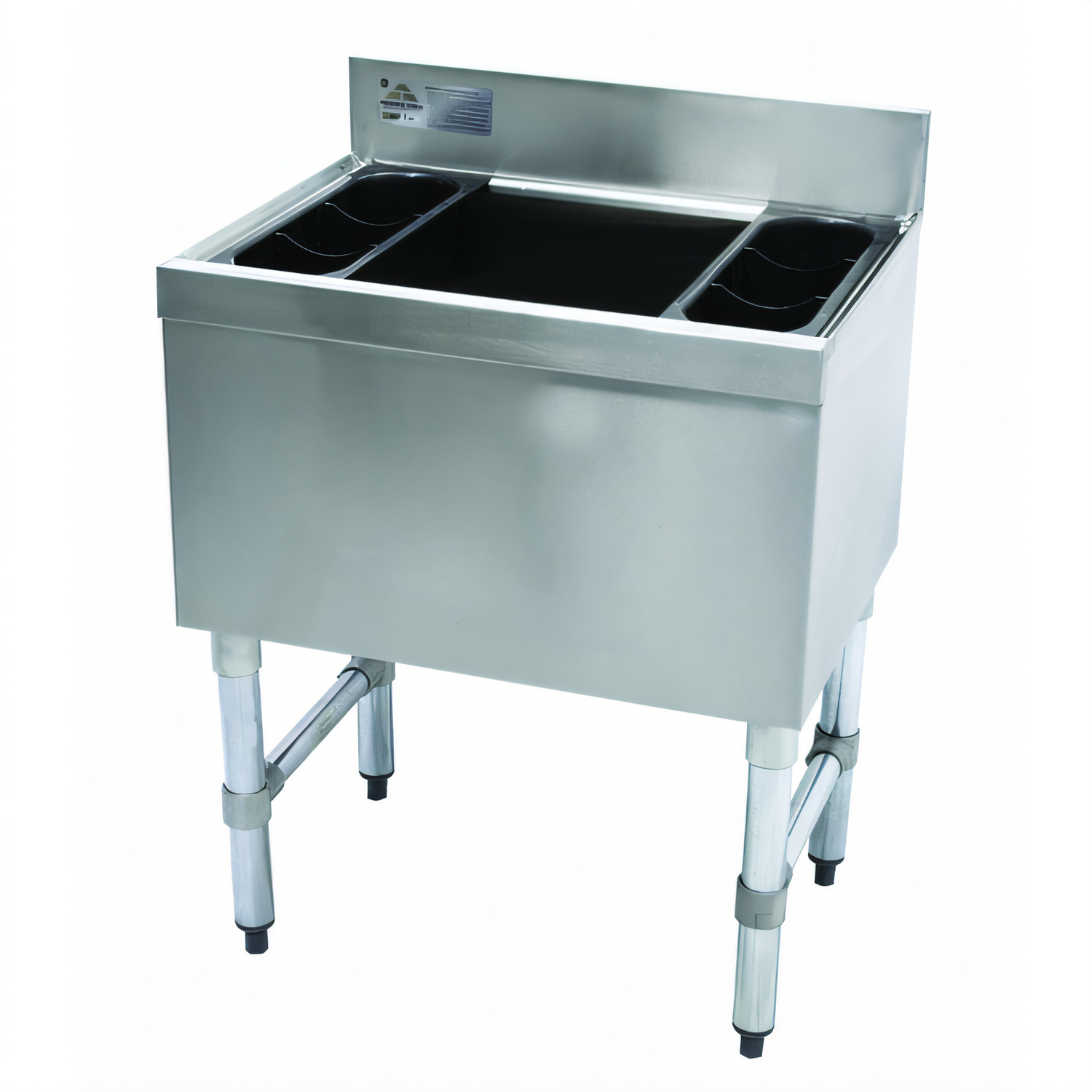

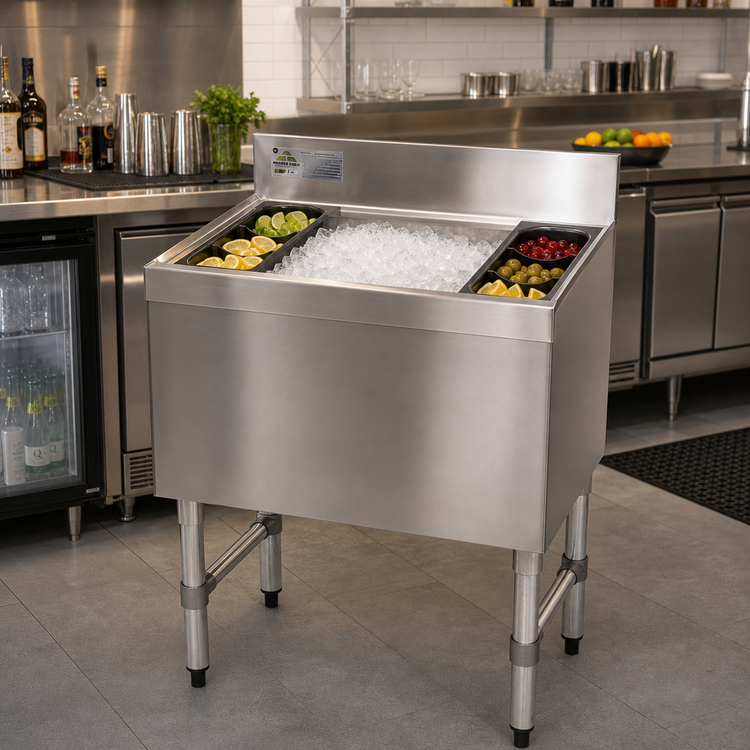

Underbar Basics™ 42" Ice Bin & Cocktail Unit with 10-Circuit Cold Plate

Model SLI-12-42-10 • NSF Listed

Designed for high-volume bars that refuse to compromise on speed or sanitation, this Advance Tabco cocktail station pairs a 140 lb insulated ice chest with a factory-sealed 10-circuit cold plate. Keep ice, syrups and mixers perfectly chilled in one rugged, space-saving unit.

Key Features

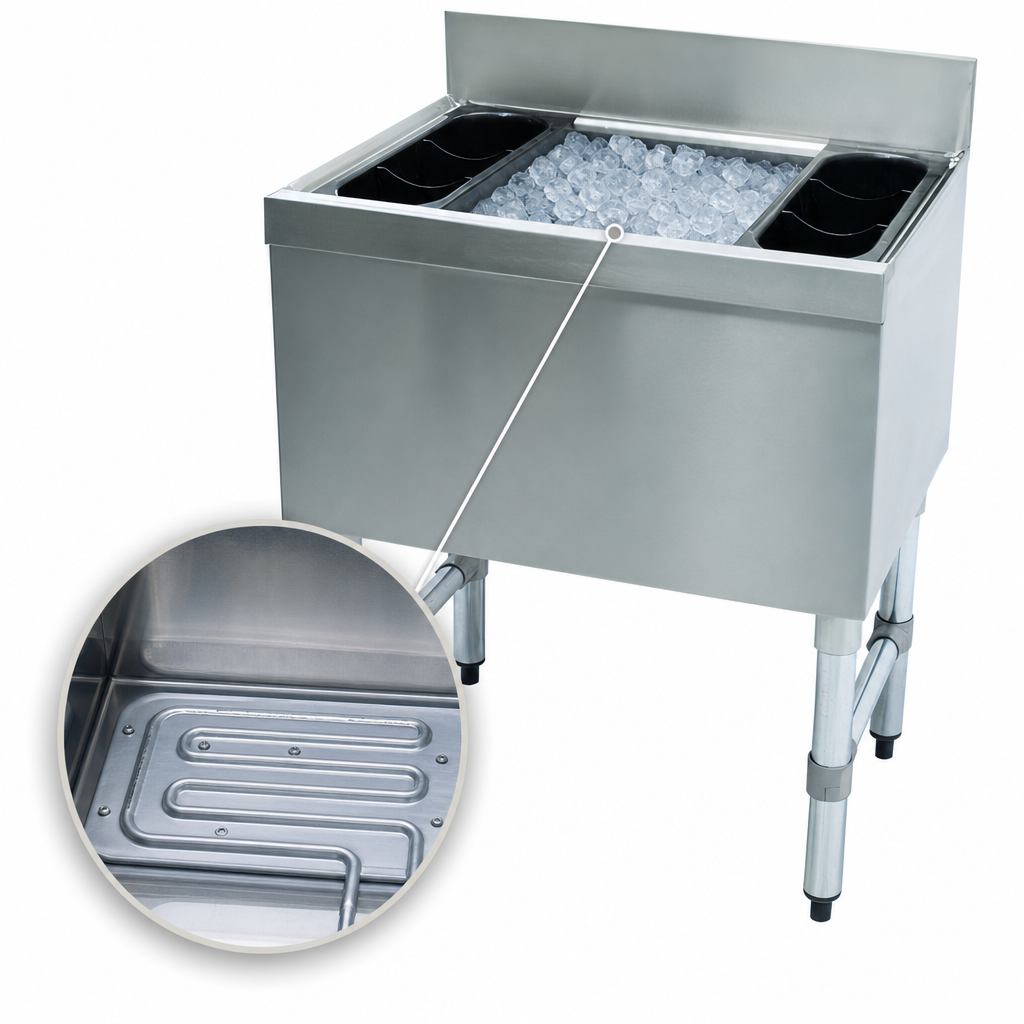

  • 10-circuit cast-aluminum cold plate (stainless steel bump & swedge ends) for soda, beer or water lines.

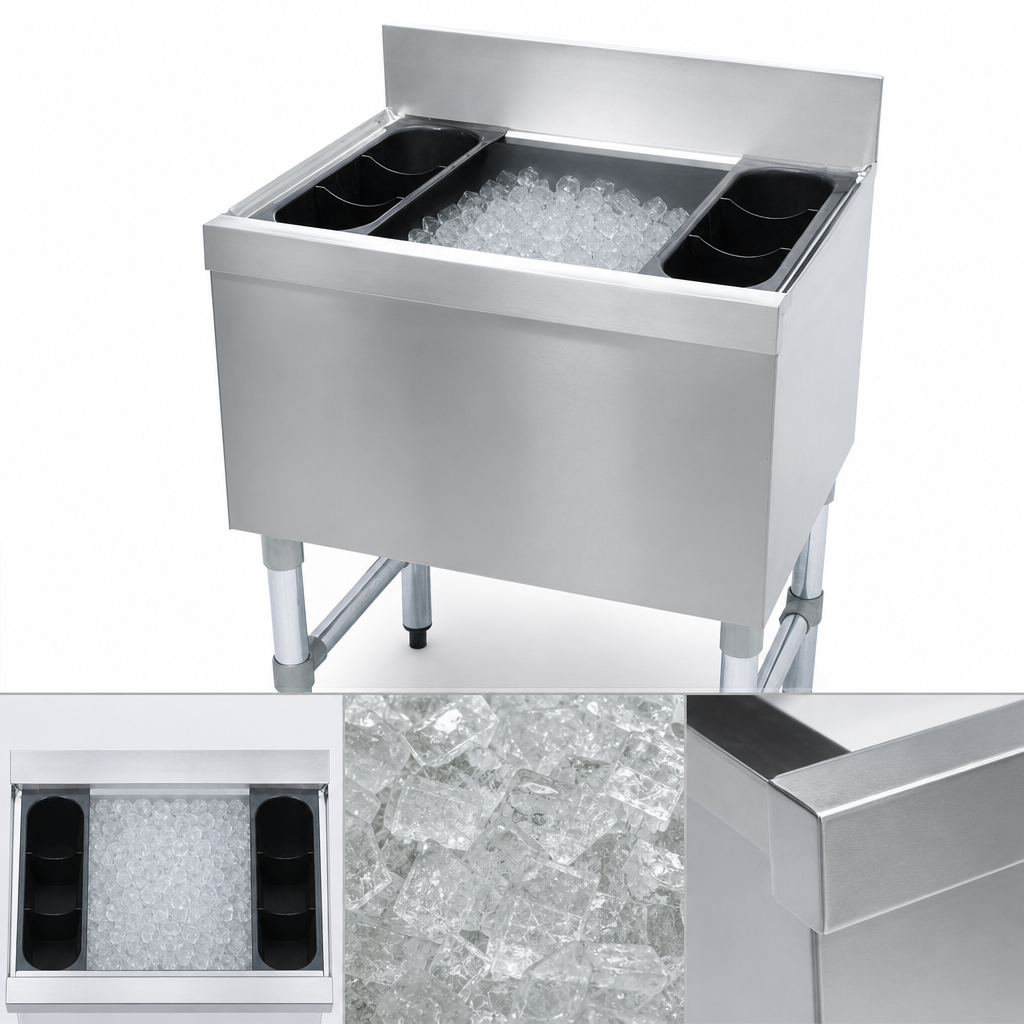

  • 12" deep, foamed-in-place ice chest holds up to 140 lb of ice.
  • (2) removable 3-pack plastic bottle racks included.
  • 4" backsplash contains splashes and shields adjacent equipment.
  • 22 ga 300 series stainless steel ice bin, front apron & backsplash.
  • 20 ga 430 series stainless steel sides with galvanized leg channel understructure.
  • 1 5/8" O.D. galvanized legs with adjustable bullet feet for quick leveling.
  • 1/2" IPS drain located in bin bottom.
  • NSF certified for food-contact safety.
Specifications
Overall Width 42"
Overall Depth 18"
Overall Height 33" working height  + 4" backsplash
Ice Bin Depth 12"
Ice Capacity 140 lb
Cold Plate 10 circuits, cast aluminum
Drain Connection 1/2" IPS
Materials 22 ga 300 SS (bin/apron/backsplash); 20 ga 430 SS sides; galvanized legs & bracing
Shipping Weight ≈ 186 lb
Ideal Applications
  • Craft cocktail bars
  • Hotel lounges & banquet halls
  • Restaurant service bars
  • Event & catering stations
NSF Reminder: Bottle racks must be removed during cleaning and when using an optional sliding cover.

Optional stainless steel sliding cover (model SSC-42) available separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

42.0in

Depth

18.0in

Shipping Weight

144.0lbs

Ice Capacity

100 - 149 lbs.

Splash

4"

Bin Depth

12" deep ice bin

Cold Plate

(10) circuit

Construction

stainless steel & galvanized

Width (side - side) OA

37" - 42"

Depth (front - back) OA

18" - 19"

Specifications

Underbar Basics™ Cocktail Unit, 12" deep chest with 10-circuit cold plate, 42"W x 18"D x 33"H, 4" splash, 140-lbs. ice capacity, (2) plastic bottle racks, 22/300 series stainless steel ice bin, front apron & backsplash, 20/430 stainless steel sides, galvanized legs with adjustable bullet feet, NSF
