Advance Tabco  |  Underbar Basics™  |  SKU: SLI-12-36-10  |  UPC: 747545206343

Advance Tabco SLI-12-36-10 Underbar Basics™ Bar Equipment

$2,269.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Advance Tabco Bar Equipment Bar Ice Bins Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

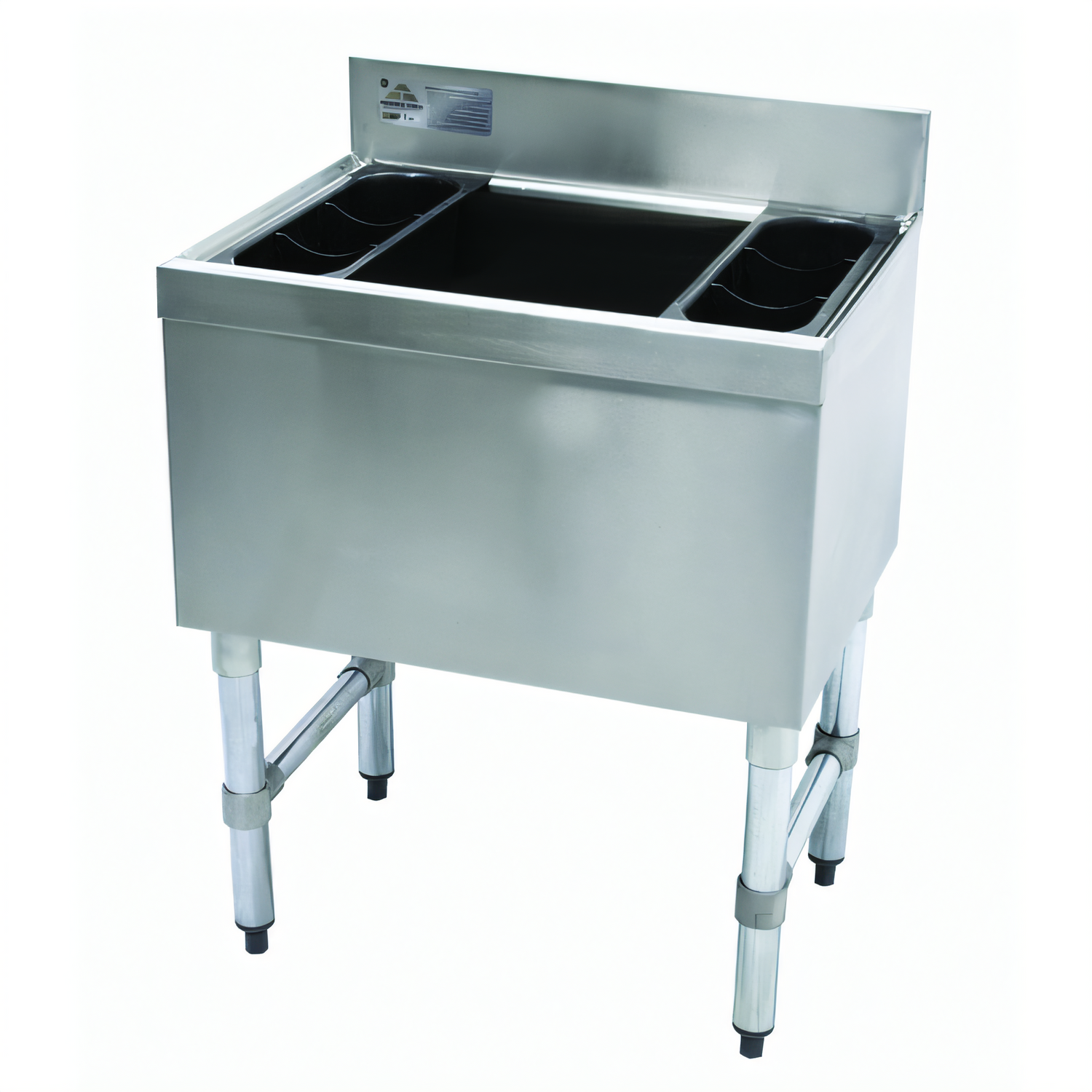

Advance Tabco Underbar Basics™ 36" Cocktail Ice Bin w/ 10-Circuit Cold Plate

Model SLI-12-36-10 · 119 lb Ice Capacity

Engineered for high-volume bar service, this Underbar Basics™ unit pairs a cast-aluminum cold plate with a fully insulated ice chest—delivering ice-cold mixes and lightning-fast drink prep shift after shift.

Key Features

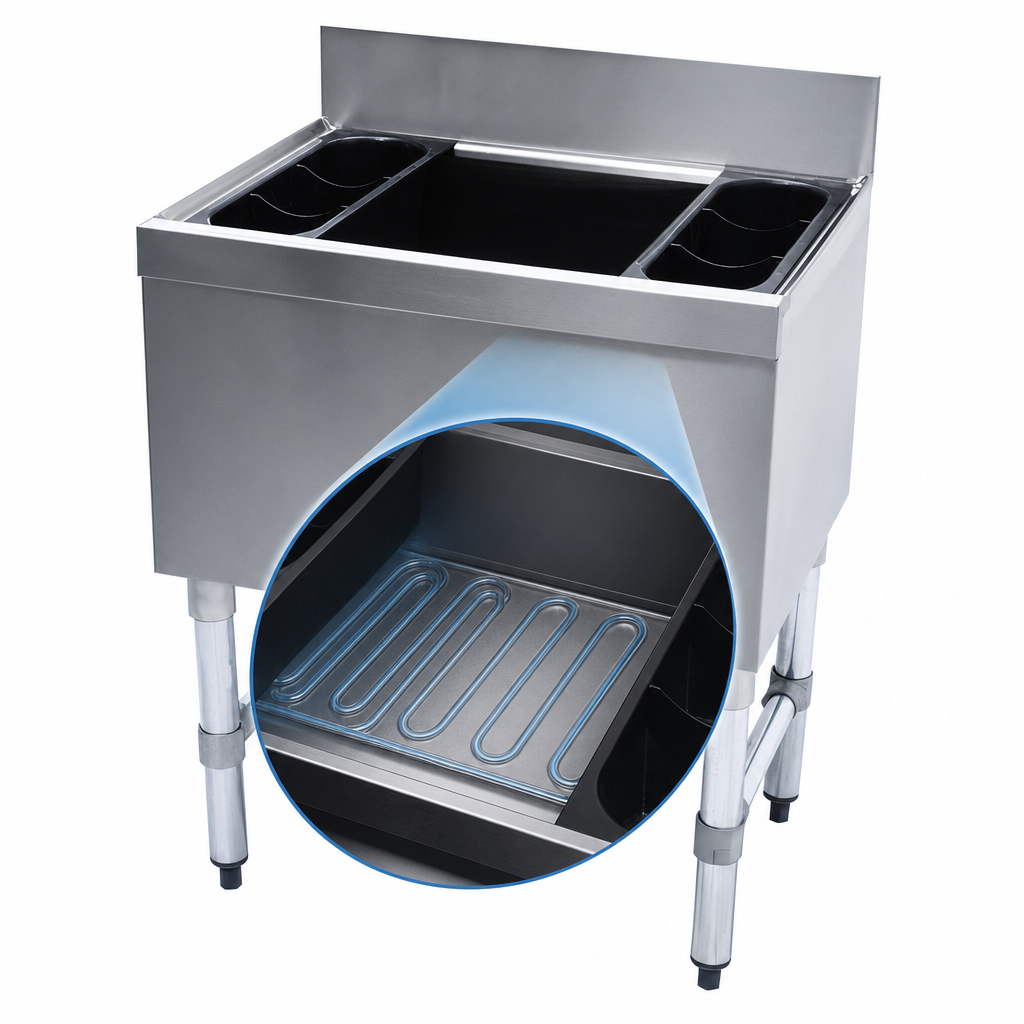

  • Integrated 10-circuit cold plate (sealed into bin floor) chills 8 syrup and 2 water lines.

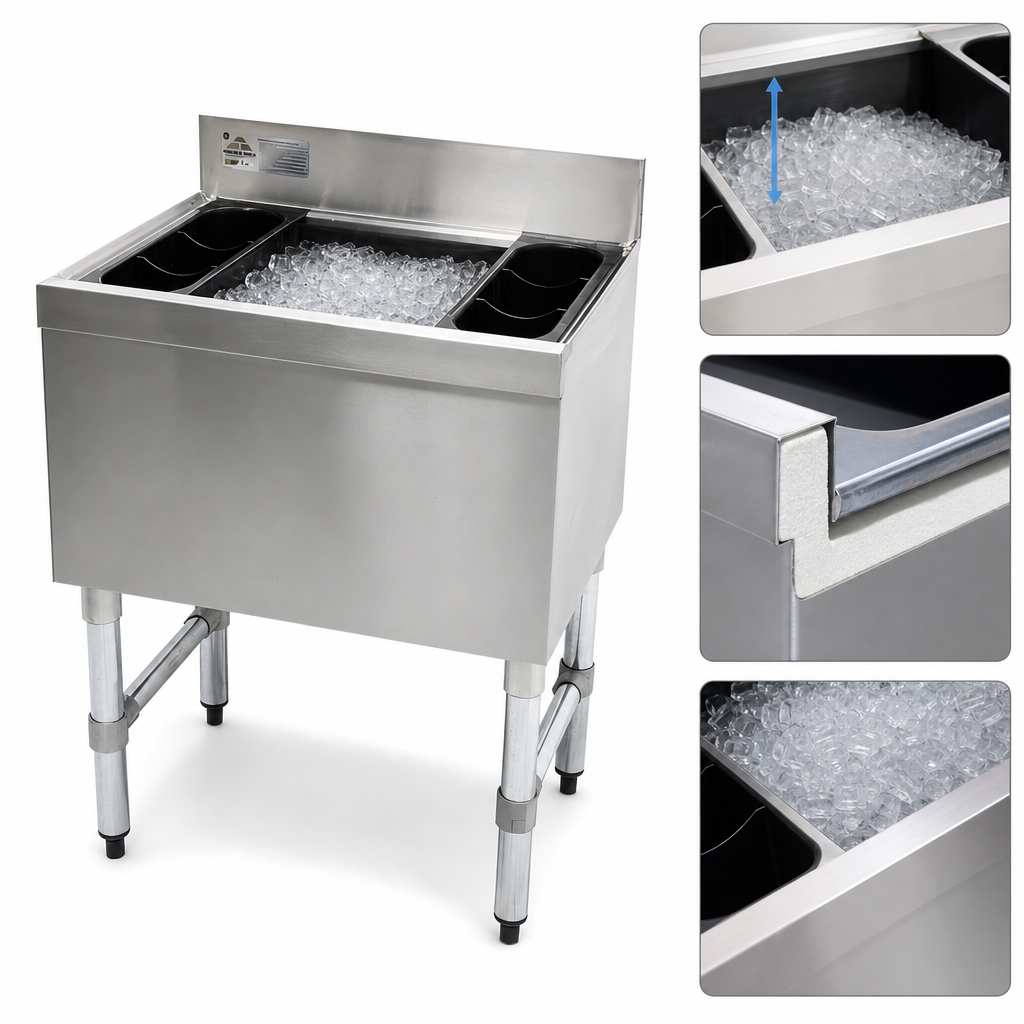

  • 12" deep, foam-insulated chest holds up to 119 lb of ice.
  • 22 ga 300 series stainless steel ice bin, apron, and 4" backsplash for superior corrosion resistance.
  • 20 ga 430 series stainless steel sides withstand daily bumps behind the bar.
  • (2) removable injection-molded bottle racks keep up to six 1-qt flavor bottles within reach.
  • 1/2" IPS drain for quick melt-water removal.
  • 1 5/8" Ø galvanized legs with adjustable bullet feet and side cross-bracing for rock-solid stability.
  • NSF listed for safe, sanitary operation.

Bottle racks must be removed when the optional sliding cover is installed to maintain NSF compliance.

Specifications

Overall Width 36"
Overall Depth 18"
Overall Height 33" (includes 4" backsplash)
Ice Bin Depth 12"
Ice Capacity 119 lb
Cold Plate Cast aluminum, 10 circuits (stainless lines, 5/16" Ø)
Materials 22 ga 300 SS bin/apron/backsplash · 20 ga 430 SS sides · galvanized understructure & legs
Drain 1/2" IPS
Legs / Feet (4) galvanized legs, adjustable plastic bullet feet
Shipping Weight Approx. 177 lb
Certifications NSF

Optional Accessories

  • SSC-36 stainless steel sliding cover  (ice-bin cover for overnight storage)
Quick Tip: Add the optional sliding cover to preserve ice quality between shifts and satisfy local health-department overnight storage requirements.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

36.0in

Depth

18.0in

Shipping Weight

140.0lbs

Splash

4"

Bin Depth

12" deep ice bin

Cold Plate

(10) circuit

Depth (front - back) OA

18" - 19"

Width (side - side) OA

31" - 36"

Construction

stainless steel & galvanized

Ice Capacity

100 - 149 lbs.

Specifications

Underbar Basics™ Cocktail Unit, 12" deep chest with 10-circuit cold plate, 36"W X 18"D X 33"H, 4" splash, 119-lbs. ice capacity, (2) plastic bottle racks, 22/300 series stainless steel ice bin, front apron & backsplash, 20/430 stainless steel sides, galvanized legs with adjustable bullet feet, NSF
