Description

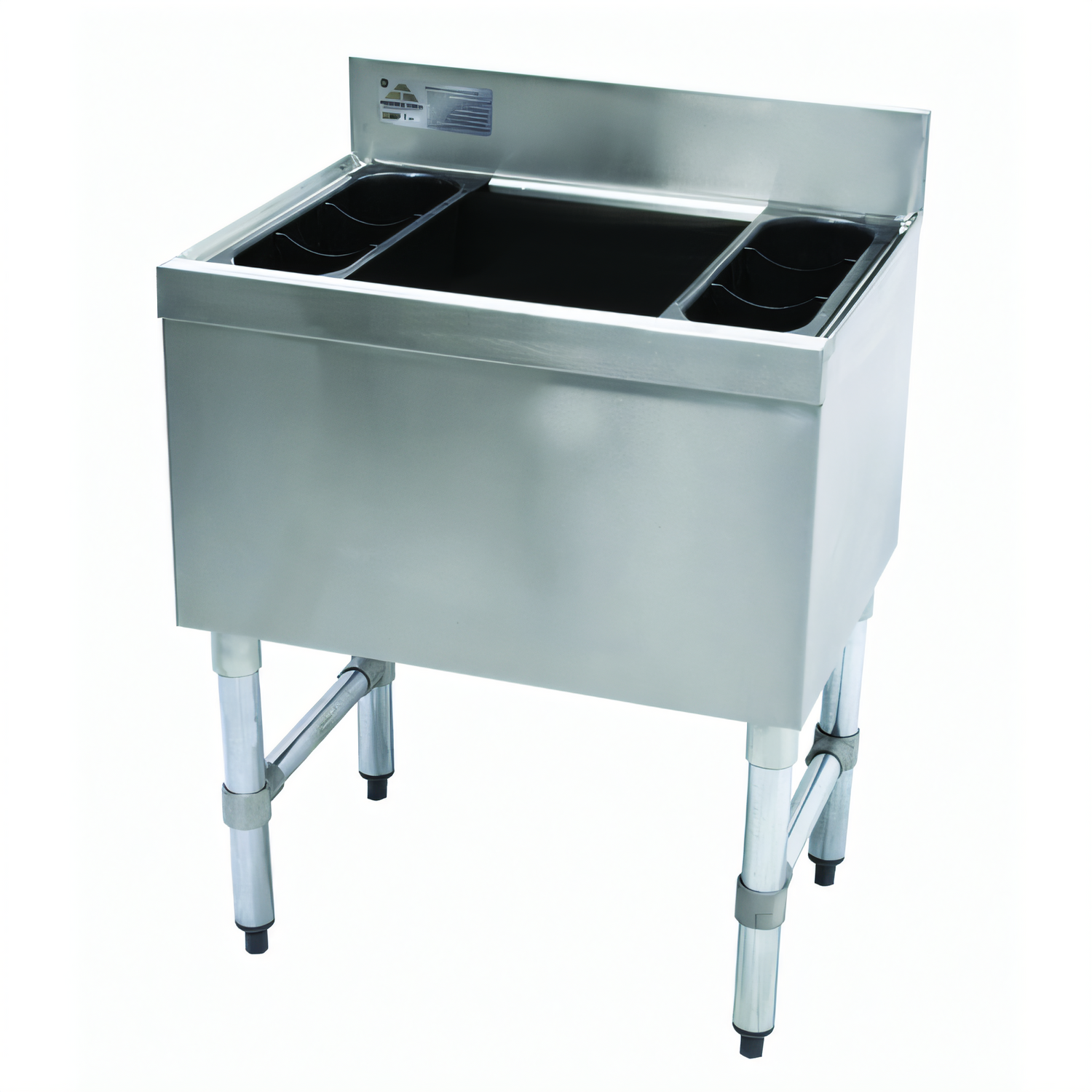

Underbar Basics™ 30" Cocktail Ice Bin w/ 10-Circuit Cold Plate

Model: SLI-12-30-10 | NSF Listed

Keep cocktails flowing and bar service efficient with the Advance Tabco Underbar Basics™ 30" Cold-Plate Ice Bin. Engineered for busy beverage programs, this compact unit chills 98 lb. of ice while its integrated 10-circuit cold plate powers up to ten soda/water lines—no remote chiller required.

Key Benefits

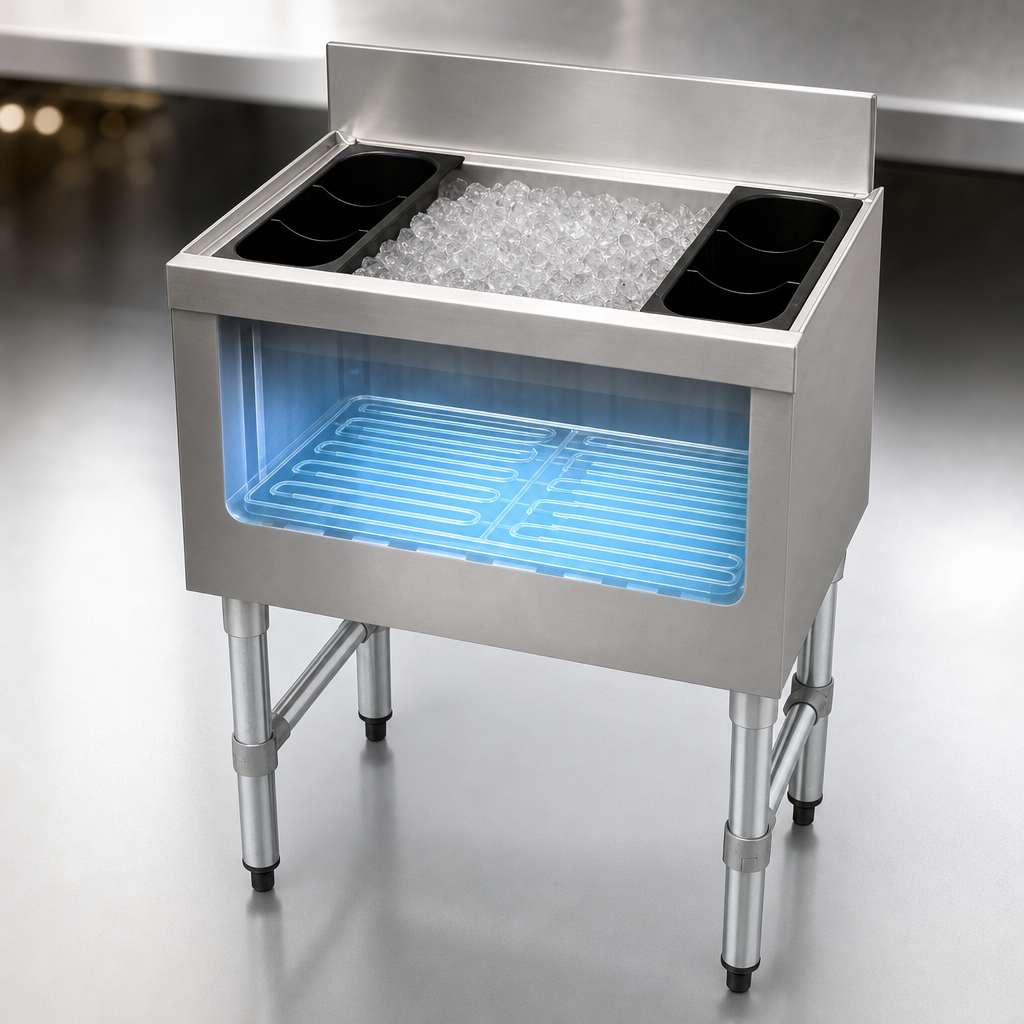

  • 10-circuit cast-aluminum cold plate sealed directly into the bin bottom for maximum contact and rapid drink cooling.

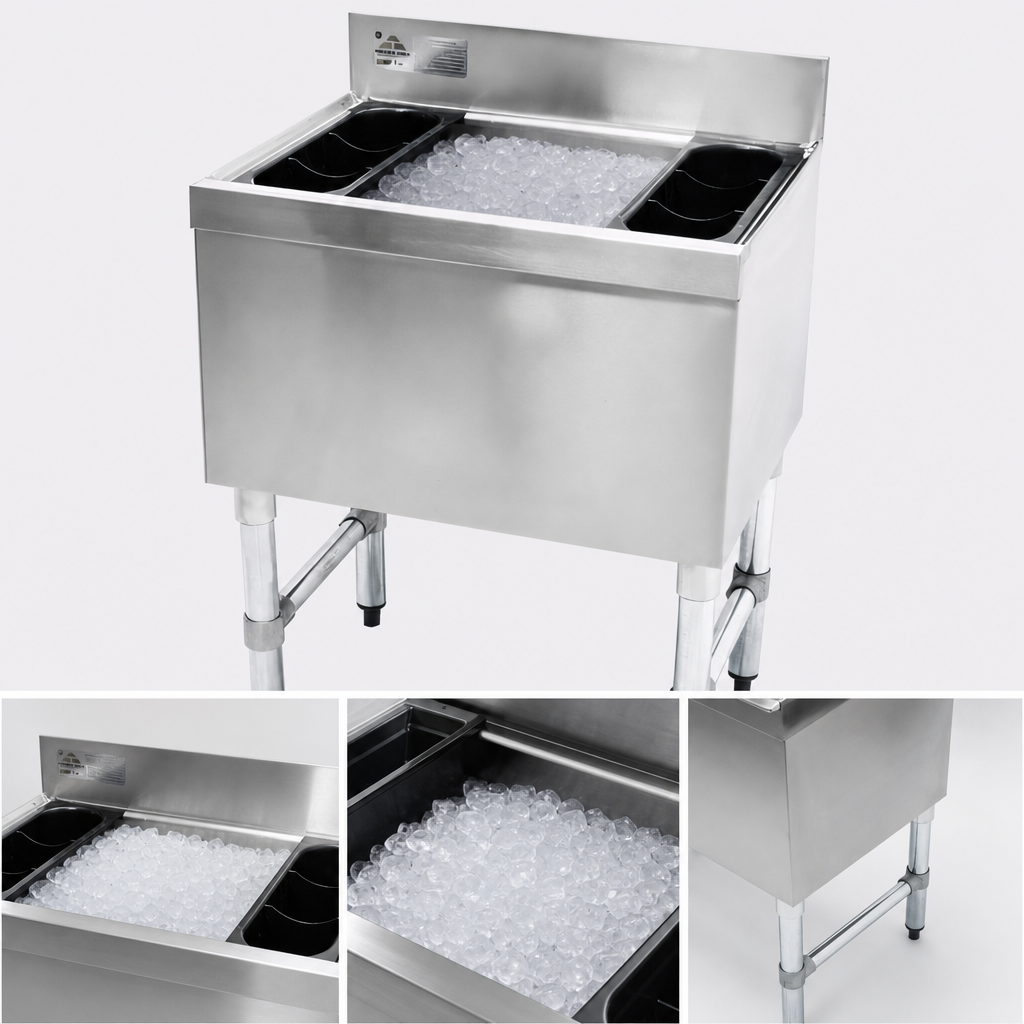

  • 98 lb. ice capacity (12" deep chest) keeps high-volume service running without constant refills.
  • Durable 22 gauge 300-series stainless steel ice bin, front apron & 4" backsplash resist corrosion and daily wear.
  • 20 gauge 430-series stainless steel sides deliver strength at a value price point.
  • Two removable 3-pack plastic bottle racks organize flavoring syrups or juice mixes for faster service.
  • Fully foamed-in-place insulation preserves ice longer and eliminates exterior condensation.
  • 1 5⁄8" O.D. galvanized steel legs with adjustable bullet feet level the unit on uneven floors.
  • 1⁄2" IPS drain for quick, reliable bin emptying.
Specifications
Overall Dimensions (W × D × H) 30" × 18" × 33"
Ice Bin Depth 12"
Ice Capacity 98 lb.
Cold Plate Cast aluminum, 10 circuits (sealed)
Drain Location 15" from left end (½" IPS)
Inside Bin Width 27 5⁄8"
Materials – Bin/Apron/Backsplash 22 ga. 300-series stainless steel
Materials – Sides 20 ga. 430-series stainless steel
Legs & Bracing 18 ga. galvanized steel, adjustable bullet feet, galvanized side cross-bracing
Approx. Shipping Weight 165 lb.
Certifications NSF
Perfect For
  • Full-service cocktail bars
  • High-volume nightclubs & lounges
  • Hotel & banquet beverage stations
  • Restaurant bar backs or service wells
Note: Plastic bottle racks must be removed for NSF compliance and when using an optional stainless-steel sliding cover (models SSC-30, sold separately).

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

30.0in

Depth

18.0in

Shipping Weight

132.0lbs

Bin Depth

12" deep ice bin

Splash

4"

Construction

stainless steel & galvanized

Cold Plate

(10) circuit

Depth (front - back) OA

18" - 19"

Width (side - side) OA

25" - 30"

Ice Capacity

70 - 99 lbs.

Specifications

Underbar Basics™ Cocktail Unit, 12" deep chest with 10-circuit cold plate, 30"W X 18"D X 33"H, 4" splash, 98-lbs. ice capacity, (2) plastic bottle racks, 22/300 series stainless steel ice bin, front apron & backsplash, 20/430 stainless steel sides, galvanized legs with adjustable bullet feet, NSF
