Advance Tabco Underbar Basics 24-Inch Stainless Steel Cocktail Unit Ice Bin with 7-Circuit Cold Plate

SKU: SLI-12-24-7
GTIN: 747545191588
$1,744.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

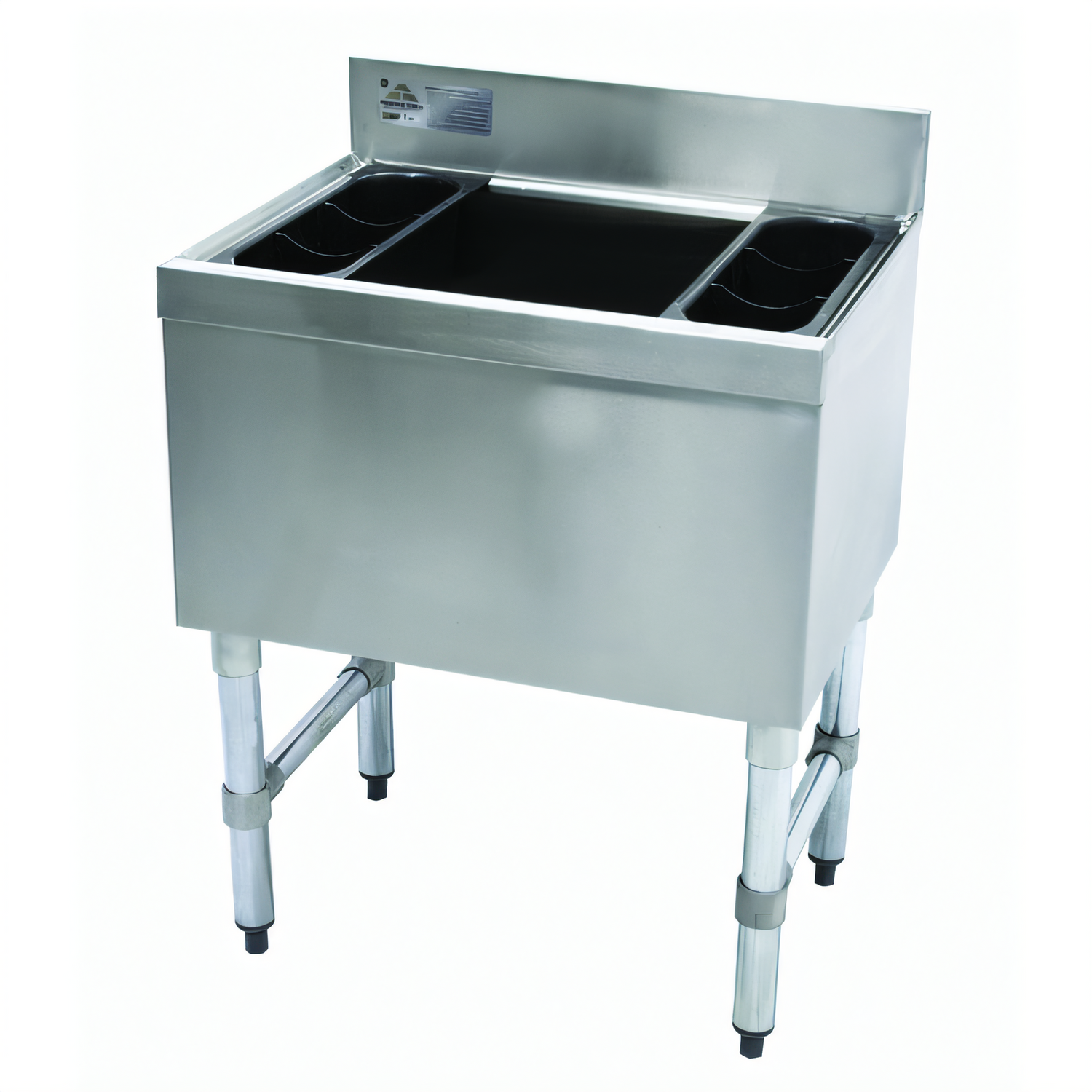

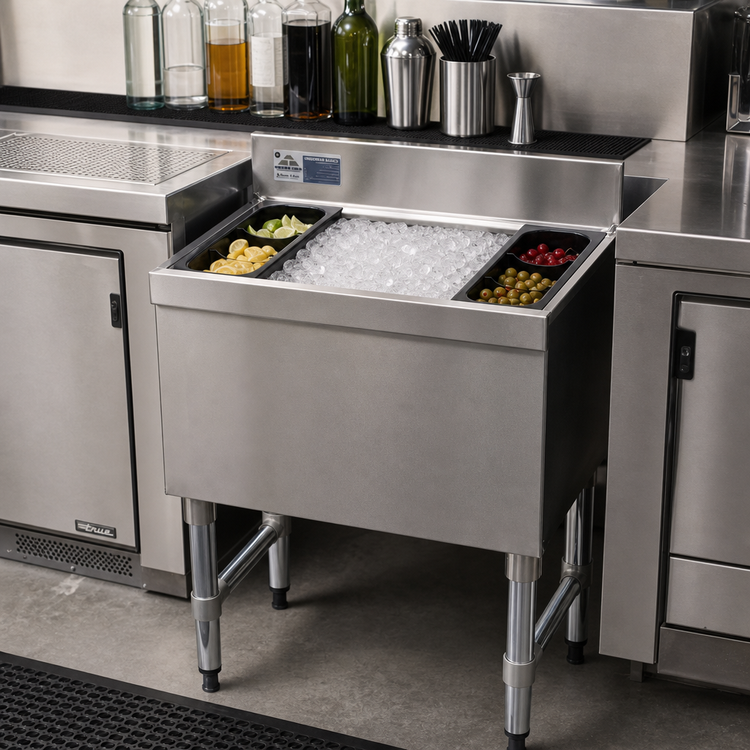

Advance Tabco Underbar Basics 24-Inch Stainless Steel Cocktail Unit Ice Bin with 7-Circuit Cold Plate

12-Inch Deep Bin, 77-lb Ice Capacity, 4-Inch Backsplash

Built for efficient bar service, this 24-inch cocktail unit combines a 12-inch-deep insulated ice bin with a sealed 7-circuit cold plate and durable stainless steel construction.

  • 24-inch-wide cocktail unit with a 12-inch-deep insulated ice bin and 77-lb capacity.
  • Built-in 7-circuit cold plate helps keep beverages chilled at the bar.
  • 4-inch backsplash and front apron help contain messes and protect surrounding surfaces.
  • 22/300 stainless steel ice bin, front apron, and backsplash with 20/430 stainless steel sides.
  • Includes two removable plastic bottle racks and galvanized legs with adjustable bullet feet.

Overall Dimensions:

24.0"W x 18.0"D x 33.0"H

Product Weight:

88.0 lb

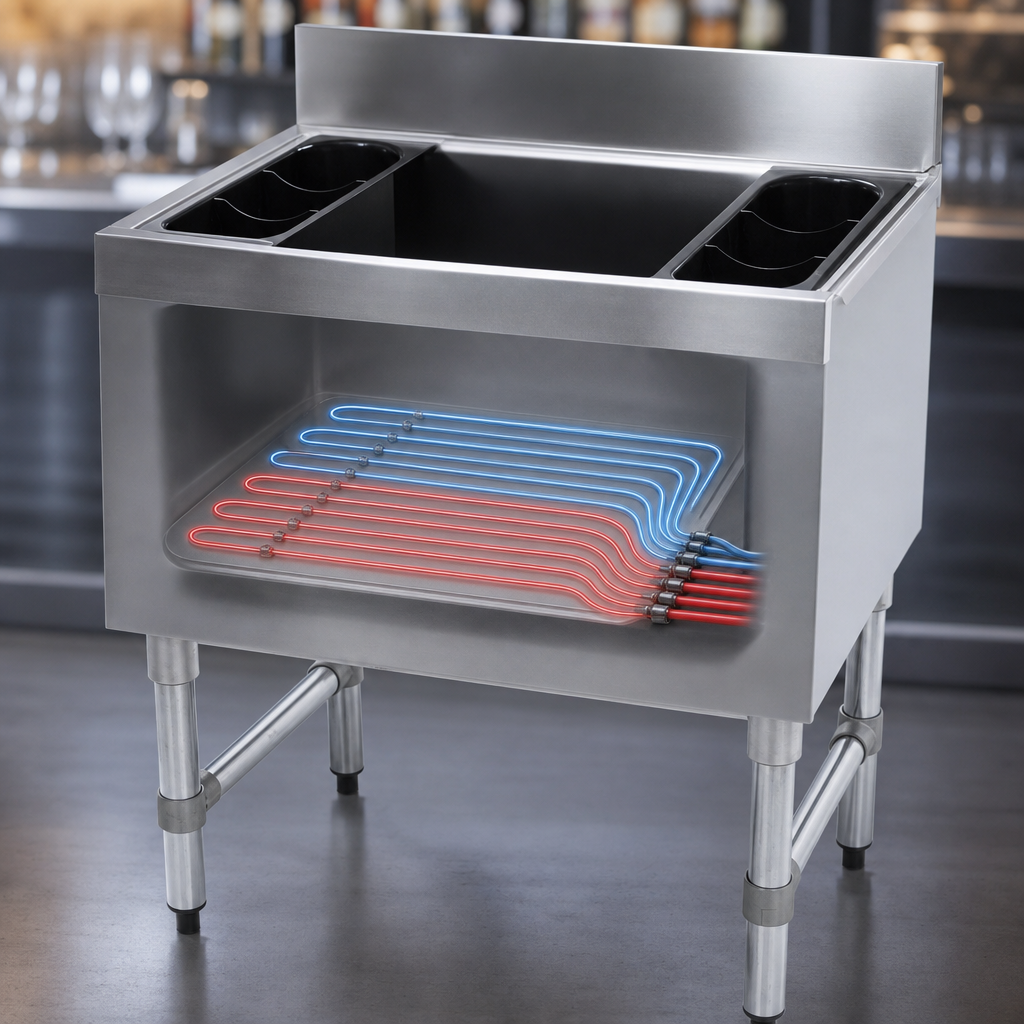

7-Circuit Sealed Cold Plate

Cold plate is sealed into the bottom of the bin and uses 7 circuits (5 syrup and 2 water lines) for chilled beverage service.

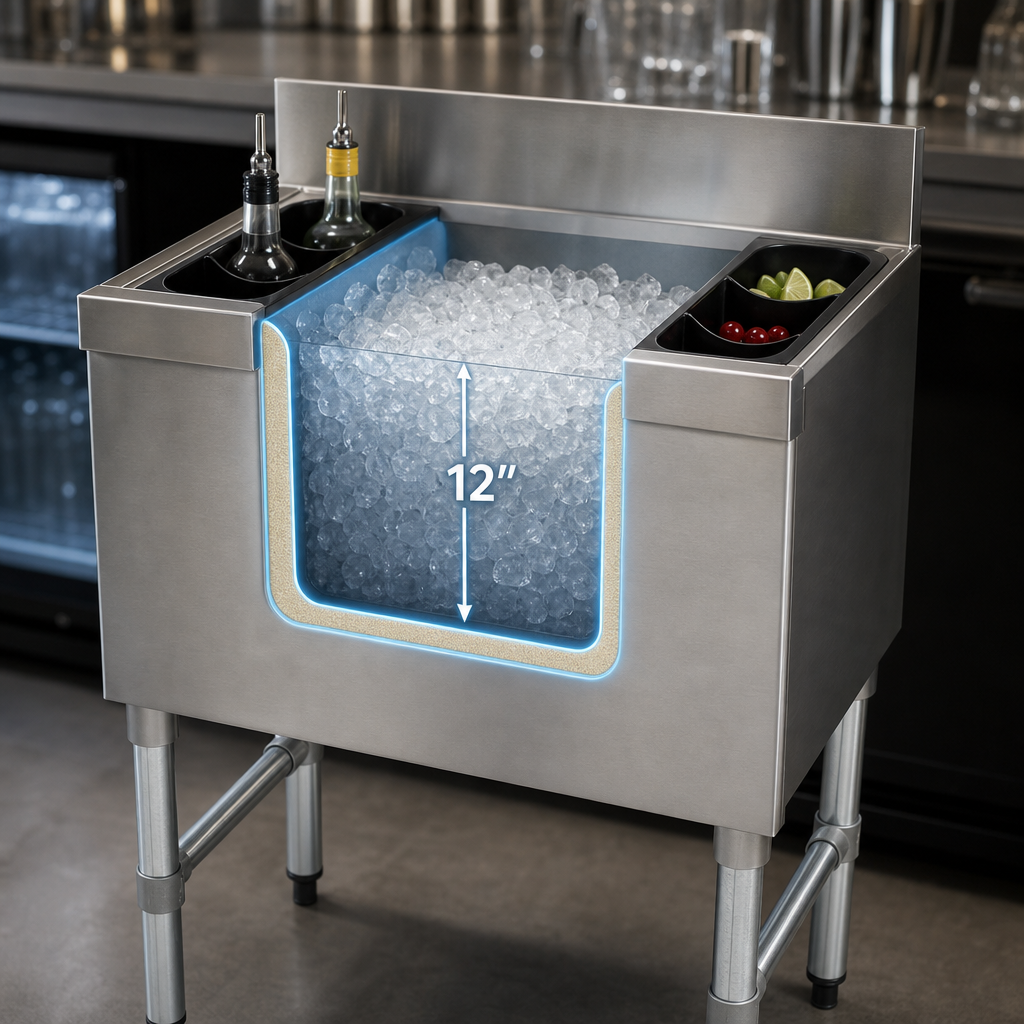

12-Inch Deep Insulated Bin

Foam-insulated ice bin helps preserve ice and maintain serving temperatures.

4-Inch Backsplash

Built-in splash helps contain spills and protect the wall behind the unit.

Stainless Steel Construction

Ice bin, front apron, and backsplash are 22 gauge 300 series stainless steel; sides are 20 gauge 430 stainless steel.

Removable Bottle Racks

Includes two removable injection-molded 3-pack plastic bottle racks for organized bottle storage.

Galvanized Legs with Adjustable Bullet Feet

Galvanized support legs and adjustable plastic bullet feet provide stable positioning and leveling.

1/2-Inch IPS Drain

Cold plate bin includes a 1/2-inch IPS drain connection.

Optional Sliding Cover Available

Compatible with the SSC-12 sliding stainless steel cover sold separately.

Type Ice Bin
Style Cocktail Unit
Installation Type Floor Model
Capacity 77 Pounds
Ice Bin Depth 12 Inches
Backsplash Height 4 Inches
Cold Plate Circuits 7
Drain Connection Size 1/2 Inch IPS
Material Stainless Steel
Construction Stainless Steel and Galvanized Steel
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The ice capacity is 77 pounds.
It has a sealed 7-circuit cold plate with 5 syrup lines and 2 water lines.
The ice bin, front apron, and backsplash are 22 gauge 300 series stainless steel, the sides are 20 gauge 430 stainless steel, and the legs are galvanized steel.
Yes, it includes two removable injection-molded 3-pack plastic bottle racks.
Yes, the SSC-12 sliding stainless steel cover is available separately for the 12-inch ice bin.
It uses a 1/2-inch IPS drain connection.
