Advance Tabco SLC-84C-L Underbar Basics™ Bar Equipment
Description

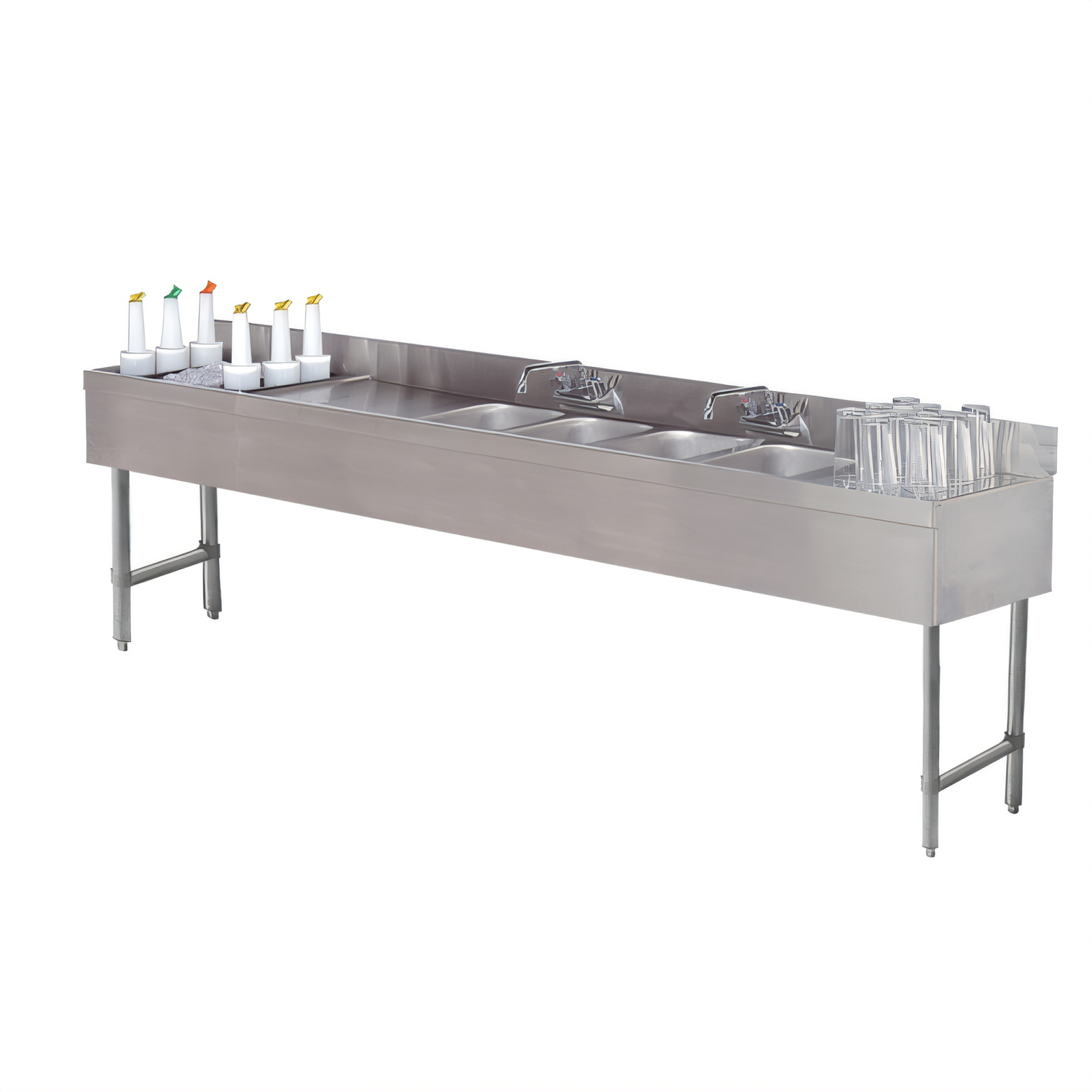

Underbar Basics™ 96" Bar Sink + Ice Bin Combination Unit
4-Compartment • 18" Deep • NSF ListedBuild a faster, cleaner and more efficient bar with the all-in-one Underbar Basics™ 96" combination unit from Advance Tabco. Four deep-drawn sinks, twin drainboards and an insulated ice bin with bottle storage keep glassware, mixers and sanitation right where bartenders need them—no wasted steps, no cluttered countertops.
Why You’ll Love It

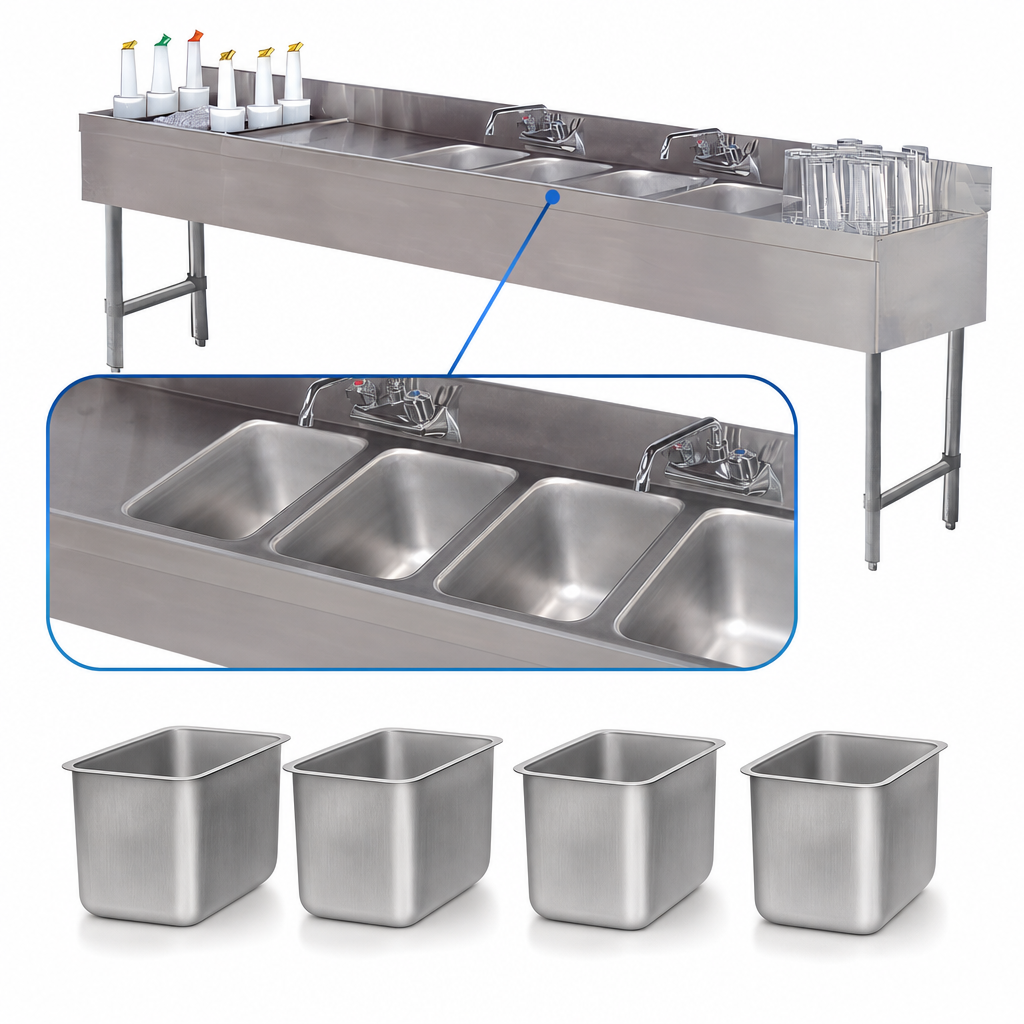

- Four 10" × 14" × 10" seamless sink bowls speed through glassware & small-ware rinsing.
- Includes two splash-mount faucets with 6" swing spouts (4" on-center) for simultaneous use.
- 12" embossed drainboards on both left and right keep drying glassware off the bar top.

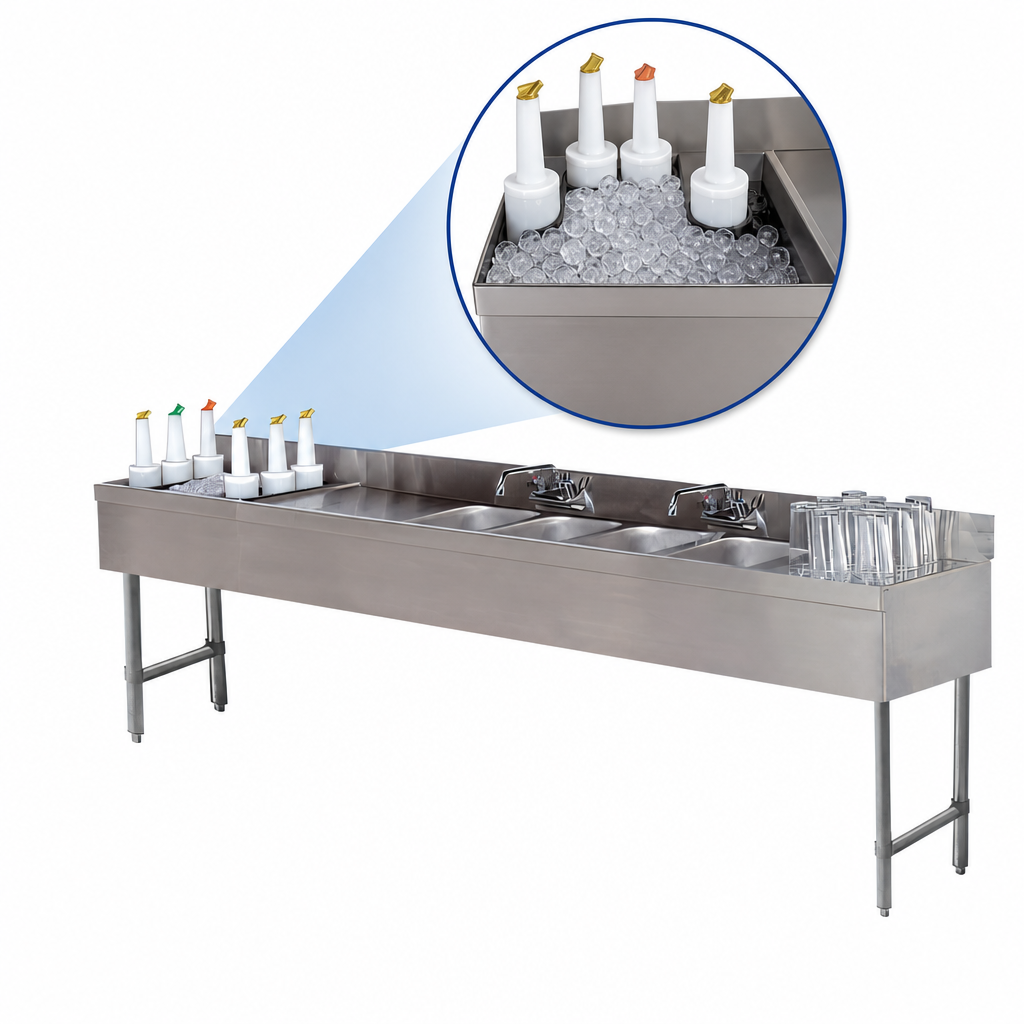

- Insulated 24" × 15" × 8" ice bin (54 lb. capacity) with two removable bottle racks—perfect for soda, juice & purées.
- 20 ga 300 series stainless steel bowls & drainboards resist corrosion and are easy to sanitize.
- Galvanized 1-5/8" O.D. legs with front-to-back cross rails and adjustable bullet feet for rock-solid stability.
- 4" backsplash and molded front apron contain splashes and protect surrounding surfaces.
- NSF certified for safe food-contact operation behind any commercial bar.
At-a-Glance Specs
| Overall dimensions | 96" W × 18" D × 33" H (to work surface) 4" H backsplash |
|---|---|
| Sink bowls (qty 4) | 10" W × 14" D × 10" H • 20 ga 300 SS • 1 ½" IPS drains with 9" overflow pipes |
| Faucets (included) | (2) Splash-mount, 6" swing spout, 4" O.C. lead-free brass, NSF 61/9 compliant |
| Drainboards | (2) 12" W embossed, seamless, right & left of sink section |
| Ice bin | 24" W × 15" D × 8" H, left side • 54 lb. ice capacity • 2 lb/ft³ closed-cell insulation • 1" IPS drain |
| Bottle racks | (2) Removable, injection-molded plastic |
| Materials |
Bowls & drainboards: 20 ga 300 SS Apron & backsplash: 22 ga 300 SS Sides: 20 ga 430 SS Undershelf channels: 22 ga galvaneal front/back, 11 ga leg channel |
| Legs / feet | 18 ga galvanized steel legs, adjustable plastic bullet feet |
| Shipping weight | Approx. 210 lb • 26 cu. ft. |
| Certifications | NSF, lead-free compliant faucets |
Installation & Utility
- Provide separate 1 ½" IPS waste outlets for each sink bowl.
- Ice bin requires 1" IPS drain connection.
- Mount faucets through pre-punched 4" on-center holes in backsplash.
- Leg feet adjust up to 1" to level on uneven floors.
Need extra wrist handles, speed rails or side splashes? Contact us for factory-installed options.
