Description

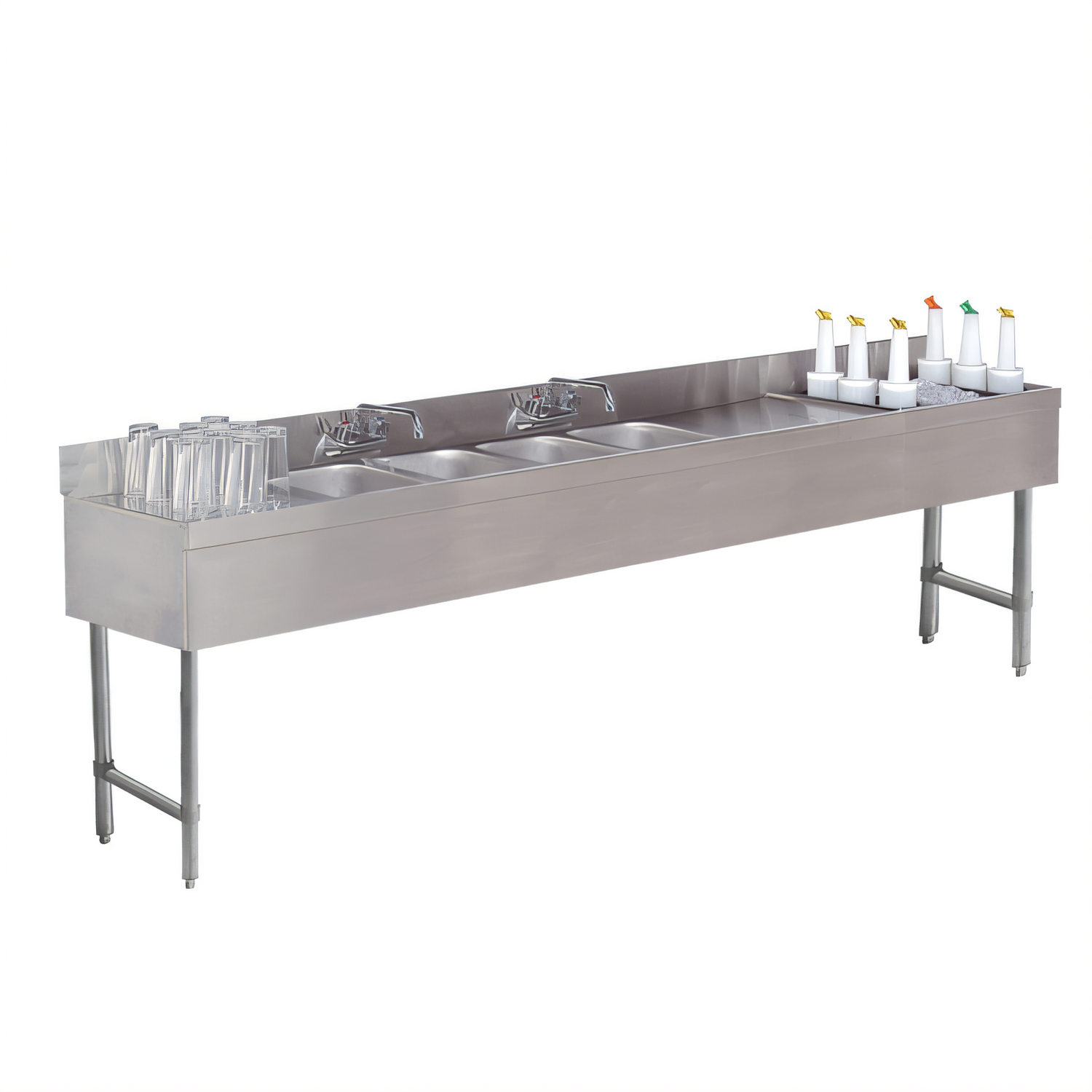

Underbar Basics™ 96" Combination Unit

by Advance Tabco • 18" Wide Series • NSF Listed

Engineered for high-volume beverage programs, the Underbar Basics™ combination unit delivers three deep-drawn sink compartments, generous dual drainboards, and a high-capacity insulated ice bin in one continuous stainless-steel workspace. Maximize efficiency, maintain sanitation, and keep bartenders moving during the busiest shifts.

Why It Belongs Behind Your Bar

  • Three 10" W × 14" D × 10" deep sink bowls – seamless, easy-clean design.
  • 10" splash-mount swing-spout faucet with 4" on-center inlets included.

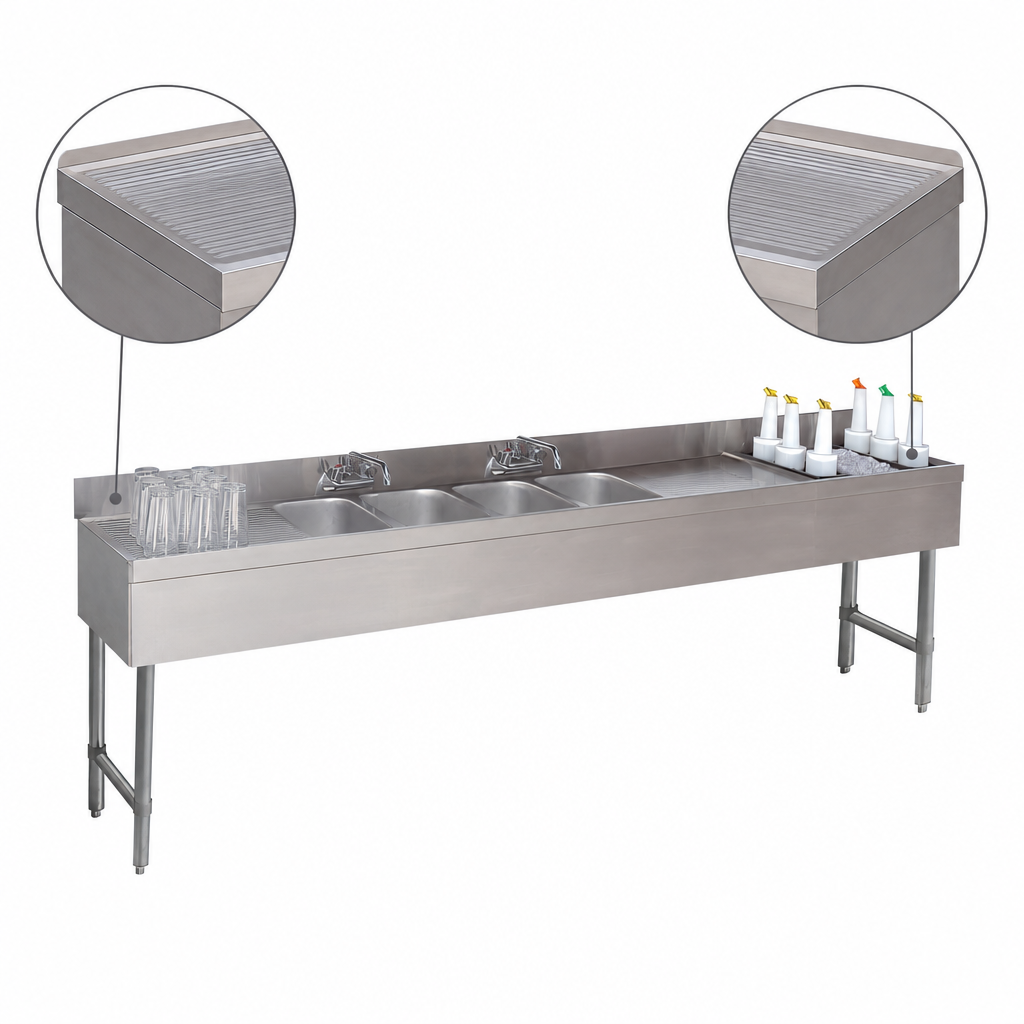

  • 18" left & right drainboards with embossed corrugation to speed drying.
  • 24" W × 15" D × 8" deep insulated ice bin (54 lb capacity) keeps ice solid longer.
  • (2) removable plastic bottle racks organize juice & mixer bottles inside the bin.
  • 4" integrated backsplash contains splashes and protects walls.
  • All-welded 300-series stainless steel top, bowls & drainboards for superior corrosion resistance.
  • 1 5⁄8" O.D. galvanized legs with front-to-back cross rails and adjustable bullet feet for rock-solid stability.
  • 1 ½" IPS drains with 9" overflow pipes on sink bowls; 1" IPS drain on ice bin.
  • NSF certified for commercial bar & restaurant use.

Technical Specifications

Overall dimensions 96" W × 18" D × 33" H
Backsplash height 4"
Sink compartments (3) 10" W × 14" D × 10" H
Drainboards (2) 18" W – left & right
Ice bin 24" W × 15" D × 8" H, 54 lb ice capacity, right-hand location
Included faucet 10" swing spout, splash-mount, 4" on-center
Construction 300-series stainless steel top, bowls & drainboards; 430-series stainless sides; galvanized under-structure
Legs & bracing 18 ga galvanized 1 5⁄8" O.D. legs with front-to-back cross rails & adjustable plastic bullet feet
Plumbing connections (3) 1 ½" IPS sink drains with 9" overflows, (1) 1" IPS ice bin drain
Certifications NSF, Lead-Free faucet

Ideal Applications

  • High-volume cocktail bars
  • Brewpub taprooms
  • Hotel banquet service
  • Event venues & stadium concessions
Proposition 65 Notice: This equipment, including its faucet, can expose you to chemicals such as lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Faucet, legs, and overflow pipes ship loose for field installation.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Underbar Basics™

Certifications

NSF

Height

33.0in

Width

96.0in

Depth

18.0in

Shipping Weight

190.0lbs

Construction

stainless steel & galvanized

Width (side - side) OA

91" - 96"

Components (left to right)

drainboard, (3) sinks, drainboard, ice bin

Depth (front - back) OA

18" - 19"

Sink Compartments

(3)

Splash

4"

Specifications

Underbar Basics™ Combination Unit, 96"W x 18"D x 33"H (overall), with 4"H backsplash, includes: (3) 10"W x 14"D x 10" deep sink bowls with (1) 10" spout splash mounted faucet, 18"W left & right drainboards, 24"W x 15"D x 8" deep ice bin (54 lbs capacity) with (2) removable plastic bottle racks on right side, stainless steel construction, galvanized legs with front-to-back cross rails & adjustable bullet feet, NSF
